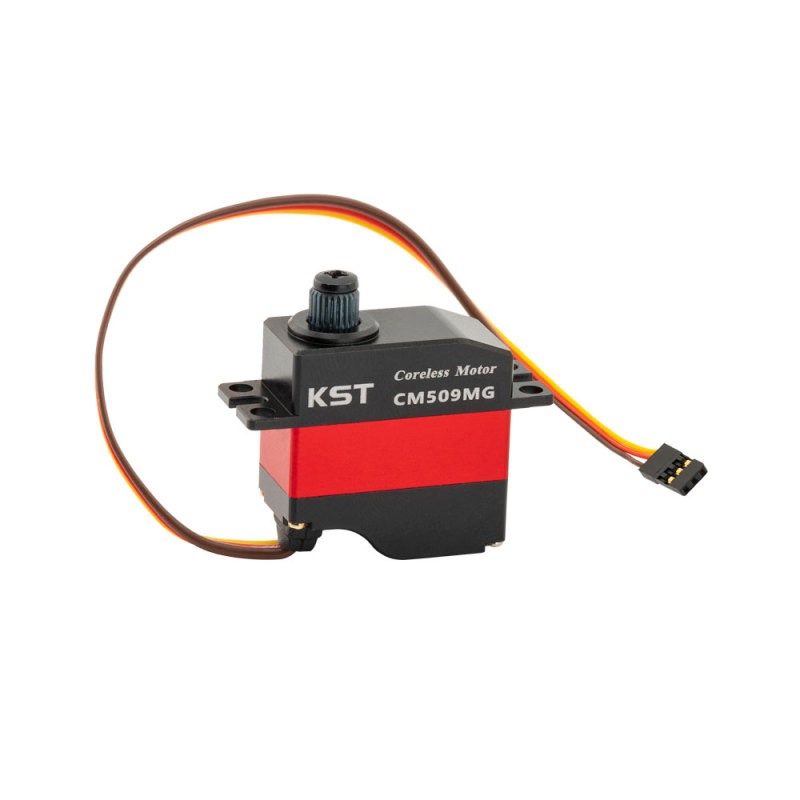

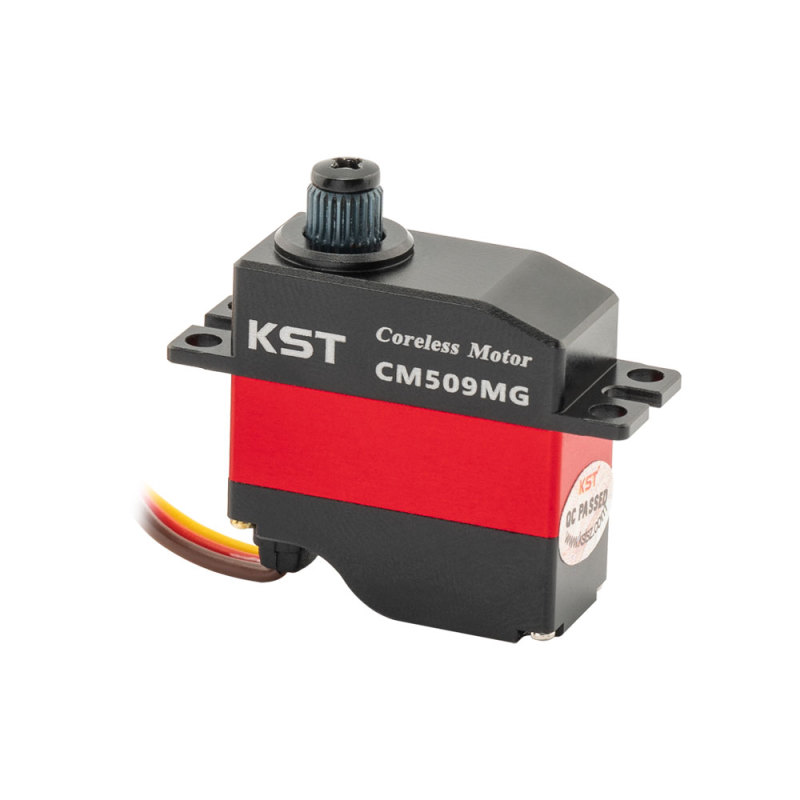

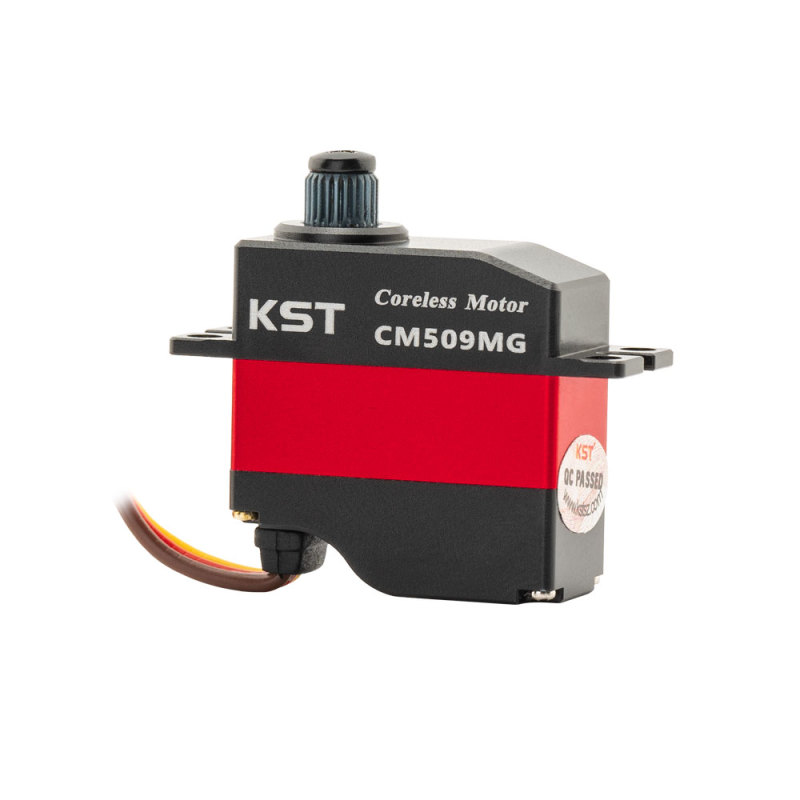

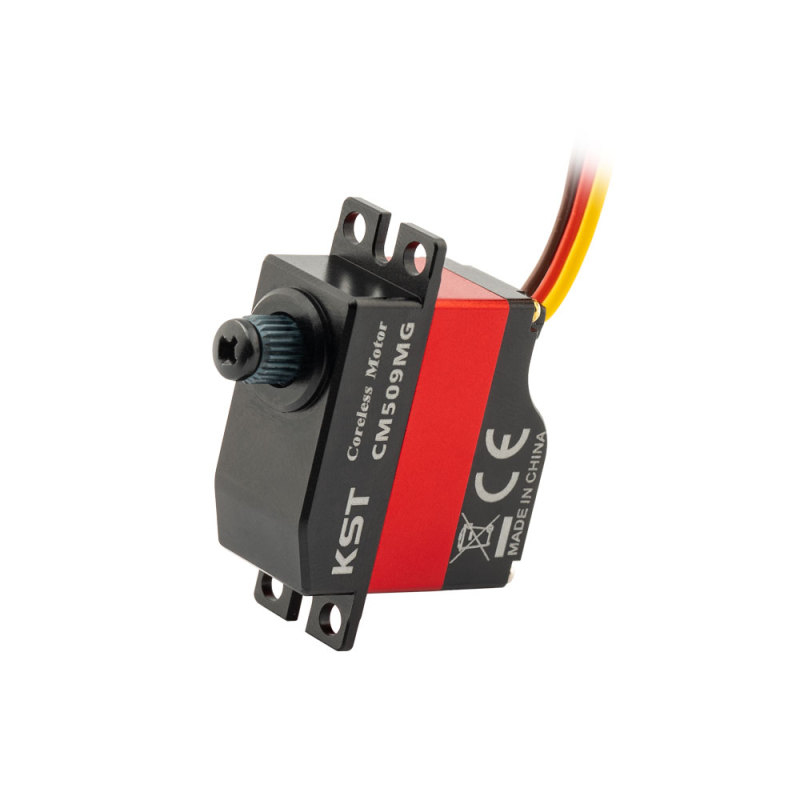

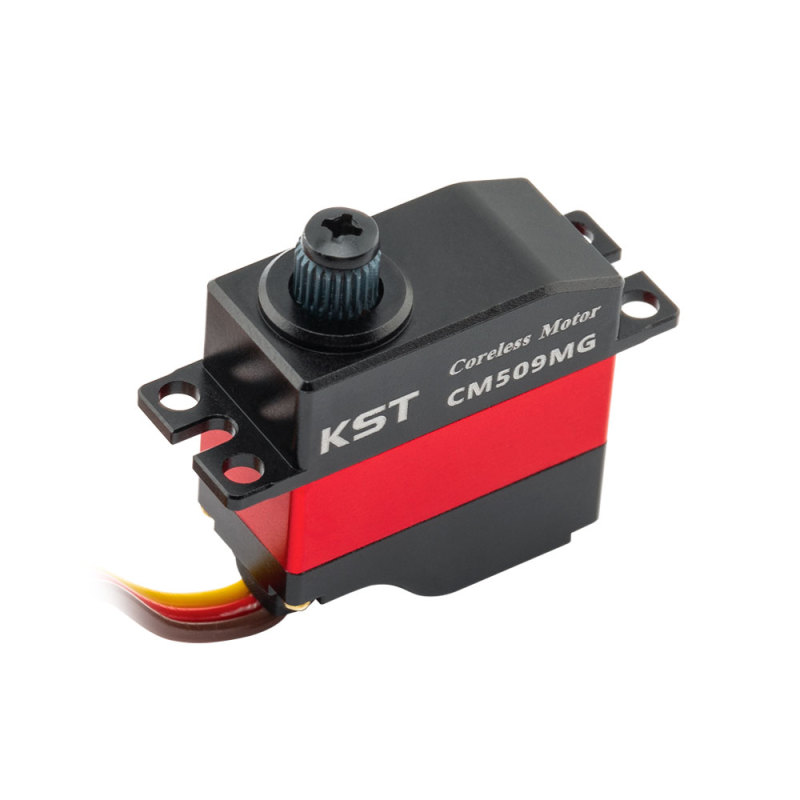

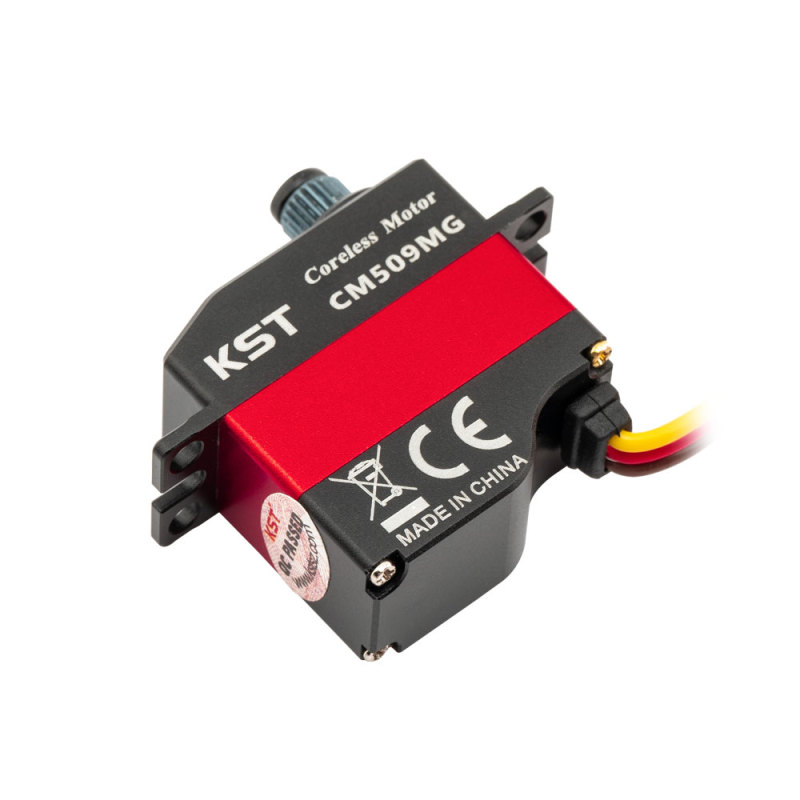

KST - CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars

SKU: BR0023.0238
$29.99 $22.49
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
Add to Favorites (0)
  • CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
  • CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
  • CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
  • CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
  • CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
  • CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
  • CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
  • CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
  • CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
  • CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
  • CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
  • CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
  • CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
  • CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
  • CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
  • CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
  • CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
  • CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
  • CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
  • CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
1/1
  • CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
  • CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
  • CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
  • CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
  • CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
  • CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
  • CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
  • CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
  • CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
  • CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
  • Description

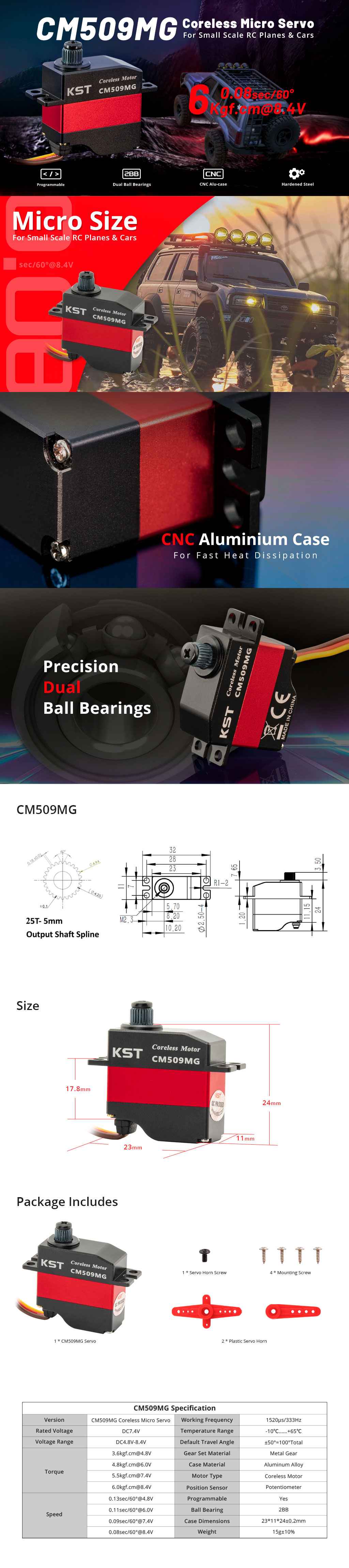

The CM509MG micro coreless servo with fast response and high torque is perfect for small-scale RC planes & cars. It features an ultra-fast 0.08sec/60° response speed and an amazing 6.0Kgf.cm of torque. The micro-size design makes it perfect for any small-scale RC model. The CM509MG also supports programming, making it one of the most advanced servos of its kind.

Features

  • High Torque & Amazing Speed
  • Compact and Lightweight Design
  • Programmable
  • Dual Ball Bearings
  • Coreless DC Motor
  • Ideal for Small Scale RC Planes & Cars


Specification

  • Item: CM509MG Micro Servo
  • Rated Voltage: DC7.4V
  • Voltage Range: DC4.8V-8.4V
  • Torque: 3.6Kgf.cm@4.8V / 4.8Kgf.cm@6.0V / 5.5Kgf.cm@7.4V / 6.0Kgf.cm@8.4V
  • Speed: 0.13sec/60°@4.8V / 0.11sec/60°@6.0V / 0.09sec/60°@7.4V / 0.08sec/60°@8.4V
  • Stalling Current: 0.95A@4.8V / 1.15A@6.0V / 1.35A@7.4V / 1.60A@8.4V
  • Working Frequency: 1520μs/333Hz

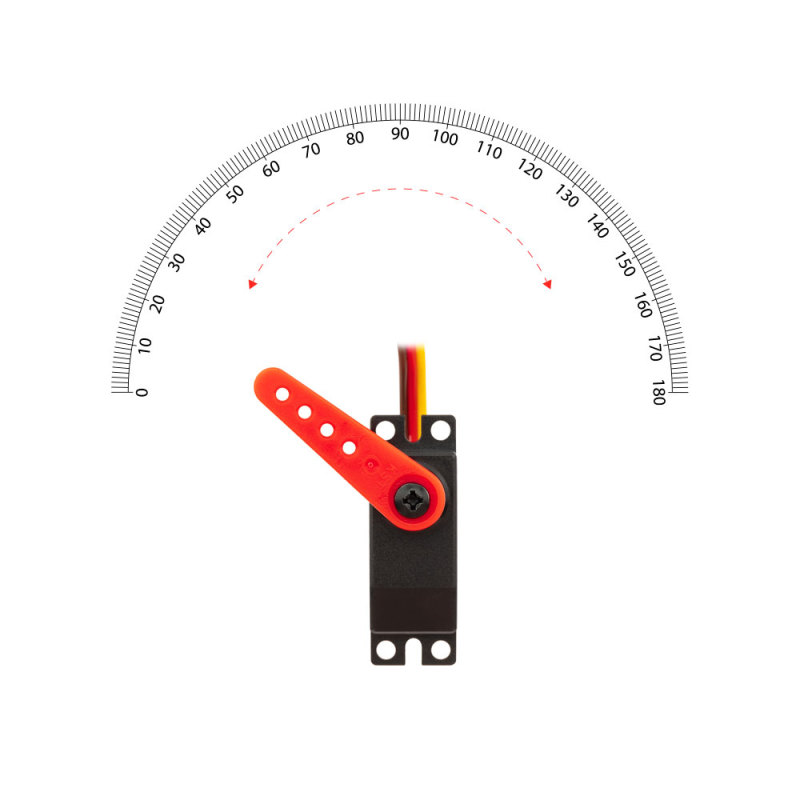

  • Default Travel Angle: ±50° =100° Total
  • Temperature Range: -10℃.......+65℃
  • Soft Start: Programmable
  • Programmable: Yes
  • Case Material: Aluminium Alloy
  • Motor Type: Coreless Motor
  • Gear Set Material: Metal Gear
  • Position Sensor: Potentiometer
  • Ball Bearing: 2BB

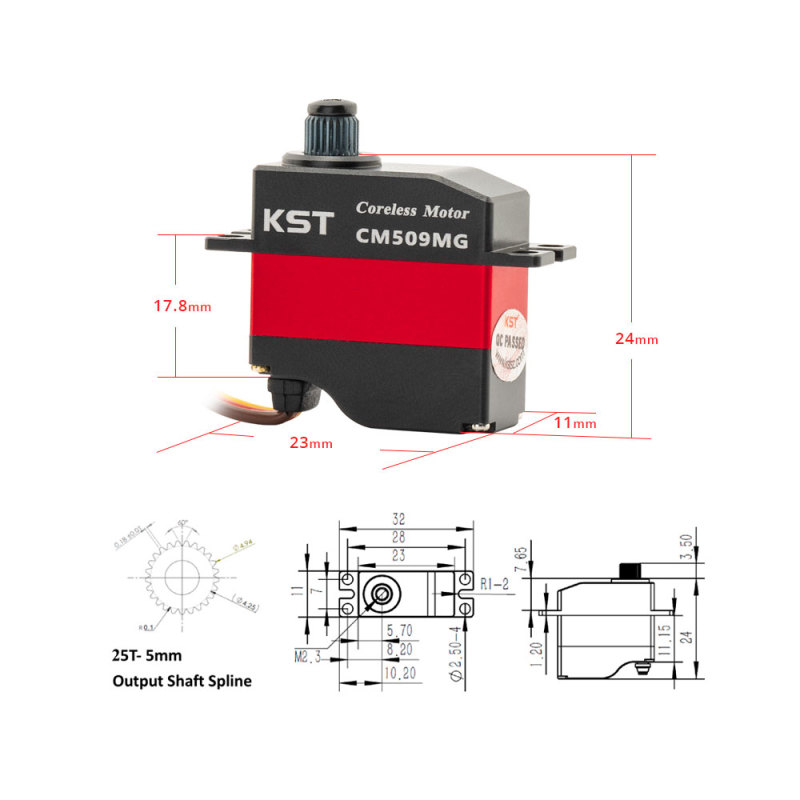

  • Case Dimensions: 23mm*11mm*24mm ±0.2mm
  • Weight: 15g±10%

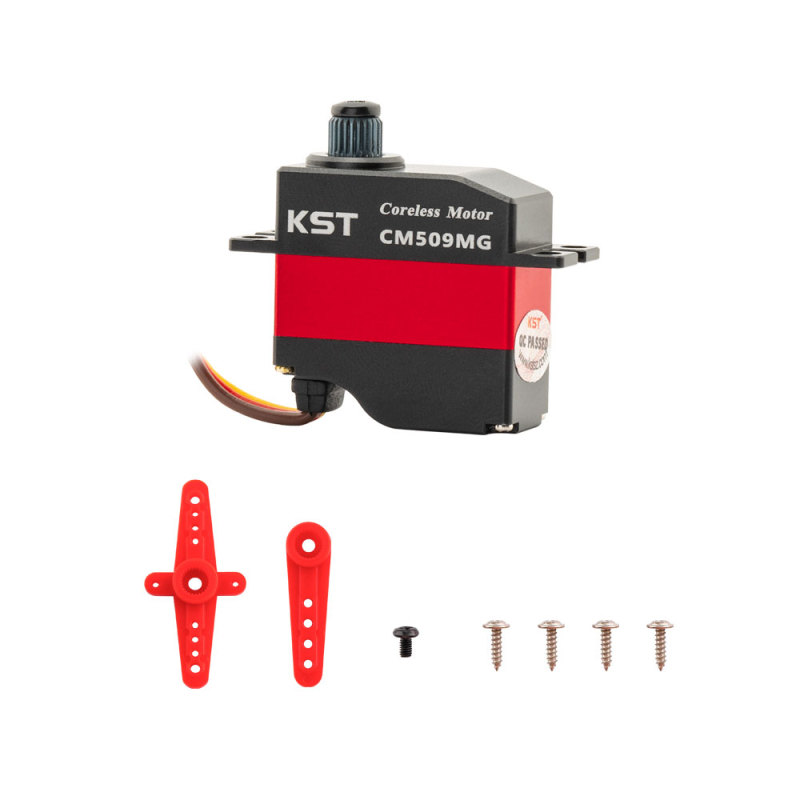

Package Includes

  • 1 * CM509MG Micro Servo

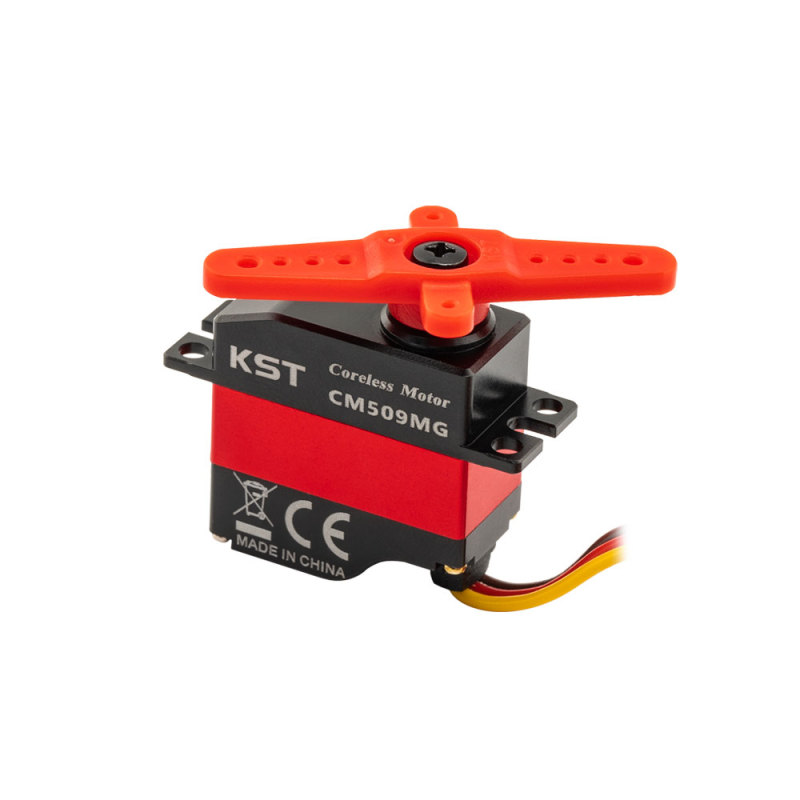

  • 2 * Plastic Servo Horn
  • 1 * Servo Horn Screw
  • 4 * Mounting Screw
