Home > Servos > E-power > E-Power D5545GS 120 Degree Aluminum Case Metal Grear Coreless Digital 45kg 0.11sec Waterproof HV Servo for RC Car Truck Crawler Boat Robot
  • E-Power D5545GS 120 Degree Aluminum Case Metal Grear Coreless Digital 45kg 0.11sec Waterproof HV Servo for RC Car Truck Crawler Boat Robot
1/1
  • E-Power D5545GS 120 Degree Aluminum Case Metal Grear Coreless Digital 45kg 0.11sec Waterproof HV Servo for RC Car Truck Crawler Boat Robot

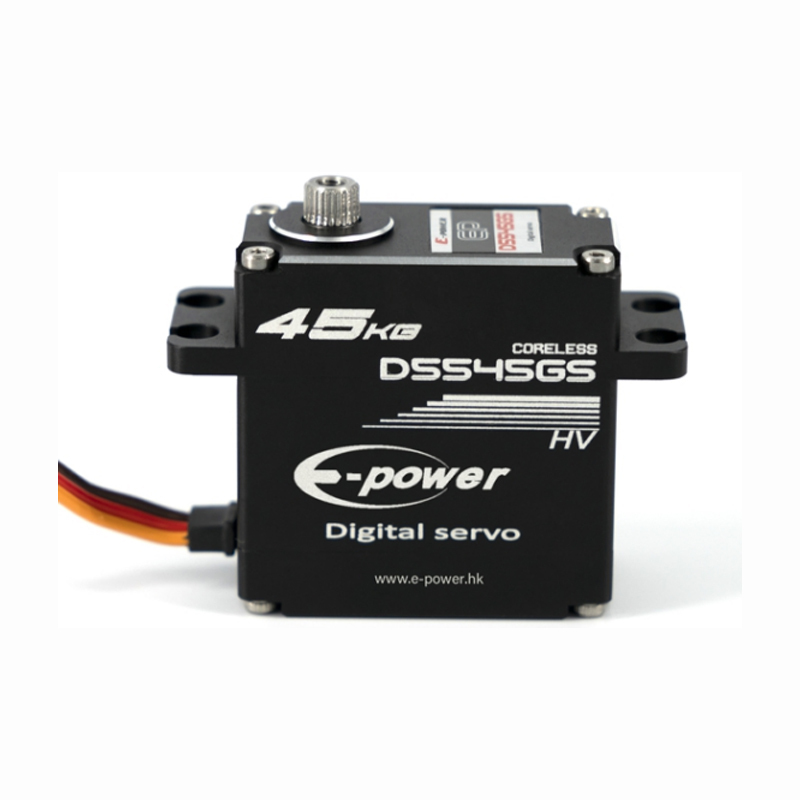

E-Power D5545GS 120 Degree Aluminum Case Metal Grear Coreless Digital 45kg 0.11sec Waterproof HV Servo for RC Car Truck Crawler Boat Robot

SKU: BR0202.0002
This item is available by special order only. For pricing, MOQ and delivery information, please contact your sales representative.
$0.00 $22.93
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
Add to Favorites (0)
  • E-Power D5545GS 120 Degree Aluminum Case Metal Grear Coreless Digital 45kg 0.11sec Waterproof HV Servo for RC Car Truck Crawler Boat Robot
  • E-Power D5545GS 120 Degree Aluminum Case Metal Grear Coreless Digital 45kg 0.11sec Waterproof HV Servo for RC Car Truck Crawler Boat Robot
1/1
  • E-Power D5545GS 120 Degree Aluminum Case Metal Grear Coreless Digital 45kg 0.11sec Waterproof HV Servo for RC Car Truck Crawler Boat Robot
  • Description
Specifications:
Control System: PWM Control (1500us at the central point)
Operation Votage Range: 4.8V~7.4V
Operation Temperature Range: -20C°~ +60C°
Circle: >80000 times without load
Operation Travel: 60°±5
Limit angle: 180°± 5
Direction: CCW/Pulse Travel 500 to 2500us
Diver type: Mos Drive
Motor Type: Coreless Motor
Potentiometer Type: Direct Drive
Amplifier Type: Digital Control
Dimensions: 40x20x40.50mm
Weight: 75g (without servo horn)
Standing Torque: 35kg-cm@6V, 45kg-cm@8.4V
Speed: 0.12sec/60°@6V, 0.11sec/60°@8.4V
Idle Current: 300mA@6V, 450mA@8.4V
Running Current: 3100mA@6V, 3900mA@8.4V
Dead band width: 2us
Ball Bearing: 2BB
Gear Material: Metal Gear
Case Material: Aluminum Case
Connector Wire Length: 300mm JR Plug
Connector Wire Gauge: 22awg
Box size: 75*55*25mm
