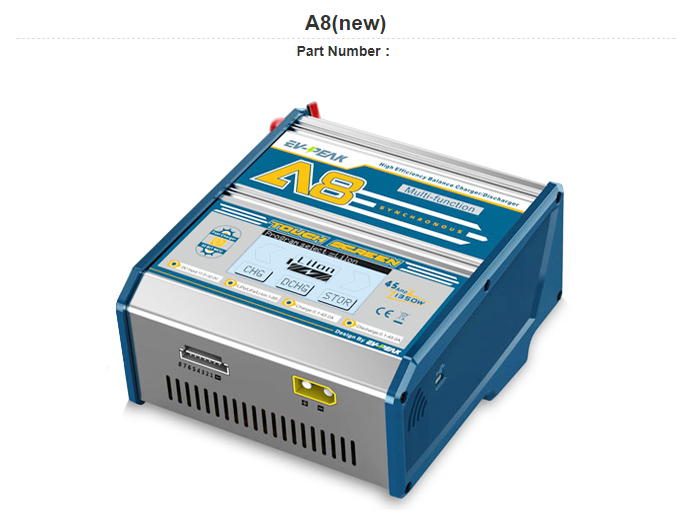

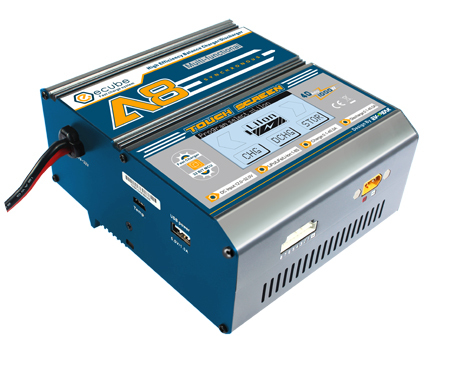

EV-PEAK A8 A series high power touch balance charger

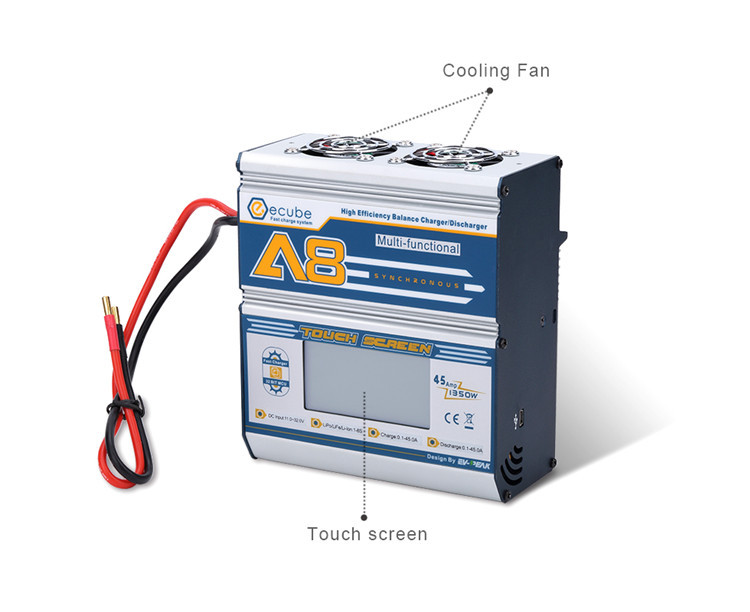

The all new Ev-Peak A8 Touch Screen DC 1350W Charger brings a new level to battery charging.It comes with a high resolution LCD touch screen interface and can connect directy to your car battery at the field.The A8 is able to charge, balance and discharge Lion, LiPo, LiHv, LiFe (A123), NiCd, NiMH and Lead Acid batteries. It also has a battery cycling functions to test new batteries.The A8 offers a new Forming Charge algorithm which involves a low charge rate, typically 0.1C for a long period of time . It is used to "activate" the electrolytic media or reactivate it when batteries have been unused for a long time.
Features:
- Microprocessor controlled Delta-peak sensitivity Individual cell balancing Li-ion, LiPo and LiFe capable Ni-Cd and NiMH capable Large range of charge currents.
- Store function, allows safe storage current.
- Time limit function Input voltage monitoring.
- Also includes a mini USB port for PC software monitoring and firmware upgrades.
Specification

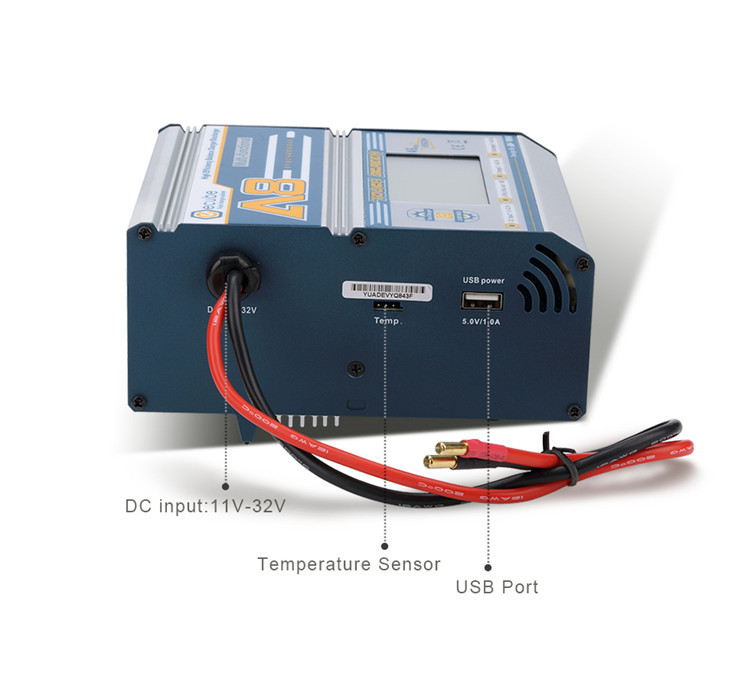

DC Input: 11-32.0V
Charge power: 1350W
Charge current: 0.1~45.0A
Dishcarge:100W/45A
LiXX battery: 1-8 series
NiXX battery: 1-20 cells
Pb battery : 2-24V
Dimension:144*162*84mm
Weight:1440g

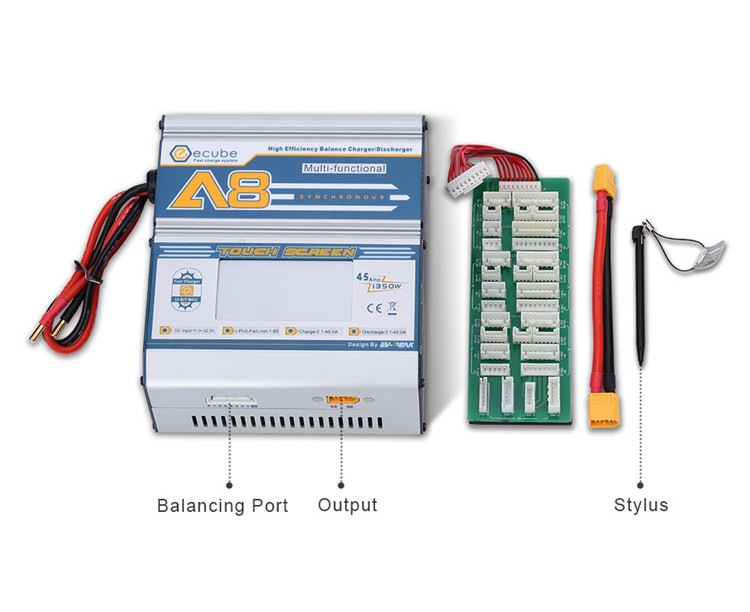

Includes:
1 x charger
1 x balance charging board
1 x AC power cable
1 x touch screen pen
