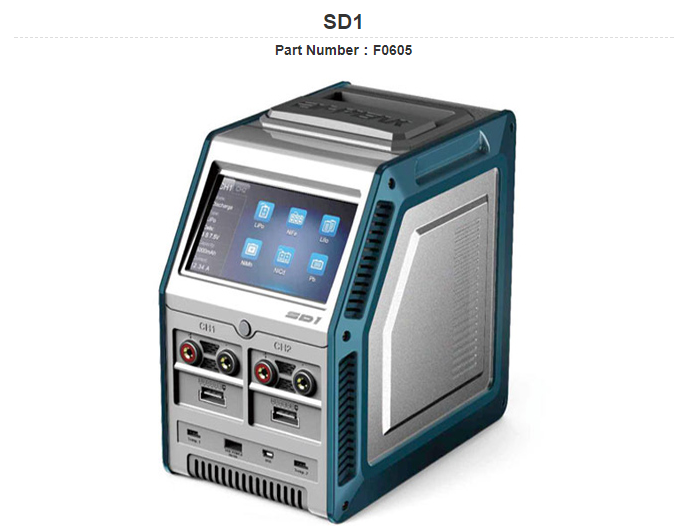

EV-Peak SD1 Touch Screen Battery Charger*

The EV Peak SD1 Duo Lipo AC/DC Battery Charger is compatible with up to 6S LiPo batteries with a max charge of 30 Amps, and 500 Watts on DC input. Using the AC input, the SD1 still puts out an impressive 300W of power, per independent channel, allowing you to charge two different kinds of batteries at the same time.

Aside from the impressive charge rates, the SD1 features a brilliant touch-sensitive, full-color 4.7" LED screen, with a maximum resolution of 480dpi. Using the touch screen, you can easily and intuitively navigate the menu to check cell voltage, monitor charge status and set all parameters, plus much, much more.

Features:

• Built-in 750W AC power supply
• Colorful human-computer interaction interface
• Large screen 272x480dpi
• Active OS makes operation easy and clear
• Visual UI, multi-language
• Active PFC to strong adapt to the grid
• Automatic detection and soft start function
• Short circuit protection,over current protection,over voltage protection, reverse polarity protection
• Visual UI real-time monitor the charge and discharge process
• PC control,firmware upgrade available

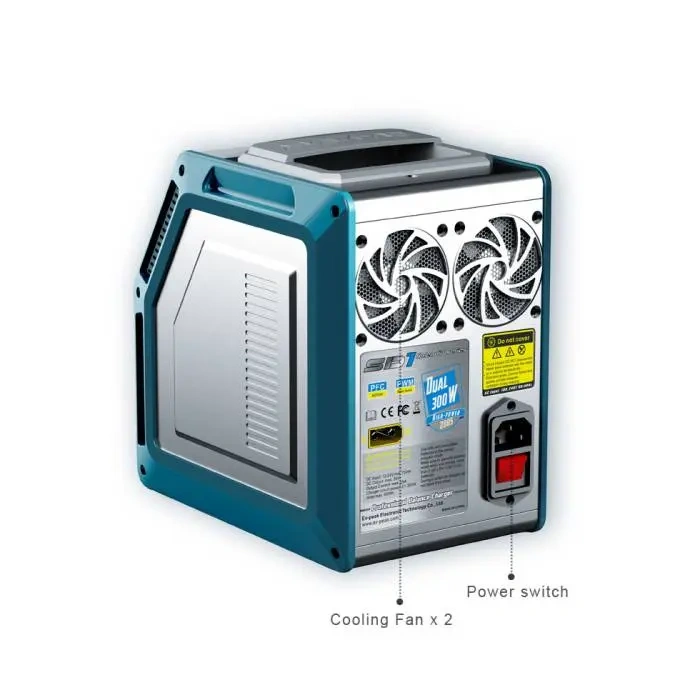

• High efficiency, high power smart cooling system
• Handles for easy carrying

Specifications:
DC input voltage: 11.0V-24.0V
AC input voltage: 100V-240V
Charge power DC input: 500Wx2
Charge Power AC input: 300Wx2
Discharge power: max.30W
Charge current: 0.1~30.0A
Discharge current: 0.1~8.0A
Regenerative discharge: 30.0A
Balance current: 400mA/cell
LiPo/LiHV/LiFe battery cell count: 1-6S
NiMH/NiCd battery cell count: 1-15cells
Pb battery voltage: 2V-24V
Weight: 2850g

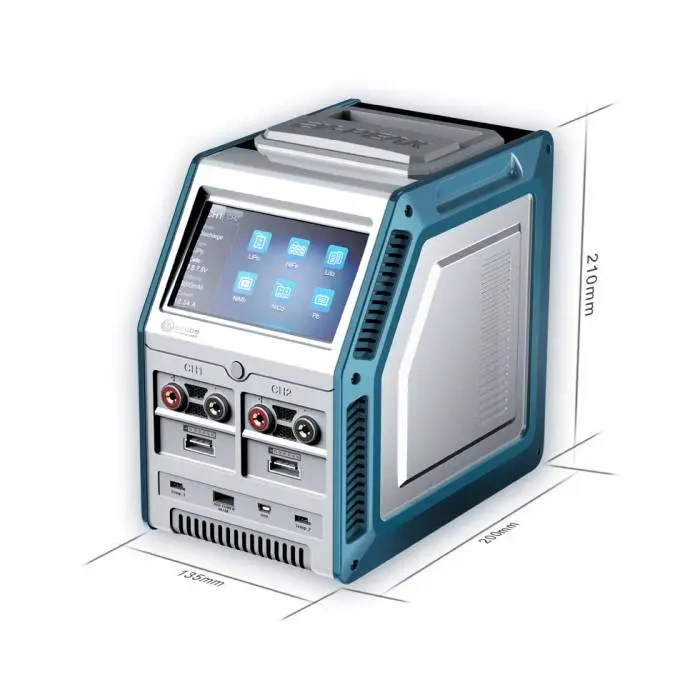

Dimensions: 209x209x140mm

Includes

• 2x XT60 Charging Cable
• 2x Balancing Adapter Board XH
• 1x XT60 DC Input Cable
• 1x AC Input Cable
• 1x Stylus
