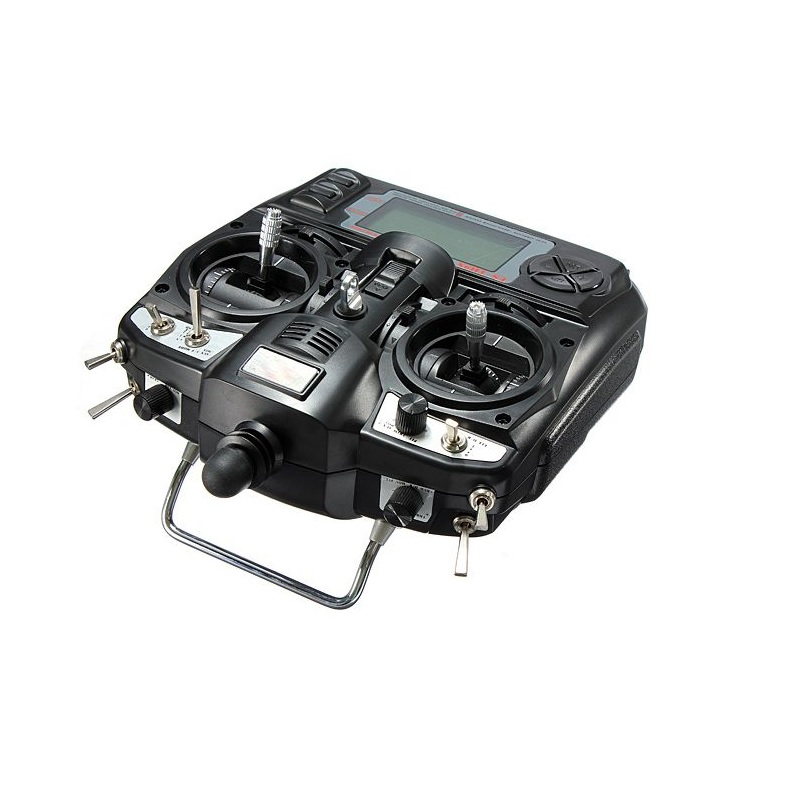

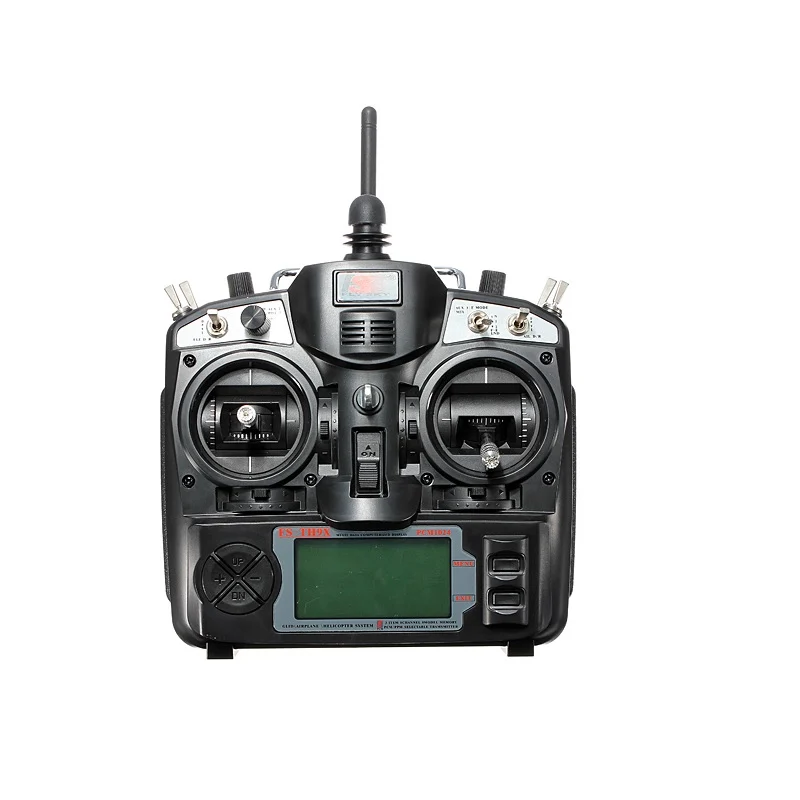

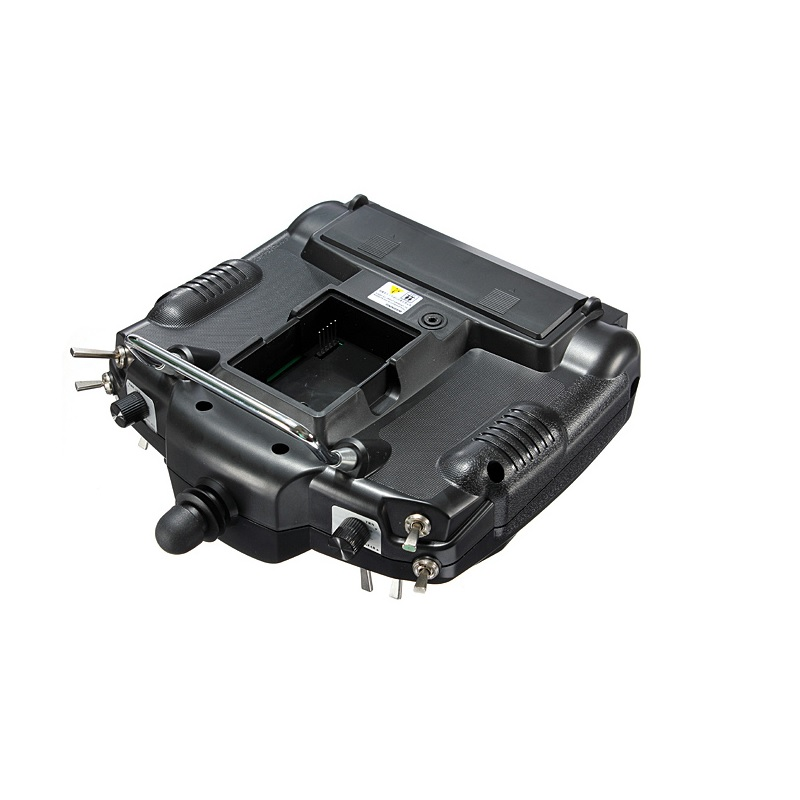

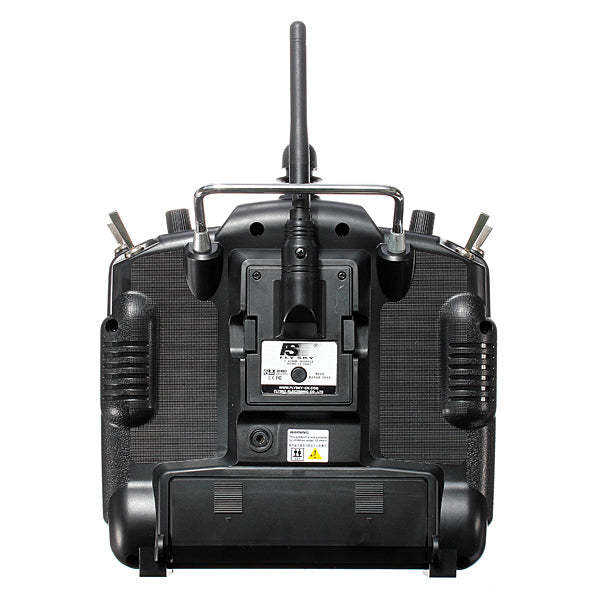

FlySky FS-TH9X 2.4GHz 9CH Transmitter Radio Controller with FS-R9B Receiver

The FS-TH9X 2.4GHz 9-Channel Transmitter with FS-R9B Receiver is revolutionizing the way people experience RC, and this radio transmitter and receiver is unique against the top competition. can maintain its position. Equipped with FS-RM002 2.4GHz module TRANSMITTER’S AFHDS (Automatic Frequency Hopping Digital System), this his 9 channel is developed by his FLYSKY for all radio control model enthusiasts and can be used at home by his his Patented by FLYSKY. It was  Specially designed for all radio-controlled models, the system features super active and passive his anti-jamming capabilities, ultra-low power consumption, and high receiver sensitivity. Due to extremely rigorous testing by our engineers and years of market observation, FLYSKY AFHDS is currently considered his one of the best systems on the market.

2.4 GHz is the standard for the new generation of wireless systems due to its many advantages. Transmitters operating at 2.4 GHz are outside the frequency range of “noise” produced by other helicopter electronics. This can affect legacy frequency systems.

Features:

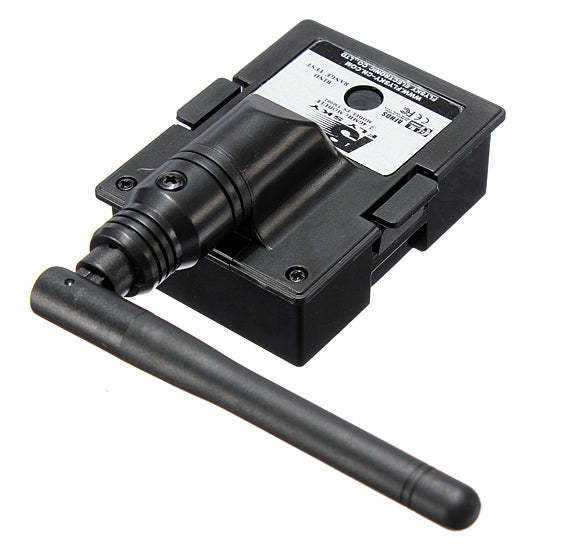

1. Transmitter: FS-TH9X  with FS-RM002 2.4GHz Module
2. Receiver: FS-R9B
3. Bidirectional System
4. Frequencies-Hopping
5. Omni-directional High Gain Antenna
6. Low Power Consumption

The transmitter functions:

1. Throttle curves
2. Pitch curves
3. Endpoint adjustments
4. Subtrim
5. Swash AFR mixes
6. Servo reversing
7. Timer
8. Dual rate
9. Exponential
10. Flaperons
11. V-Tail mixing
12. Elevons

Specifications:

• FlySky 2.4G 9CH System
• Channels: 9 Channels
• Model Type: glider, helicopter, airplane, also car or boat
• RF Range: 2.40-2.48GHz
• Bandwidth: 500Hz
• Band: 160
• RF Power: less than 20DB
• 2.4G System: AFHDS
• Modulation: GFSK
• Code Type: PPM/PCM
• Senditivity: 1024
• LCD Type: 128 x 64 dot
• Low Voltage Warning: yes(less than 9V)
• DSC Port: yes(3.5mm:output:PPM)
• Charger Port: yes
• Size: 180 x 220 x 70 mm
• Power: 12VDC or 8 x 1.5AA
• Weight: 670g
• Mode 2 (Left Hand Throttle)

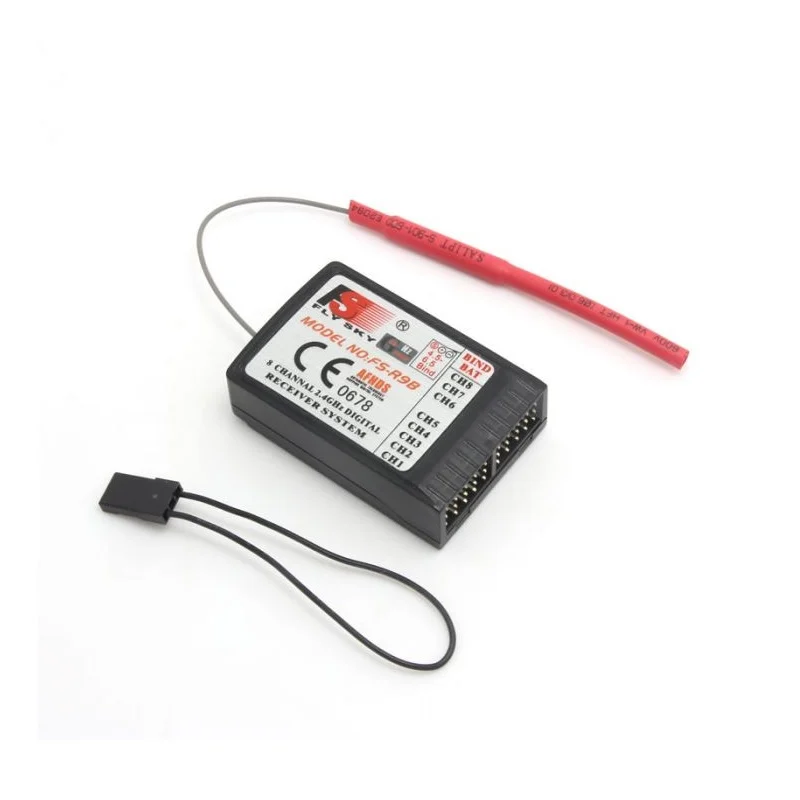

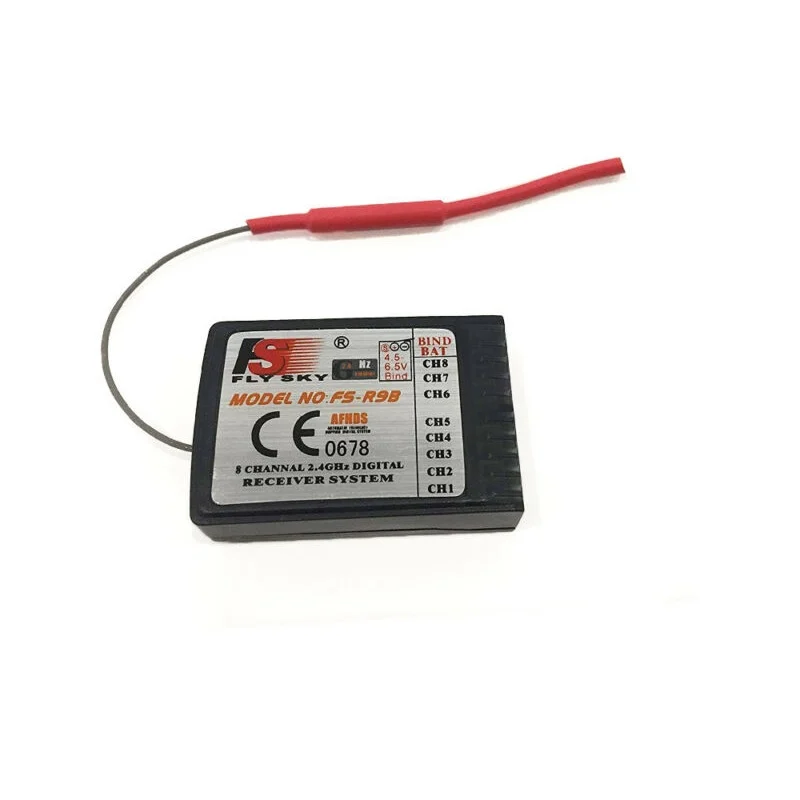

FS-R9B Receiver:

1. Brand Name: FlySky
2. Item Name: RC Receiver
3. Channels: 8channels
4. Receiving Sensitivity: -105dBm
5. Frequency Range: 2.4-2.48GHz
6. Frequency Width: 500KHz
7. Wave Band: 160
8. Modulation: GFSK
9. 2.4G Mode: Automatic FM digital system
10. Channel Resolution: 1024 classes
11. Power: 4.0-6.55V DC
12. Weight: 18g
13. Antenna Length: 26mm
14. Color: Black
15. Certificate: CE,FCC

Includes:
