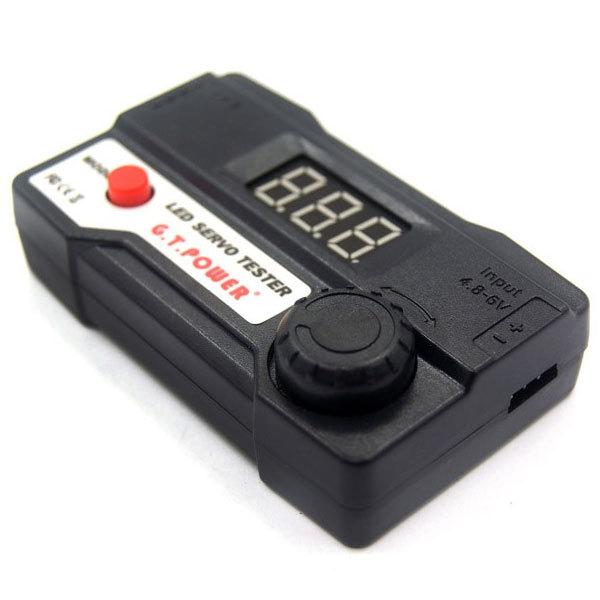

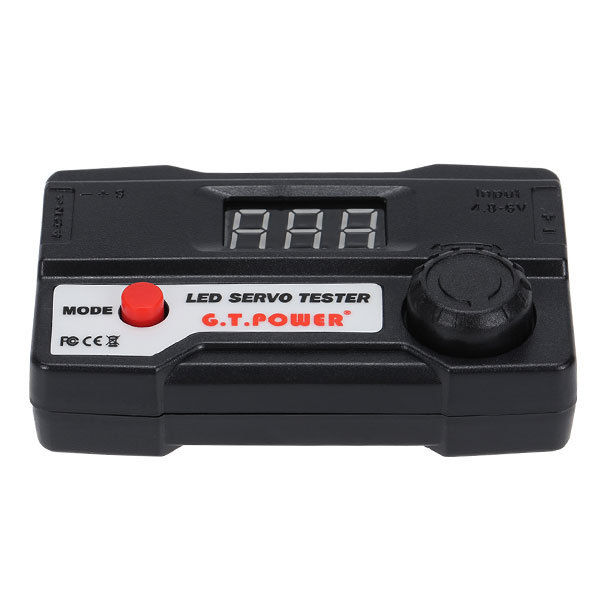

Servo tester with LED from G.T. Power with four servo interface sets, cam test up to four servos at the same time. Using LED digital tube, can monitor the real-time pulse width. Support manual and automatic servo test modes.
Features
•Dual mode - Manual and Auto
•Manual mode: to check servo speed and reaction time
•Automatic mode: drives the servo through its full travel from end-point to end-point (like windscreen wipers)
•1-4 servos may be connected simultaneously
•1-4 ESCs may be connected simultaneously to test and compare their reaction time respectively
•3-digit LED display
Specification
•Input voltage: 4.8 - 6V
•Pulse width manual mode: 700 - 2300ms
•Pulse width auto mode: 800 - 2200ms
•Dimensions: 73.5 x 43.5 x 22.5mm
•Weight: 68.9g

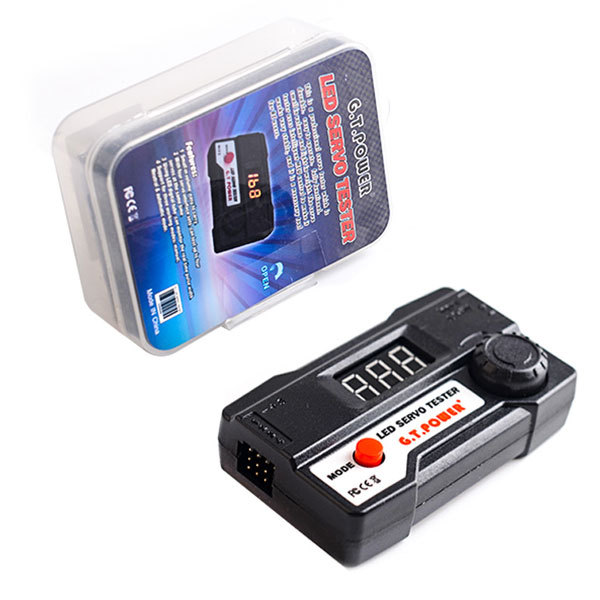

Package includes:
•1 x GT Power LED Servo Tester
