Product Model
|
Hobbywing X9
|
|
Maximum Thrust
|
22.5kg/Axis (46V, Sea Level)
|
|
Recommended Takeoff Weight
|
7-9.5kg/Axis (46V, Sea Level)
|
|
Recommended LiPo Battery
|
12-14S（LiPo）
|
|
Combo Weight
|
1524g
|
|
Operating Temperature
|
-20℃~55℃
|
|
Motor
|
|
|
Stator Size
|
96*16mm
|
|
KV Rating
|
110rpm/V
|
|
Powertrain arm tube outer dimeter
|
φ40
|
|
Bearing
|
Imported Waterproof Bearing
|
|
ESC
|
|
|
Recommended LiPo Battery
|
12-14S LiPo
|
|
PWM Input Signal Level
|
3.3V/5V(Compatible)
|
|
Throttle Signal Frequency
|
50-500Hz
|
|
Operating Pulse Width
|
1100-1940us(Fixed or cannot be Programmed)
|
|
Max. Input Voltage
|
52.2V(Standard )， 61V(14S- Version)
|
|
Max. Input Current (Cont.)
|
120A(w/ Good Heat Dissipation)
|
|
Max. Peak Current (10s)
|
150A(w/ Good Heat Dissipation)
|
|
BEC
|
No
|
|

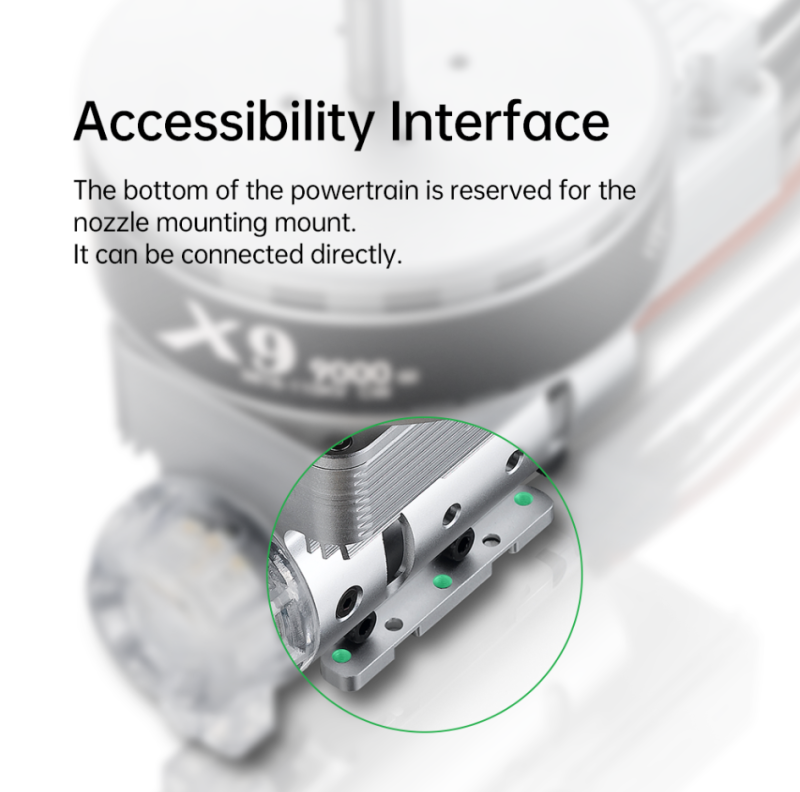

Mounting Holes for Nozzle
|
φ28.4mm-2*M3
|
|
Propeller
|
|
|
Diameter×Pitch
|
3411/36190
|
