One of a kind Design

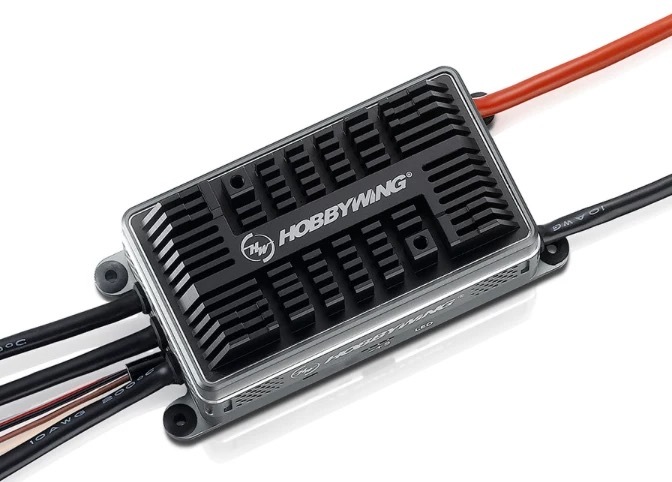

The elegant cases are made by Aluminum. Each cooling slot and its fin were carefully designed
and arranged, and the case has gone through oxidation, coloring and edge-highlighting.
Innovative Heat Dissipation
Structure
The innovative "duo" stacking structure
allows all components on both sides of the
printed circuit boards to quickly conduct
heat to the aluminum case.
Excellent Motor Speed Governing
High-performance 32-bit processor combined with
advanced algorithm makes the motor
speed-governing excellent for different conditions.
With the adjustable sensitivity of speed-governing,
every pilot can find the most suitable settings for
his helicopter.
Product Specification
Type
- Brushed/Brushless : BL
- High Voltage/Regular : HV
Specifications
- Cont./Peak Current : 200A/250A
- Input : 6-14S LiPo
- BEC Output : No
Wires & Connectors
- Input Wires : Red-10AWG-150mm*1/Black-10AWG-150mm*1
- Output Wires : Black-10AWG-150mm*3
- Input Connectors : No
- Output Connecotors : No
ESC Programing via
- Transmitter : Not Supported
- LED Program Card : Not Supported
- LED Program Box : Not Supported
- LCD Program Box : Supported
- WiFi Module : Supported
- Program Port : Separate Program Port
Firmware
- Firmware Upgrade : Supported
Size & Weight
- Size : 106.0x50.0x40.0mm
- Weight : 305g
