Easy Operation
This ESC is specially designed for new beginners and intermediate modelers;
it not only carries forward the outstanding quality of HOBBYWING products
but simplifies the operation.
Applicable to All Weather Conditions

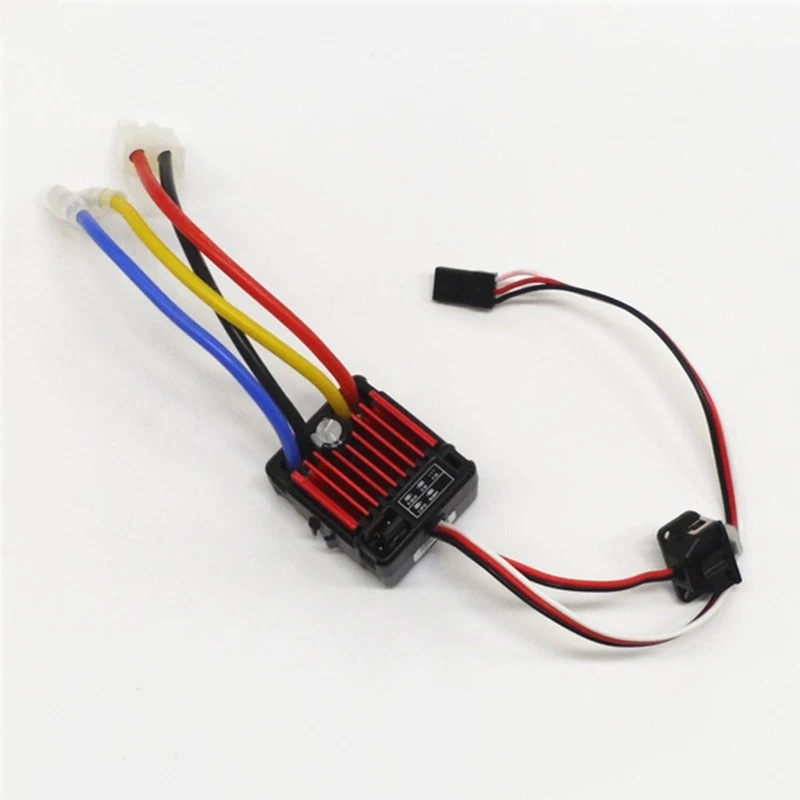

The waterproof and dust-proof design allows the QUICRUN WP-860-Dual-Brushed
to be used in all weather conditions without any issue of damage caused
to the ESC from water or dust.
Built-in BEC
The built-in switch mode BEC with a maximum output of 6Amp and voltage of 5V
make this ESC compatible with various servos.
Easy to Use
This ESC features auto throttle calibration and parameter setting
via jump caps is easy-to-use, especially applicable to new beginners.
Dual Output
This ESC can drive two brushed motors at the same time.
It’s cost-effective and applicable to low-speed crawlers and tanks which run two motors
Product Specification
Type
- Scale : 1/8th、1/10th
- Brushed/Brushless : Brushed
- Sensored/Sensorless : -
- Waterproof : WP
Specifications
- Cont./Peak Current : 60A/360A
- Input : 2-4S LiPo/6-12 Cells NiMH
- BEC Output : Switch Mode:5V/3A
Wires & Connectors
- Input Wires : Red-16AWG-150mm*2/Black-16AWG-150mm*1
- Output Wires : B lue-16AWG-100mm*2/Yellow-16AWG-100mm*2
- Input Connectors : No
- Output Connecotors : 4.0 Bullet Connectors (Female)
ESC Programing via
- SET Button on ESC : Not Supported
- LED Program Box : Not Supported
- LCD Program Box : Not Supported
- WiFi Module : Not Supported
- Program Port : Dip Switch
Firmware
- Firmware Upgrade : Not Supported
Size & Weight
- Size : 46.0x36.0x26.3mm
- Weight : 73g
Applications
- Motors : Brushed Motors
- Vehicles : 1/8th, 1/10th Touring Cars/Buggies/Trucks//Rock Crawlers
- KV Rating/T Count : 2S LiPo: T≥12T
3S LiPo: T≥18T
4S LiPo: T≥24T
(540/550/775 Size Motors)
