-Fully waterproof IP67 design
-Integrated data logging for performance monitoring
-BEC 6V and 7.4V
-Capacitor overheat protection
-Freewheel function
-AUX external control and parameter setting

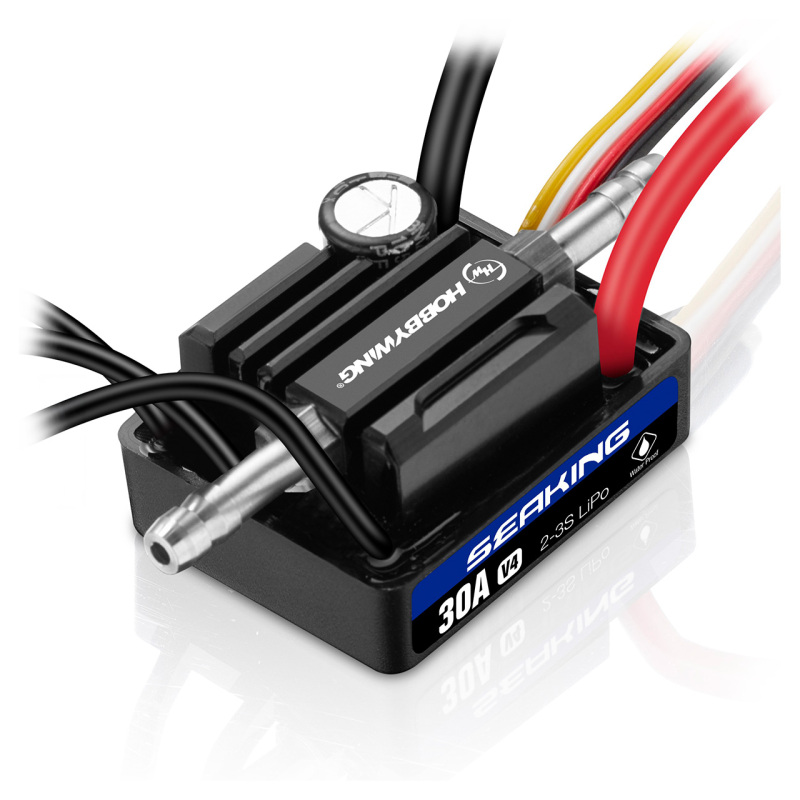

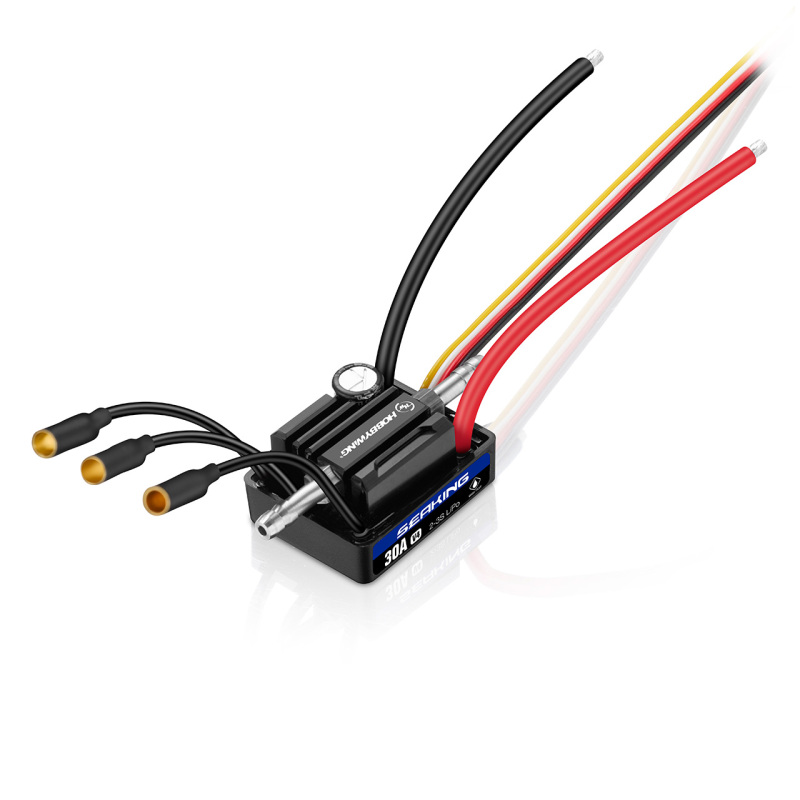

30A ESC Technical Data
Continuous current: 30A
Peak current: 100A
LiPo: 2-3S
BEC output: 6V/7.4V 2A
Programming: via card or OTA
Area of application: Boats ≤ 45cm
Water cooling diameter: inside 3mm / outside 5.5mm
Dimensions: approx. 33 x 26 x 18mm (without water cooling)
Weight: 34g

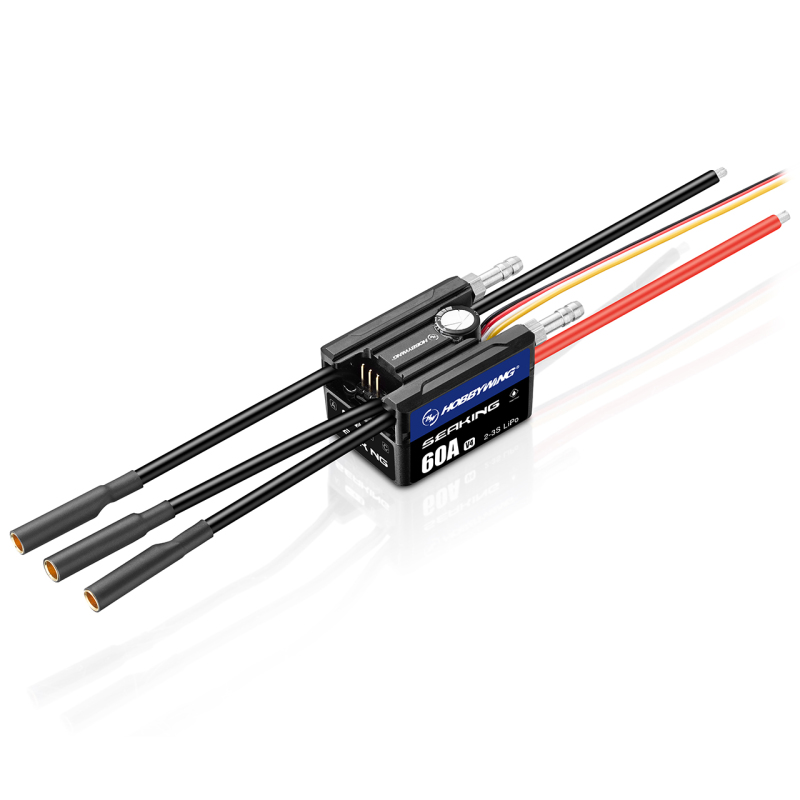

60A ESC Technical Data
Continuous current: 60A
Peak current: 200A
LiPo: 2-3S
BEC output: 6V/7.4V 4A
Programming: via card or OTA
Area of application: Boats ≤ 60cm
Water cooling diameter: inside 3mm / outside 5.5mm
Gold contacts 4mm
Dimensions: approx. 39 x 29 x 25mm (without water cooling)
Weight: 65g

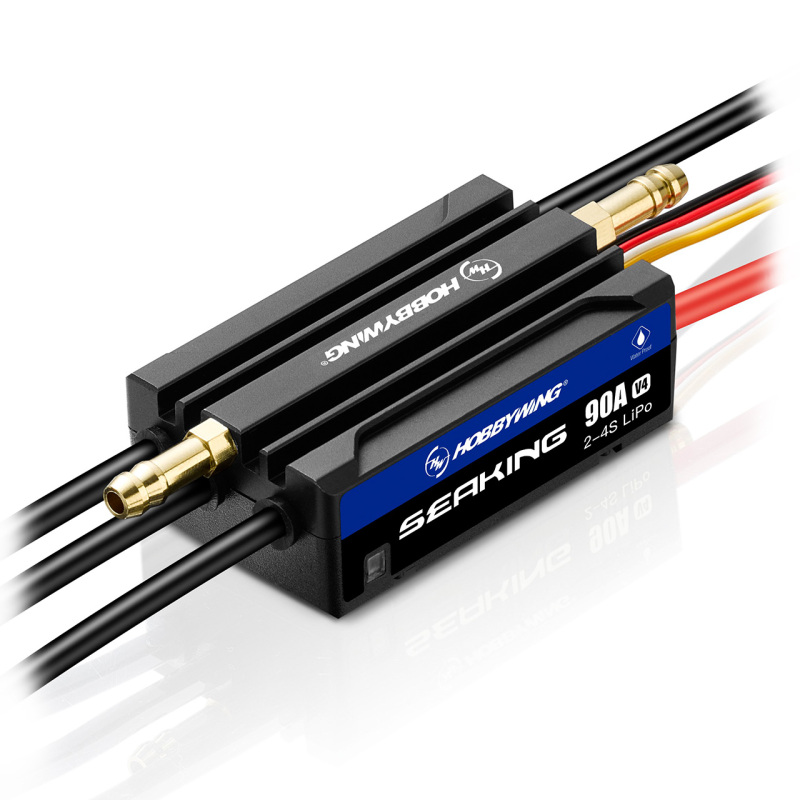

90A ESC Technical Data
Continuous current: 90A
Peak current: 360A
LiPo: 2-4S
BEC output: 6V/7.4V and 8.4V 8A
Programming: via card or OTA
Area of application: Boats ≤ 80cm
Water cooling diameter: inside 3mm / outside 5.5mm
Gold contacts 4mm
Dimensions: approx. 60 x 36 x 23mm (without water cooling)
Weight: 116g

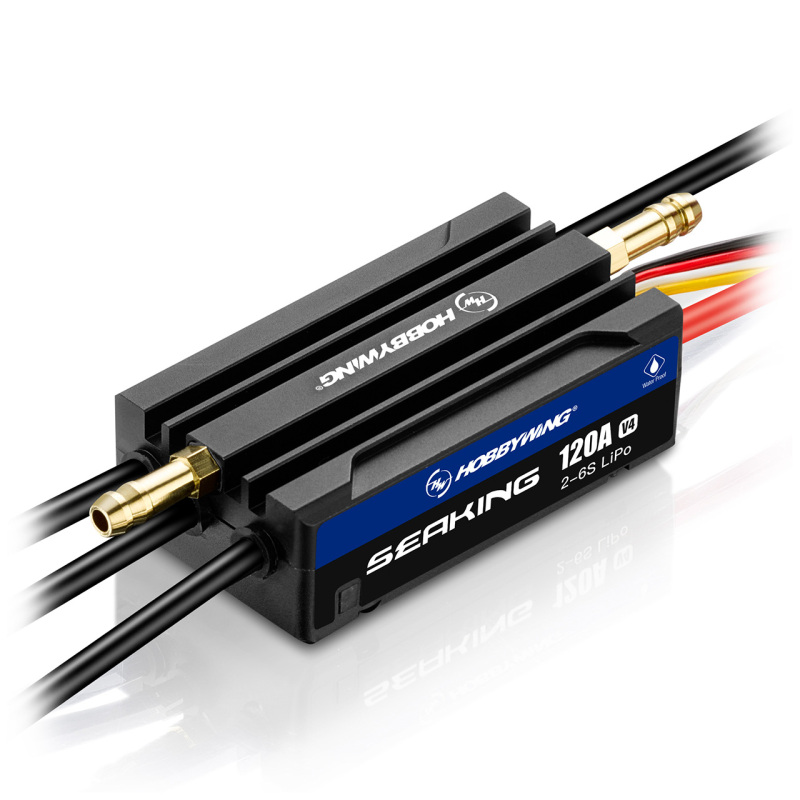

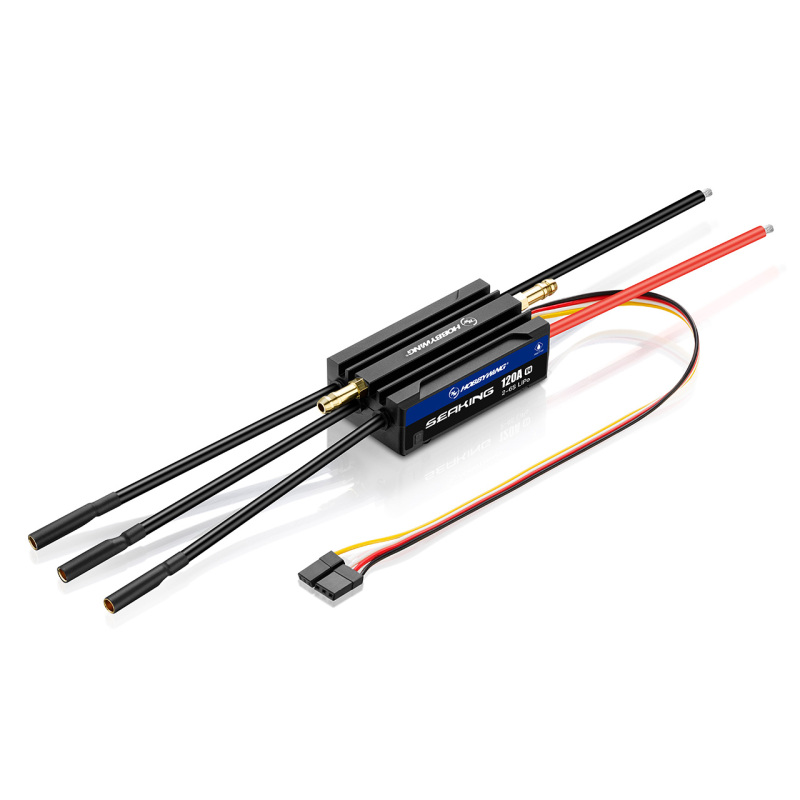

120A ESC Technical Data
Continuous current: 120A
Peak current: 500A
LiPo: 2-6S
BEC output: 6V/7.4V and 8.4V 8A
Programming: via card or OTA
Area of application: Boats ≤ 100cm
Water cooling diameter: inside 3mm / outside 5.5mm
Gold contacts 4mm
Dimensions: approx. 65 x 36 x 23mm (without water cooling)
Weight: 116g
