Description:

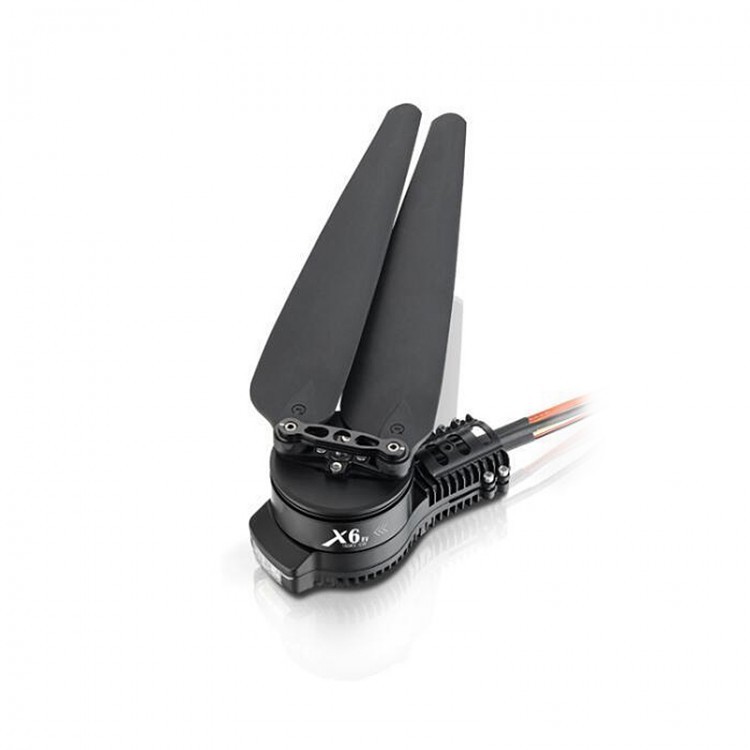

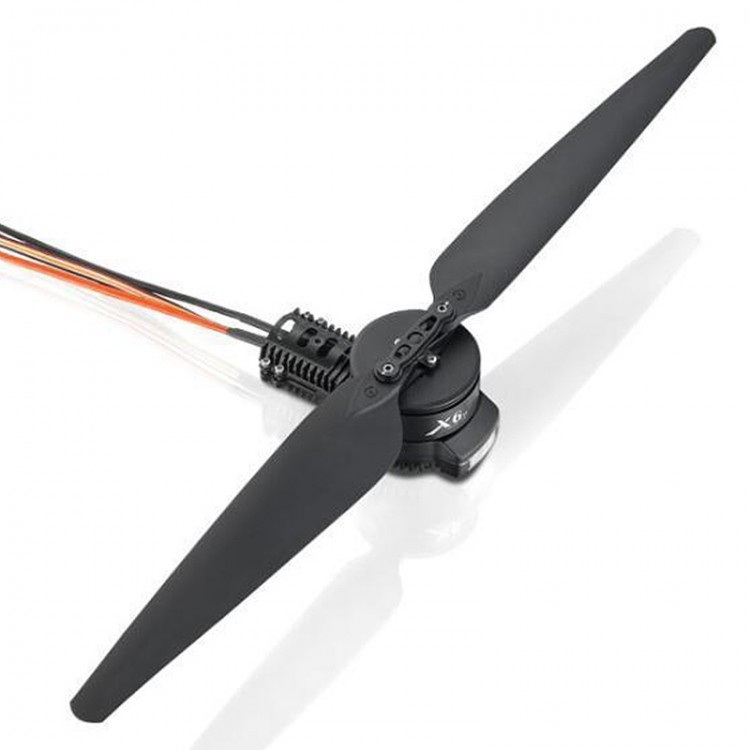

XRotor Pro X6 brushless power system is an agricultural drone power system with single-axis load capacity of 3-5kg . The maximum single-axis thrust is 11.9kg.
Fits 30mm carbon fiber tube arm. IPX7, no fear of rain pesticides, salt spray, high temperature, sand, impact, and mud.
Optimization of the ESC FOC-motor PMS system algorithm. The system has power-on self-test, power-on voltage abnormal protection, over-current protection, external force stuck, stall protection and other protection functions, with real-time data transmission.

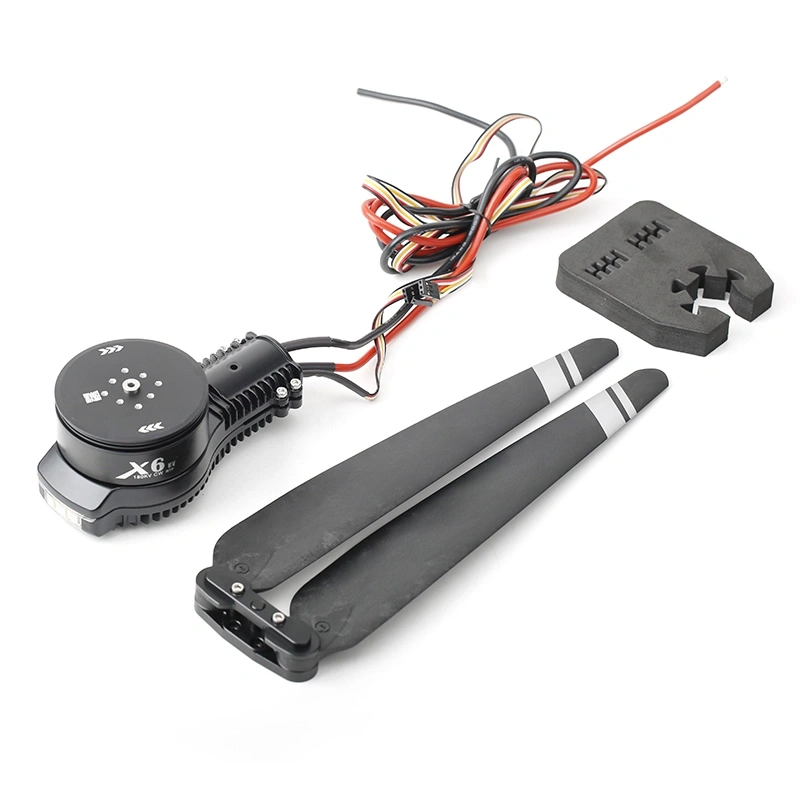

Package Included:
- 1 x Motor
- 1 x ESC
- 1 x Propeller CCW or CW
- 1 x Motor Mount
Specifications:
- Single-axis Load Capacity: 3-5kg
- Maximum Thrust: 11.9kg
- Fit for: 6-12S (up to 52.2V)
- Operating Environment: -20℃ to 50℃
- Applicable Carbon Tube: 30mm
- Protection Level: IPX7
- Total Weight: 720g
Propeller:
- Propeller Type: 2388
Motor:
- Model No.: 6215
- Outer Diameter: 70mm
- KV Value: 180KV
ESC:
- Continuous Current: 80A (good heat dissipation)
- Instantaneous Current: 100A (good heat dissipation)
- Curing Throttle: 1100-1940μs
- Fit for: 6-12S
