Description:

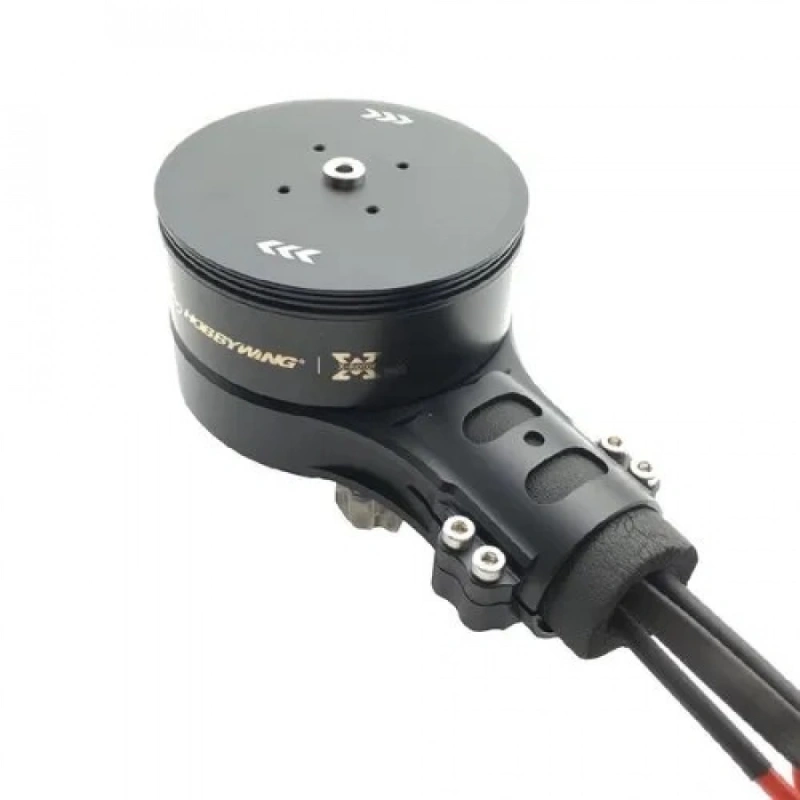

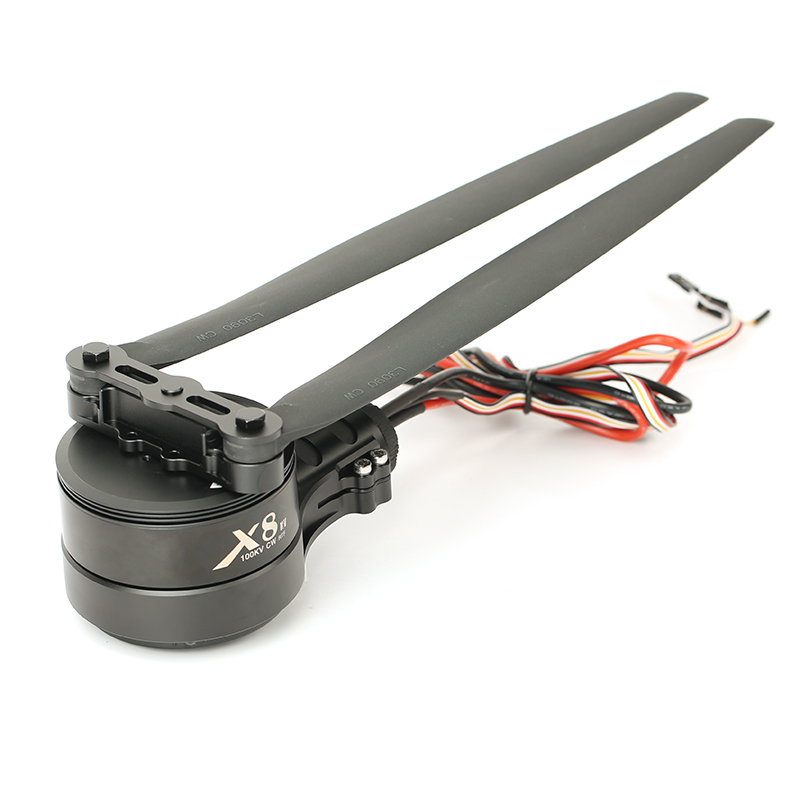

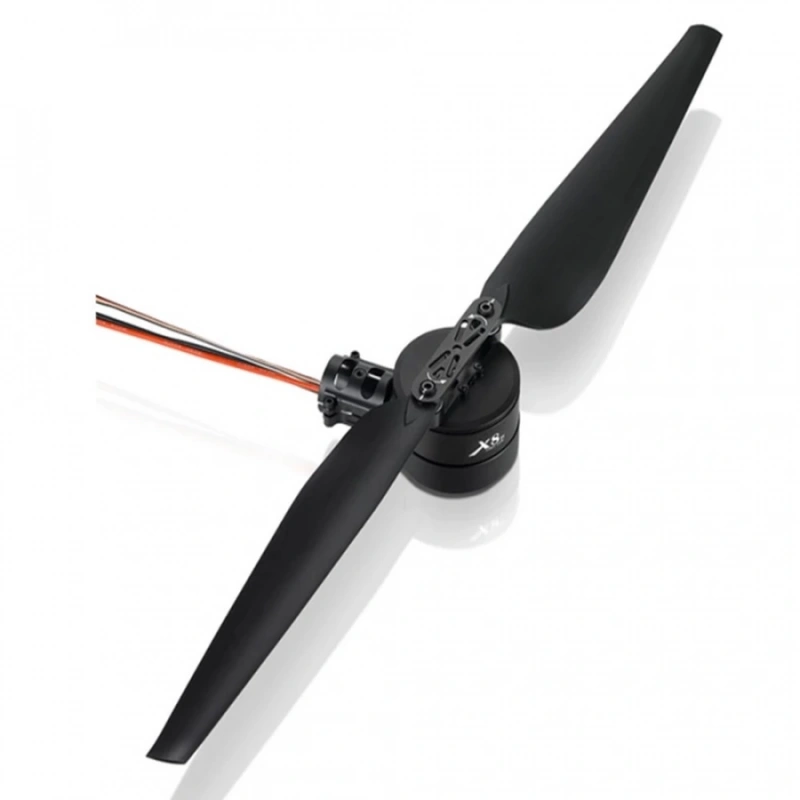

The COMBO XRotor Pro X8 brushless power system is an agricultural drone power system, with single-axis load capacity 5-7kg. The maximum single-axis thrust is 15.3kg. Fits 35mm carbon fiber tube arm. IPX7, no fear of rain pesticides, salt spray, high temperature, sand, impact, and mud. ESC FOC-motor PMS system algorithm optimization. The system has power-on self-test, power-on voltage abnormal protection, over-current protection, external force stuck, stall protection and other protection functions, with real-time data transmission.

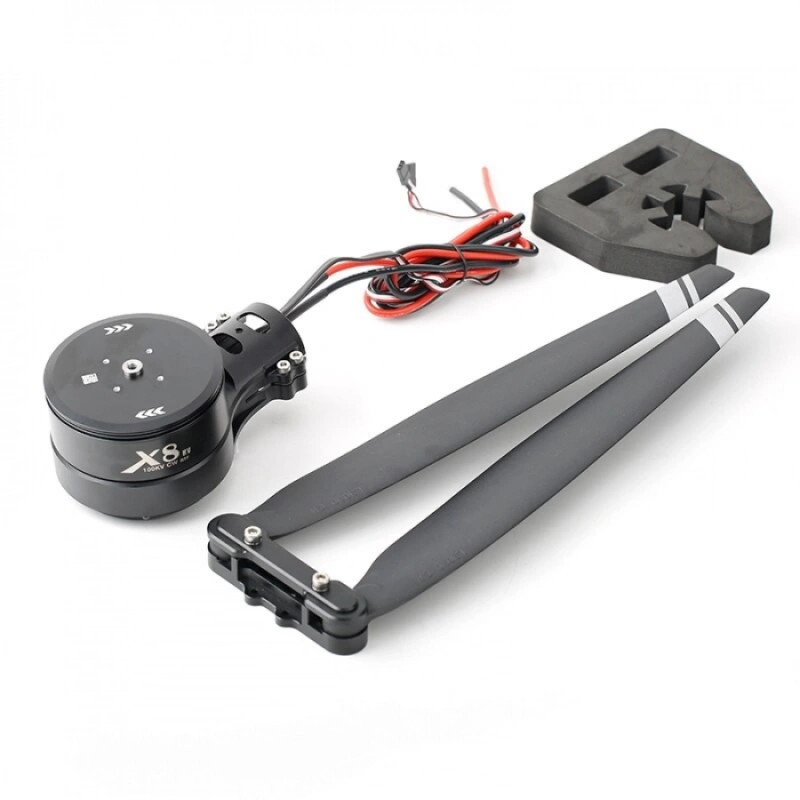

Package Included:
- 1 x Motor
- 1 x ESC
- 1 x Propeller
- 1 x Motor Mount
Technical Parameters:
- Single-axis Load Capacity: 5-7kg
- Maximum Pulling Force: 15.3kg
- Suitable for: 6-12S (up to 52.2V)
- Operating Environment: -20℃ to 50℃
- Applicable Carbon Tube: 35mm
- Total Weight: 1040g
Motor:
- Model No.: 8120
- Outside Diameter: 90.2mm
- KV Value: 100KV
Propeller:
- Propeller Type: 2911
ESC:
- Continuous Current: 80A (good heat dissipation)
- Instantaneous Current: 100A (good heat dissipation)
- Curing Throttle: 1100-1940us
- Fit 6-12S
