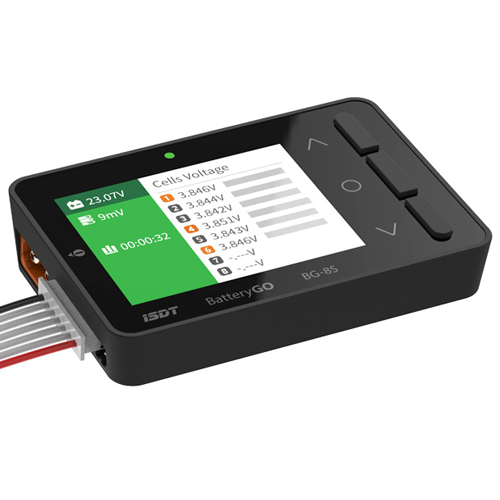

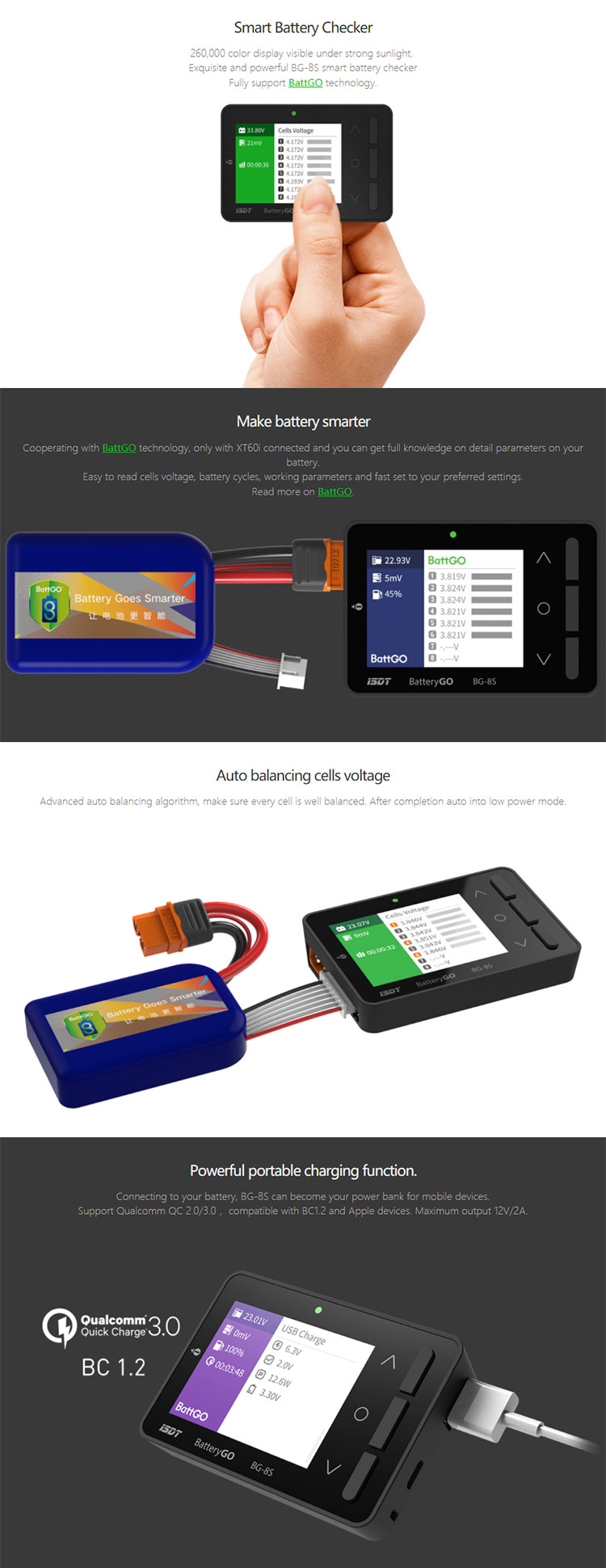

Make the battery smarterIn conjunction with the BATTGO Smart Battery interconnect technology, all the detailed parameters of the battery can be mastered only by connecting xt60i. It can check the core voltage, battery cycle, working parameters and quickly set user preferences.

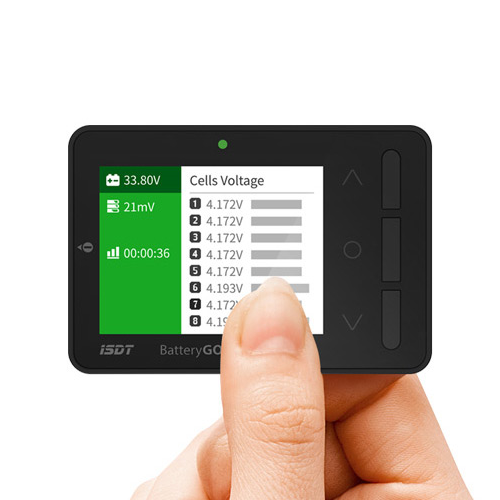

Auto-Balance core voltageAdvanced automatic balance algorithm to ensure accurate balance of each energy-saving core voltage, after completion of sound and light prompts and automatically enter the low energy consumption sleep mode.
Powerful mobile charging functionsAfter the battery is connected, the bg-8s can become a powerful mobile charger, Support Qualcomm Quick Charge 2.0/3.0 Fast Charge protocol, compatible with BC1.2 and Apple mobile device charging standard.Maximum output capacity up to literal.

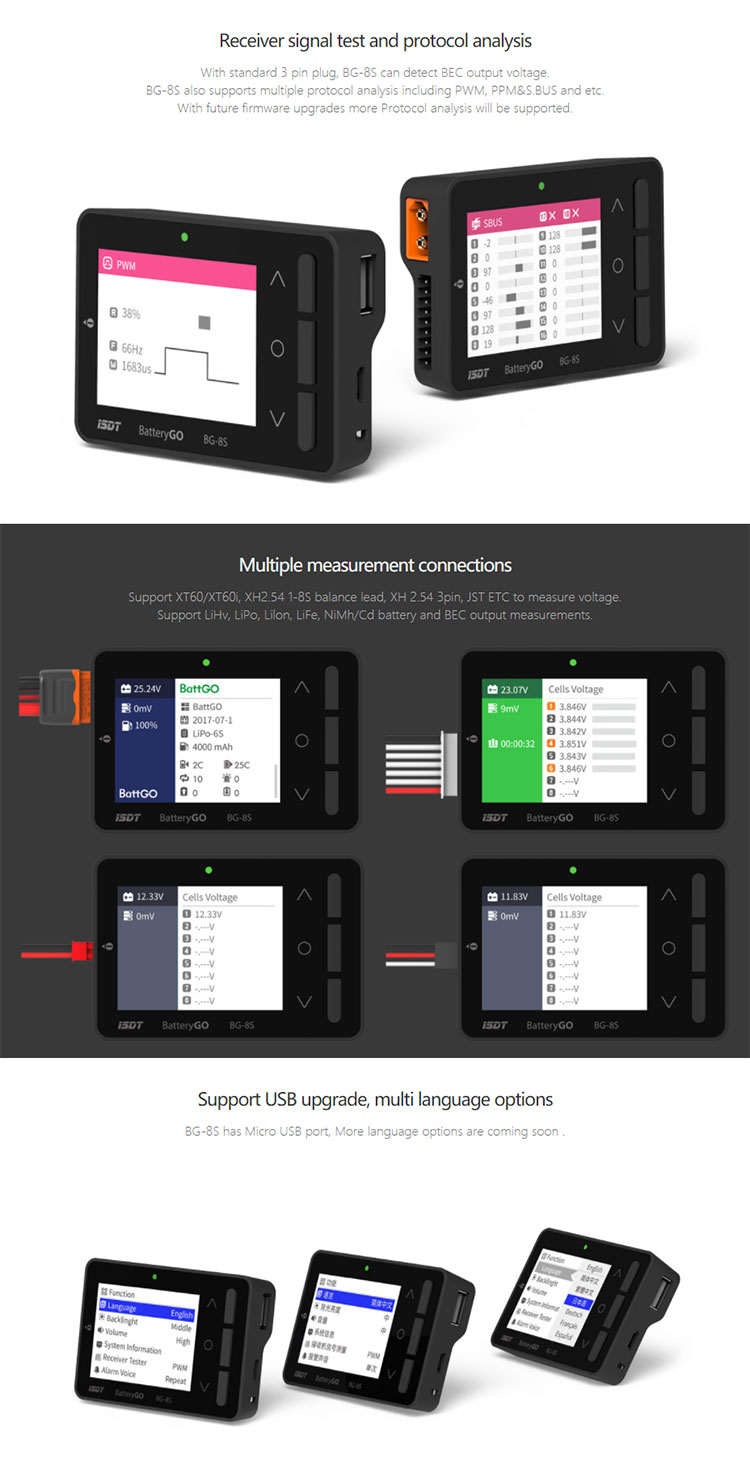

Signal Testing and protocol analysis of receiversBy connecting the standard 3-wire connector, the bg-8s can not only measure the output voltage of Bec,
Multiple communication protocols can be analyzed, including PWM, PPM and S. Bus, and future software upgrades will add more protocol analysis support
A variety of measurement connections
Supports XT60 / XT60i, XH2.54 1 ~ 8S balance port, XH2.54 3pin, JST and other connections for voltage measurement.
Supports LiHv, LiPo, LiIon, LiFe, NiMh / Cd and BEC output and other voltage measurement.

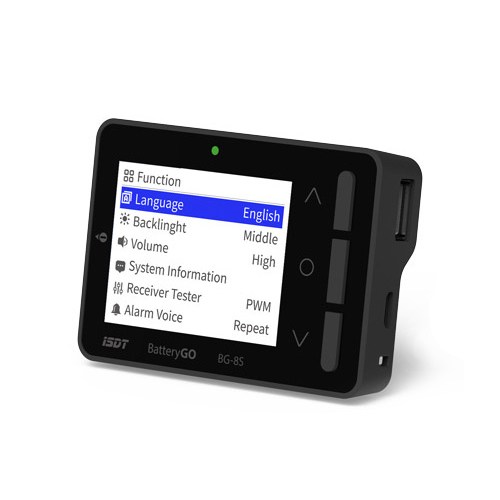

Supports USB upgrades, and features multi-language menus
BG-8S has been equipped with Micro USB interface, you can easily connect the PC for firmware upgrades, the future will support more international language options.

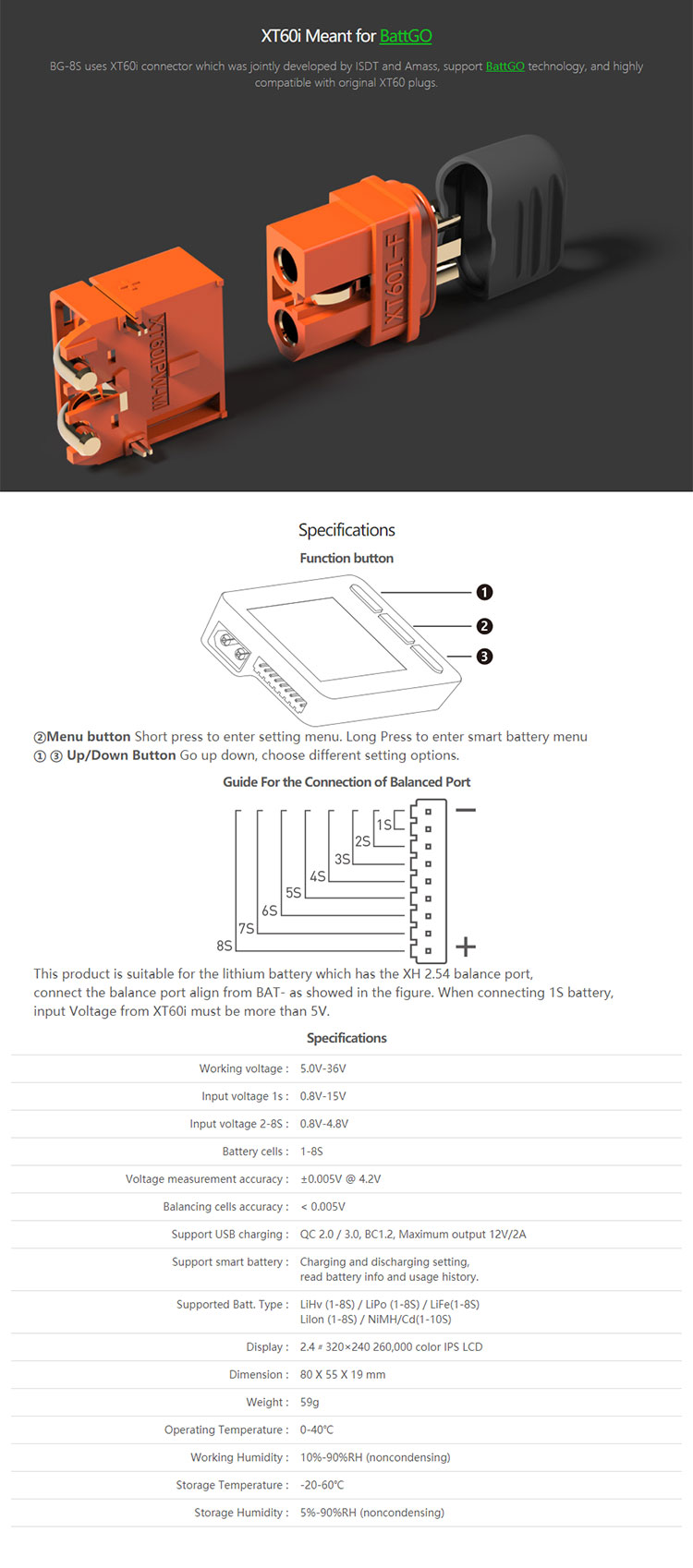

Xt60i for Smart BatteriesBg-8s uses the xt60i connector developed by ISDT and amass to support the new BATTGO Smart Battery interconnect technology, and is highly compatible with the XT60 connectors of various specifications.
| Operating voltage range: |
5.0V-36V |
| Balance port 1st string Input voltage range: |
0.8V-15V |
| Balance port 2-8 string Input voltage range: |
0.8V-4.8V |
| Number of batteries supported: |
1-8S |
| Voltage measurement accuracy: |
± 0.005V @ 4.2V |
| Cell balance accuracy: |
<0.005V |
| Supports USB charging: |
QC 2.0 / 3.0, BC1.2, maximum output 12V / 2A |
| Support for smart batteries: |
Set the charge and discharge parameters, query the battery information and use |
| Supported battery types: |
(1-8S) / LiPo (1-8S) / LiFe (1-8S)
Lilon (1-8S) / NiMH / Cd (1-10S) |
| Display Type: |
2.4 color 320 × 240 26 million color IPS LCD |
| Dimensions : |
80 X 55 X 19 mm |
| Weight: |
59g |
| Working temperature : |
0-40 ° C |
| Working humidity : |
10% -90% RH (non-condensing) |
| storage temperature : |
-20-60 ° C |
| Storage humidity: |
5% to 90% RH (non-condensing) |
