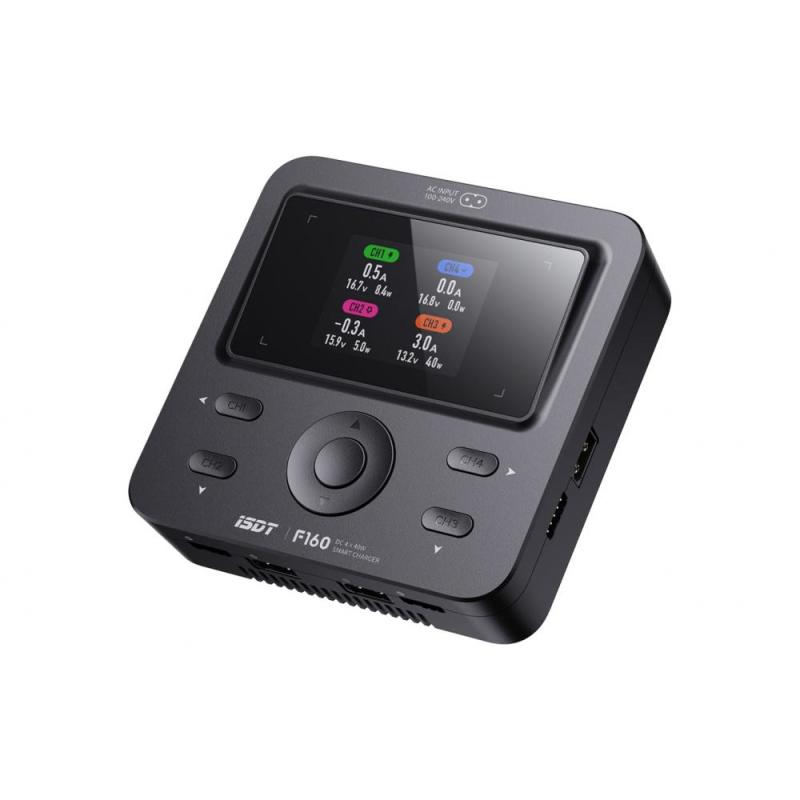

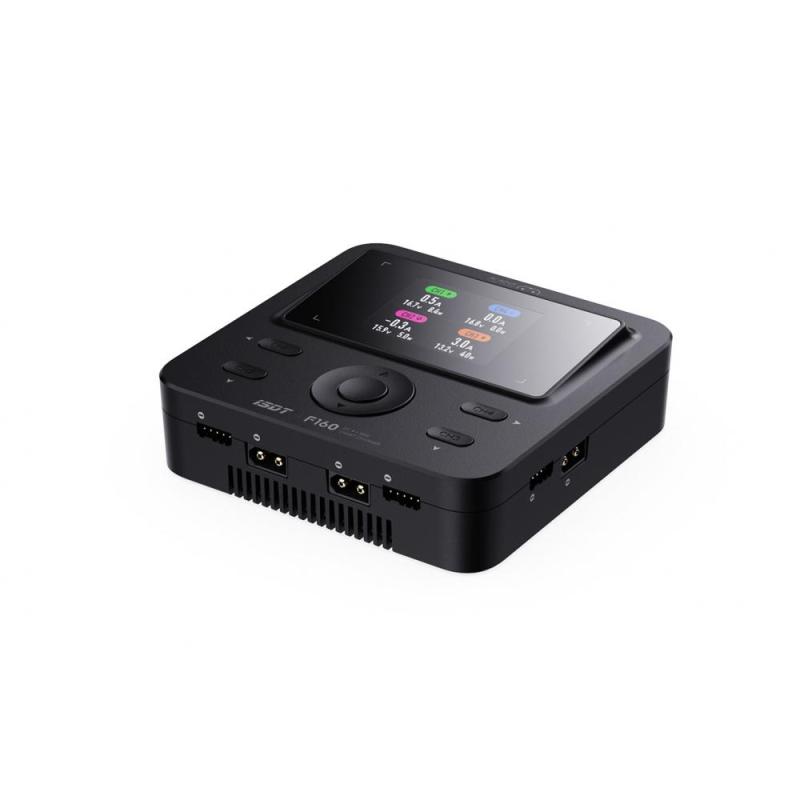

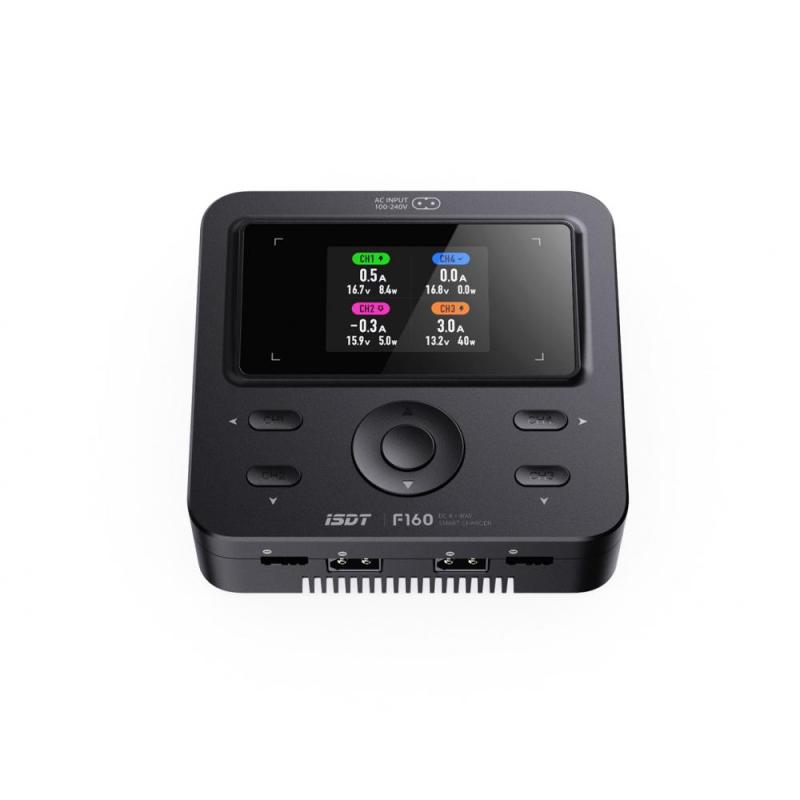

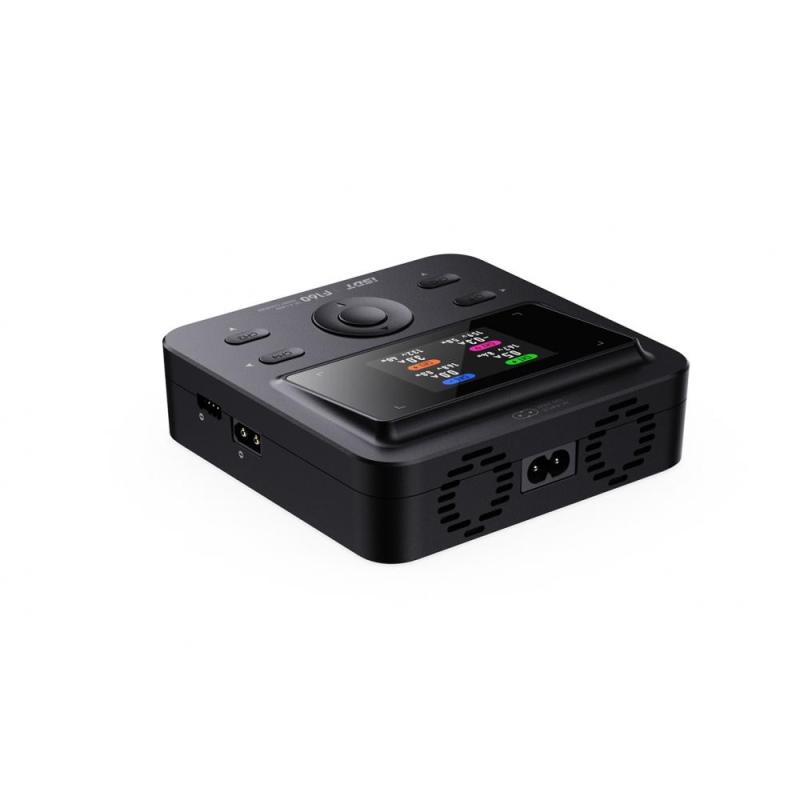

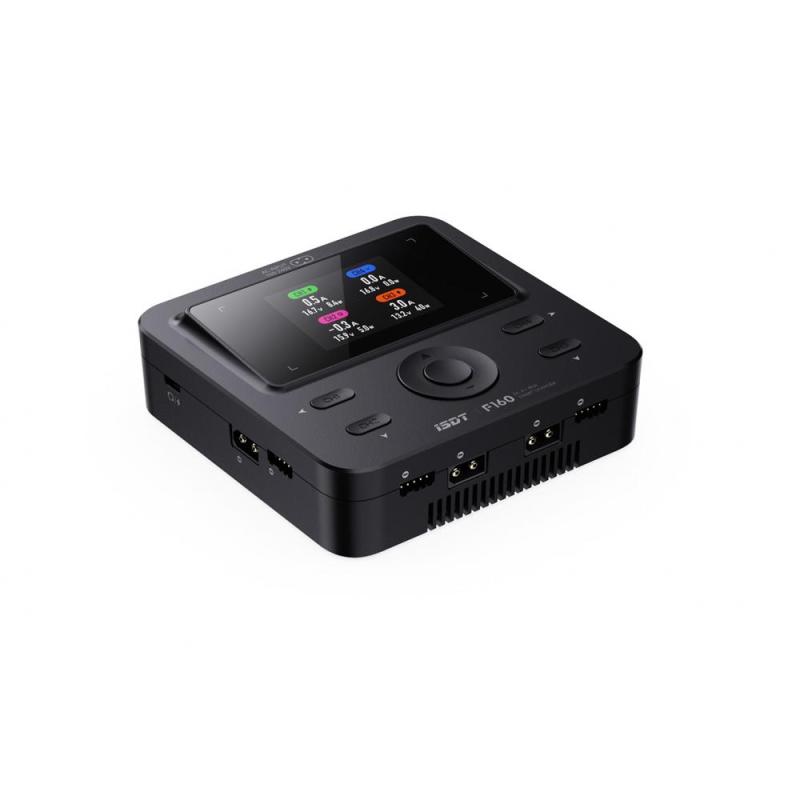

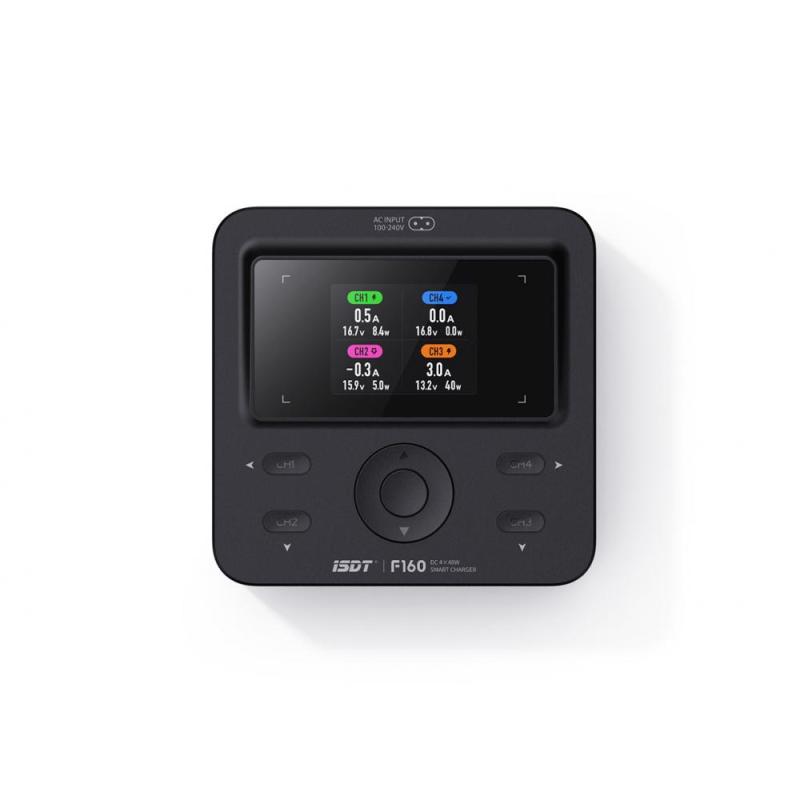

The new F160 from iSDT is a very compact charger with integrated power supply for 230V AC connection with the latest GaN technology.
It is the ideal charger for the indoor season and or to charge up to 4 receivers, flight or drive batteries simultaneously with just one device.
It can charge 4x 1-4s LiXx batteries with a charging current of 0.1 to max. 5A. The maximum power is 40W per output.
The integrated balancer delivers 500mA per cell.
The F160 offers 3 charging modes: charging, discharging & storing.
It is operated via the buttons on the charger itself using 5 ready-made charging programs. All settings can be conveniently adjusted via the iSD Link app on the smartphone
Features
• Compact 4 compartment charger for 4x 1-4s LiXx
• Latest GaN (Gallium Nitride) technology with 160W 230V power supply integrated
• Easy operation and connection via iSD Link APP
• 4x 1-4s LiXx with 40W per output (LiFe, LiPo, LiHv, PB & NiMh)
• Max charging current of 0.2-5A, balancer output up to 0.5A per cell
Specification
Input Voltage: AC 200-240V~50Hz 2.5A (EU)
AC 110-130V~ 60Hz 4A (US)
Max. Charging Power: 40Wx4
Charging Current: 0.1-5A x4
Balance Current: 0.5A/Cell Max
Abnormal Voltage Alarm: Support
Support Working Temperature: 0-40℃
Supported Battery Types and Cell Count:
LiFe, Lilon, LiPo, LiHv, ULiHv 1~4S | Pb 2~7S | NiCd/MH 4~12S
Output Voltage: CH1: DC 5-18.5V
CH2-4: DC 2.5-18.5V
Discharging Current: 0.1-1A x4
USB Output Power: 5V/2A (Only Port 1 ldle)
Incorrect Cell Count Setting Alarm: Support
Storage Temperature: -20-60℃
Dimension: 130x128x41mm
Weight: Approximately 380g
