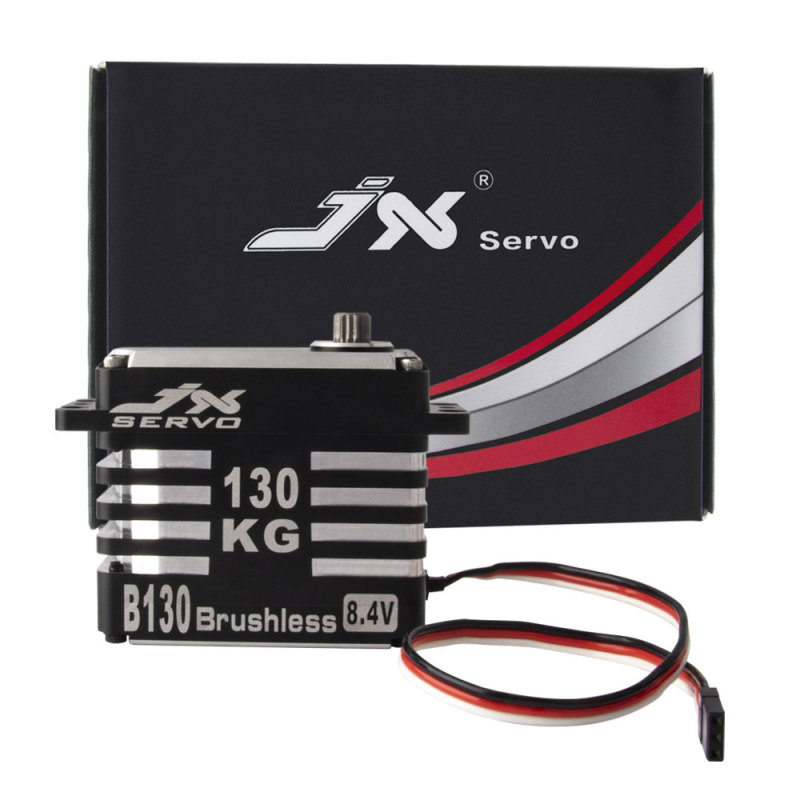

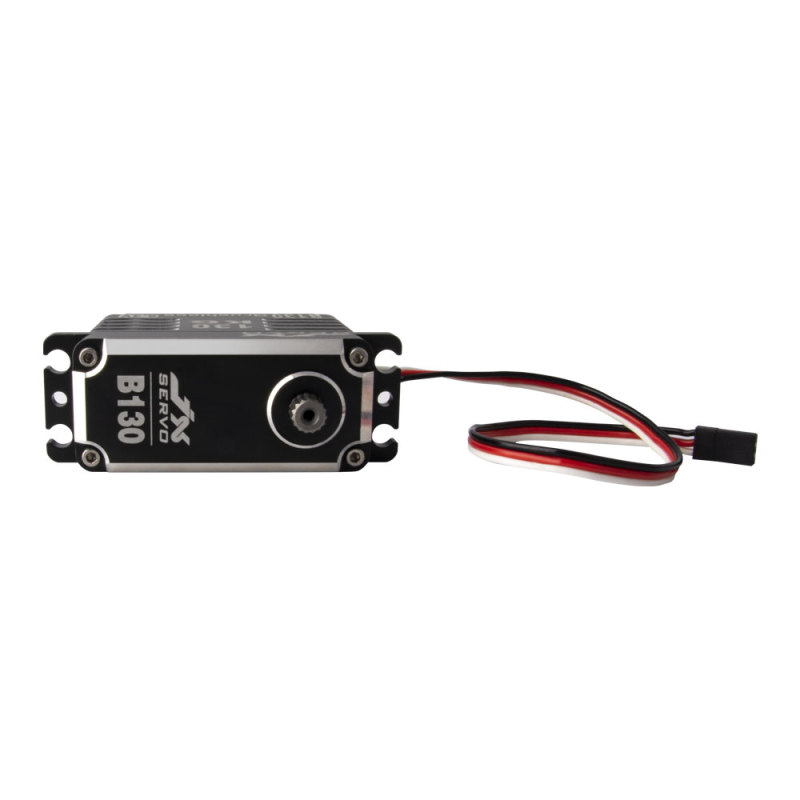

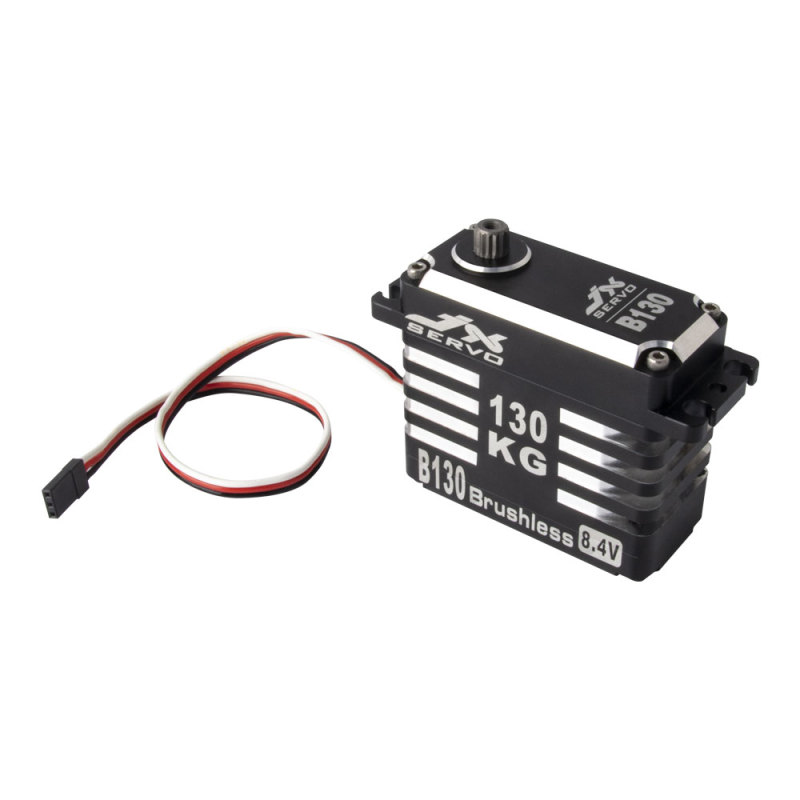

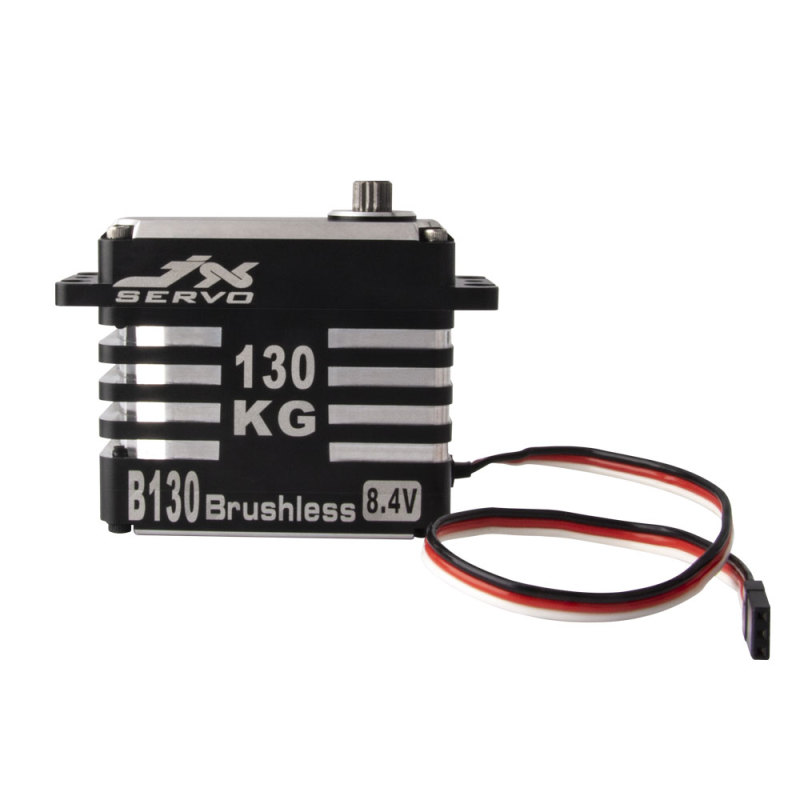

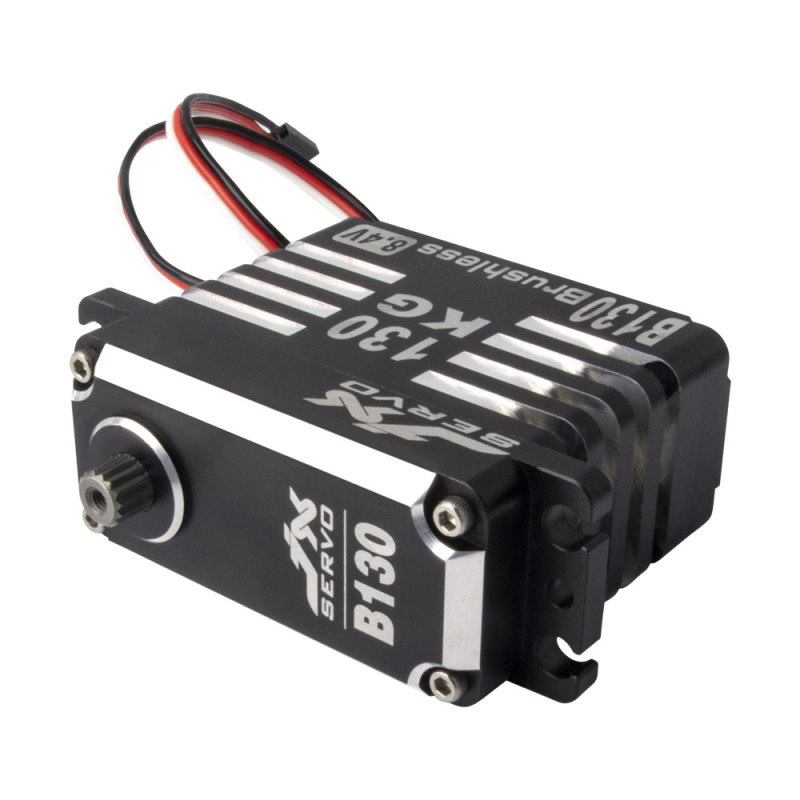

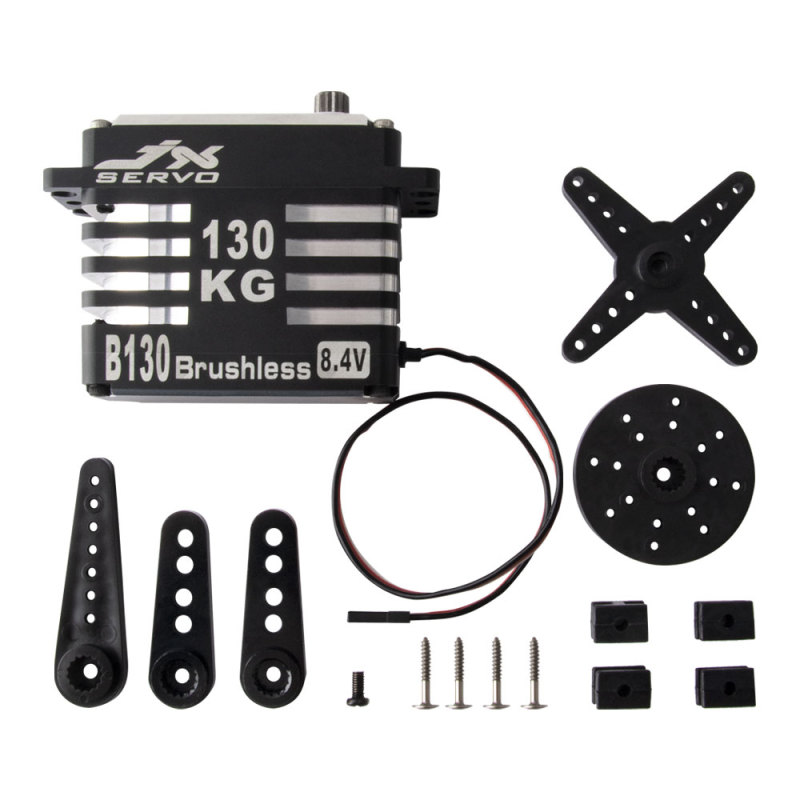

JX Servo - B130 130KG HV Full CNC Metal Gear Brushless Servo

SKU: BR0052.0202
This item is available by special order only. For pricing, MOQ and delivery information, please contact your sales representative.
$198.00 $139.89
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
Add to Favorites (1)
  • JX Servo - B130 130KG HV Metal Gear Servo Motor
  • JX Servo - B130 130KG HV Metal Gear Servo Motor
  • JX Servo - B130 130KG HV Metal Gear Servo Motor
  • JX Servo - B130 130KG HV Metal Gear Servo Motor
  • JX Servo - B130 130KG HV Metal Gear Servo Motor
  • JX Servo - B130 130KG HV Metal Gear Servo Motor
  • JX Servo - B130 130KG HV Metal Gear Servo Motor
  • JX Servo - B130 130KG HV Metal Gear Servo Motor
  • JX Servo - B130 130KG HV Metal Gear Servo Motor
  • JX Servo - B130 130KG HV Metal Gear Servo Motor
  • JX Servo - B130 130KG HV Metal Gear Servo Motor
  • JX Servo - B130 130KG HV Metal Gear Servo Motor
  • JX Servo - B130 130KG HV Metal Gear Servo Motor
  • JX Servo - B130 130KG HV Metal Gear Servo Motor
  • JX Servo - B130 130KG HV Metal Gear Servo Motor
  • JX Servo - B130 130KG HV Metal Gear Servo Motor
1/1
  • JX Servo - B130 130KG HV Metal Gear Servo Motor
  • JX Servo - B130 130KG HV Metal Gear Servo Motor
  • JX Servo - B130 130KG HV Metal Gear Servo Motor
  • JX Servo - B130 130KG HV Metal Gear Servo Motor
  • JX Servo - B130 130KG HV Metal Gear Servo Motor
  • JX Servo - B130 130KG HV Metal Gear Servo Motor
  • JX Servo - B130 130KG HV Metal Gear Servo Motor
  • JX Servo - B130 130KG HV Metal Gear Servo Motor
  • Description
JX Servo Technology have established a reputation for reliability and value. JX Servo produce servos for all applications from RC Modelling, UAV, Robotics to industrial applications. JX Servo offer an affordable solutions for all kinds of servo applications and are backed up with years of R&D and production development to ensure reliable quality servos are always delivered quickly.

Features:
Full Metal Case
Brushless Motor
130KG Torque
8.4v HV

SPECIFICATIONS：
PWM control （1500 u-sec is the central point）PWM control （1500 u-sec is the central point）
Max Angle:180°
Pulse width:1000-2000μs=90°
Pulse width:500-2500μs=180°
Dead band: 4μs    1520μs / 330hz
Motor: Brushless Motor
Operating Speed (6V): 0.15sec/60°
Operating Speed (8.4V): 0.13sec/60°
Stall Torque (6V): 107kg.cm
Stall Torque (8.4V): 130kg.cm
Dimensions: 65.8X30X58.8mm
Weight: 260 g

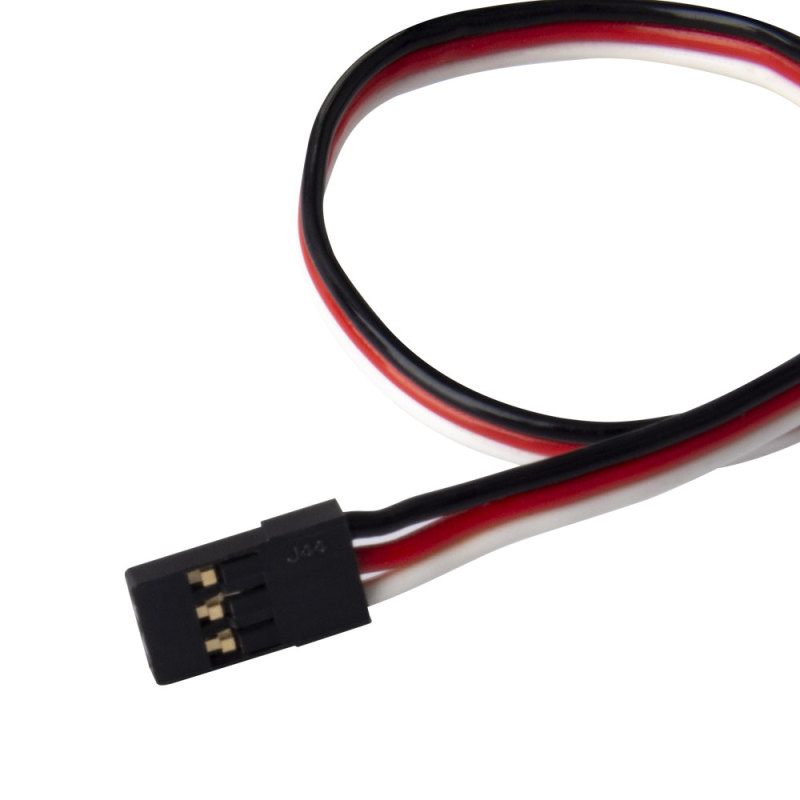

Connector Wire Length: JR  265 mm (10.43in)
Bearing: 2BB
