FEATURE:

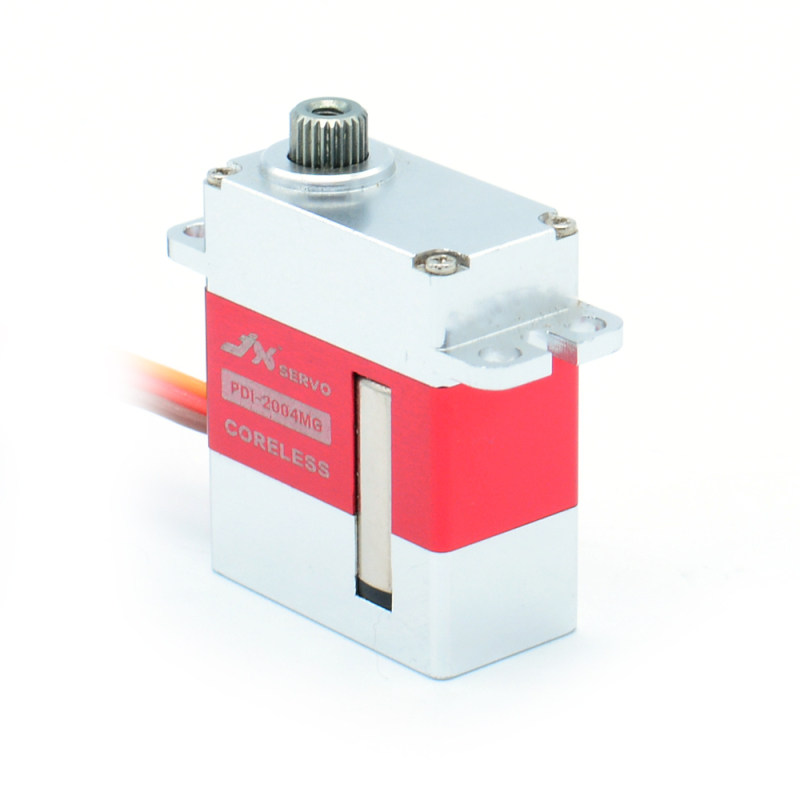

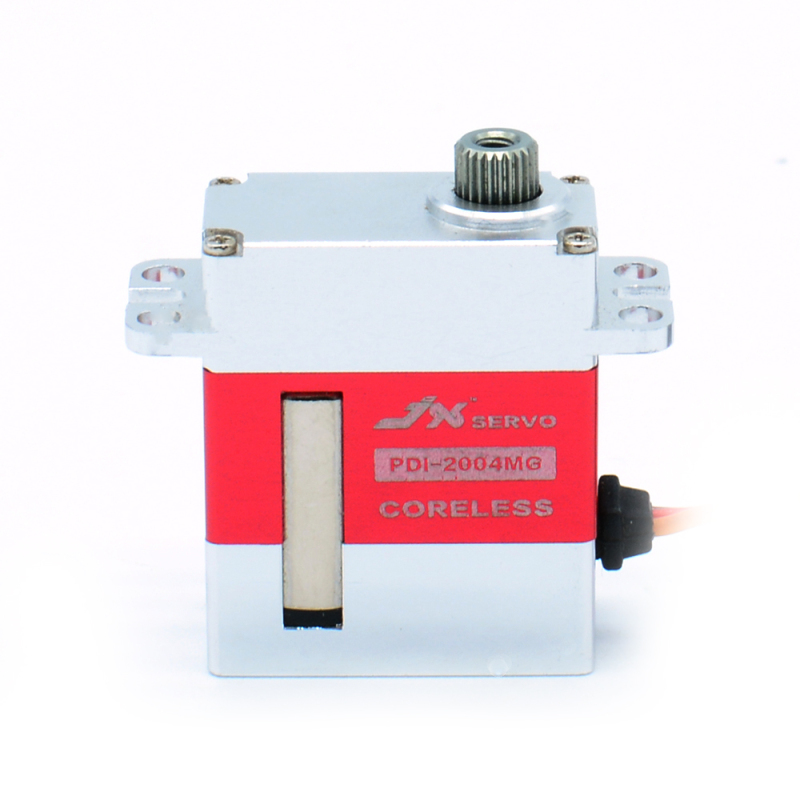

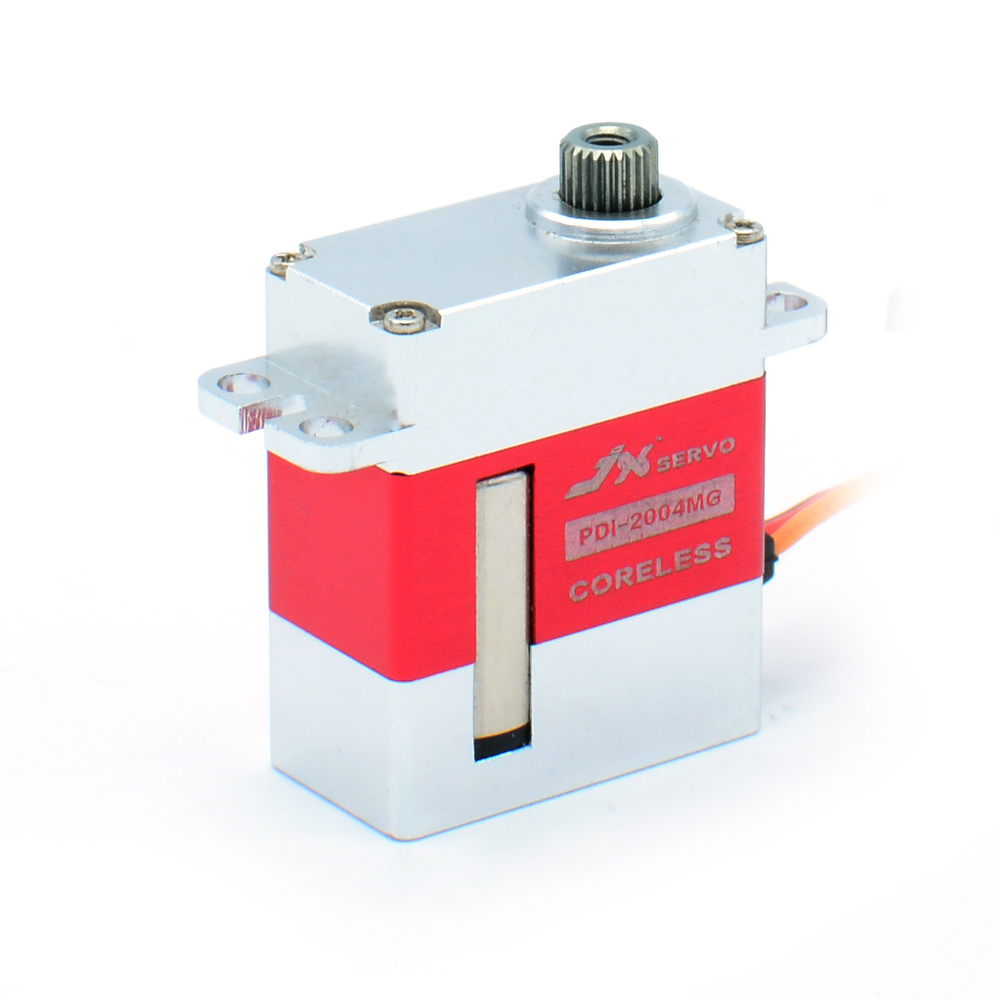

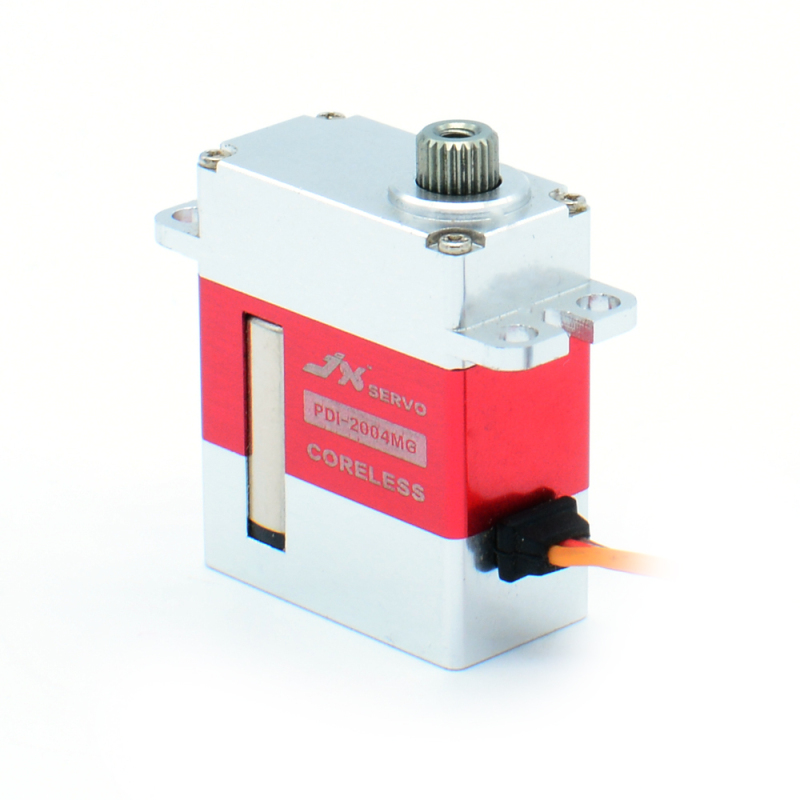

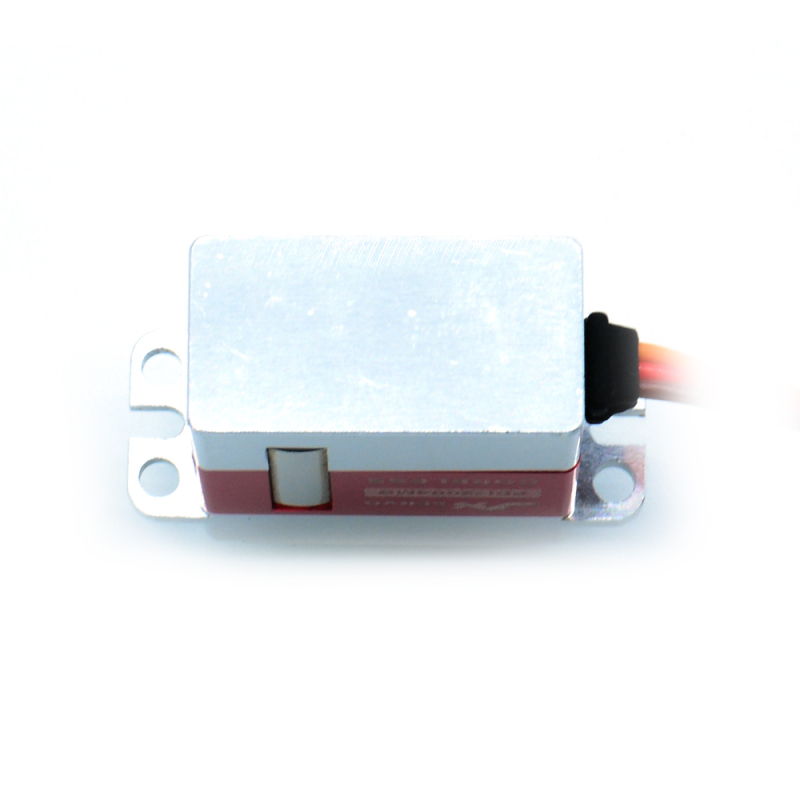

-- High performance programmable digital coreless Swash servo
-- High-precision Taiwan-made aluminium gears with hard anodizing
-- Full CNC aluminium Shell structure
-- Dual ball bearings
-- Waterproof
SPECIFICATIONS:
Dead band: 1μs
Motor: coreless motor
Working frequence: 1520μs / 330hz
Operating Voltage: DC4.8~6.0 V
Operating Temperature Range: -10 to + 60°
Operating Speed (4.8V): 0.09sec/60°
Operating Speed (6V): 0.08 sec/60°
Stall Torque (4.8V): 3.2kg.cm
Stall Torque (6V): 4.2kg-cm
Potentiometer Drive: Direct Drive
Dimensions: 23X12X27.6 mm
Weight: 20.3 g (0.72oz)
Connector Wire Length: JR 220 mm
Bearing: 2BB
