JX Servo Technology have established a reputation for reliability and value. JX Servo produce servos for all applications from RC Modelling, UAV, Robotics to industrial applications. JX Servo offer an affordable solutions for all kinds of servo applications and are backed up with years of R&D and production development to ensure reliable quality servos are always delivered quickly.

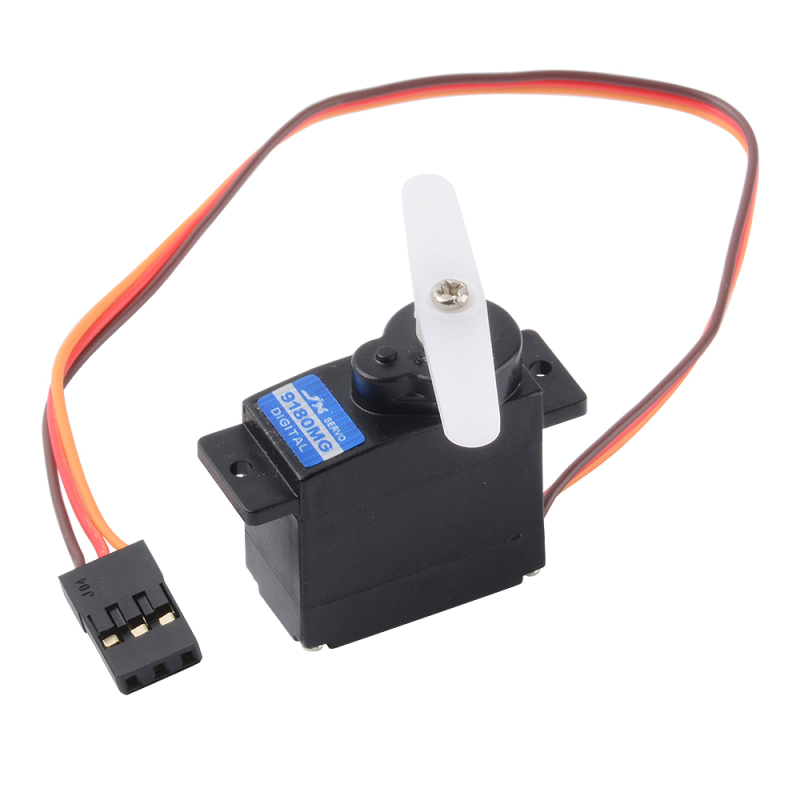

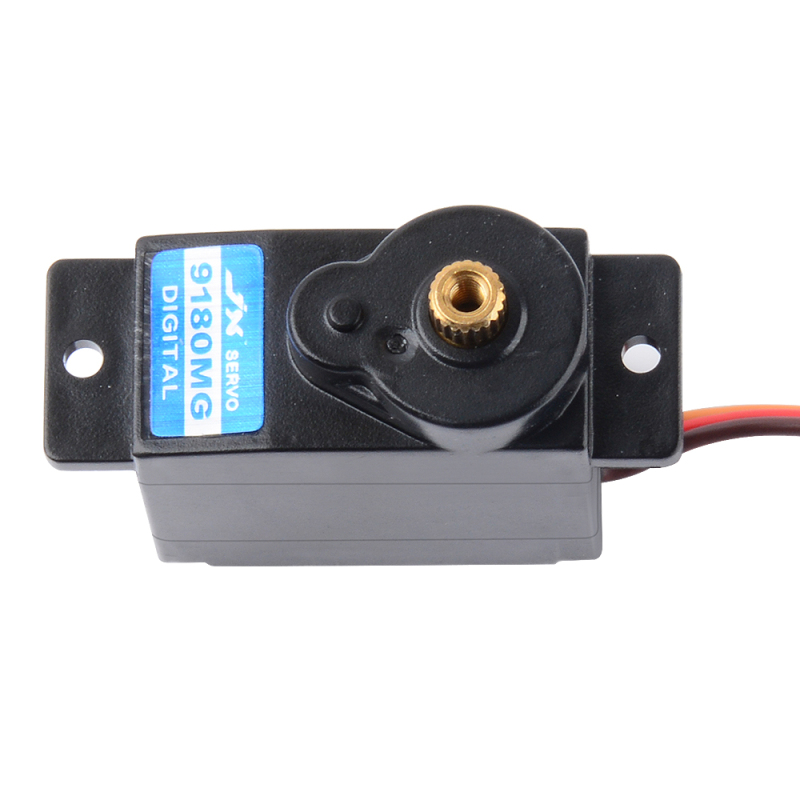

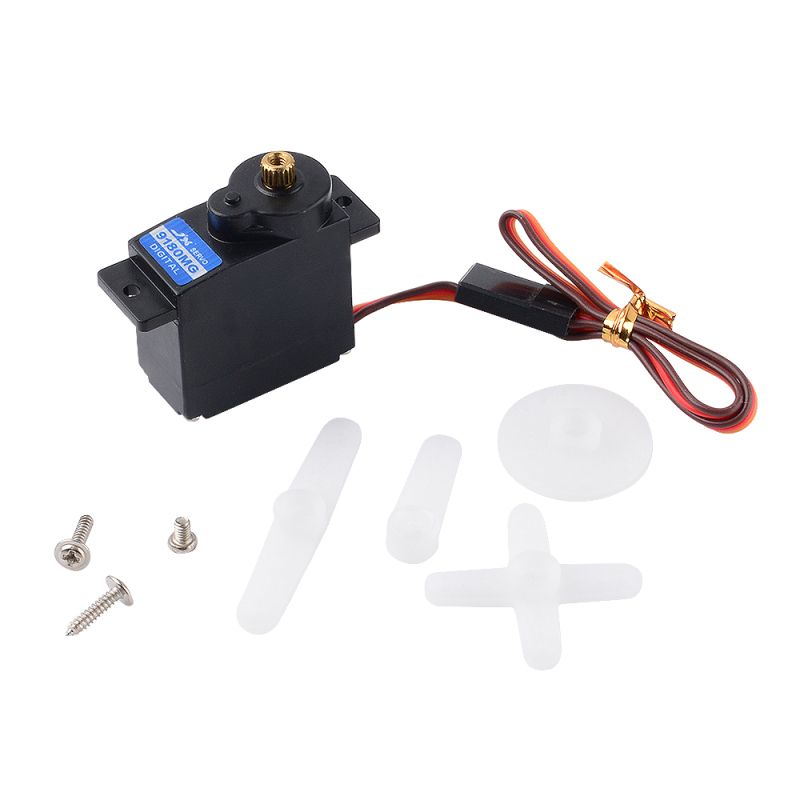

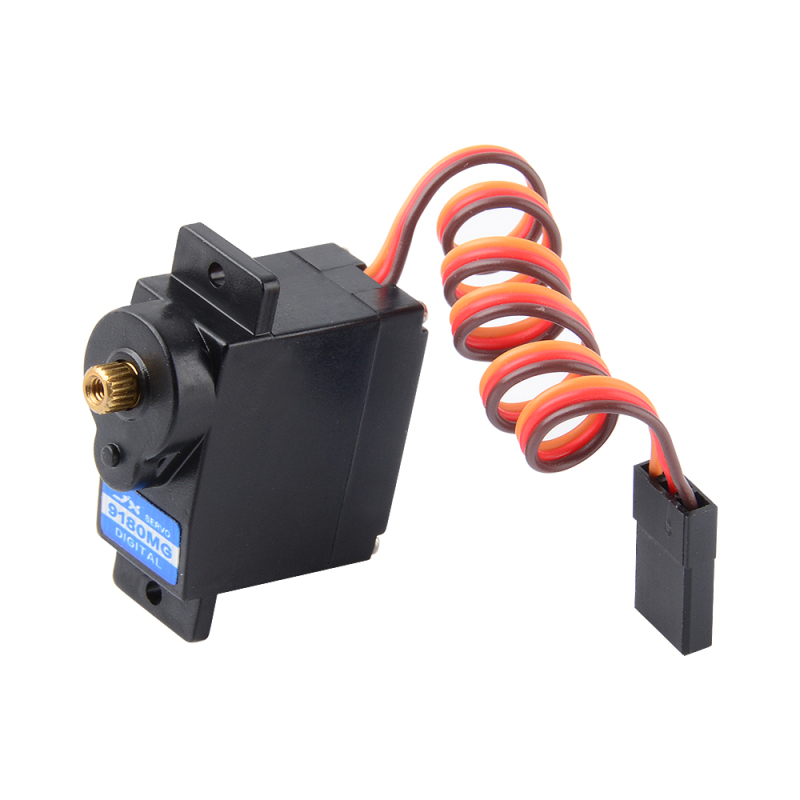

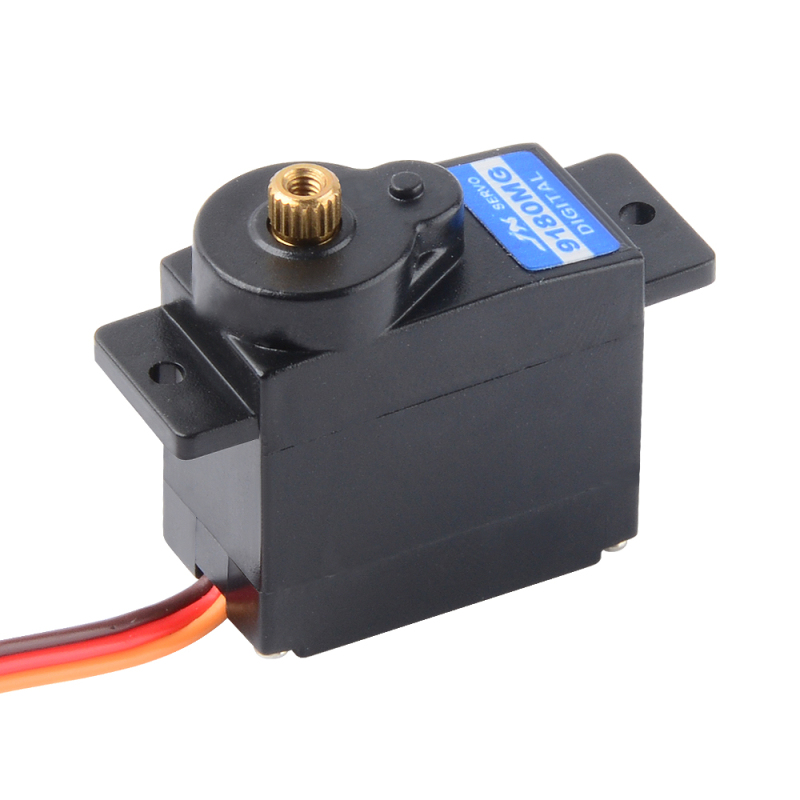

Features: JX metal gear analog mini servo with 180 degree travel. 180 degree rotation is perfect for pan and tilt camera mounts or any other articulated application. This servo also offers metal gears, good torque, speed, excellent centering at a great. The gear train is all metal.
SPECIFICATIONS： Brand:JX Servo Item:PDI-9180MG Servo Weight: 12g Size: 22mmx12mmx21mm Rotation angle:180 Degree Torque: 2.0kg.cm (6.0v) Speed: 0.12sec/60deg (4.8v) - 0.10 sec/60deg (6.0v) Voltage: 4.8-6.0v Type: Digital Micro Gear Train: Metal Ball Bearing: No Lead Length: 180mm Plug: JR/Futaba
Robotic and Industrial servo OEM & ODM services available. We are confident we can make any type of servo to suit any application. Our engineering team are up to the challenge and looking forward to building a servo to suit your needs.
We can build servos with features like these and more! Torque ranging from 2kg*cm to 700kg*cm Travel speeds from 0.03s to 0.5s Travel angles: from 40deg to 360deg Communication protocols such as TTL. RS232, i2C, RS485 or PWM Servo positioning and current feedback Gear materials from plastics to titanium Voltage ranges are also customizable from 4.8v to 28v Size, Shape and design can be customized to your needs A variety or motor options such as brushed, coreless & brushless We can offer Potentiometer or magnetic induction control
Potential Applications. 1. Electric lock (anti-heft door lock servo) 2. Luggage case lock servo 3. Washing machine safety mechanism servo 4. Water/gas valve control Servo 5. Smart lamp Switch Servo 6. Camera gimbal control servo 7. UAV heavy duty servo 8. Servo Release Servo Drop 9. Curtain Servo 10. Automatic Perfume and liquids Sprayer Servo 11. Smart bike gear change servo 12. Electric car mirror servo 13. Car seat adjustment servo 14. Car window winding servo 15. Medical equipment servo 16. safety lock servo 17. Robot servo 18. Wheel servo 19. Robot arm servo
