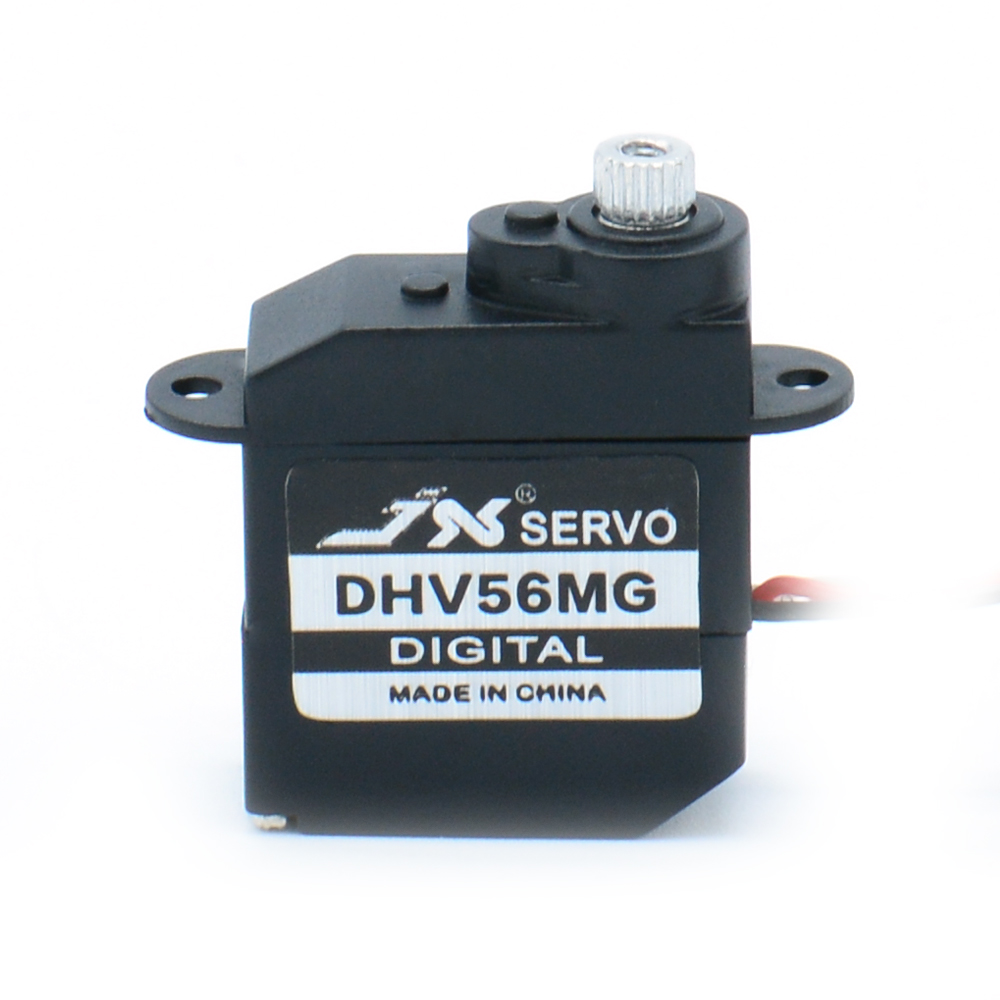

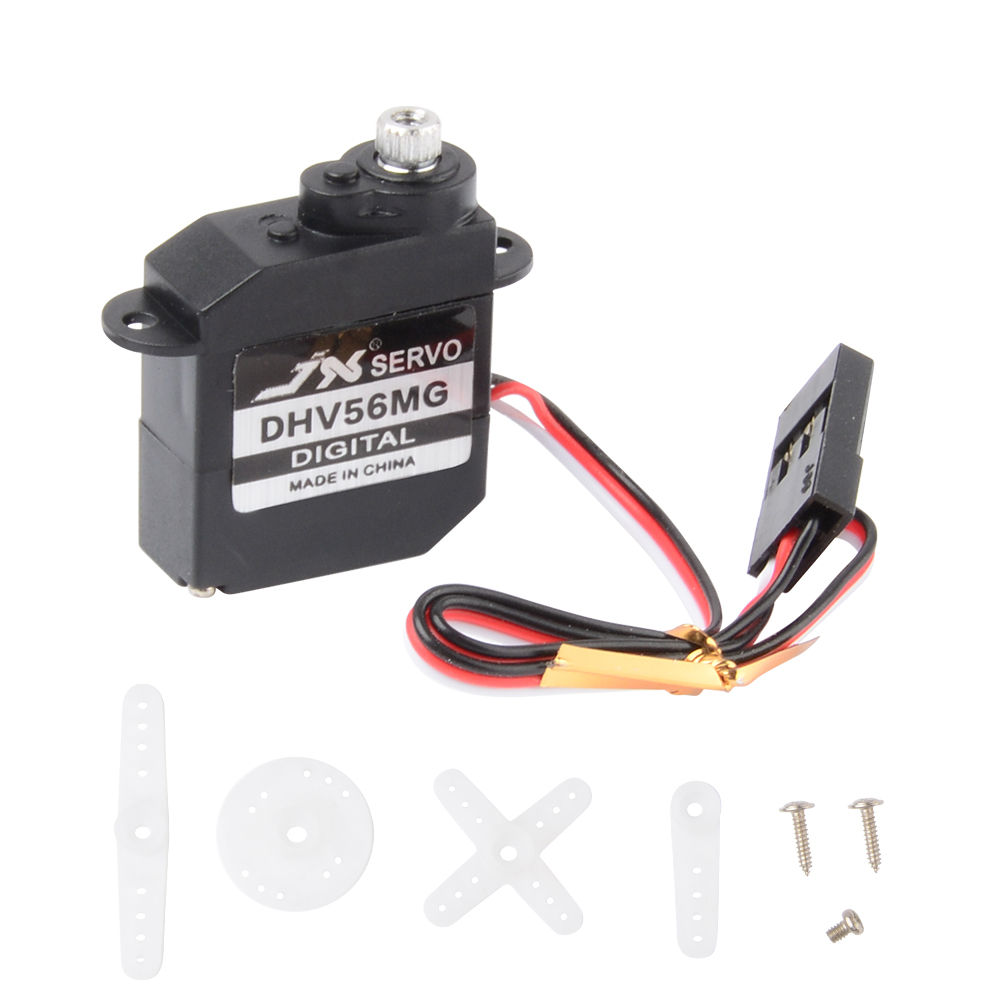

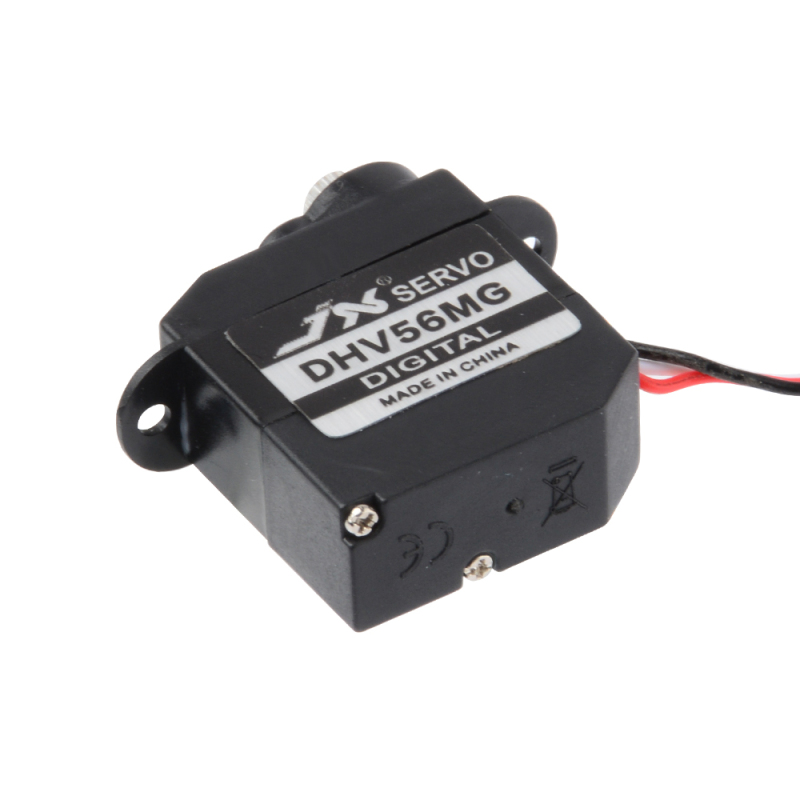

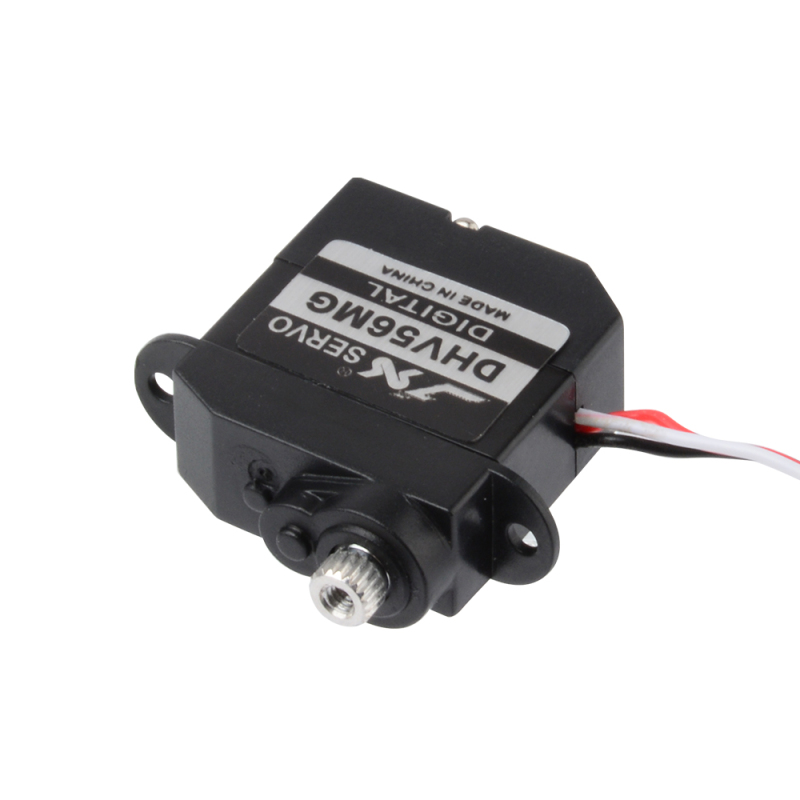

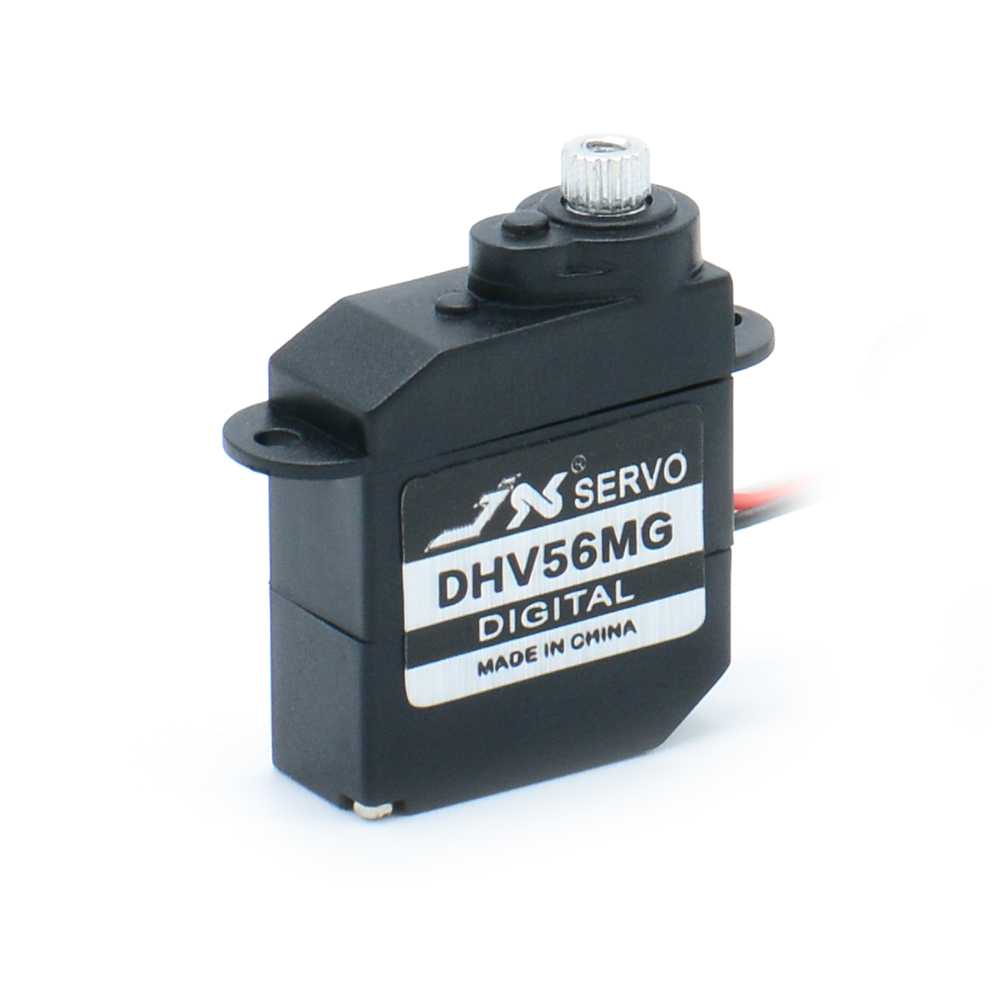

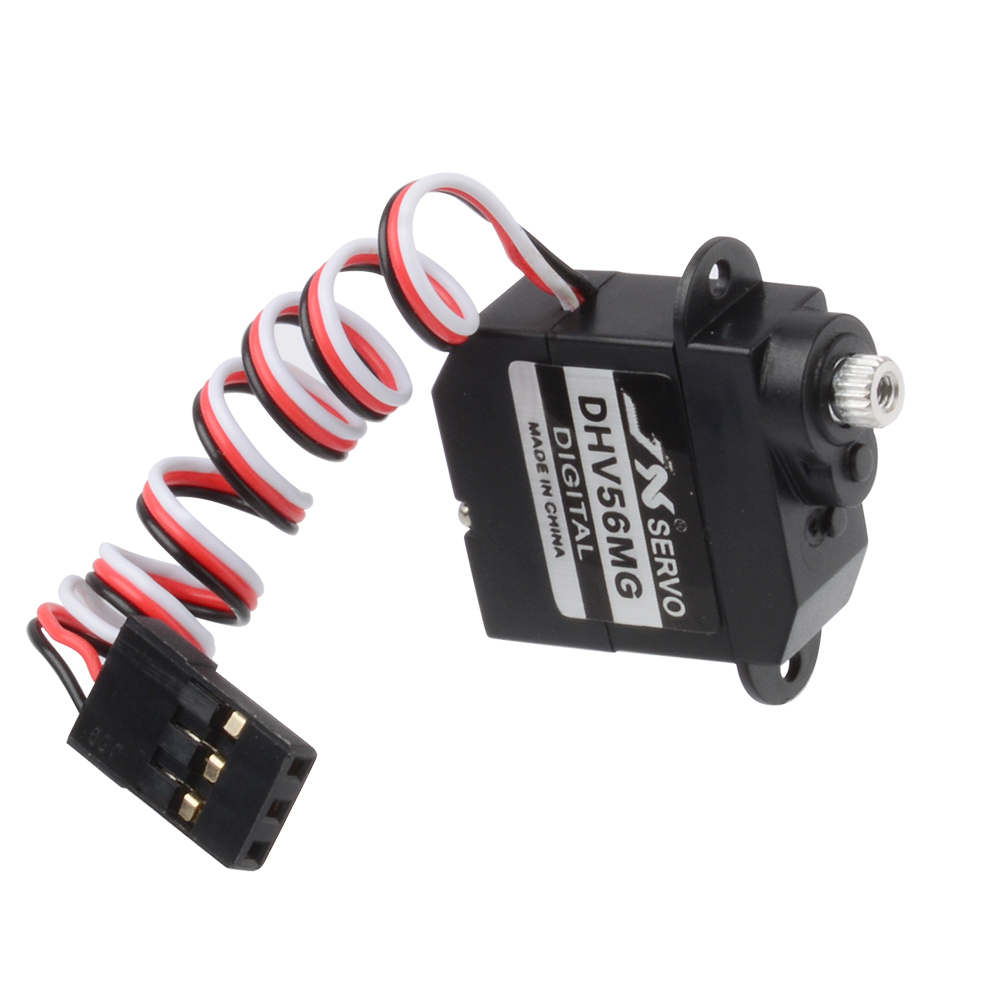

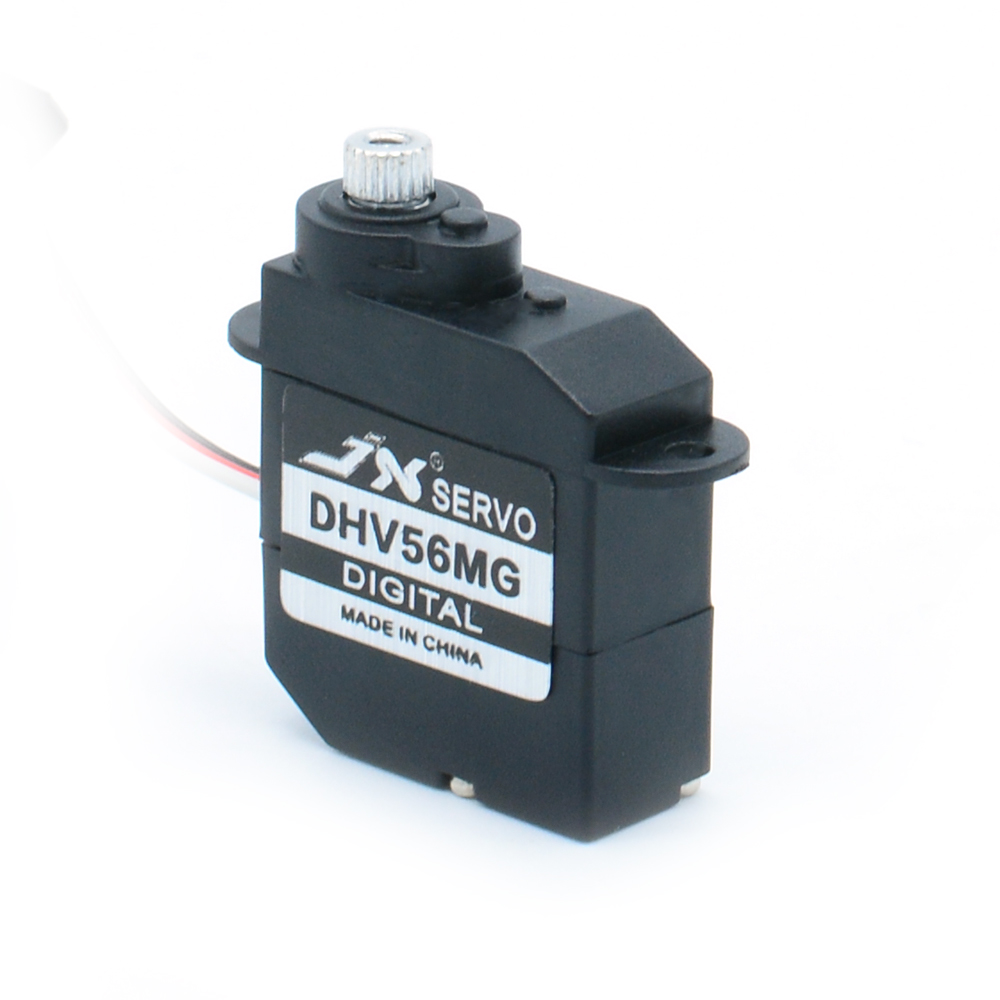

JX Servo PDI-DHV56MG 5.6g Metal Gear Digital Coreless Servo
1/1
JX Servo PDI-DHV56MG 5.6g Metal Gear Digital Coreless Servo
SKU:
BR0052.0048
$11.50
$4.40
Login to see price
Received successfully
Coupon Code
CONTINUE SHOPPING
Please select the information you want
X
Quantity
-
+
ADD TO CART
BUY NOW
Add to Favorites
(4)
facebook
line
twitter
whatsapp
pinterest
tumblr
linkedin
1/1
Description

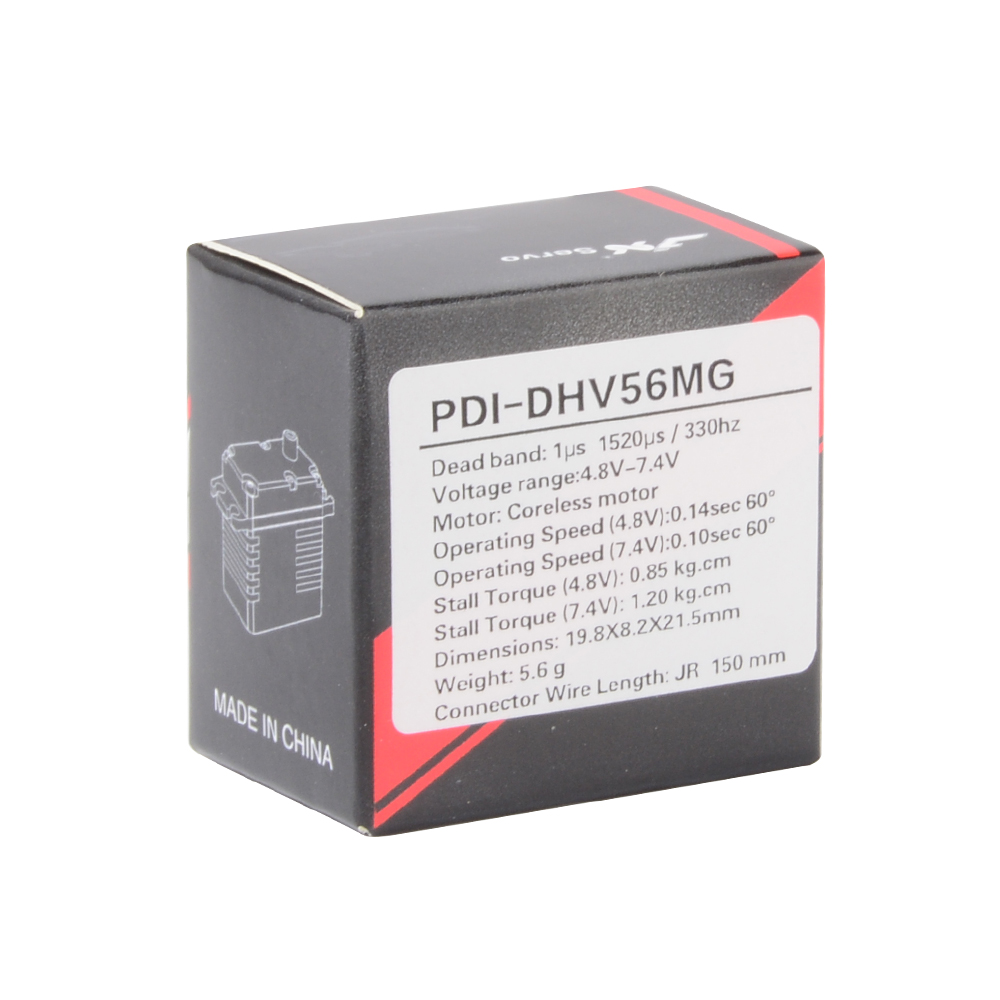

SPECIFICATIONS:
Working frequence: 1520μs / 330hz
Motor: coreless motor
Operating Voltage: DC4.8~7.4 V
Operating Speed (4.8V): 0.14sec/60°
Operating Speed (6V): 0.12 sec/60°
Operating Speed (7.4V): 0.1 sec/60°
Stall Torque (4.8V): 0.85kg.cm
Stall Torque (6V): 1.05 kg-cm
Stall Torque (7.4V): 1.2 kg-cm

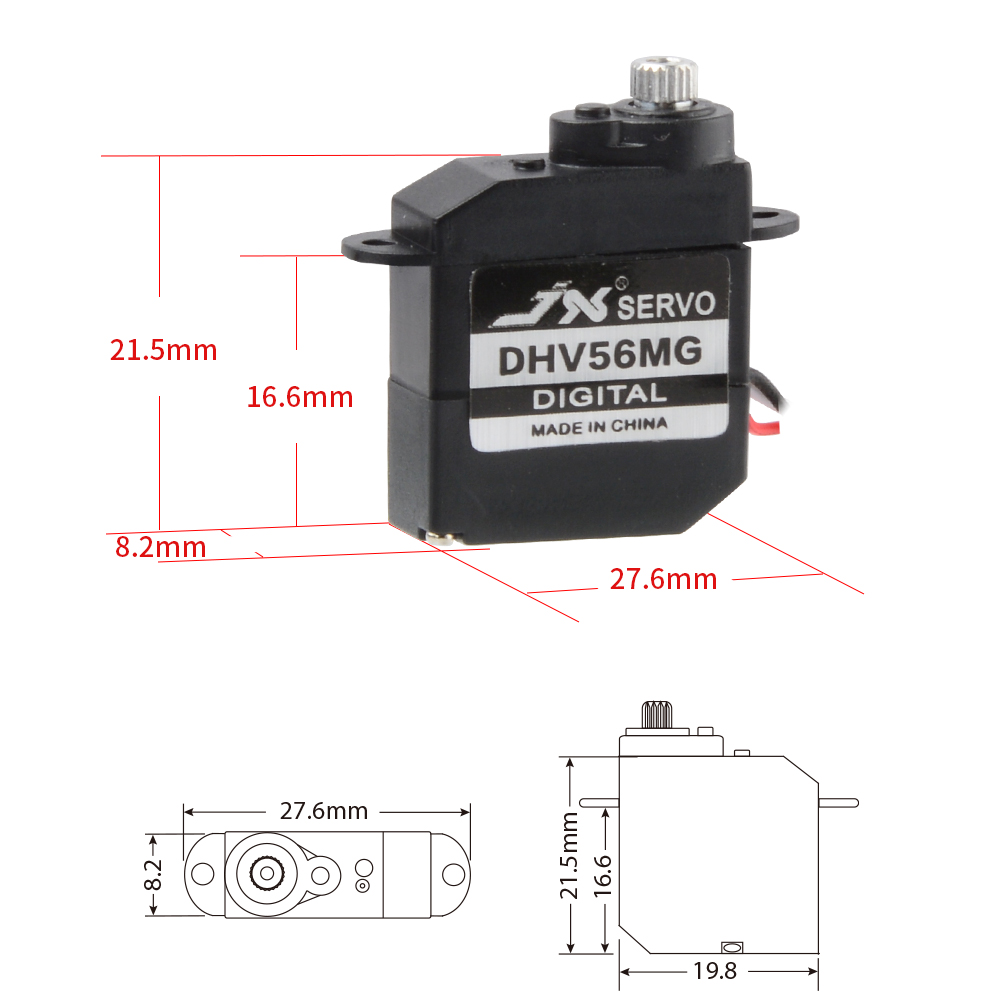

Dimensions: 19.8x8.2x21.5
Weight: 5.6 g
Connector Wire Length: JR 150 mm (5.91in)
Tooth Count: 20
