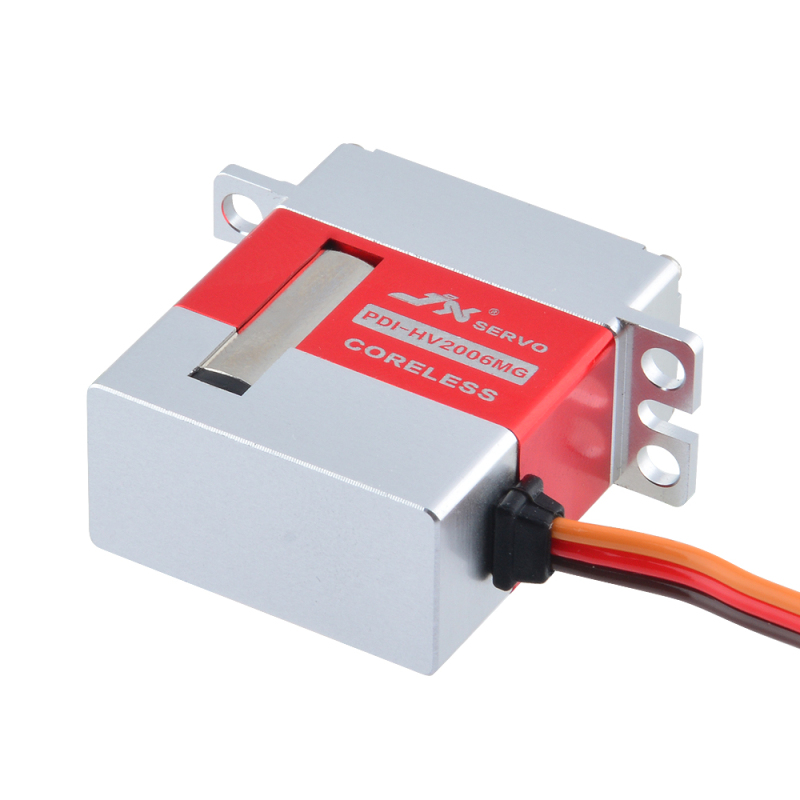

JX Servo PDI-HV2006MG 20.3g Metal Gear Full CNC coreless High digital servo
1/1
JX Servo PDI-HV2006MG 20.3g Metal Gear Full CNC coreless High digital servo
SKU:
BR0052.0063
$29.50
$16.24
Login to see price
Received successfully
Coupon Code
CONTINUE SHOPPING
Please select the information you want
X
Quantity
-
+
ADD TO CART
BUY NOW
Add to Favorites
(4)
facebook
line
twitter
whatsapp
pinterest
tumblr
linkedin
1/1
Description

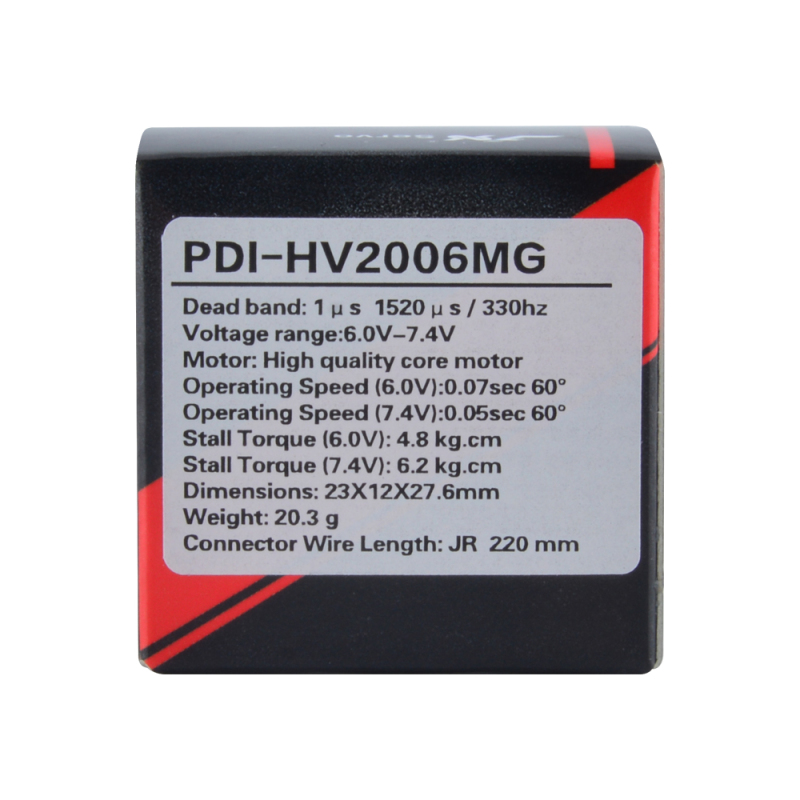

SPECIFICATIONS:
Dead band: 1μs
Motor: coreless motor
Working frequence: 1520μs / 330hz
Operating Voltage: DC6.0~8.4 V
Operating Temperature Range: -10 to + 60°c
Operating Speed (6.0V): 0.07sec/60 °
Operating Speed (7.4V): 0.05sec/60°
Stall Torque (6.0V): 4.8kg.cm (67.09oz/in)
Stall Torque (7.4V): 6.2kg.cm (86.81oz/in)
Potentiometer Drive: Direct Drive

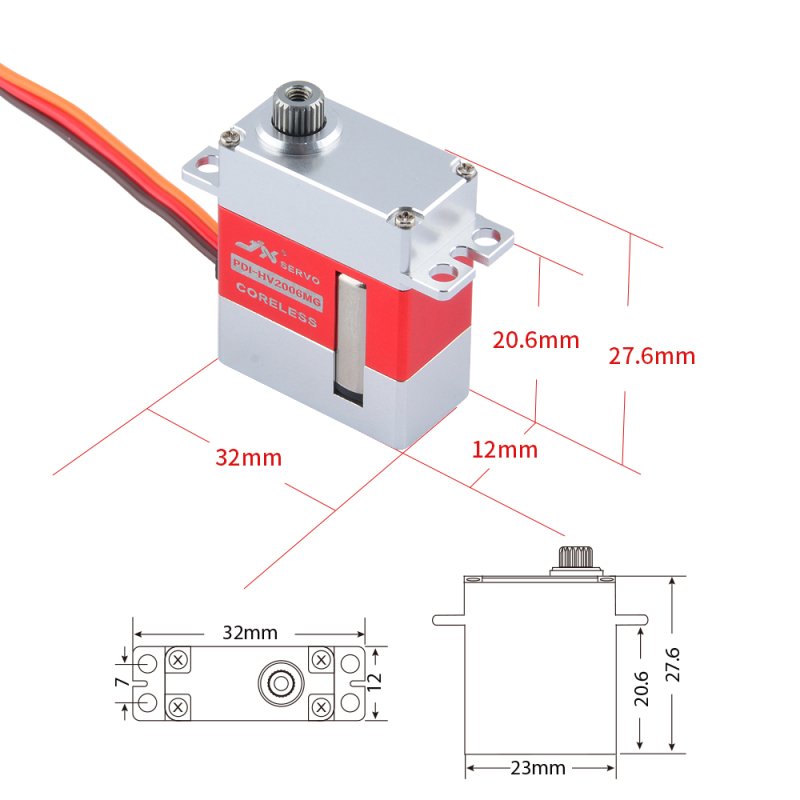

Dimensions: 23X12X27.6 mm
Weight: 20.3 g (0.72oz)
Connector Wire : Futaba/JR 220 mm
Bearing: 2BB
Tooth Count：25
