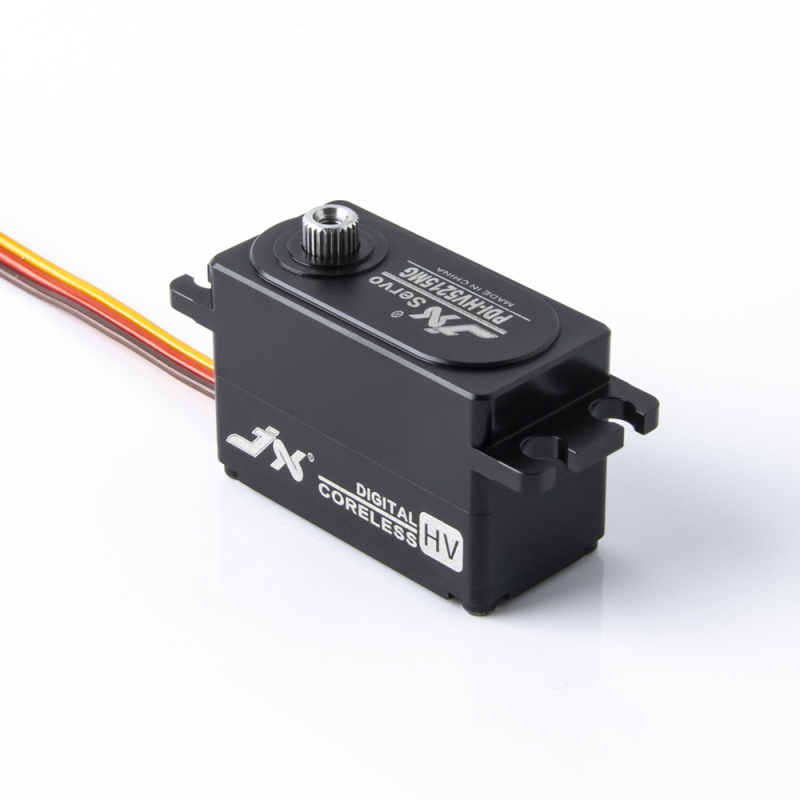

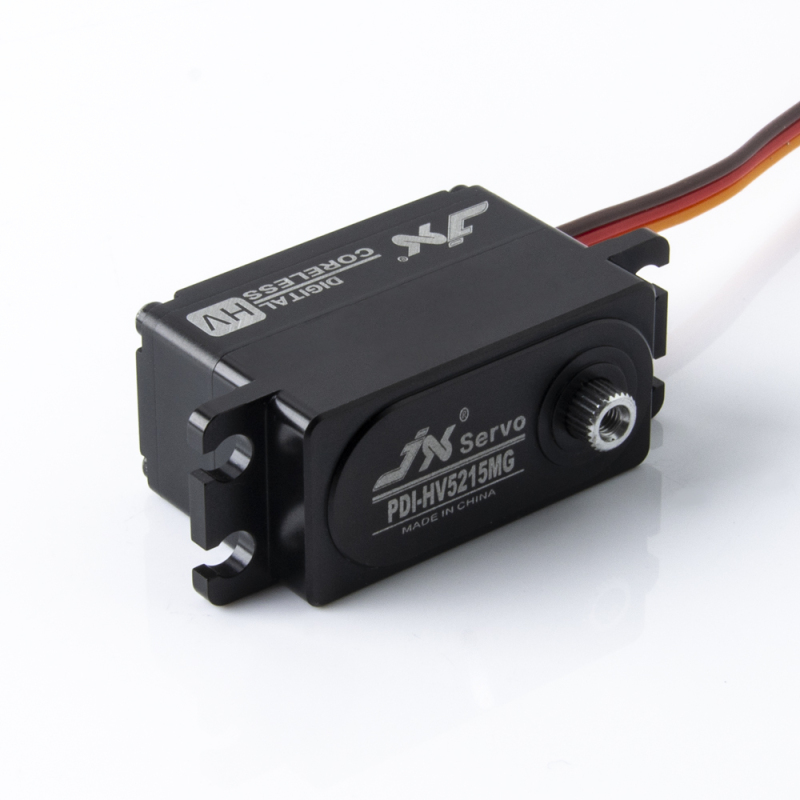

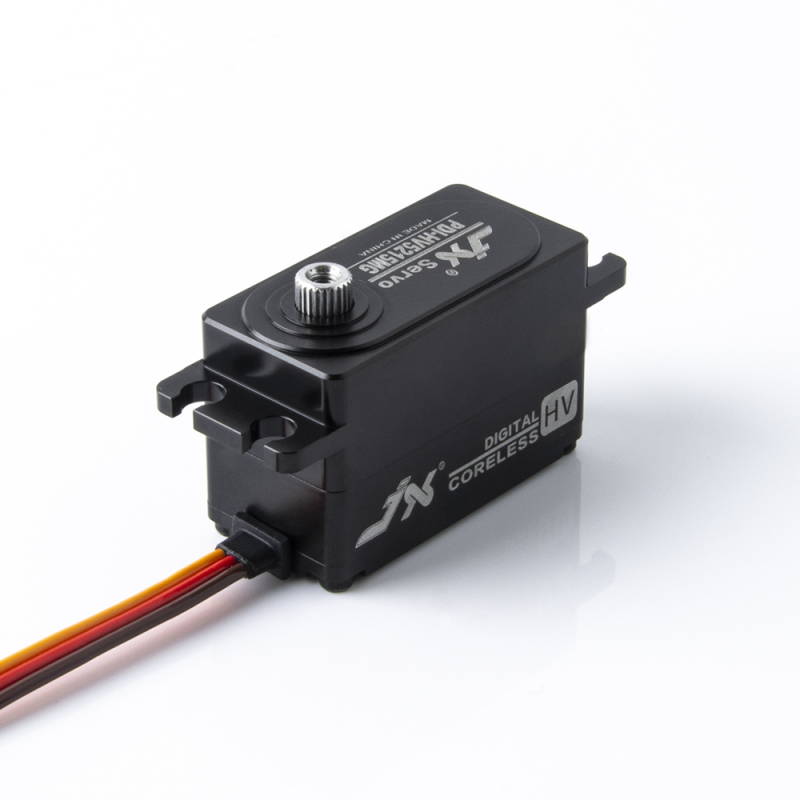

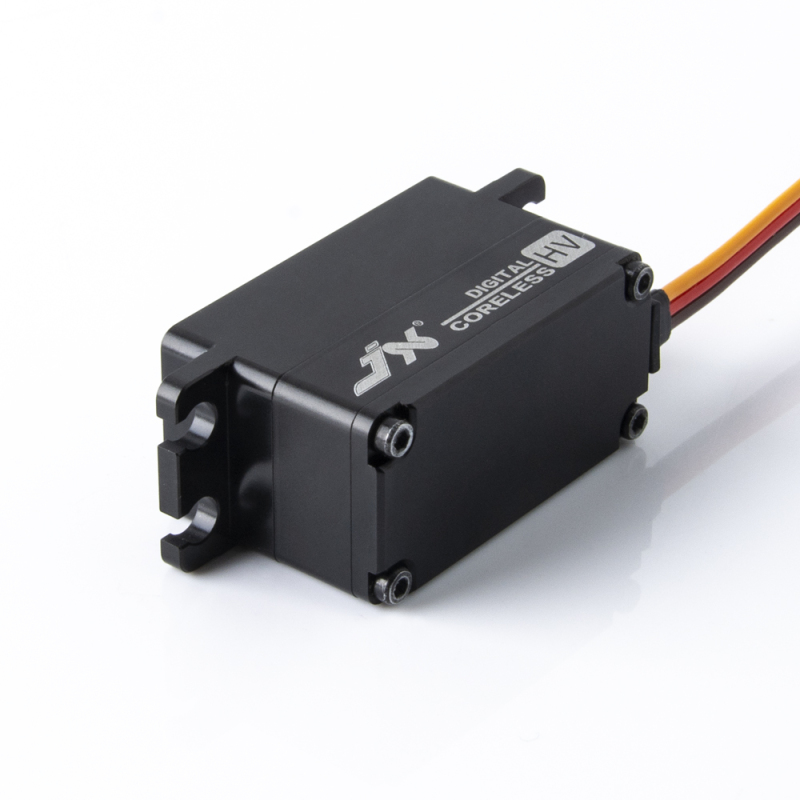

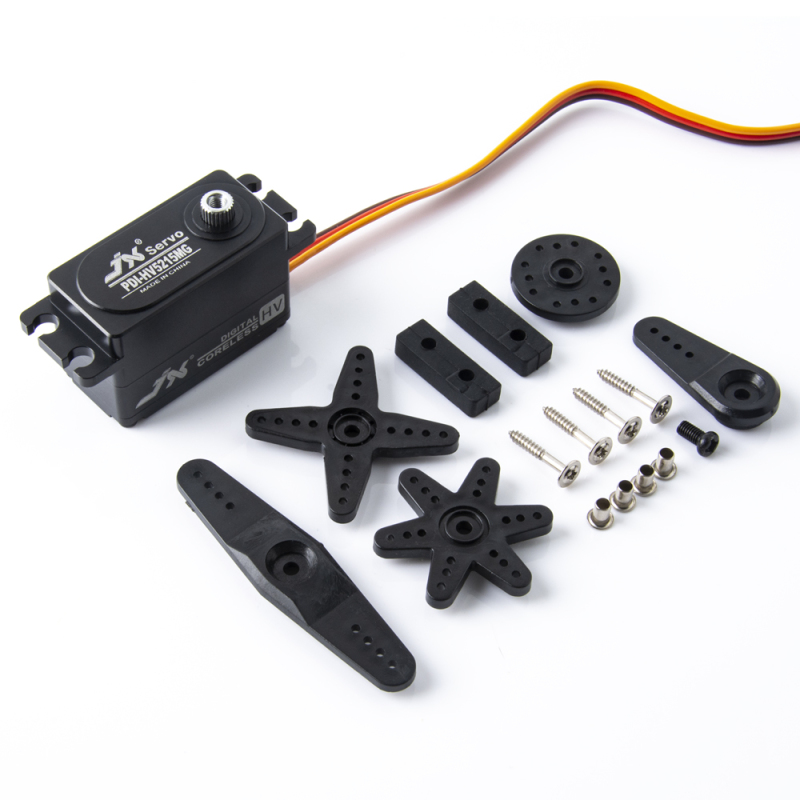

Short body 15kg high-pressure digital steering gear, apply for RC model plane and car, robot and mechanical arm
Applicable model: 1/8 1/10 1/12 remote control vehicle
Product features:
--High performance 15kg high torque high pressure digital short body steering gear
--High precision gear made in Taiwan
--High quality coreless motor
--Double ball bearing
Dead band: 2us
Working frequence: 1520μs / 330hz
Operating Voltage: DC6~8.4V
Motor: coreless motorOperating
Temperature Range: -10 to + 60°COperating Speed (6V): 0.09sec/60°
Operating Speed (8.4V): 0.07sec/60°
Stall Torque (6V):13.2kg.cm
Stall Torque (8.4V): 15.6kg.cm
Dimensions: 40.5X20.5X26.8mm
Weight:52 g (1.67oz)Connector
Wire Length: JR 260 mmBearing: 2BB
Teeth:25T
