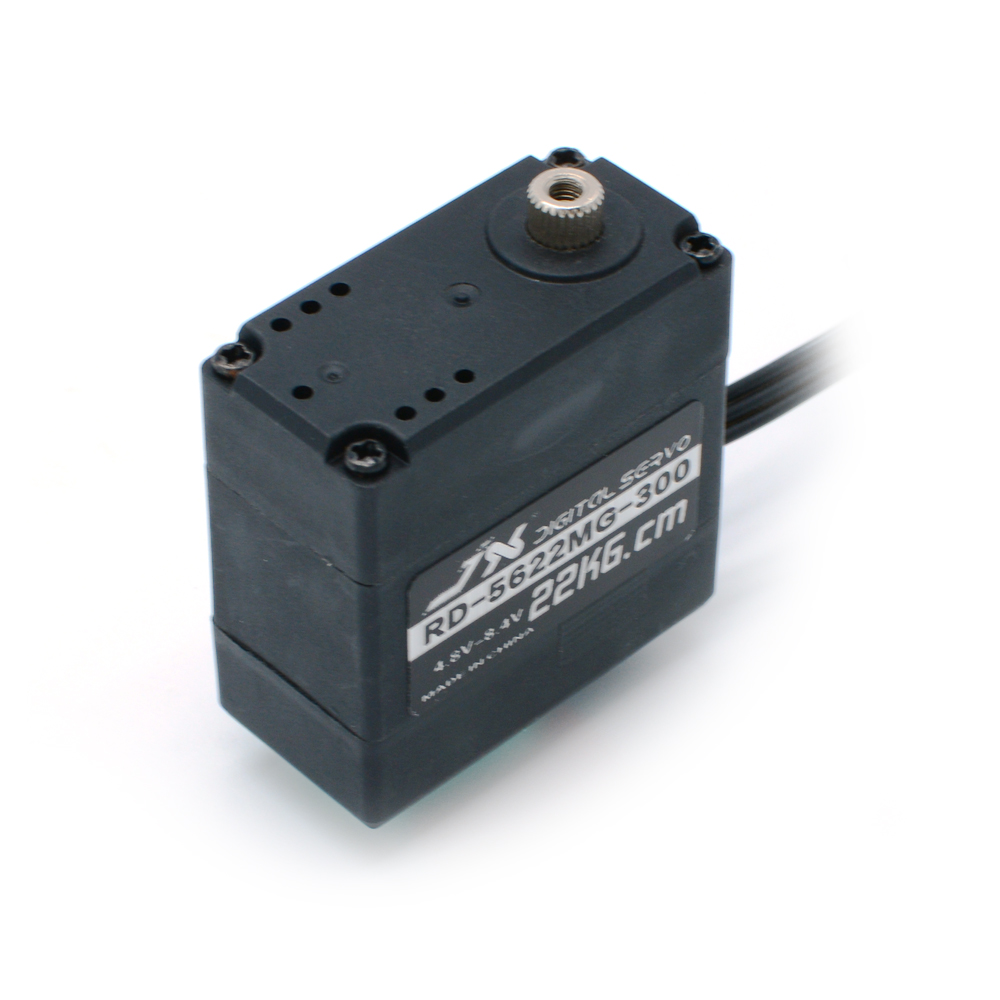

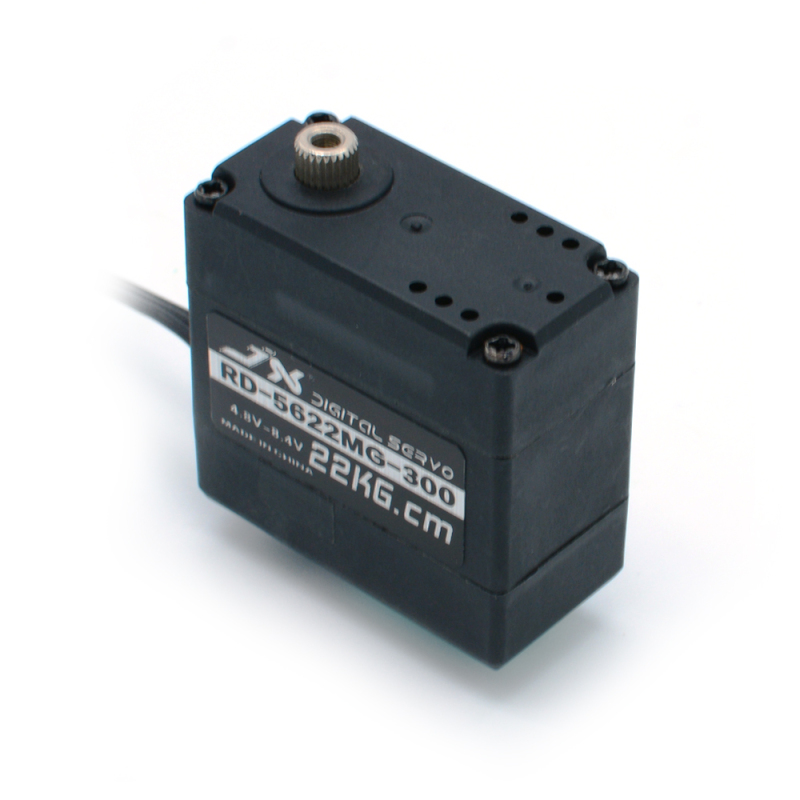

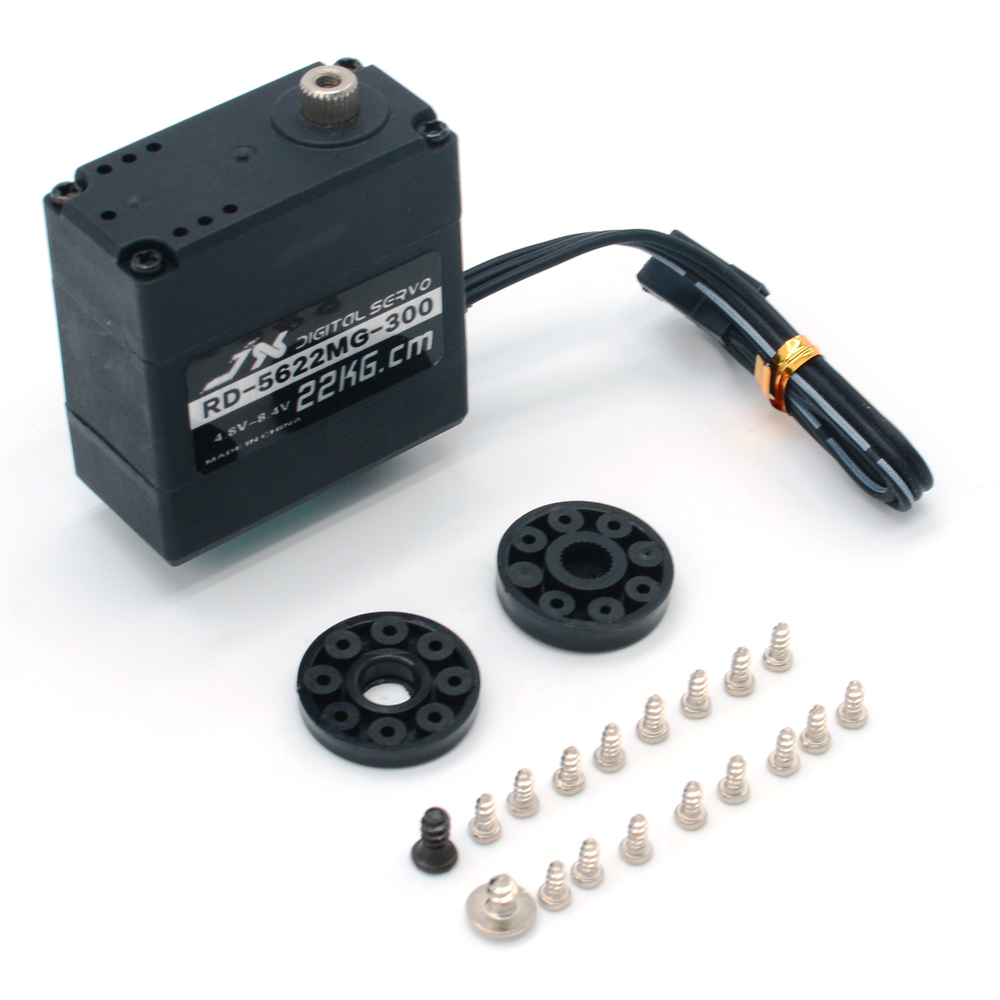

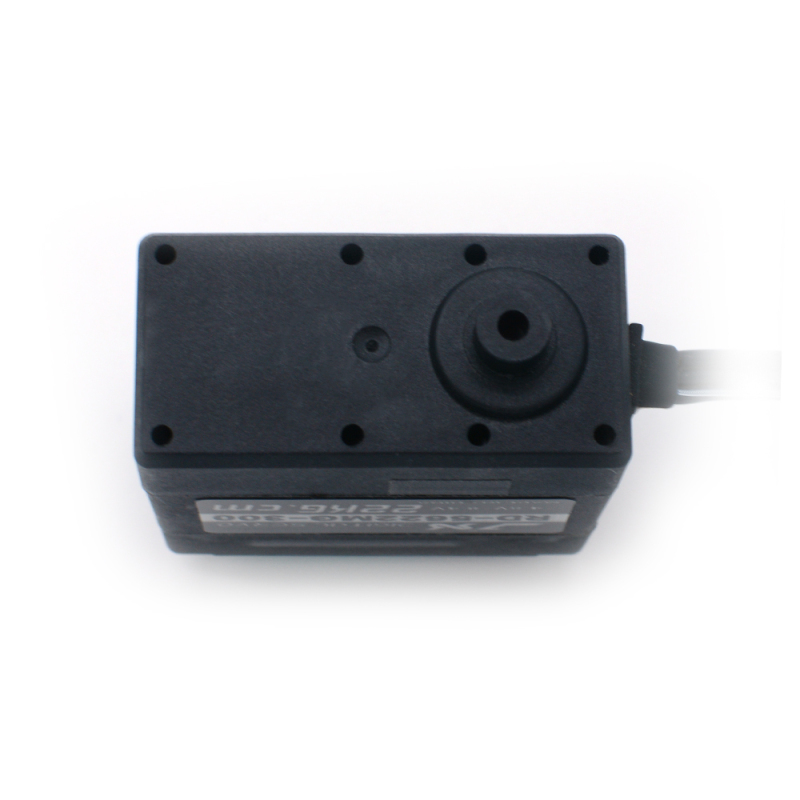

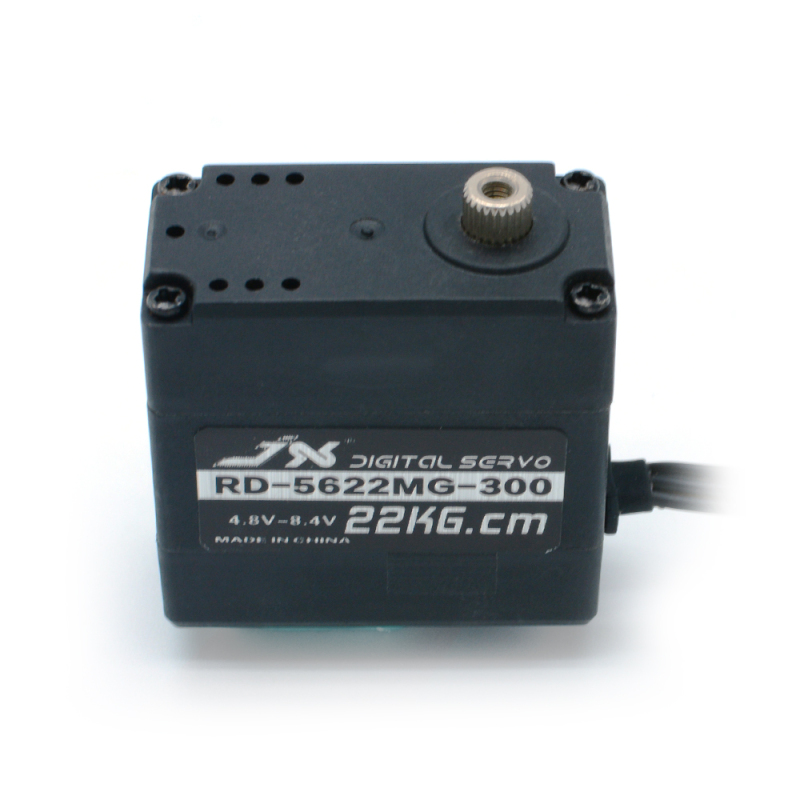

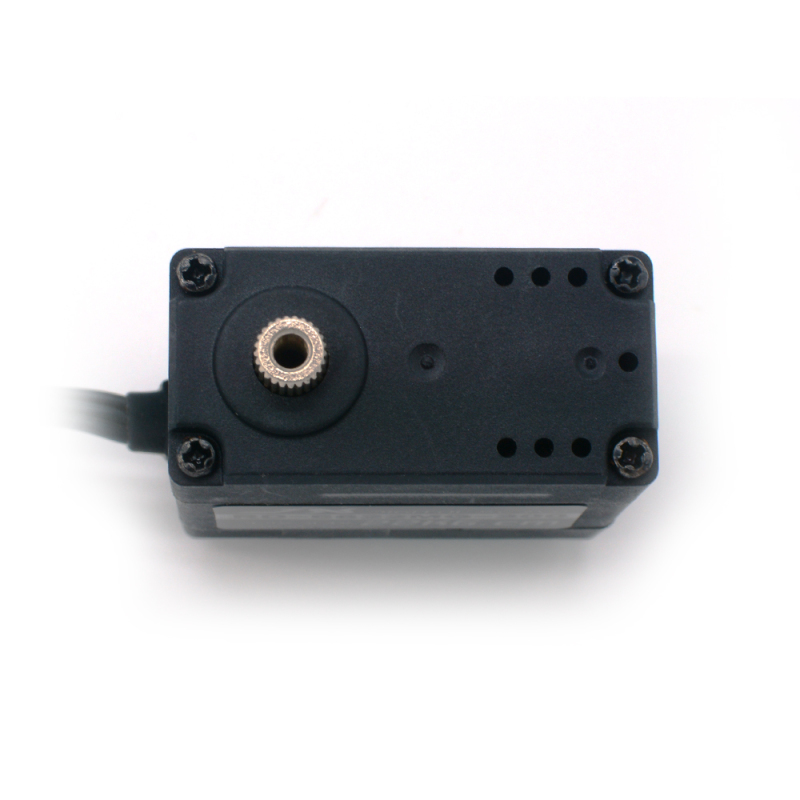

JX Servo RD-5622MG 22kg 300 degree Digital Metal Gear HV Servo Robotics Education Industrial

SKU: BR0052.0106
This item is available by special order only. For pricing, MOQ and delivery information, please contact your sales representative.
$15.00 $8.03
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
Add to Favorites (0)
  • JX Servo RD-5622MG 22kg 300 degree Digital Metal Gear HV Servo Robotics Education Industrial
  • JX Servo RD-5622MG 22kg 300 degree Digital Metal Gear HV Servo Robotics Education Industrial
  • JX Servo RD-5622MG 22kg 300 degree Digital Metal Gear HV Servo Robotics Education Industrial
  • JX Servo RD-5622MG 22kg 300 degree Digital Metal Gear HV Servo Robotics Education Industrial
  • JX Servo RD-5622MG 22kg 300 degree Digital Metal Gear HV Servo Robotics Education Industrial
  • JX Servo RD-5622MG 22kg 300 degree Digital Metal Gear HV Servo Robotics Education Industrial
  • JX Servo RD-5622MG 22kg 300 degree Digital Metal Gear HV Servo Robotics Education Industrial
  • JX Servo RD-5622MG 22kg 300 degree Digital Metal Gear HV Servo Robotics Education Industrial
  • JX Servo RD-5622MG 22kg 300 degree Digital Metal Gear HV Servo Robotics Education Industrial
  • JX Servo RD-5622MG 22kg 300 degree Digital Metal Gear HV Servo Robotics Education Industrial
  • JX Servo RD-5622MG 22kg 300 degree Digital Metal Gear HV Servo Robotics Education Industrial
  • JX Servo RD-5622MG 22kg 300 degree Digital Metal Gear HV Servo Robotics Education Industrial
  • JX Servo RD-5622MG 22kg 300 degree Digital Metal Gear HV Servo Robotics Education Industrial
  • JX Servo RD-5622MG 22kg 300 degree Digital Metal Gear HV Servo Robotics Education Industrial
1/1
  • JX Servo RD-5622MG 22kg 300 degree Digital Metal Gear HV Servo Robotics Education Industrial
  • JX Servo RD-5622MG 22kg 300 degree Digital Metal Gear HV Servo Robotics Education Industrial
  • JX Servo RD-5622MG 22kg 300 degree Digital Metal Gear HV Servo Robotics Education Industrial
  • JX Servo RD-5622MG 22kg 300 degree Digital Metal Gear HV Servo Robotics Education Industrial
  • JX Servo RD-5622MG 22kg 300 degree Digital Metal Gear HV Servo Robotics Education Industrial
  • JX Servo RD-5622MG 22kg 300 degree Digital Metal Gear HV Servo Robotics Education Industrial
  • JX Servo RD-5622MG 22kg 300 degree Digital Metal Gear HV Servo Robotics Education Industrial
  • Description
FEATURES:
-- High performance, digital robot servo
-- High precision metal gear
-- High quality core motor
-- 300° angle


SPECIFICATIONS:
Dead band: 4μs
Neutral point: 1500μs
Pulse width：500μs-2500μs
Motor: Core
Max angle：300°±2°
Frequence: 330hz
Operating Voltage：4.8V/ 6V/ 7.4V
Operating Speed(4.8V): 0.22sec/60°
Operating Speed(6.0V): 0.20sec/60°
Operating Speed(6.0V): 0.18sec/60°
Stall torque(4.8V): 14.8kg.cm
Stall torque(6.0V): 17.6kg.cm
Stall torque(7.4V): 22.0kg.cm
Demension: 40.5X20.3X40mm
Weight:  56 g
Connector Wire Length: JR  200mm
Spline Count: 25T
