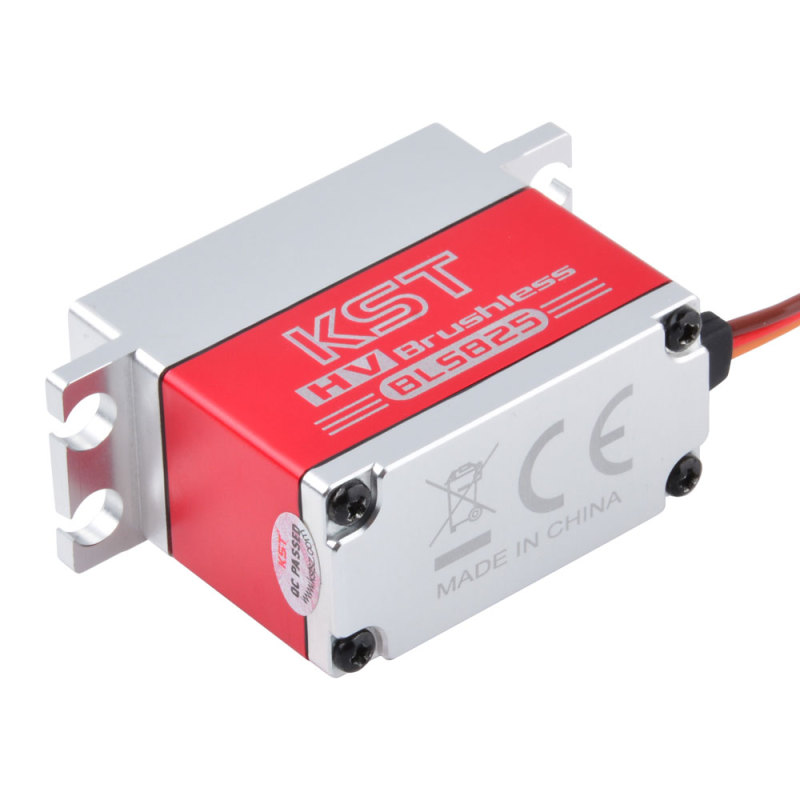

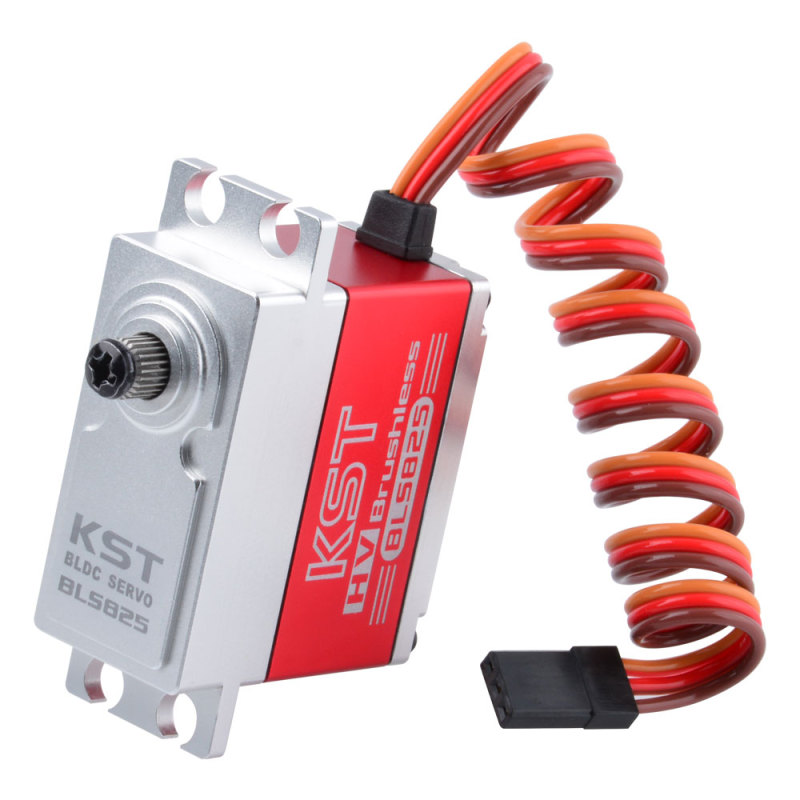

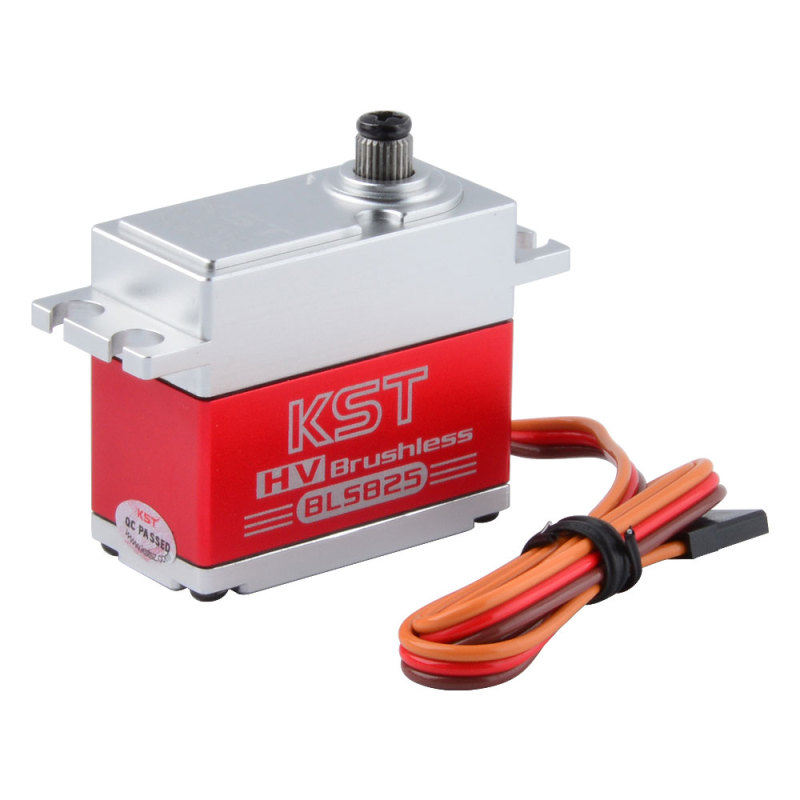

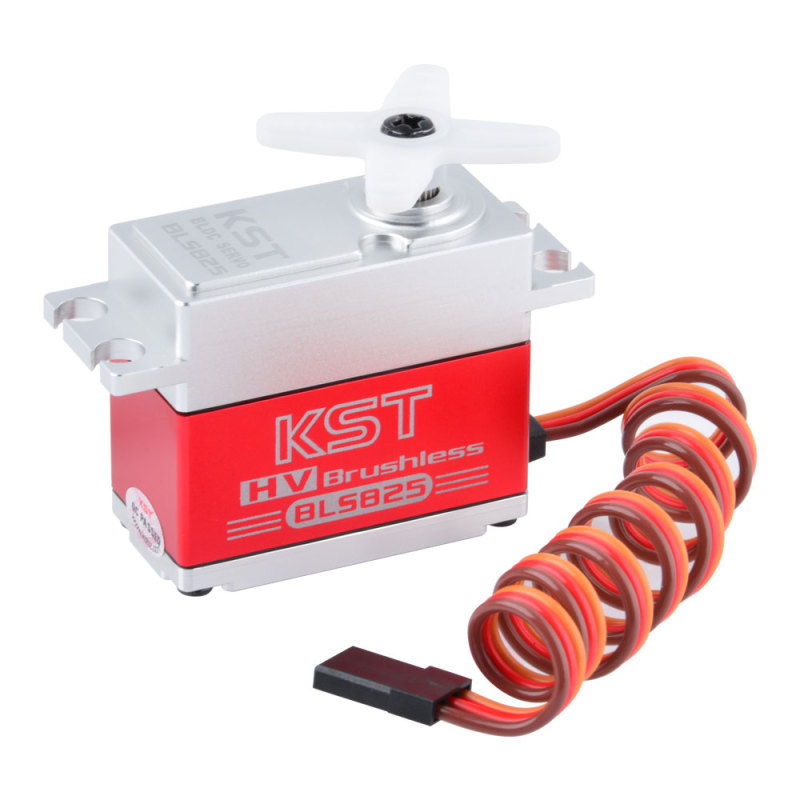

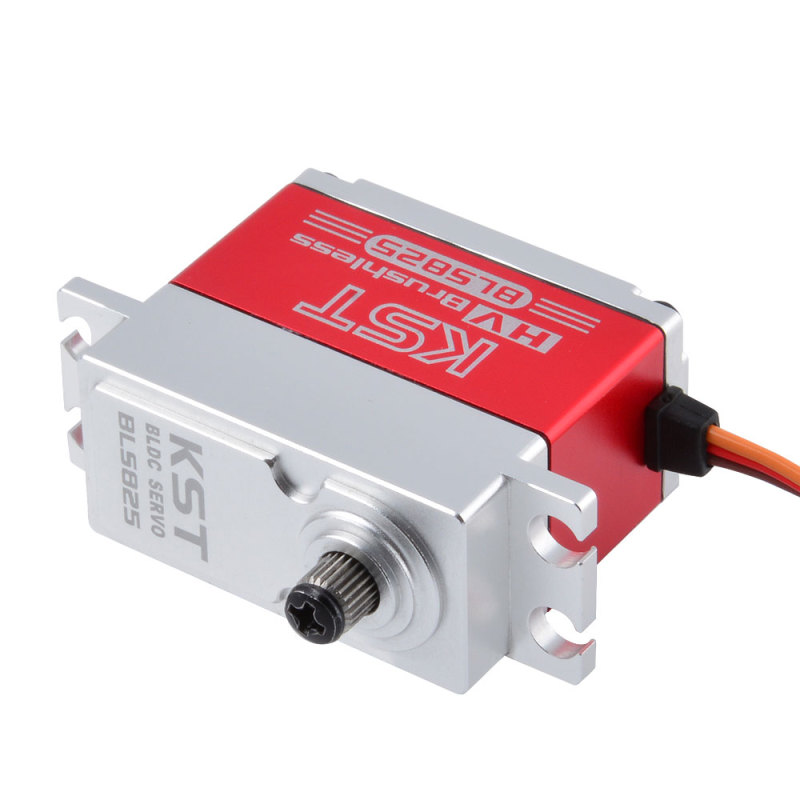

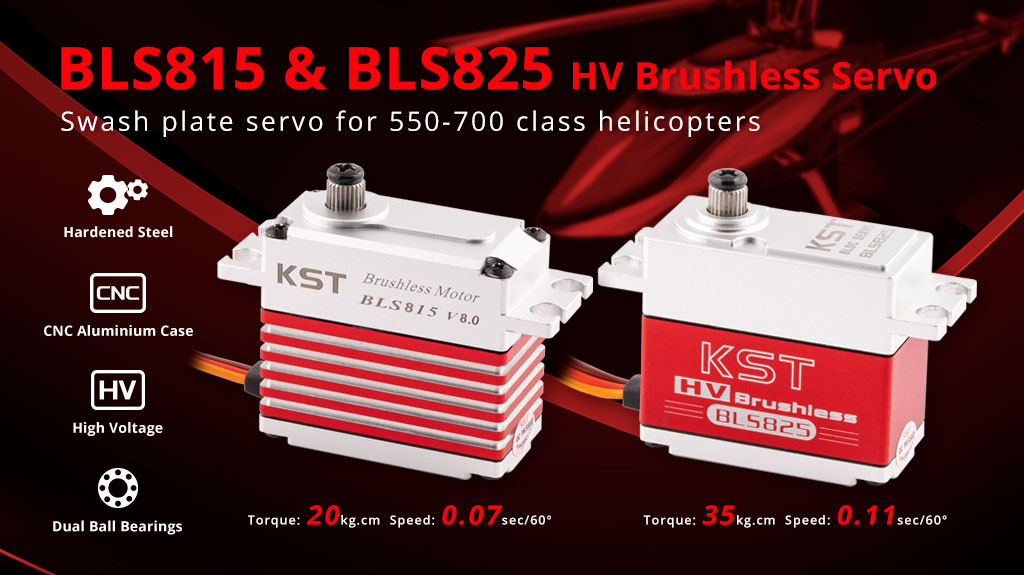

KST BLS825 35kg 0.11sec Brushless HV Metal case servo

The KST BLS825 servo is equipped with a powerful brushless motor and was developed especially for surface models. Due to the high resetting accuracy, in conjunction with the very robust and backlash-free full metal gearbox, the KST BLS825 is ideal for scale and aerobatic models.

Features

• Hardened Steel Gears
• Extreme Torque and Excellent Speed
• CNC Aluminium Case
• Brushless DC Motor
• Two Ball Bearings
• Ideal for 550-700 Class Helicopters

Specification

• Item: BLS825 Brushless Servo
• Operation Voltage(rated): 7.4V
• Operating Voltage: DC6.0V-8.4V

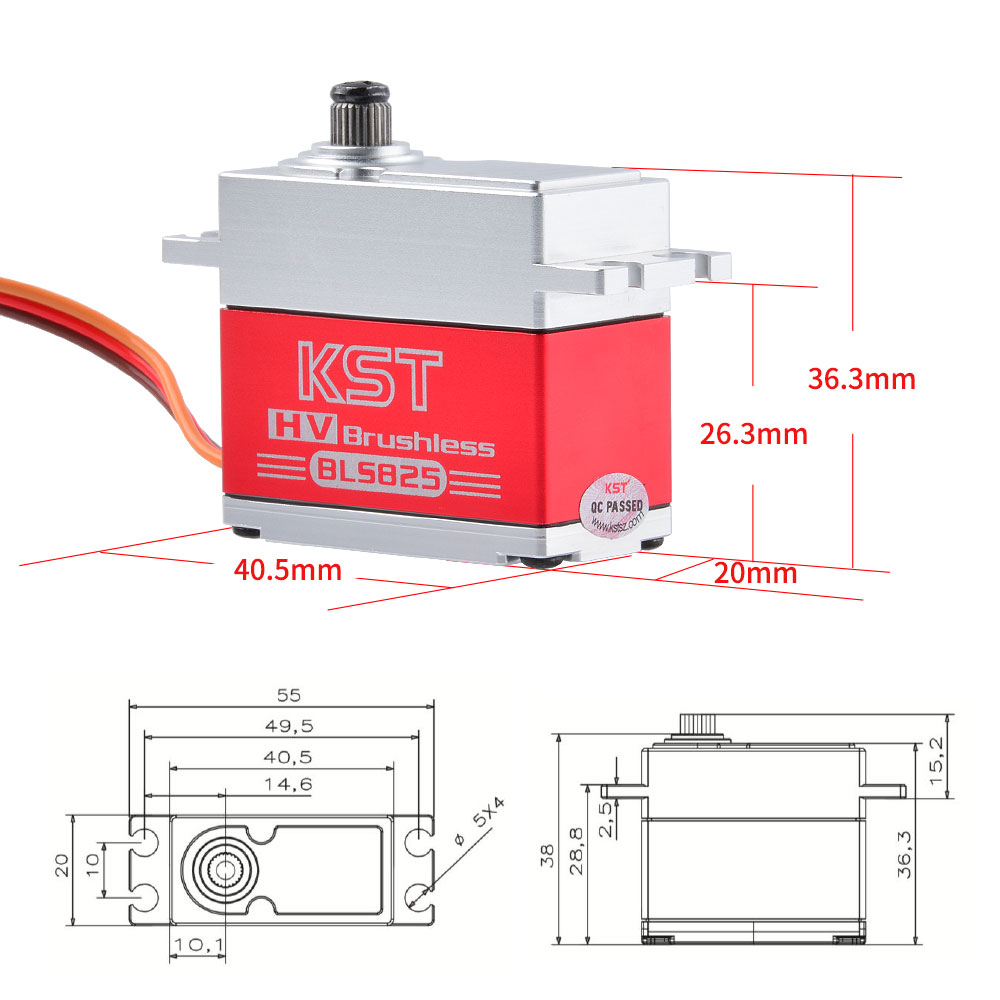

• Size: 40.50*20*37mm

• Torque: 35Kg.cm@8.4V,  30Kg.cm@7.4V,  25Kg.cm@6.0V

• Speed: 0.11sec/60°@8.4V,  0.13sec/60°@7.4V,  0.15sec/60°@6.0V

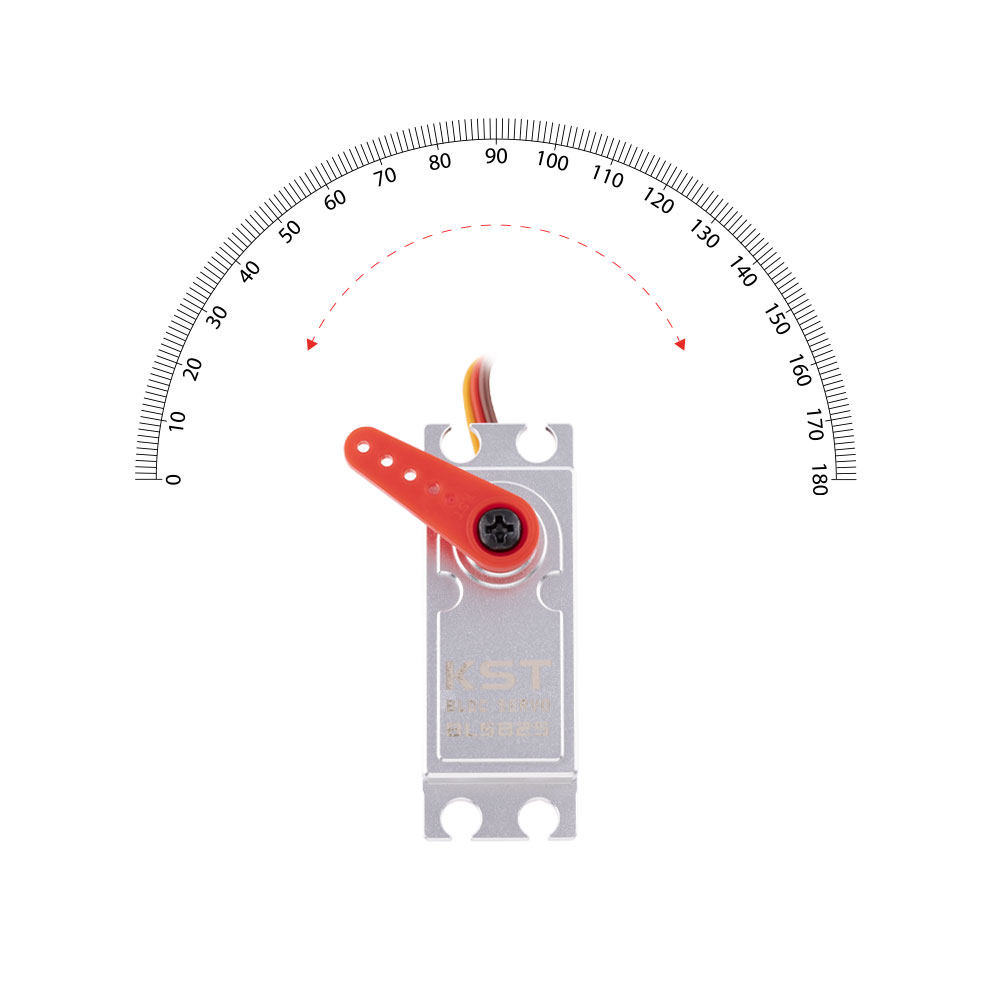

• Travel Angle: ±50°=100° Total
• Weight: 70g

• Working Frequence: 1520us/333Hz

• Motor: Brushless

• Ball Bearing: 2BB

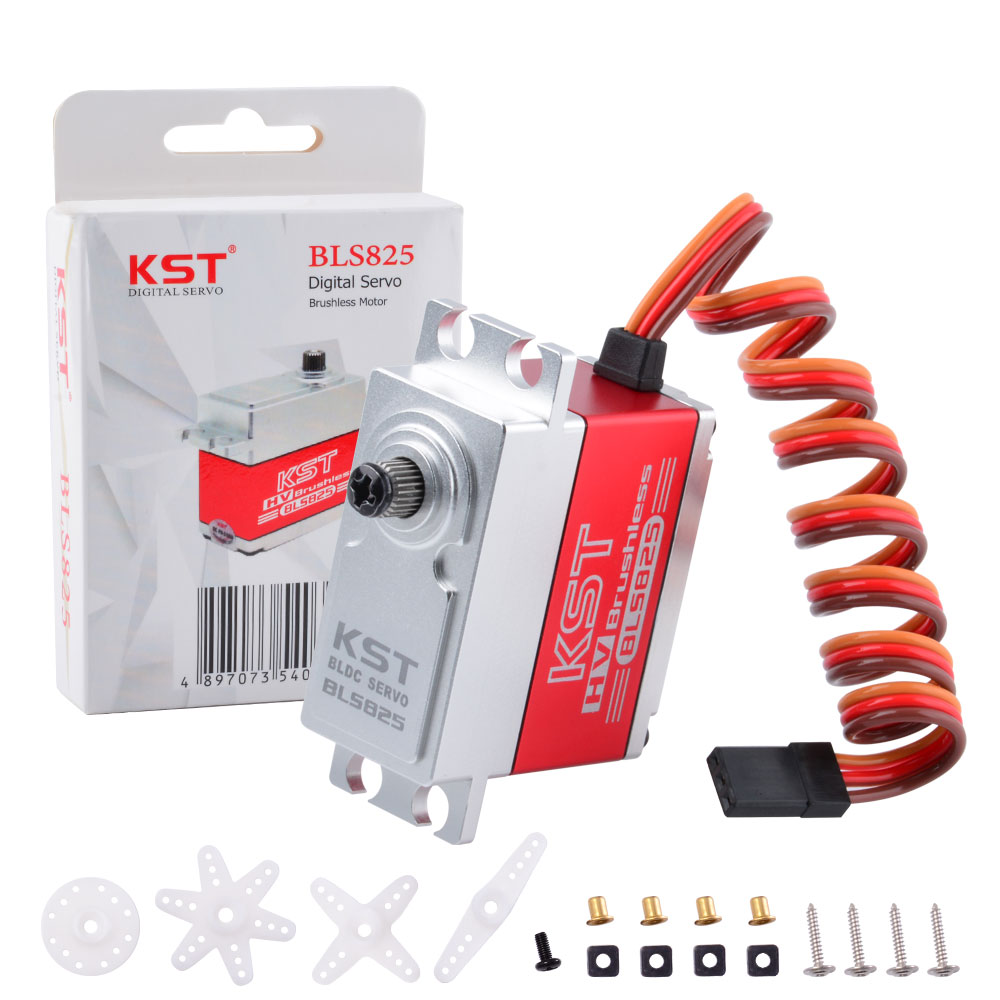

Package Contents

• 1 * BLS825 Brushless servo
• 1 Pack of Accessories
