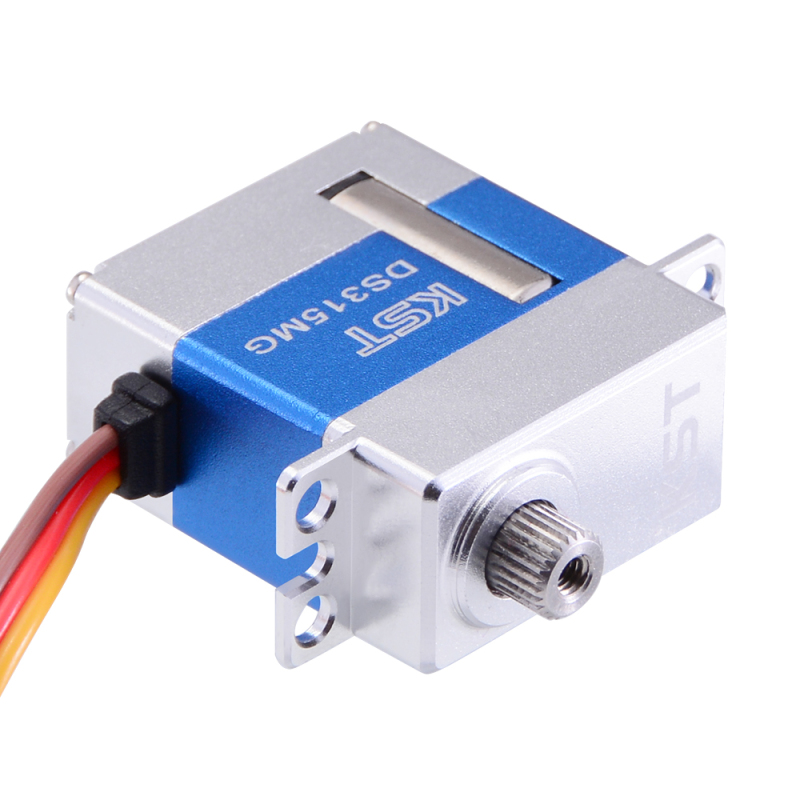

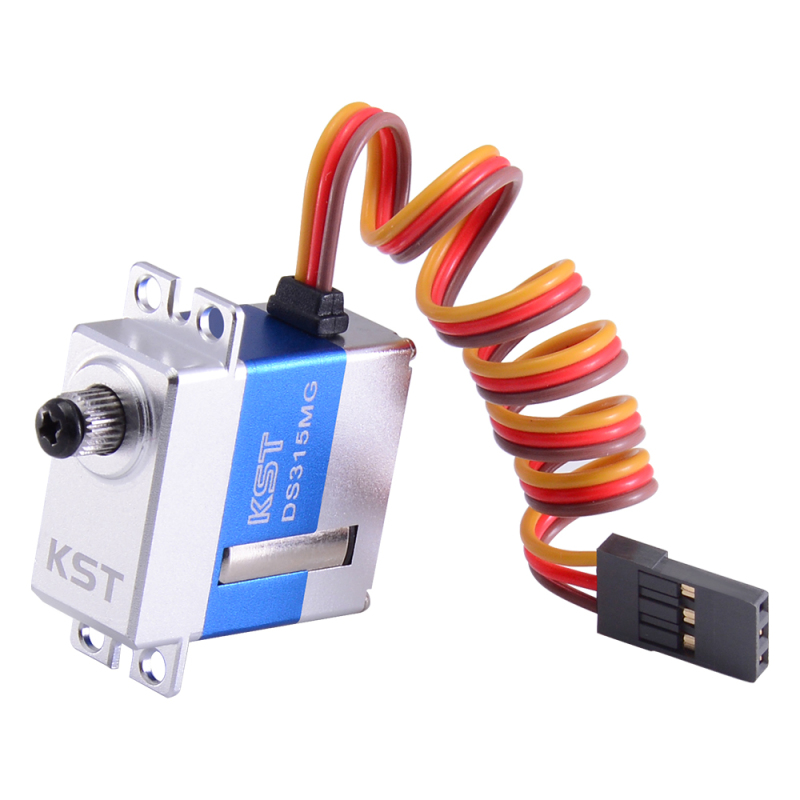

KST DS315MG V8.0 8.4V 4.8kg 0.07sec Digital Metal Gear Mini Servo

SKU: BR0023.0031
$34.99 $26.24
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
Add to Favorites (0)
  • KST DS315MG V8.0 8.4V 4.8kg 0.07sec Digital Metal Gear Mini Servo Motor
  • KST DS315MG V8.0 8.4V 4.8kg 0.07sec Digital Metal Gear Mini Servo Motor
  • KST DS315MG V8.0 8.4V 4.8kg 0.07sec Digital Metal Gear Mini Servo Motor
  • KST DS315MG V8.0 8.4V 4.8kg 0.07sec Digital Metal Gear Mini Servo Motor
  • KST DS315MG V8.0 8.4V 4.8kg 0.07sec Digital Metal Gear Mini Servo Motor
  • KST DS315MG V8.0 8.4V 4.8kg 0.07sec Digital Metal Gear Mini Servo Motor
  • KST DS315MG V8.0 8.4V 4.8kg 0.07sec Digital Metal Gear Mini Servo Motor
  • KST DS315MG V8.0 8.4V 4.8kg 0.07sec Digital Metal Gear Mini Servo Motor
  • KST DS315MG V8.0 8.4V 4.8kg 0.07sec Digital Metal Gear Mini Servo Motor
  • KST DS315MG V8.0 8.4V 4.8kg 0.07sec Digital Metal Gear Mini Servo Motor
  • KST DS315MG V8.0 8.4V 4.8kg 0.07sec Digital Metal Gear Mini Servo Motor
  • KST DS315MG V8.0 8.4V 4.8kg 0.07sec Digital Metal Gear Mini Servo Motor
  • KST DS315MG V8.0 8.4V 4.8kg 0.07sec Digital Metal Gear Mini Servo Motor
  • KST DS315MG V8.0 8.4V 4.8kg 0.07sec Digital Metal Gear Mini Servo Motor
1/1
  • KST DS315MG V8.0 8.4V 4.8kg 0.07sec Digital Metal Gear Mini Servo Motor
  • KST DS315MG V8.0 8.4V 4.8kg 0.07sec Digital Metal Gear Mini Servo Motor
  • KST DS315MG V8.0 8.4V 4.8kg 0.07sec Digital Metal Gear Mini Servo Motor
  • KST DS315MG V8.0 8.4V 4.8kg 0.07sec Digital Metal Gear Mini Servo Motor
  • KST DS315MG V8.0 8.4V 4.8kg 0.07sec Digital Metal Gear Mini Servo Motor
  • KST DS315MG V8.0 8.4V 4.8kg 0.07sec Digital Metal Gear Mini Servo Motor
  • KST DS315MG V8.0 8.4V 4.8kg 0.07sec Digital Metal Gear Mini Servo Motor
  • Description
DS315MG has a hardened steel drive train and a coreless motor capable of running from 4.8V to 8.4V (4 cell NiMH to 2S LiPo) meaning these servos will deliver the power and reliability you need. They are super high speed with pretty good torque.



Features

  • CNC Aluminium Case
  • Programmable
  • 2 Ball Bearings
  • With 12mm Coreless Motor
  • High Precision Metal Gear
  • Large Stall Torque of 4.8Kg
  • Lightweight and Compact Design


Specification

  • Item: DS315MG V8.0 Mini Servo
  • Rated Voltage: DC6.0V
  • Voltage Range: DC4.8V-8.4V
  • Torque: 2.8Kgf.cm@4.8V / 3.5Kgf.cm@6.0V / 4.3Kgf.cm@7.4V / 4.8Kgf.cm@8.4V
  • Speed: 0.10sec/60°@4.8V / 0.09sec/60°@6.0V / 0.08sec/60°@7.4V / 0.07sec/60°@8.4V
  • Working Frequency: 1520μs/333Hz
  • Default Travel Angle: ±70°=140° Total
  • Temperature Range: -20℃……+65℃
  • Soft Start: Programmable
  • Programmable: Yes
  • Case Material: Aluminium Alloy
  • Motor Type: Coreless DC Motor
  • Gear Set Material: Hardened Steel
  • Position Sensor: Potentiometer
  • Ball Bearing: 2BB

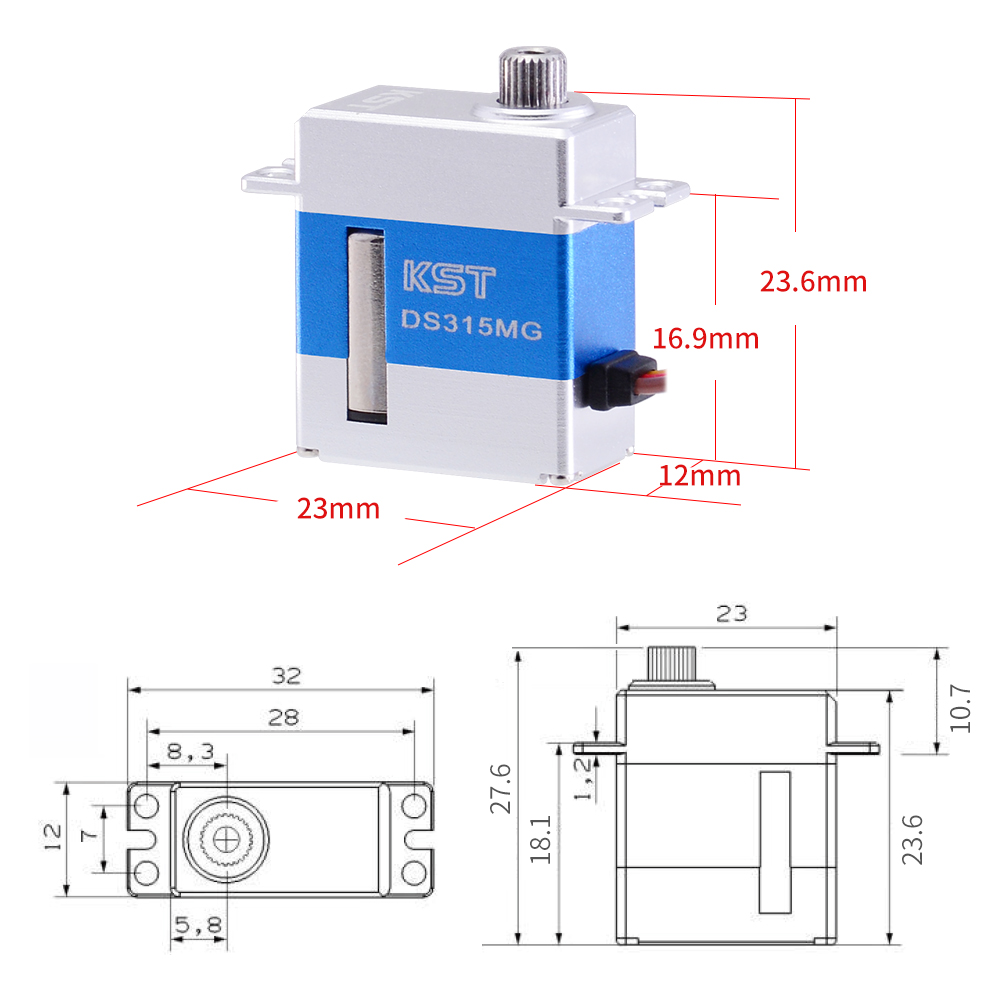

  • Case Dimensions: 23mm*12mm*27.5mm±0.2mm
  • Weight: 20g±10%

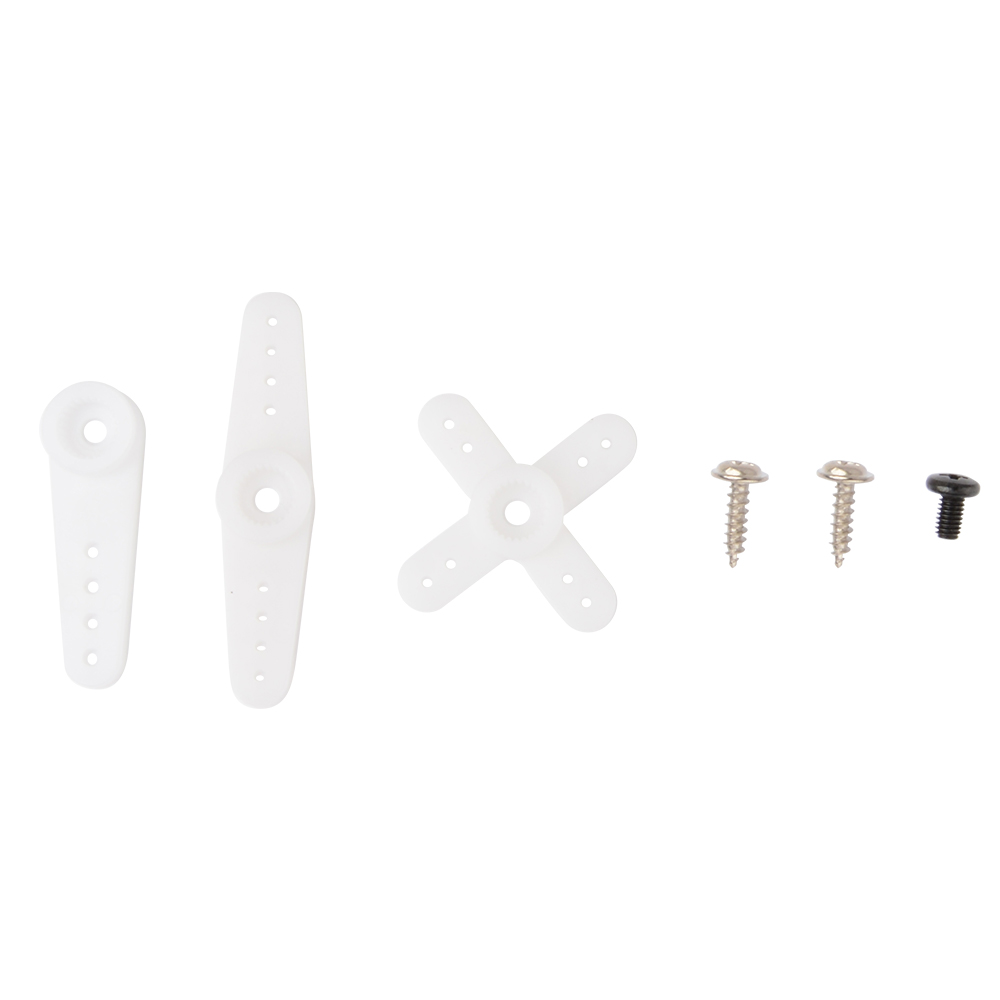

Package Including

  • 1 * DS315MG V8.0 Mini Servo
  • 3 * Plastic Servo Horn
  • 2 * Mounting Screw
  • 1 * Servo Horn Screw
