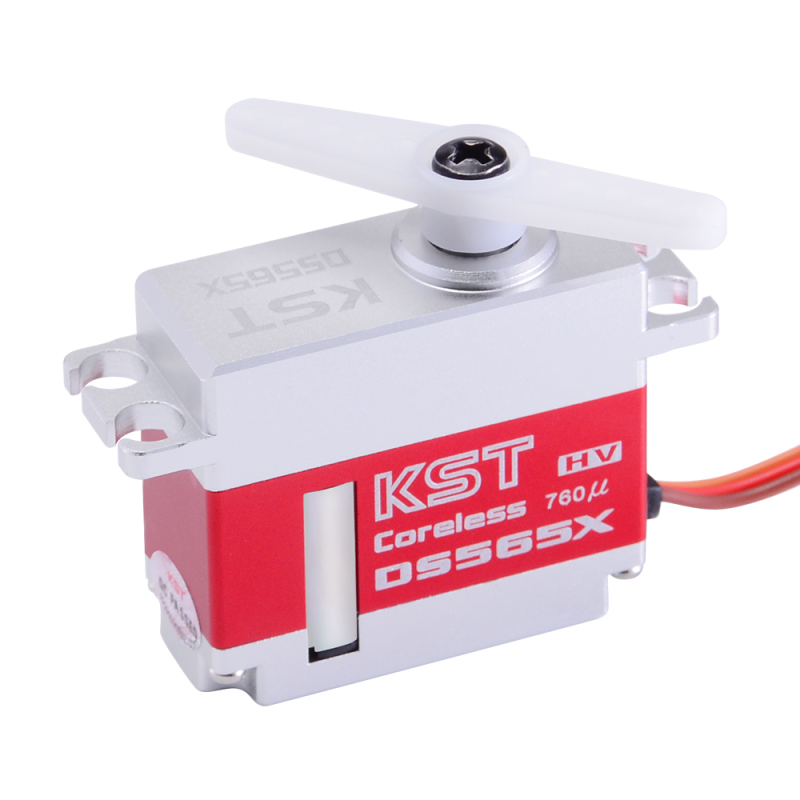

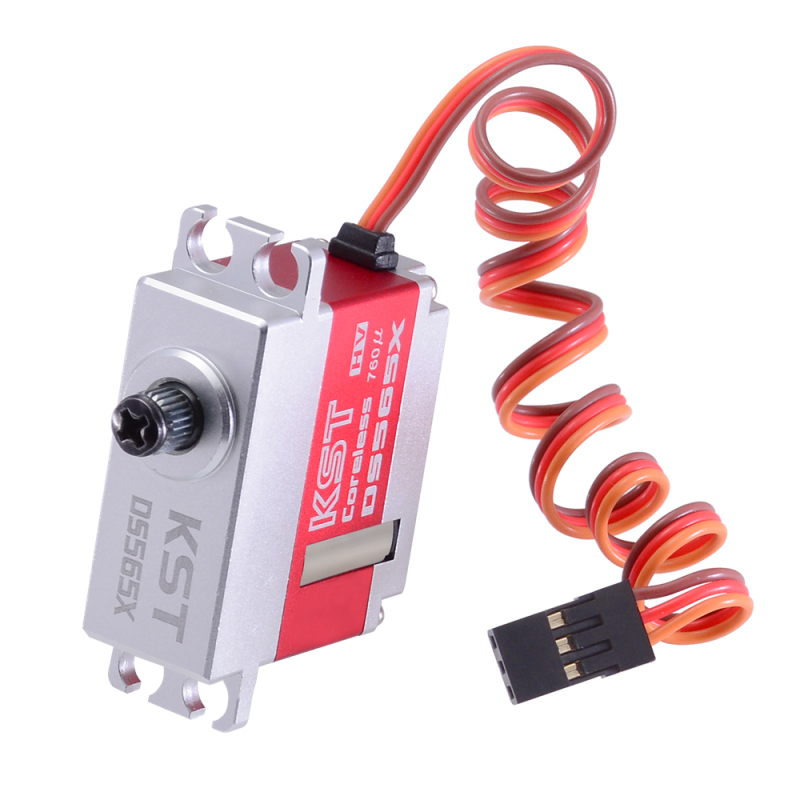

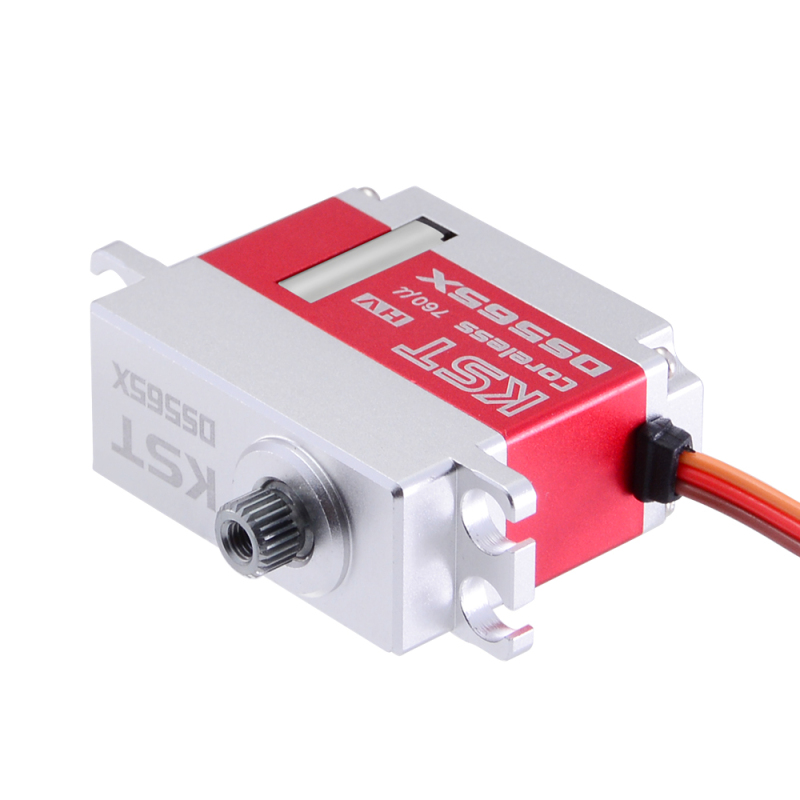

KST DS565X 8.4V 6kg 0.04sec HV Digital Metal Gear Servo

DS565X mini digital tail servo is a great choice for helicopters ranging from 325mm-425mm rotor blade size requiring mini servos! It's critical to ensure your gyro has the capability to operate 760μs Tail Servos, ensuring that the KST 565X operates correctly.

Features

• Extreme Torque and Excellent Speed
• Programmable
• Dual Ball Bearings
• CNC Aluminium Case

Specification

• Item: DS565X Servo
• Rated Voltage: DC7.4V
• Voltage Range: DC6.0V-8.4V
• Stalling Torque:

4.0Kgf.cm@6.0V
5.0Kgf.cm@7.4V
6.0Kgf.cm@8.4V

• No-load Speed:

0.06sec/60°@6.0V
0.05sec/60°@7.4V
0.04sec/60°@8.4V

• Working Frequency:760μs/560Hz
• Temperature Range: -10℃……+65℃
• Soft Start: Programmable
• Programmable: Yes
• Case Material: Aluminum Alloy
• Motor Type: Coreless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Potentiometer

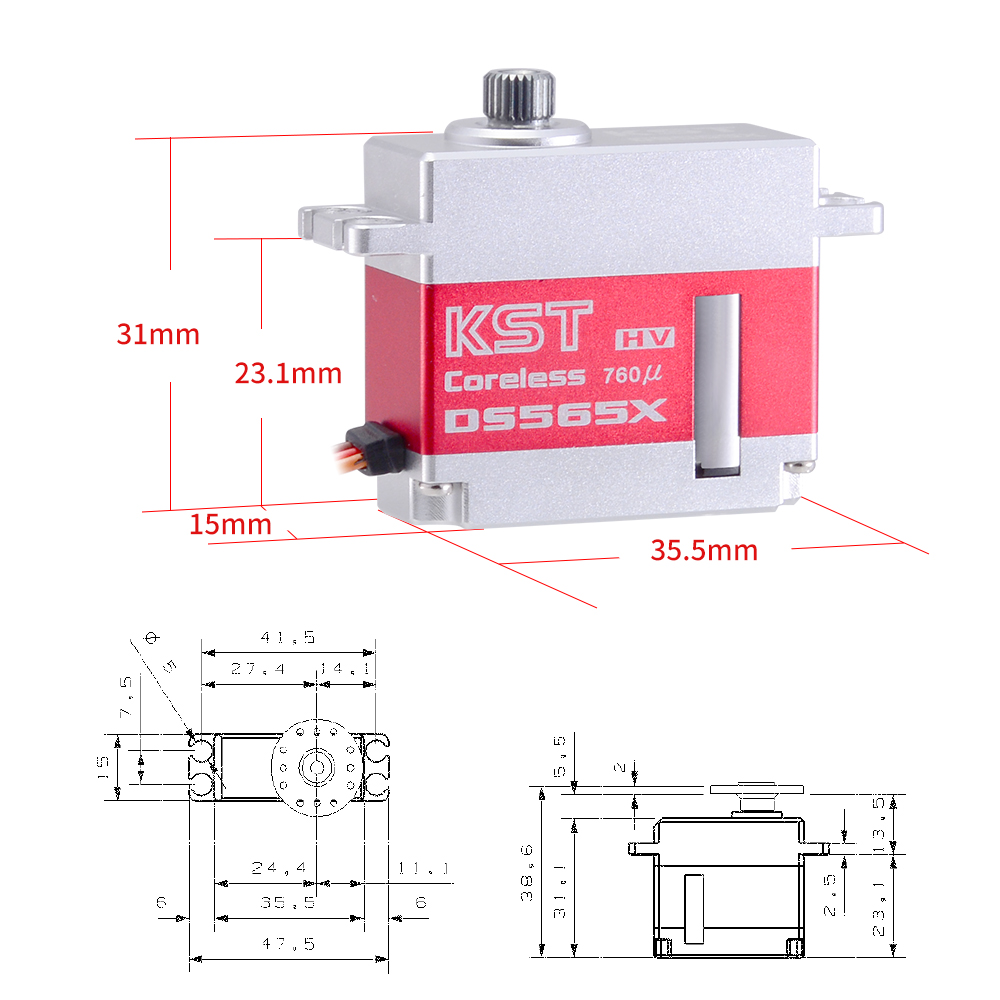

• Case Dimensions: 35.5mm*15mm*32.5mm±0.2mm
• Weight: 40g±10%

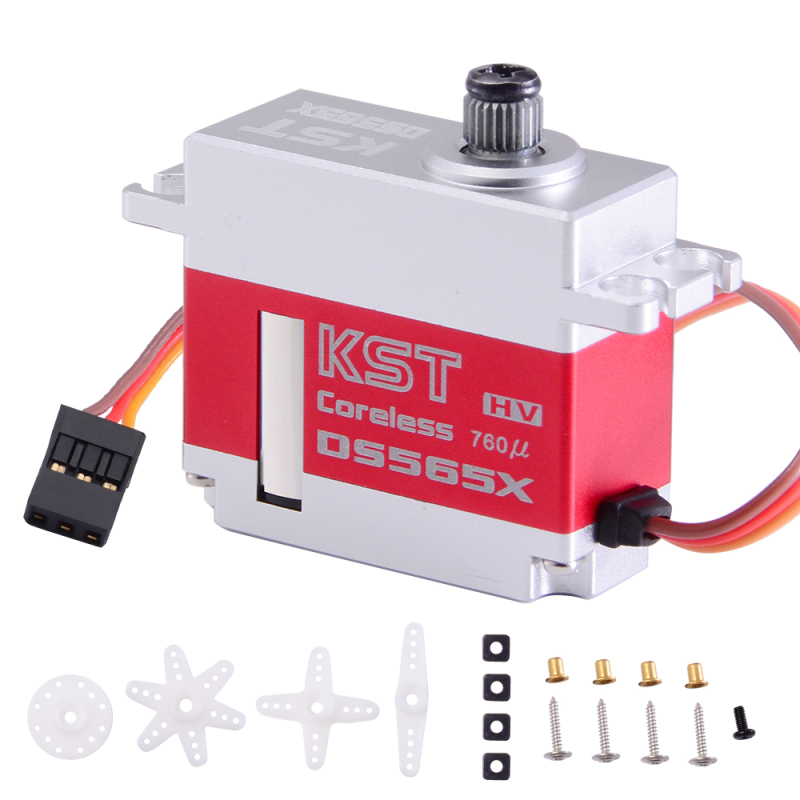

Package Including

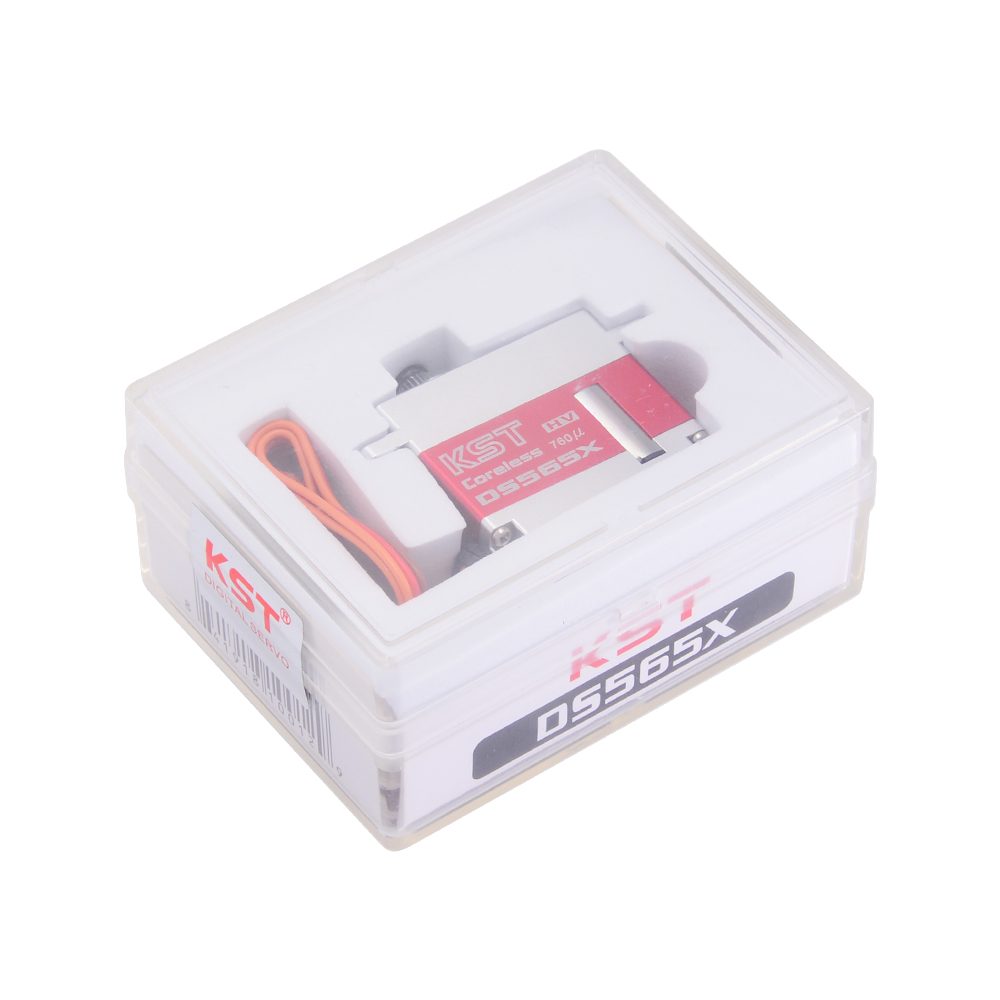

• 1 * KST DS565X Servo

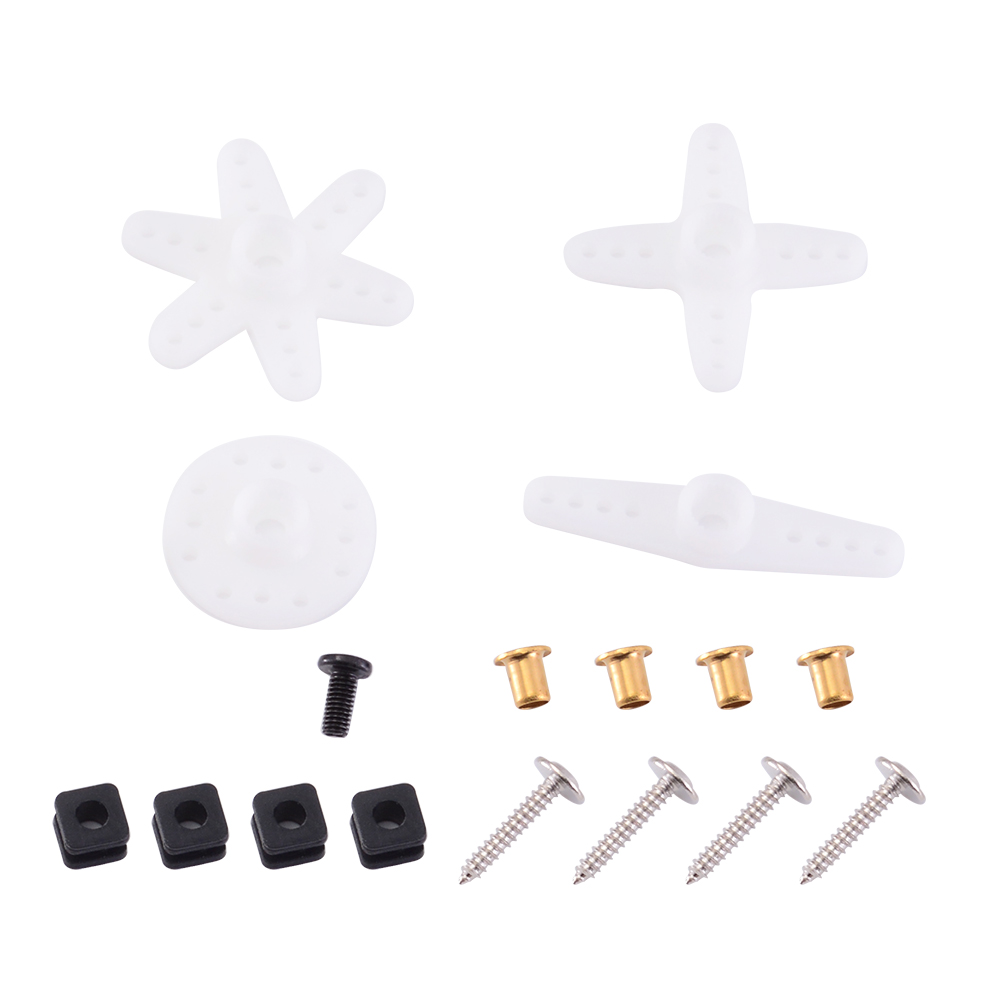

• 1 * Pack of Accessories
