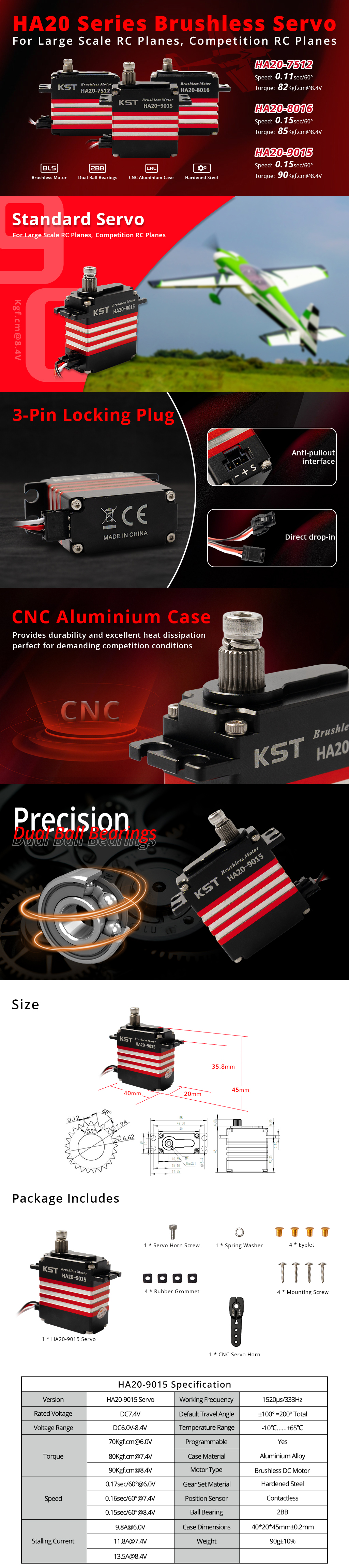

The HA20-9015 is a High-Performance Standard Brushless Servo Designed for Large Scale RC Planes, Competition RC Planes. It delivers up to 90Kgf·cm torque at 8.4V and 0.15sec/60° speed at 8.4V, offering outstanding performance under demanding conditions.
Powered by a high-efficiency brushless DC motor, hardened steel gear, and a CNC-machined aluminium case, the servo ensures powerful output, precise control, and long-term reliability.
It has an industrial-grade locking plug interface (A2509HFA-3P) for secure, vibration-resistant connections suitable for professional radio control systems.
Features
DC Brushless motor
High Torque Output & Fast Response
Dual Ball Bearings
Hardened Steel Gear & CNC Aluminium Case
A2509HFA-3P Locking Plug Interface
Contactless Hall Sensor
Hardened Steel Gear
Programmable
Ideal for Large Scale RC Planes, Competition RC Planes
Specification
Item: HA20-9015
Rated Voltage: DC7.4V
Voltage Range: DC6.0V-8.4V
Torque: 70Kgf.cm@6.0V, 80Kgf.cm@7.4V, 90Kgf.cm@8.4V
Speed: 0.17sec/60°@6.0V, 0.16sec/60°@7.4V, 0.15sec/60°@8.4V
Stalling Current: 9.8A@6.0V, 11.8A@7.4V, 13.5A@8.4V
Working Frequency: 1520μs/333Hz
Default Travel Angle: ±100° =200° Total
Temperature Range: -10℃……+65℃
Programmable: Yes
Case Material: Aluminium Alloy
Motor Type: Brushless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Contactless
Ball Bearing: 2BB
Case Dimensions: 40*20*45mm±0.2mm
Weight: 90g±10%
Package Includes
1 * HA20-9016 Servo
4 * Mounting Screw
4 * Eyelet
4 * Grommet
1 * CNC Servo Horn
1 * Servo Horn Screw
1 * Spring Washer
