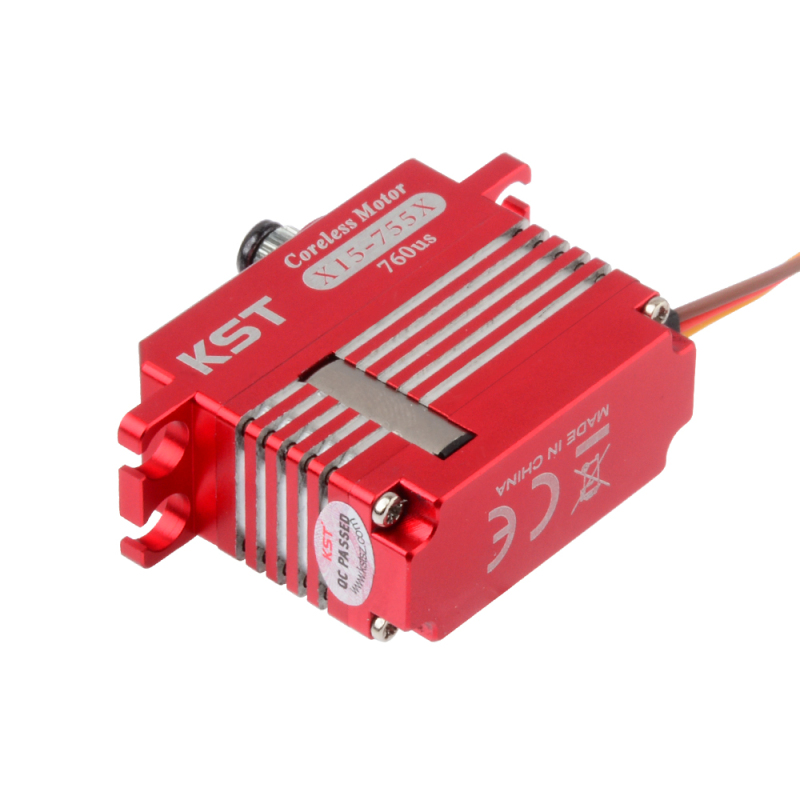

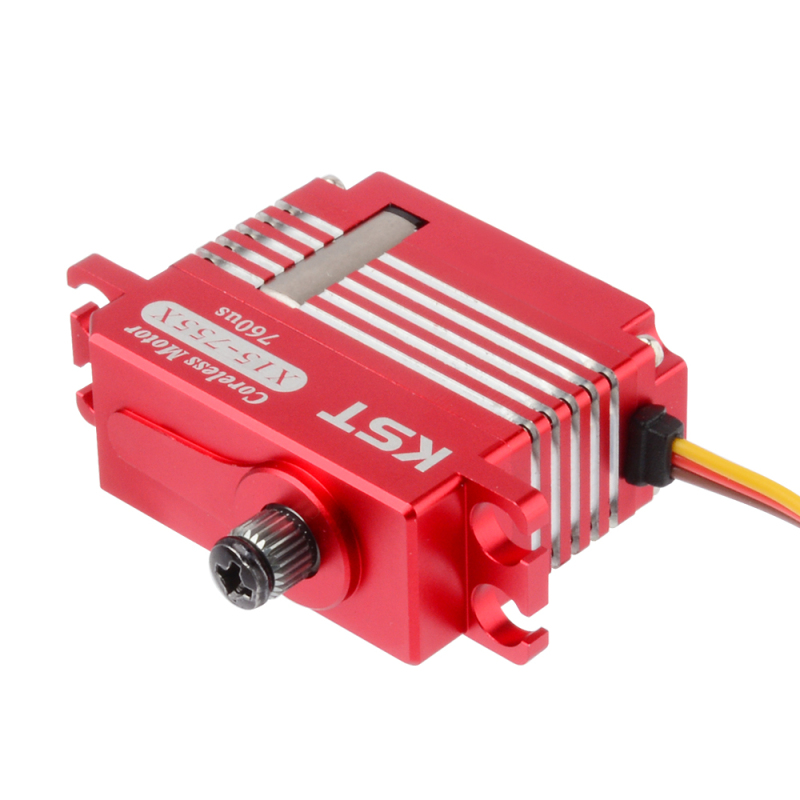

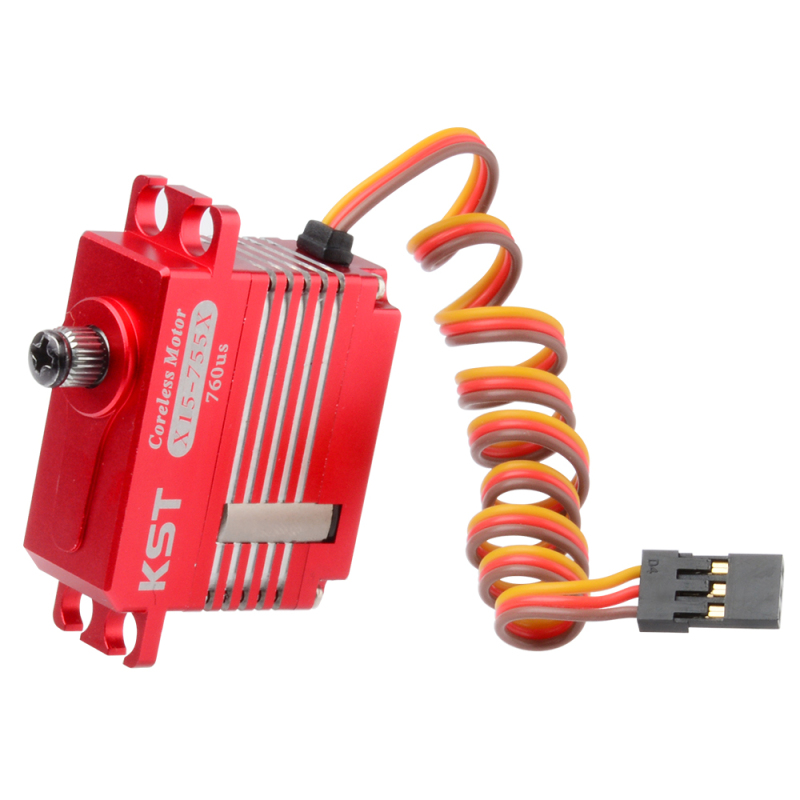

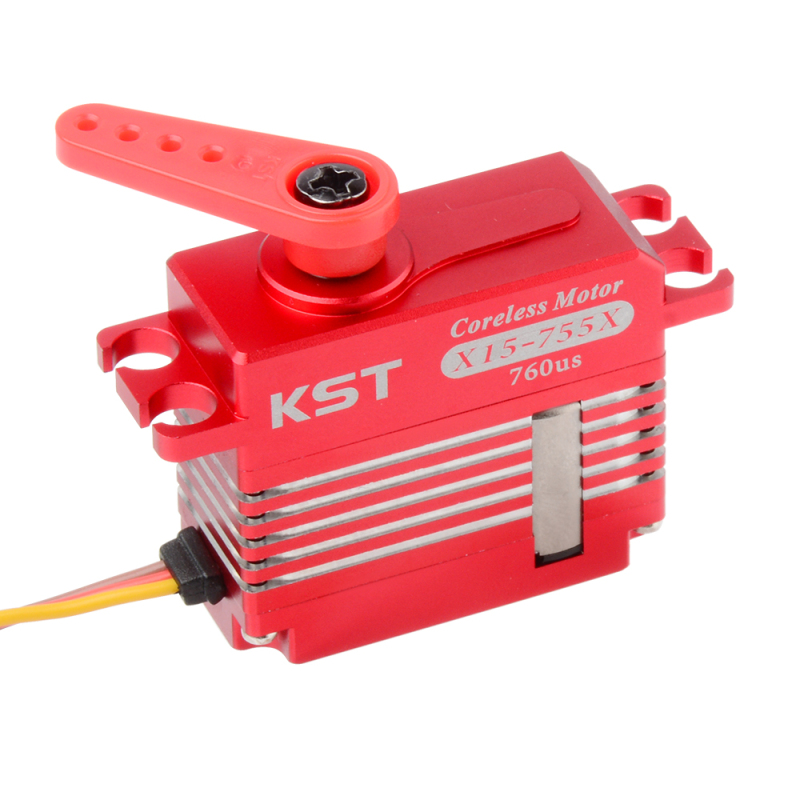

KST X15-755X Digital Servo Coreless 10.2kg Metal Gear For RC Helicopter

SKU: BR0023.0103
$89.99 $67.49
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
Add to Favorites (0)
  • KST X15-755X Digital Servo Coreless 10.2kg Metal Gear For RC Helicopter
  • KST X15-755X Digital Servo Coreless 10.2kg Metal Gear For RC Helicopter
  • KST X15-755X Digital Servo Coreless 10.2kg Metal Gear For RC Helicopter
  • KST X15-755X Digital Servo Coreless 10.2kg Metal Gear For RC Helicopter
  • KST X15-755X Digital Servo Coreless 10.2kg Metal Gear For RC Helicopter
  • KST X15-755X Digital Servo Coreless 10.2kg Metal Gear For RC Helicopter
  • KST X15-755X Digital Servo Coreless 10.2kg Metal Gear For RC Helicopter
  • KST X15-755X Digital Servo Coreless 10.2kg Metal Gear For RC Helicopter
  • KST X15-755X Digital Servo Coreless 10.2kg Metal Gear For RC Helicopter
  • KST X15-755X Digital Servo Coreless 10.2kg Metal Gear For RC Helicopter
  • KST X15-755X Digital Servo Coreless 10.2kg Metal Gear For RC Helicopter
  • KST X15-755X Digital Servo Coreless 10.2kg Metal Gear For RC Helicopter
  • KST X15-755X Digital Servo Coreless 10.2kg Metal Gear For RC Helicopter
  • KST X15-755X Digital Servo Coreless 10.2kg Metal Gear For RC Helicopter
  • KST X15-755X Digital Servo Coreless 10.2kg Metal Gear For RC Helicopter
  • KST X15-755X Digital Servo Coreless 10.2kg Metal Gear For RC Helicopter
1/1
  • KST X15-755X Digital Servo Coreless 10.2kg Metal Gear For RC Helicopter
  • KST X15-755X Digital Servo Coreless 10.2kg Metal Gear For RC Helicopter
  • KST X15-755X Digital Servo Coreless 10.2kg Metal Gear For RC Helicopter
  • KST X15-755X Digital Servo Coreless 10.2kg Metal Gear For RC Helicopter
  • KST X15-755X Digital Servo Coreless 10.2kg Metal Gear For RC Helicopter
  • KST X15-755X Digital Servo Coreless 10.2kg Metal Gear For RC Helicopter
  • KST X15-755X Digital Servo Coreless 10.2kg Metal Gear For RC Helicopter
  • KST X15-755X Digital Servo Coreless 10.2kg Metal Gear For RC Helicopter
  • Description
KST X15-755X mini tail digital servo is a great choice for helicopters ranging from 325mm-425mm rotor blade sizes! It features an extremely fast speed of 0.04sec and 10.2Kgf.cm ultra high torque. It's critical to ensure your gyro has the capability to operate 760μs tail servos, ensuring that the KST X15-755X operates correctly.



Features

  • Support High Voltage 8.4V
  • Extreme Torque and Excellent Speed
  • Dual Ball Bearings
  • Coreless DC Motor
  • Hardened Steel Gears
  • CNC Aluminium Case

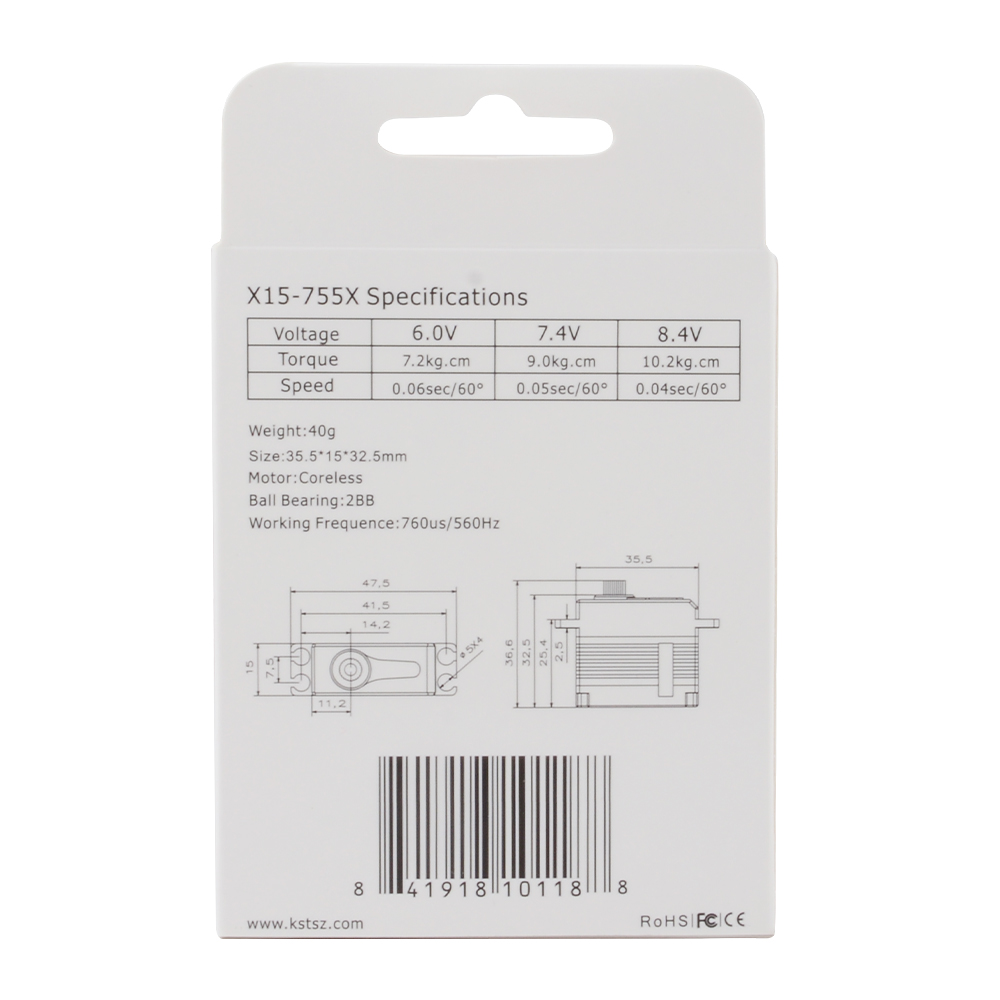

Specification

  • Item: X15-755X Servo
  • Rated Voltage: DC7.4V
  • Voltage Range: DC6.0V-8.4V
  • Torque: 7.2Kgf.cm@6.0V,  9.0Kgf.cm@7.4V, 10.2Kgf.cm@8.4V
  • Speed: 0.06sec/60°@6.0V, 0.05sec/60°@7.4V, 0.04sec/60°@8.4V
  • Working Frequency: 760μs/560Hz
  • Temperature Range: -10℃……+65℃
  • Case Material: Aluminum Alloy
  • Motor Type: Coreless DC Motor
  • Gear Set Material: Hardened Steel
  • Position Sensor: Potentiometer

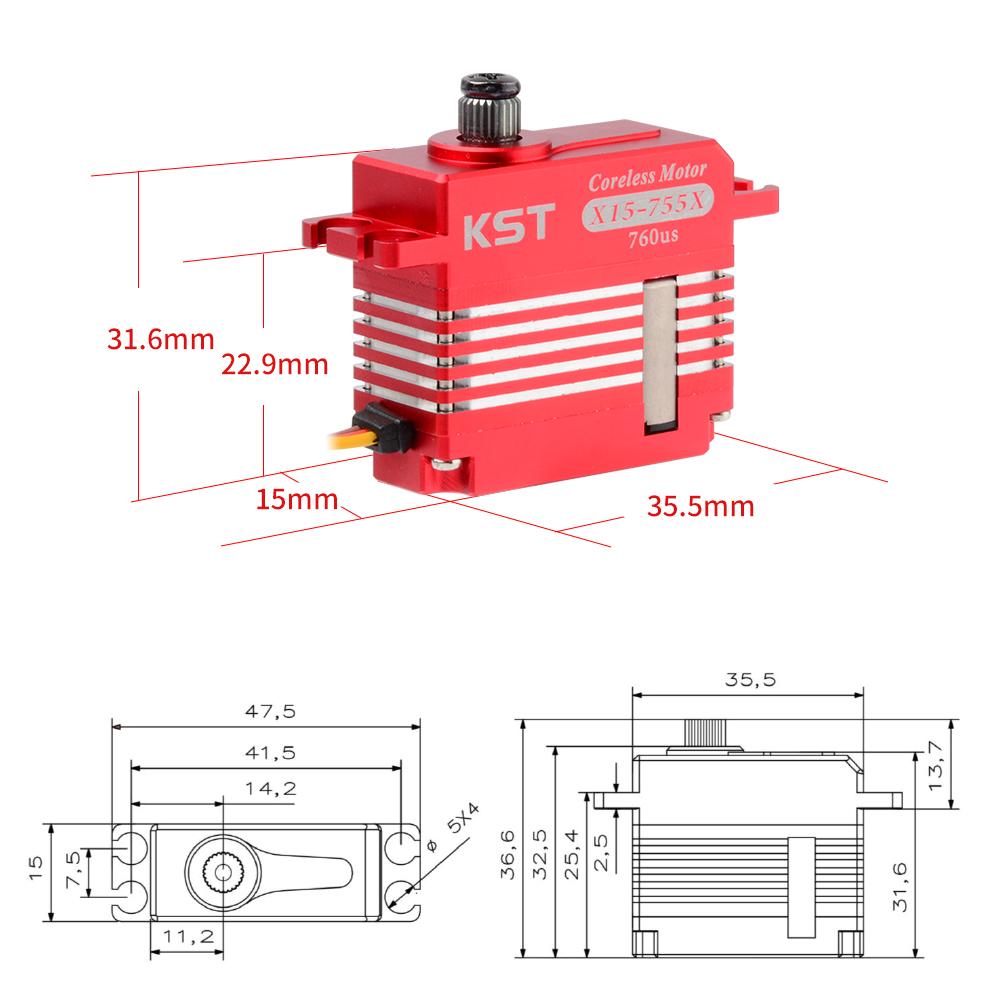

  • Case Dimensions: 35.5mm*15mm*32.5mm±0.2mm
  • Weight: 40g±10%

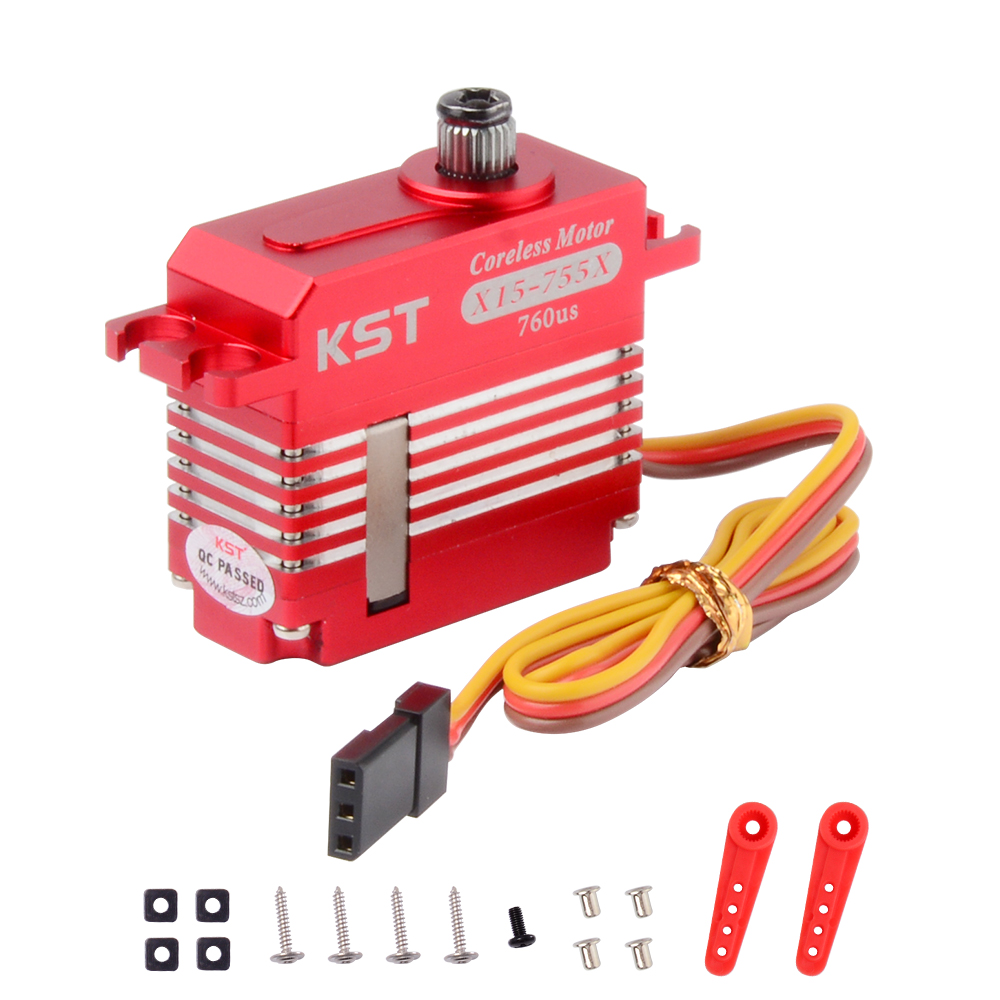

Package Including

  • 1 * X15-755X Servo
  • 2 * Plastic Servo Horn
  • 1 * Servo Horn Screw
  • 4 * Mounting Screw
  • 4 * Rubber Grommet
  • 4 * Eyelet
