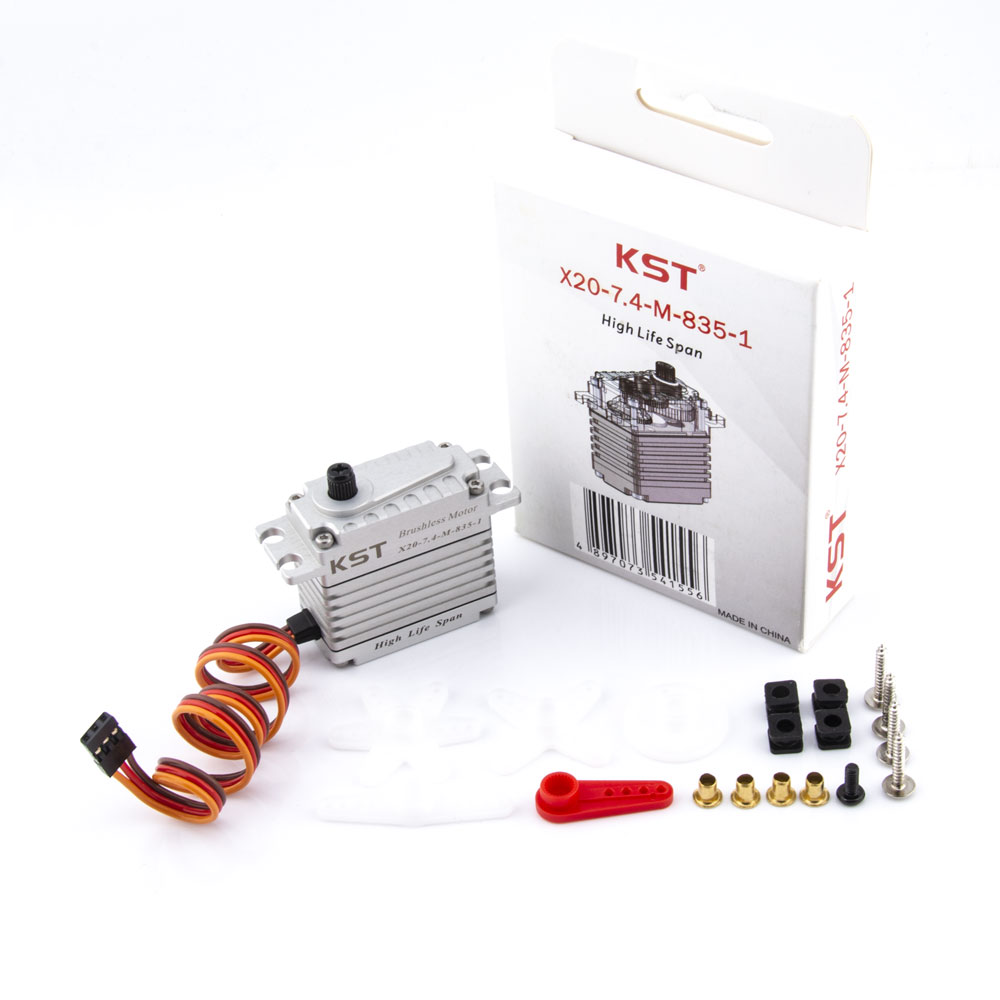

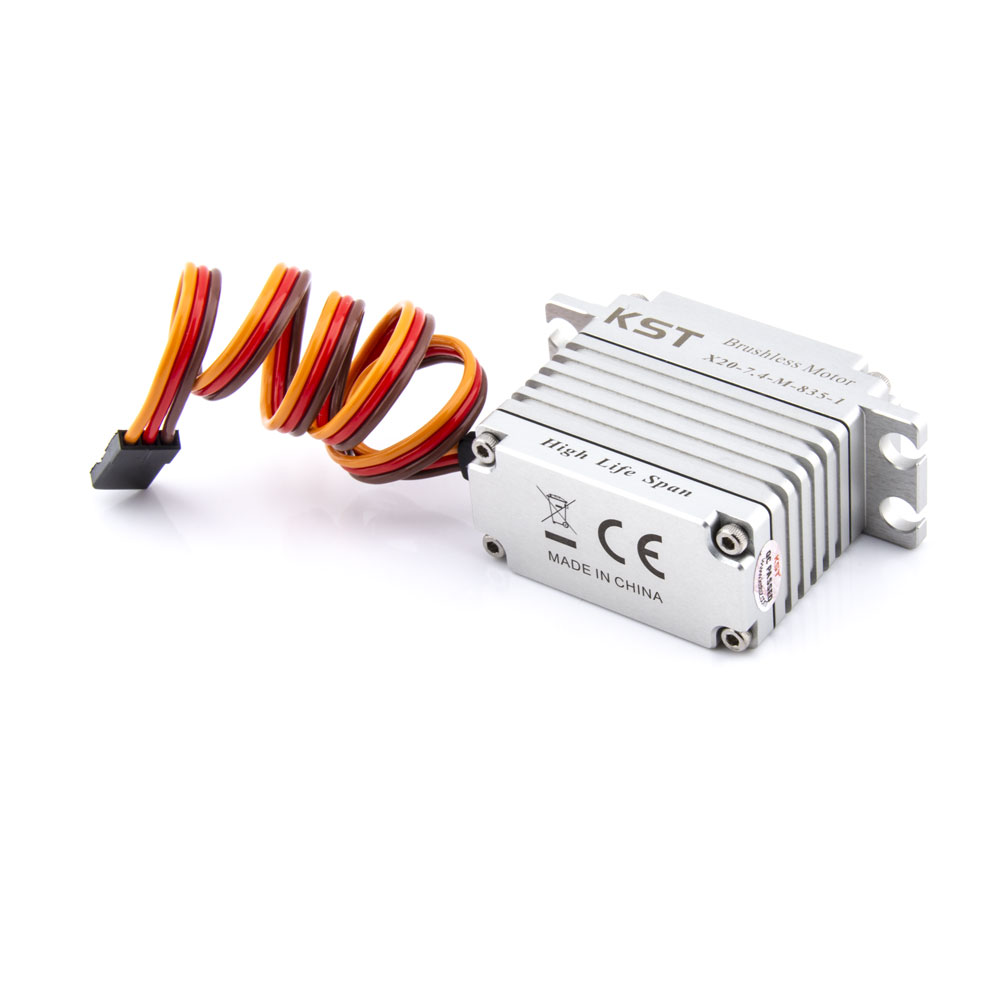

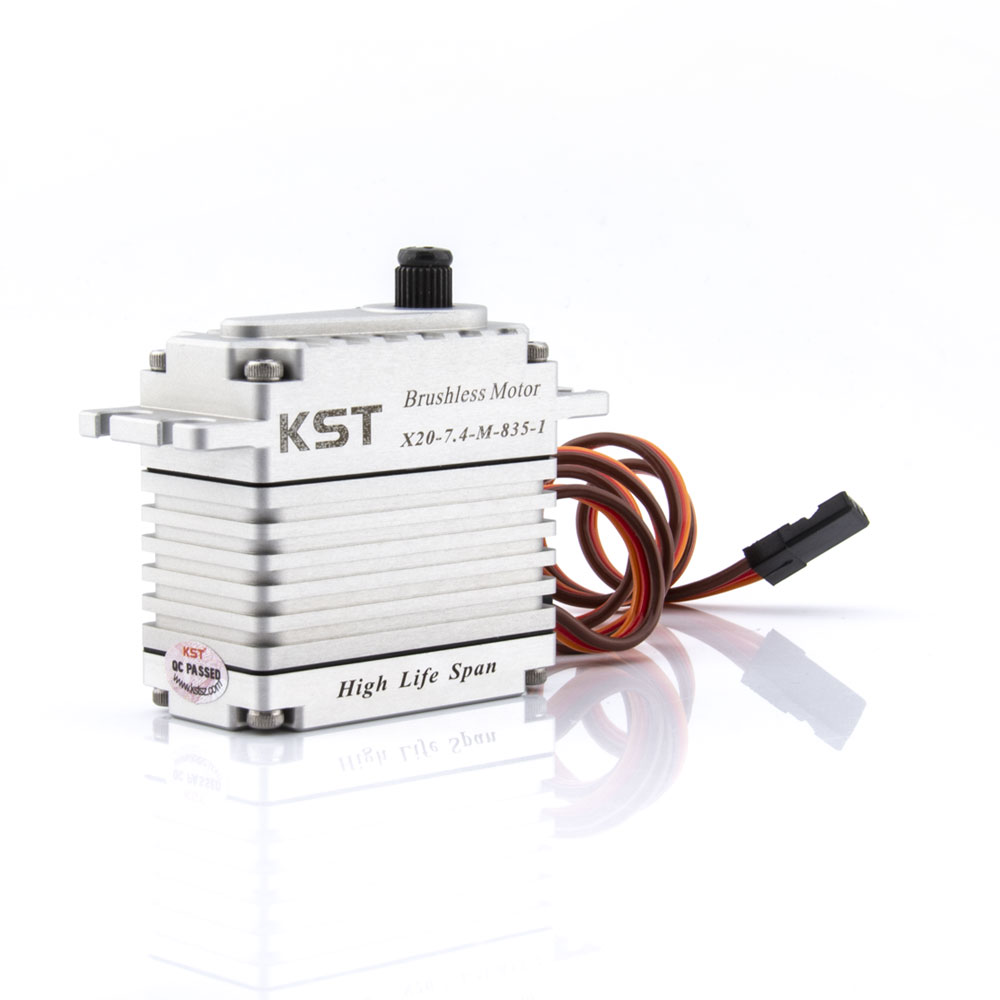

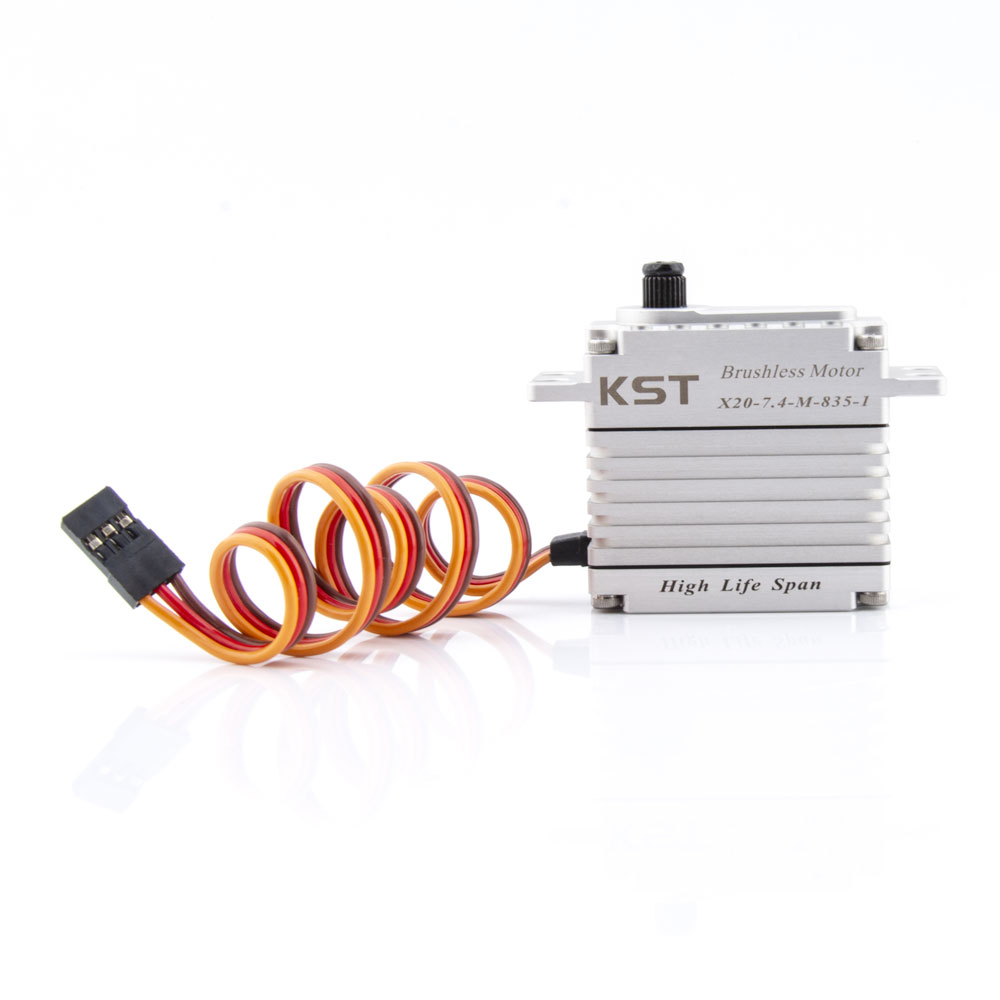

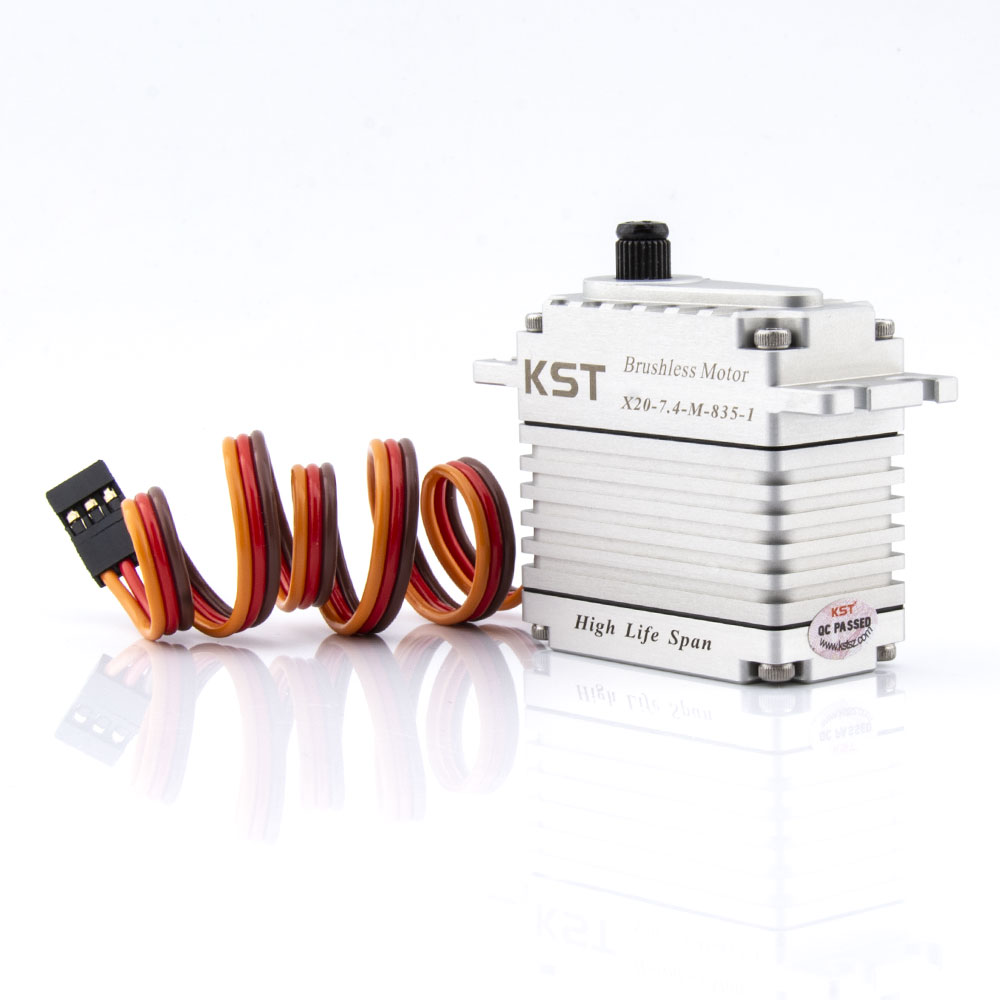

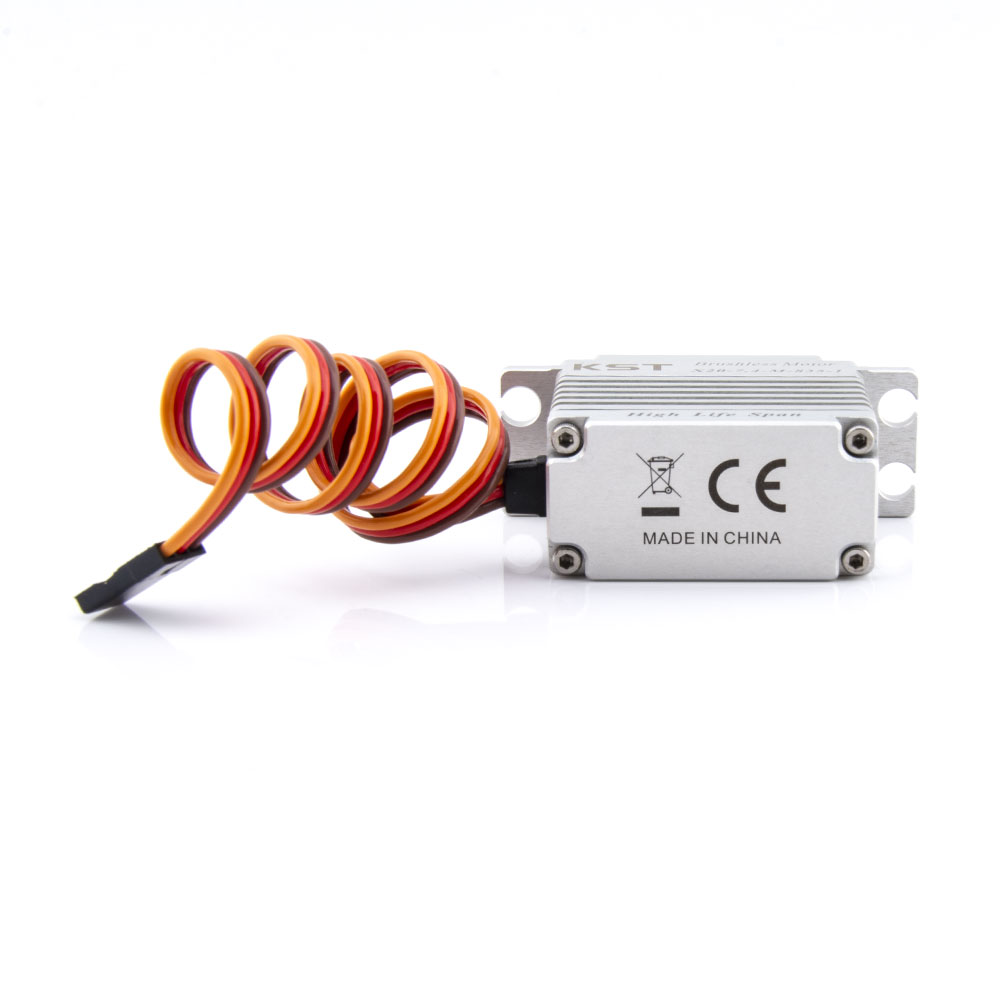

The X20-7.4-M-835 Servos features a brushless motor, a full CNC aluminum case, and a complete set of hardened steel gears throughout each servo. The servo boasts an incredible 40Kgf.cm of torque at 7.4V and a crisp 0.13 second speed.
Features
Hardened Steel Gears
Extreme Torque and Excellent Speed
Contactless Sensor
6 Ball Bearings
Brushless DC Motor
CNC Aluminium Case
Specification
Item: X20-7.4-M-835 Servo
Rated Voltage: DC7.4V
Operating Voltage: DC6.0V-8.4V
Stalling Torque: 40Kgf.cm@7.4V
Rated Torque: 10Kgf.cm@7.4V
Stalling Current: 4.95A
Rated Current: 1.25A
No-load Speed: 0.13sec/60°@7.4V
Rated Speed: 0.24sec/60°@7.4V
Working Frequency: 1520μs/333Hz
Default Travel Angle: ± 100°=200°Total, When 500μs-2500μs
