Home > Servos > MY Servo > MY Servo MH-0257MG 8.4V 0.07Sec 11.9KG Metal Gears Waterproof Coreless HV Digital Servo
  • MY Servo MH-0257MG 8.4V 0.07Sec 11.9KG Metal Gears Waterproof Coreless HV Digital Servo
1/1
  • MY Servo MH-0257MG 8.4V 0.07Sec 11.9KG Metal Gears Waterproof Coreless HV Digital Servo

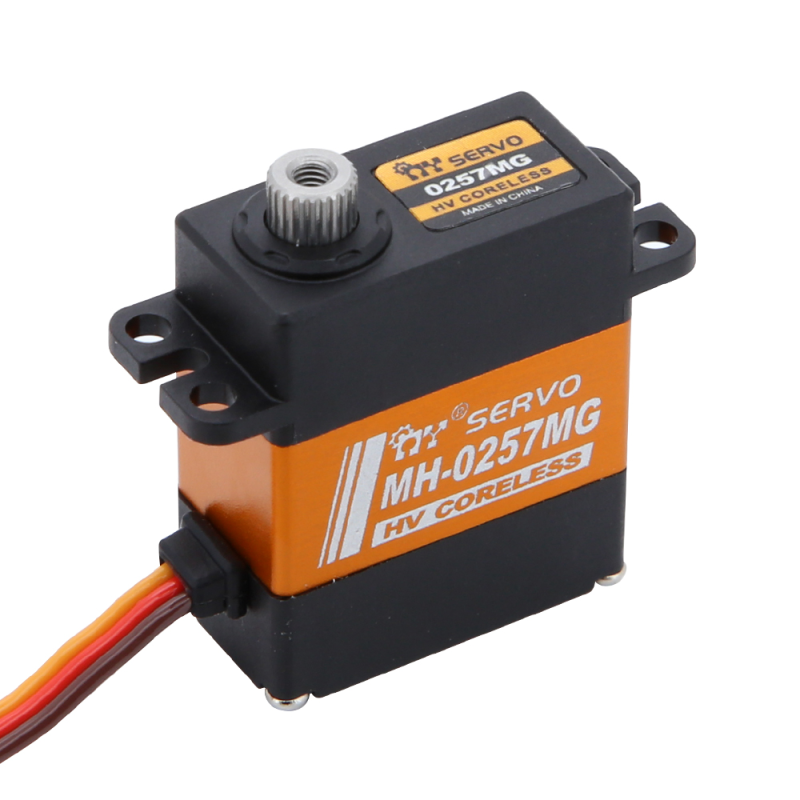

MY Servo MH-0257MG 8.4V 0.07Sec 11.9KG Metal Gears Waterproof Coreless HV Digital Servo

SKU: BR0052.0239
This item is available by special order only. For pricing, MOQ and delivery information, please contact your sales representative.
$20.80 $16.24
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
Add to Favorites (0)
  • MY Servo MH-0257MG 8.4V 0.07Sec 11.9KG Metal Gears Waterproof Coreless HV Digital Servo
  • MY Servo MH-0257MG 8.4V 0.07Sec 11.9KG Metal Gears Waterproof Coreless HV Digital Servo
1/1
  • MY Servo MH-0257MG 8.4V 0.07Sec 11.9KG Metal Gears Waterproof Coreless HV Digital Servo
  • Description
Specification
Dead band: 2μs
Working frequence: 1520μs / 330hz
Motor: Coreless Motor
Voltage Range: 4.8-8.4V
Operating Speed (4.8V): 0.11sec/60°
Operating Speed (6.0V): 0.09sec/60°
Operating Speed (8.4V): 0.07sec/60°
Stall Torque (4.8V): 7.5kg.cm
Stall Torque (6.0V): 9.3kg.cm
Stall Torque (8.4V): 11.9kg.cm

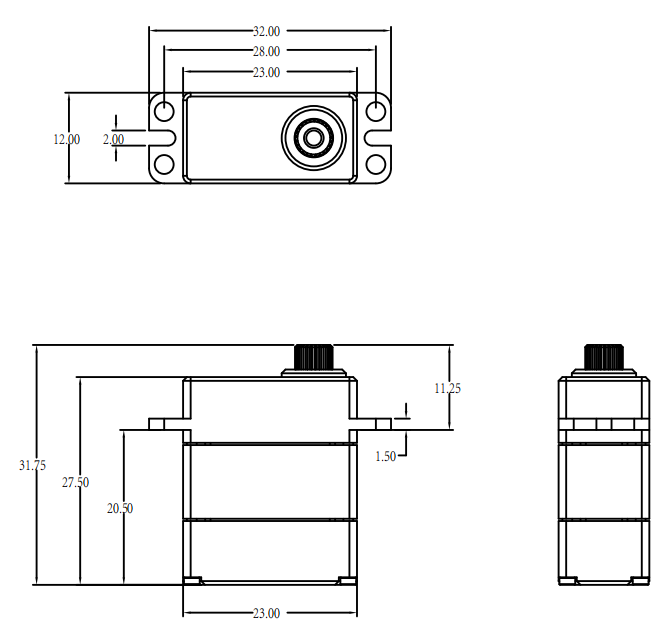

Dimensions: 23X12X27.5mm
Weight: 16g
Connector Wire Length: JR 200 mm
Bearing: 2BB
Output Gear Spline: 25T
