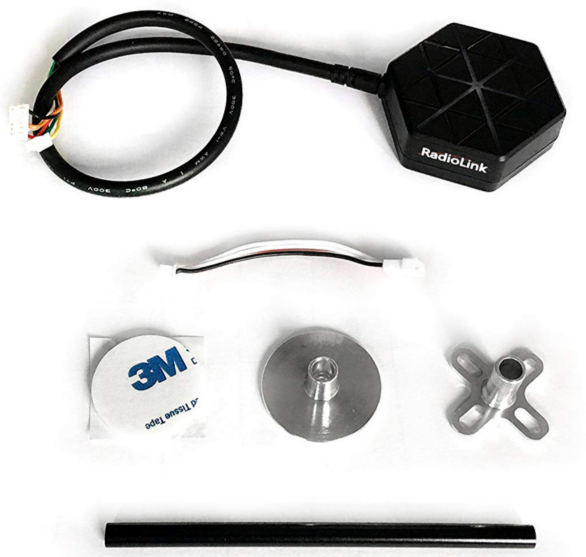

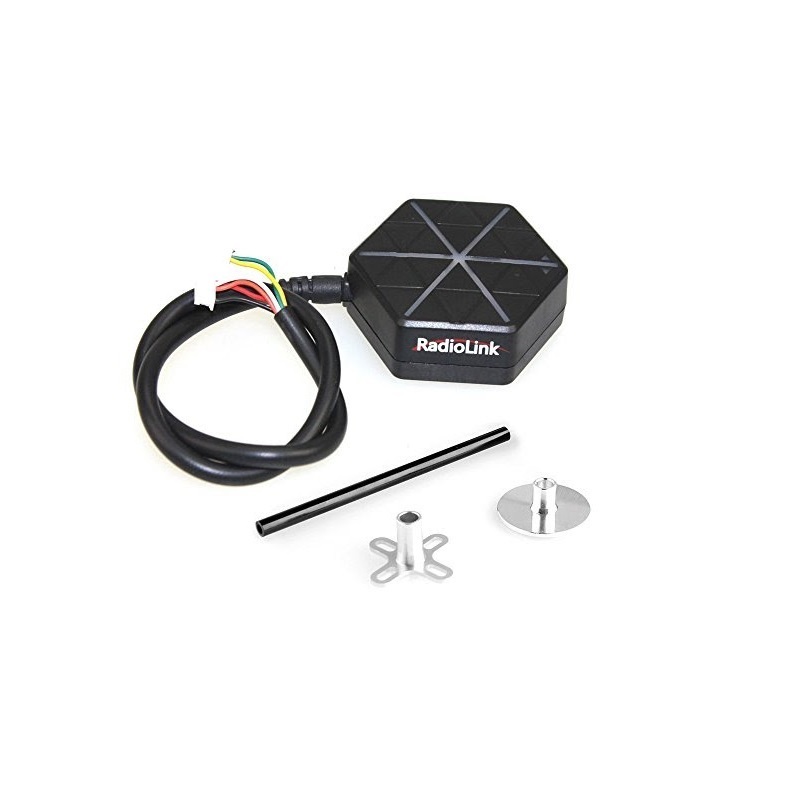

RadioLink SE100 GPS with GPX Holder

SKU: BR0103.0044
This item is available by special order only. For pricing, MOQ and delivery information, please contact your sales representative.
$39.99 $27.06
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
  • Radiolink SE100 GPS with GPX Holder
  • Radiolink SE100 GPS with GPX Holder
  • Radiolink SE100 GPS with GPX Holder
  • Radiolink SE100 GPS with GPX Holder
  • Radiolink SE100 GPS with GPX Holder
  • Radiolink SE100 GPS with GPX Holder
  • Radiolink SE100 GPS with GPX Holder
  • Radiolink SE100 GPS with GPX Holder
1/1
  • Radiolink SE100 GPS with GPX Holder
  • Radiolink SE100 GPS with GPX Holder
  • Radiolink SE100 GPS with GPX Holder
  • Radiolink SE100 GPS with GPX Holder
  • Description

The SE100 is a popular GPS module made by RadioLink. The module comes plug and plays with a cable to connect with the Pixhawk & APM flight controllers. It can also be used with most open-source flight controllers, such as the PX4 and iNav FCs.

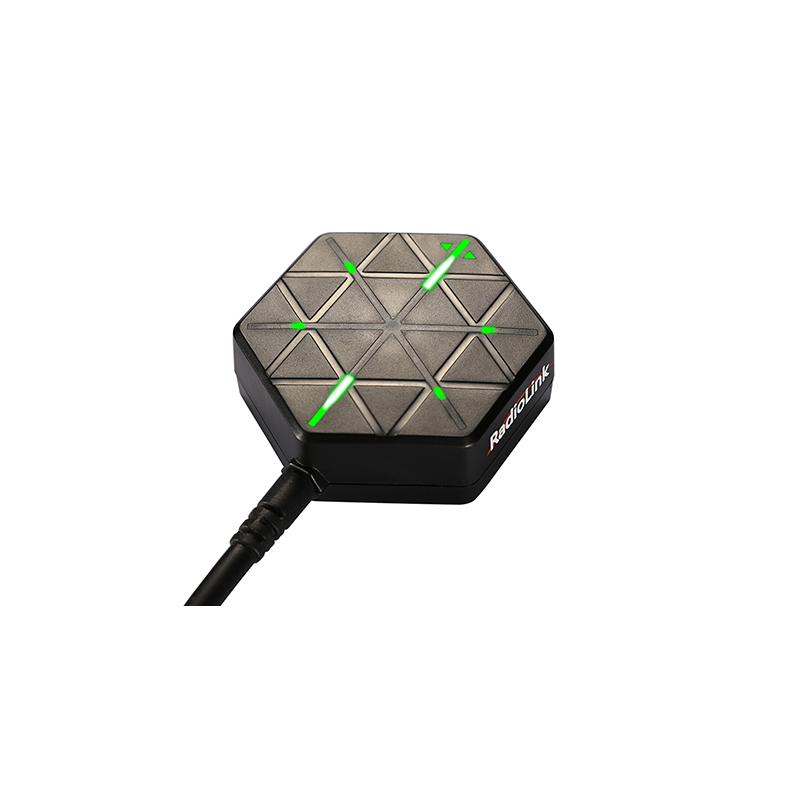

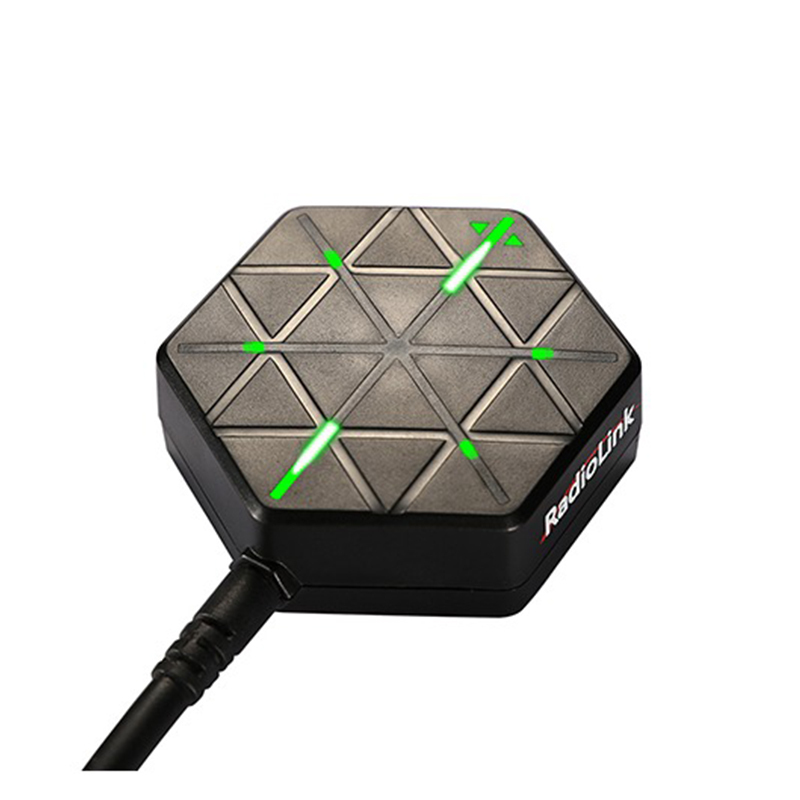

Unlike some of the cheaper GPS modules on the market, this one uses genuine components. It utilizes a U-Blox M8N GPS receiver and QMC5883L digital compass, so you can be assured of reliable performance. When testing, we found it acquired up to 20 satellites outside in under a minute, and even managed to get a 12 satellite GPS lock indoors. Another nice feature is the flashing green status LEDs on top of the module, which make it very clear when a position lock has been established.


Specifications:
1.Chip: Ublox M10050
2.50cm position accuracy
3.Positioning 20 satellites in 6s at open groud
4.Antenna : 2.5dbI high gain and selectivity ceramic antenna
5.Power amplify IC:MMIC BGA715L7 from infineon
6.Support GPS,GLONASS L10F, QZSS L1 C/A,BEIDOU B1 SBAS L1 C/A:WAAS,EGNOS,MSAS
7.Power supply: voltage 5VDC+-5%, current 50~55mA 8.Velocity precision: 0.1m/s
9.Max height: 50000m; Max speed: 515m/s
10.Max acceleration: 4G; Max update rate: up to 18Hz
12.Sensitivity Tracking & Nav.: -167dBm; Reacquisition:-3dBm; Cold start:-151dBm; Hot start:-159dBm
13.Time to first fix: Cold start: 26s, Hot start:1s
