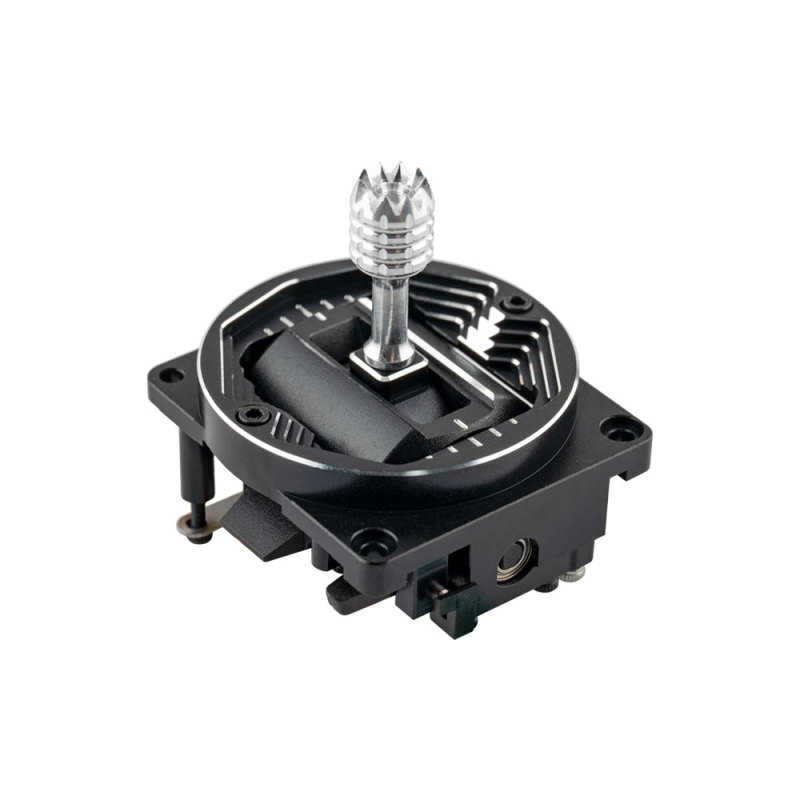

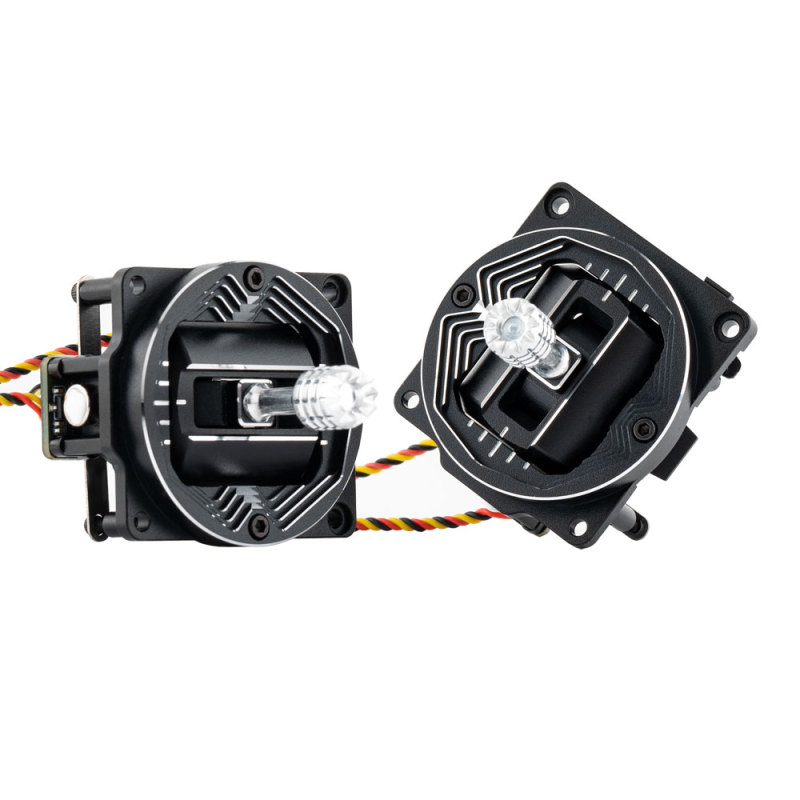

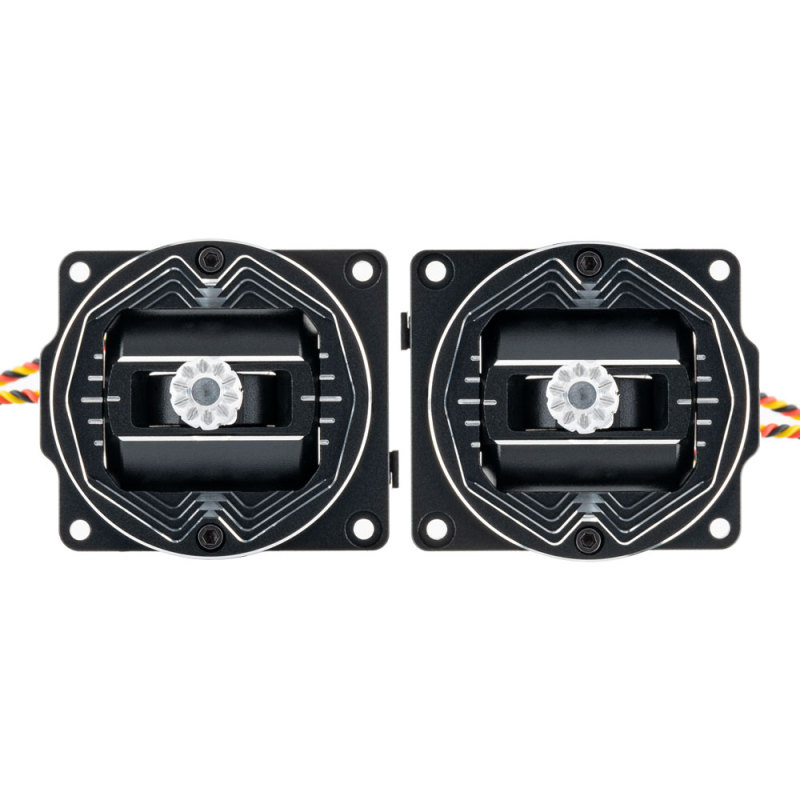

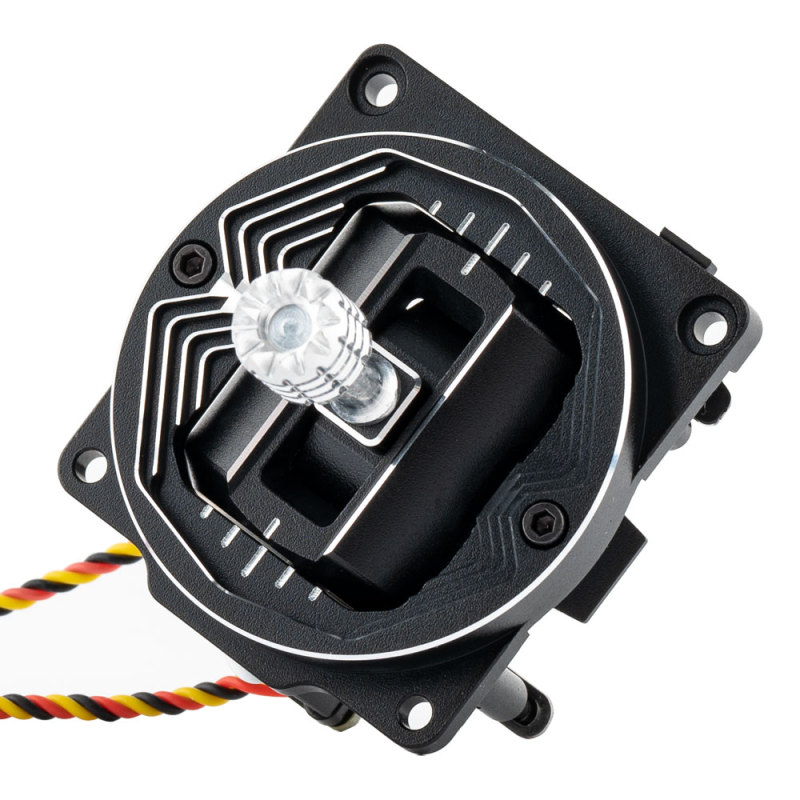

RadioMaster - AG01 NANO CNC Hall Gimbals for Pocket Radio

Features

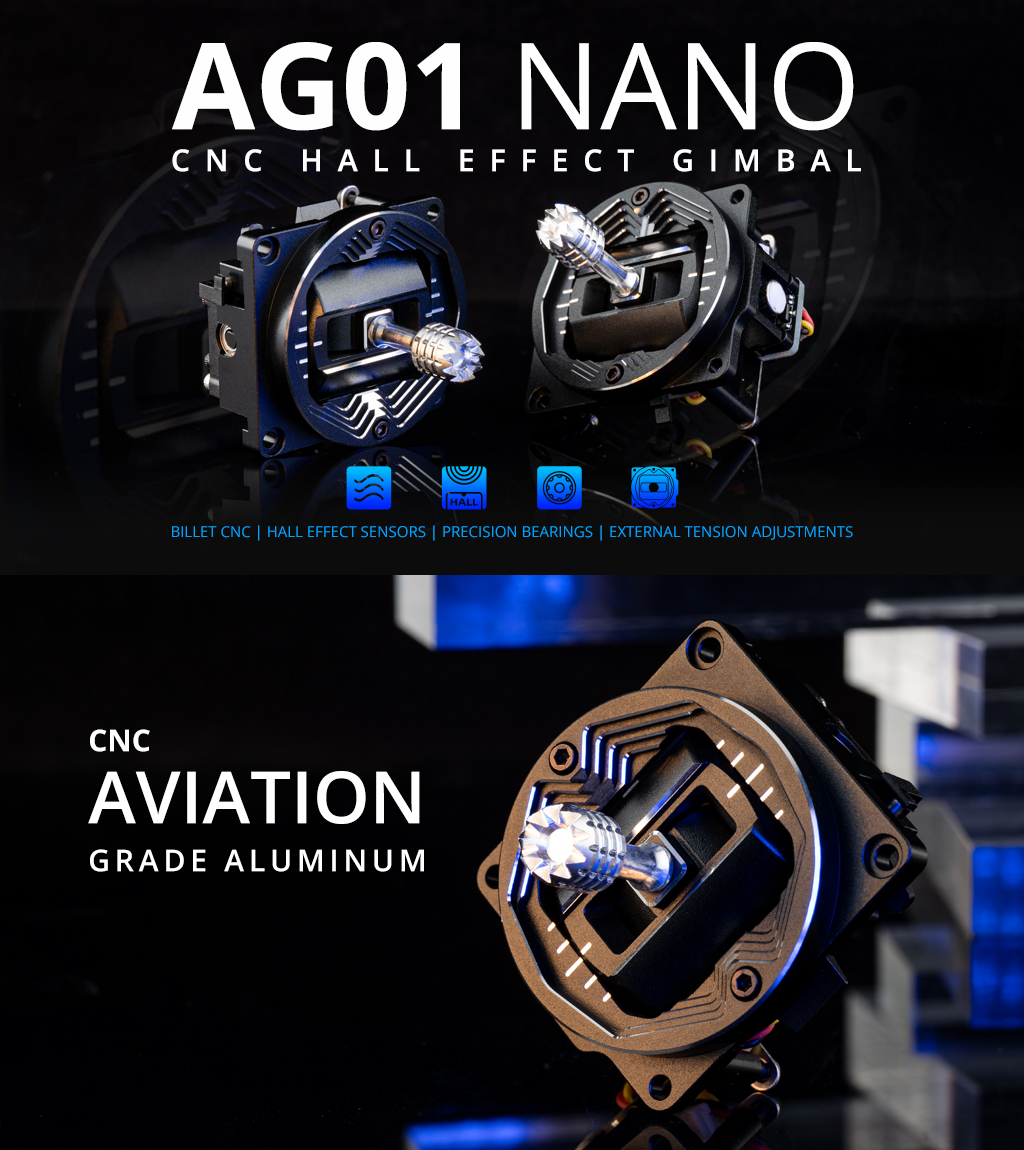

• Made with billet CNC aviation grade aluminum for superior durability and outstanding looks

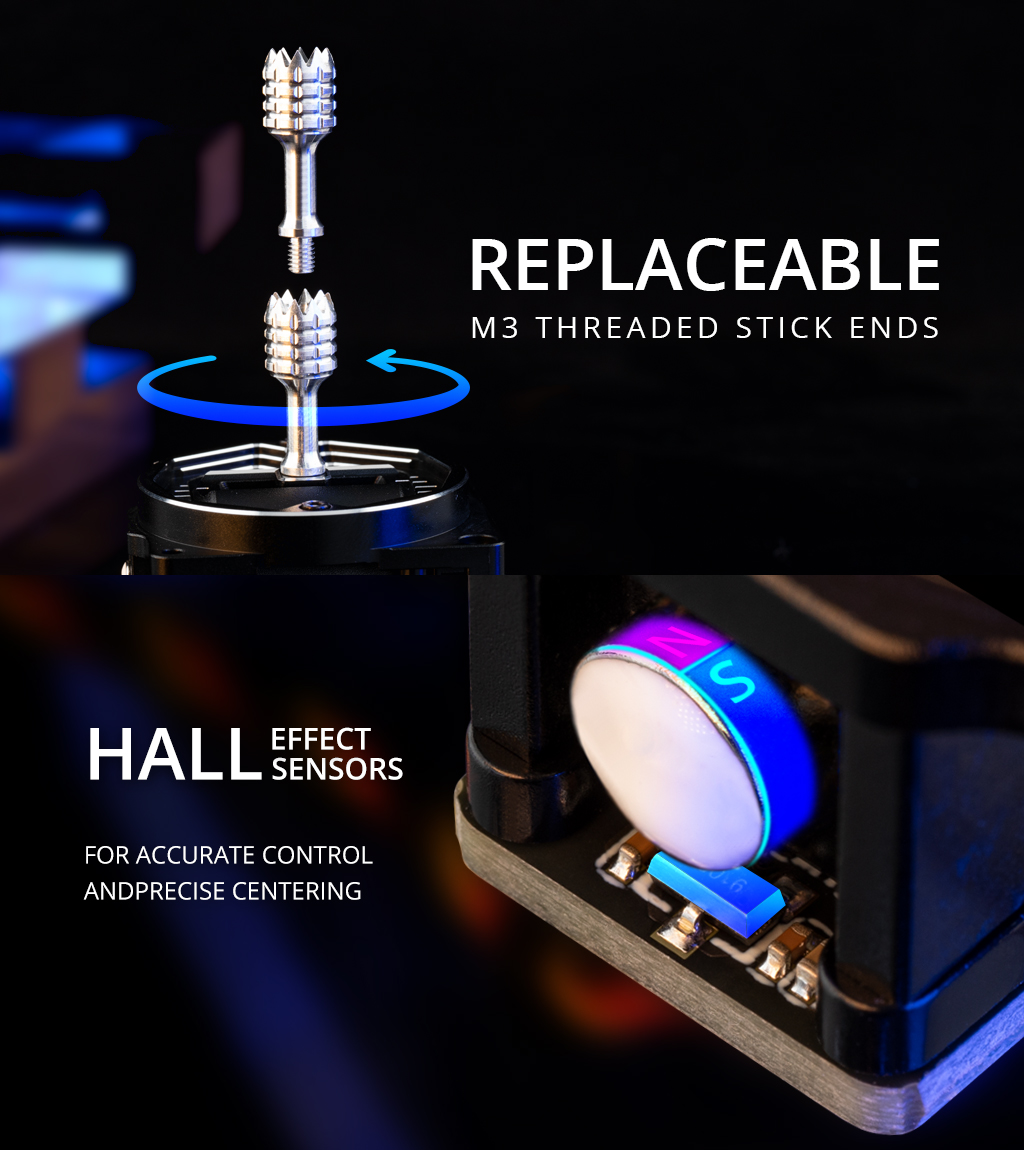

• Non contact hall sensors with precise centering for accurate control

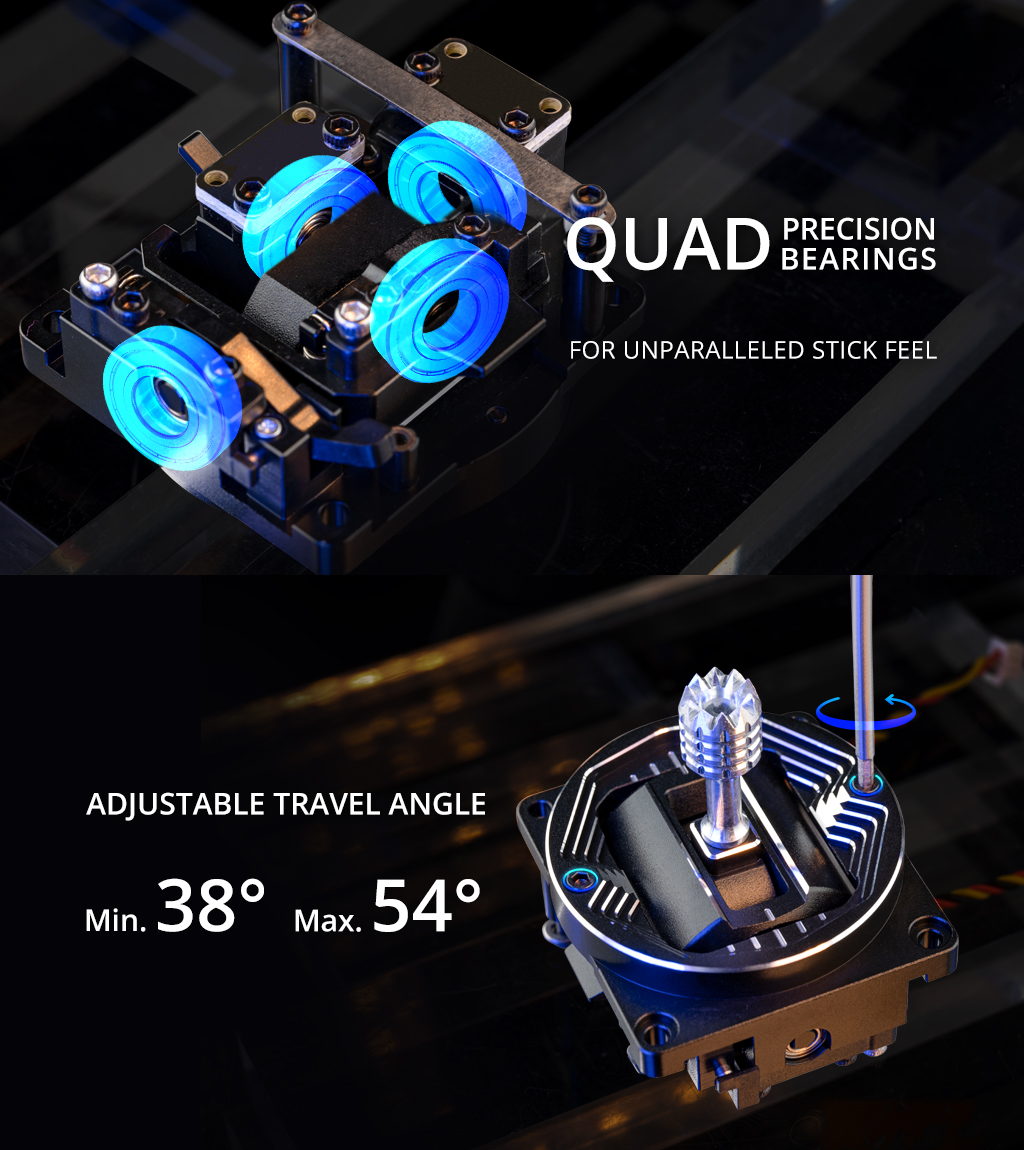

• Quad precision bearings for unparalleled feel
• Adjustable vertical travel angle (Min. 38°, Max. 54°)

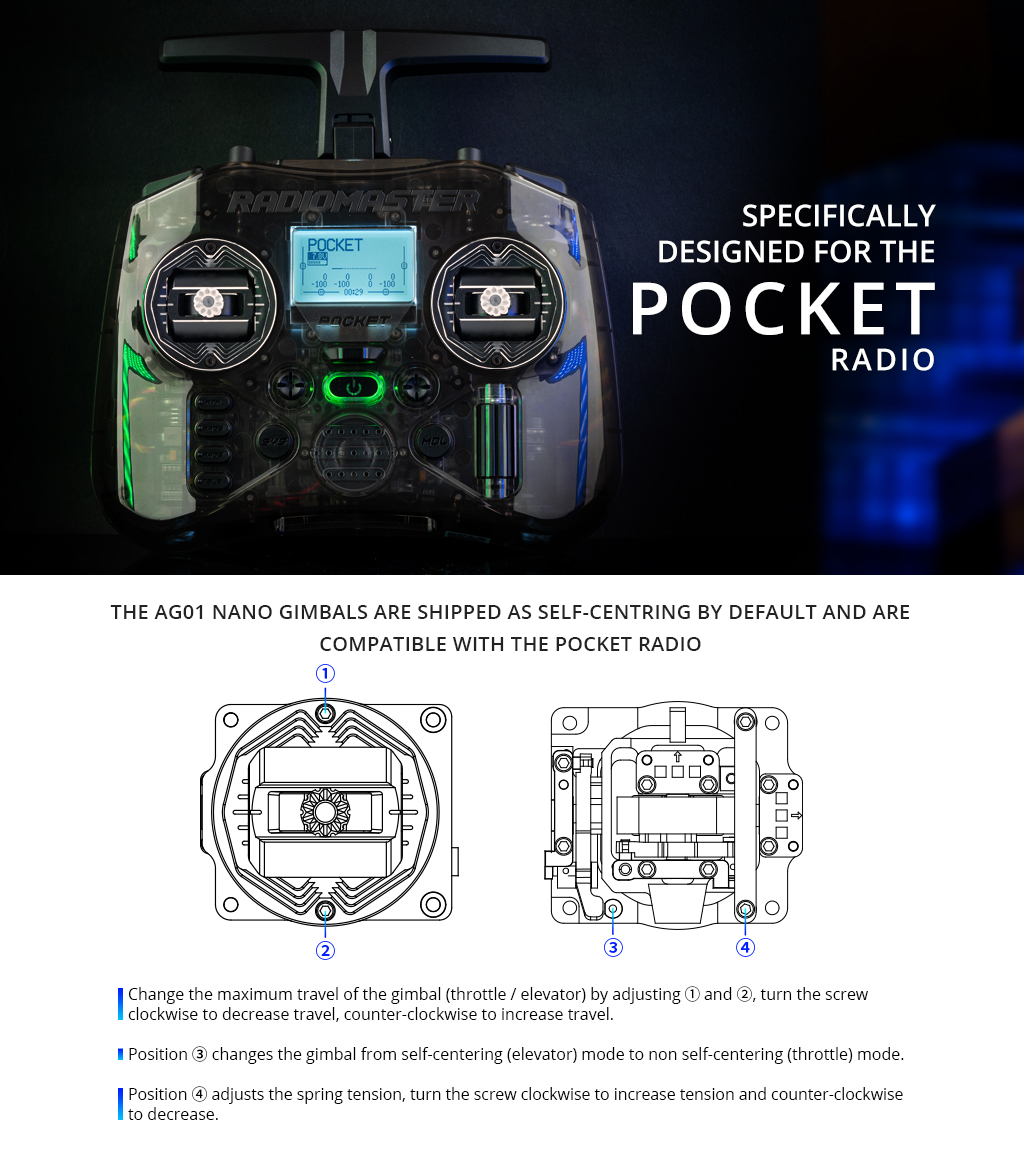

• AG01 NANO Gimbal is specifically designed for the smaller POCKET radio

Specifications

• Item: AG01 NANO CNC Hall Effect Gimbal
• Sensor type: Non-contact hall effect
• Working voltage: DC 3.3V
• Linearity: Real-time (No latency)
• Adjustable vertical travel range: 38°- 54°
• Self-centering adjustment: Yes
• Mode adjustment: Yes
• Adjustable tension: Yes
• Bearing: Quad precision bearings
• Temperature range: -20°C-85°C

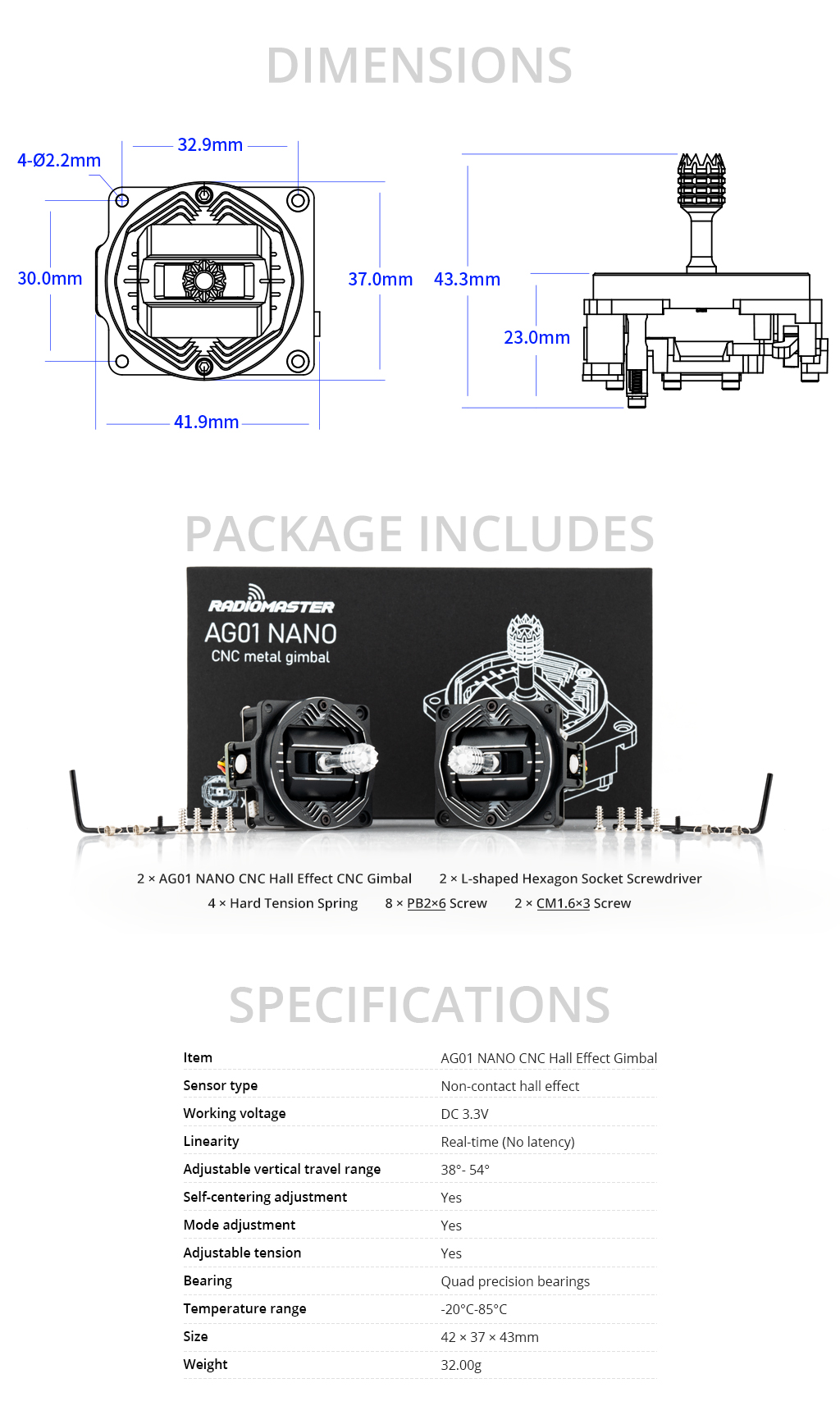

• Size: 42*37*43mm
• Weight: 32g(±0.3g)

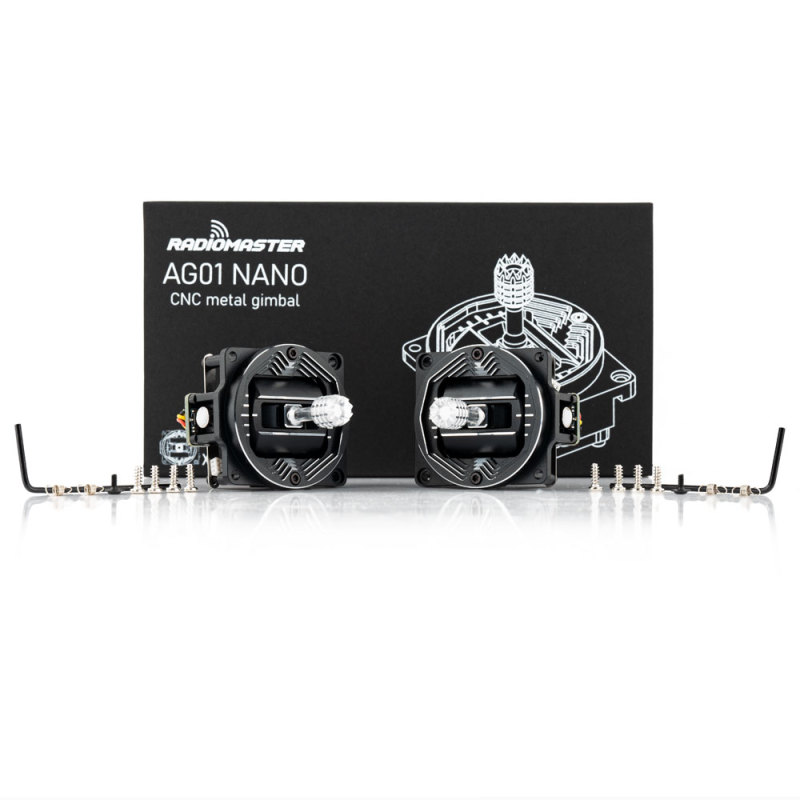

Package Includes

• 2 * AG01 NANO CNC Hall CNC Gimbal
• 2 * L-shaped Hexagon Socket Screwdriver
• 4 * Hard Tension Spring
• 8 * PB2*6 Screw
• 2 * CM1.6*3 screw
• 2 * Manual
