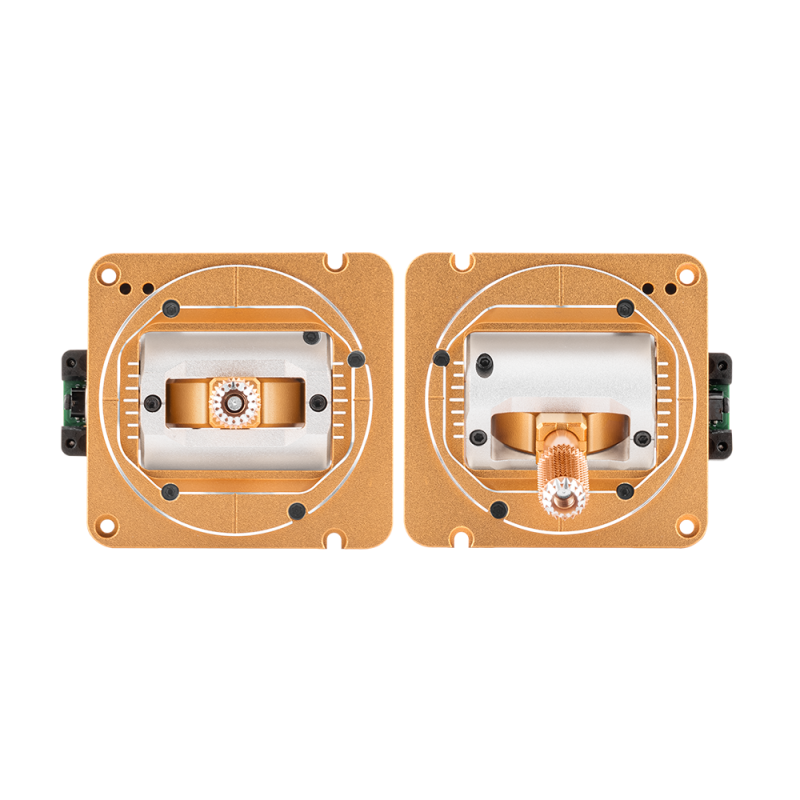

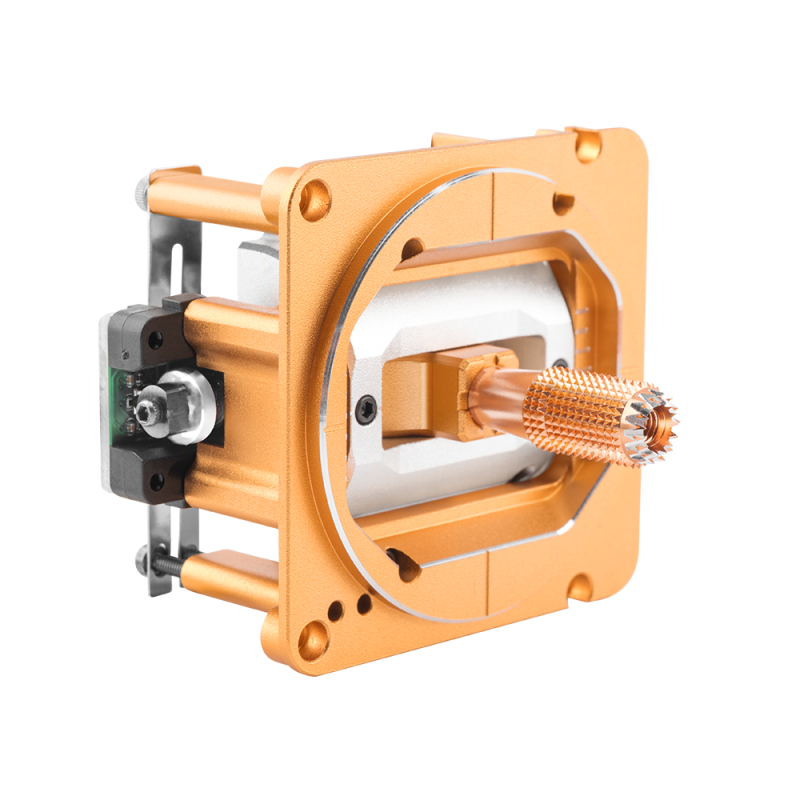

RadioMaster - AG02 CNC Aluminium Hall Effect Gimbal Set

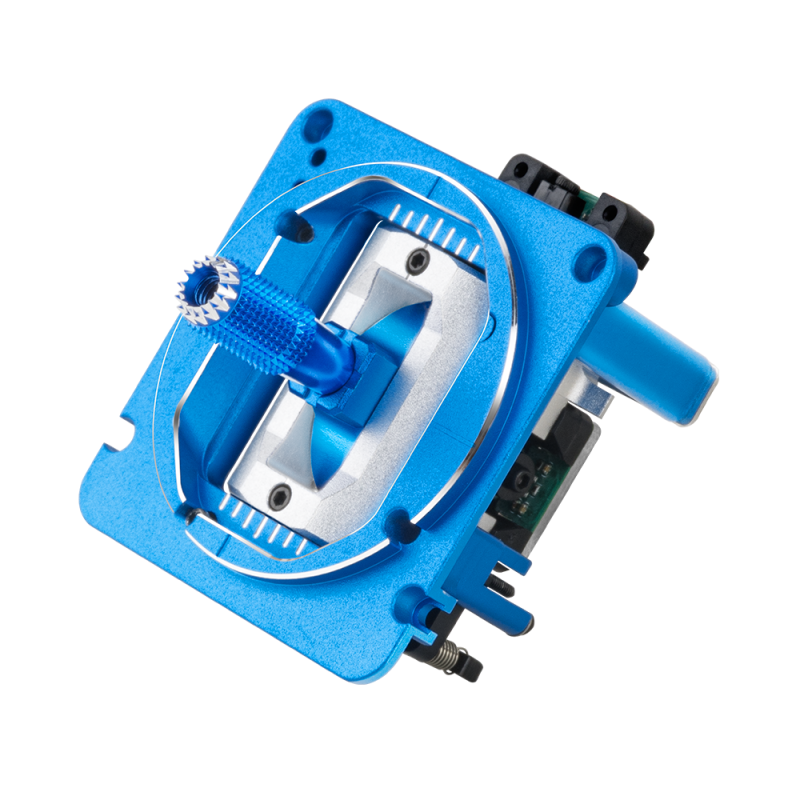

The AG02 gimbals are precision-engineered from machined aluminum, offering adjustable travel on both vertical and horizontal axis for highly responsive, customizable control. A redesigned, lightweight structure reduces rotational inertia by 21.6% compared to the previous generation, delivering smoother, faster stick input for improved response.

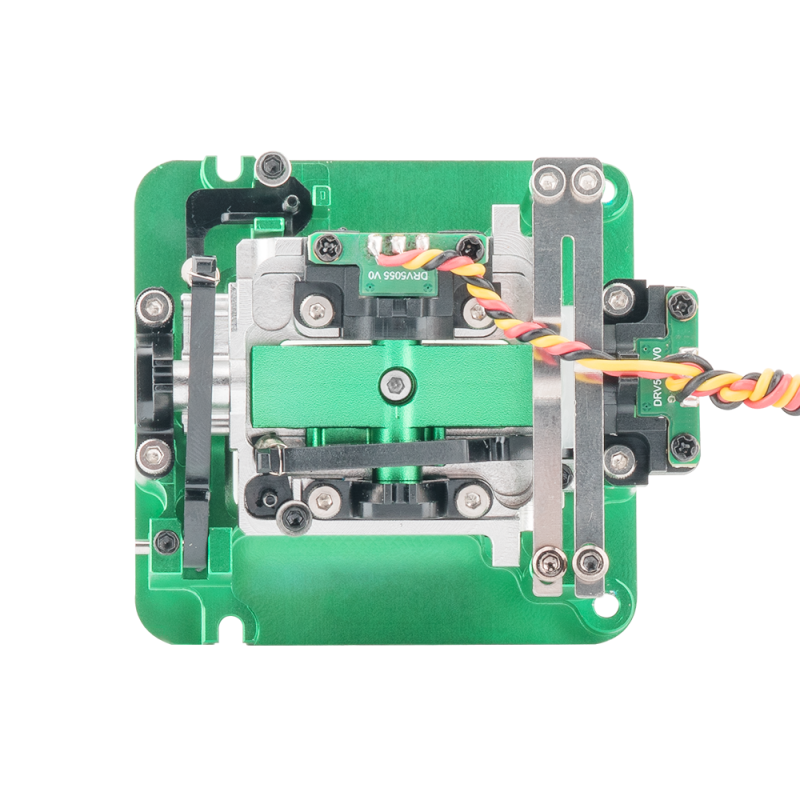

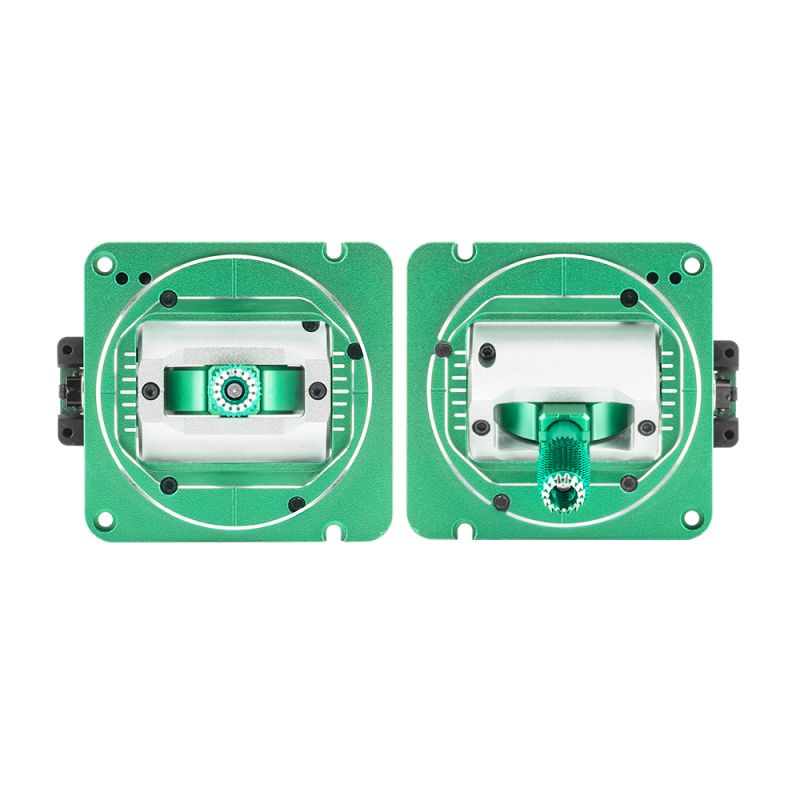

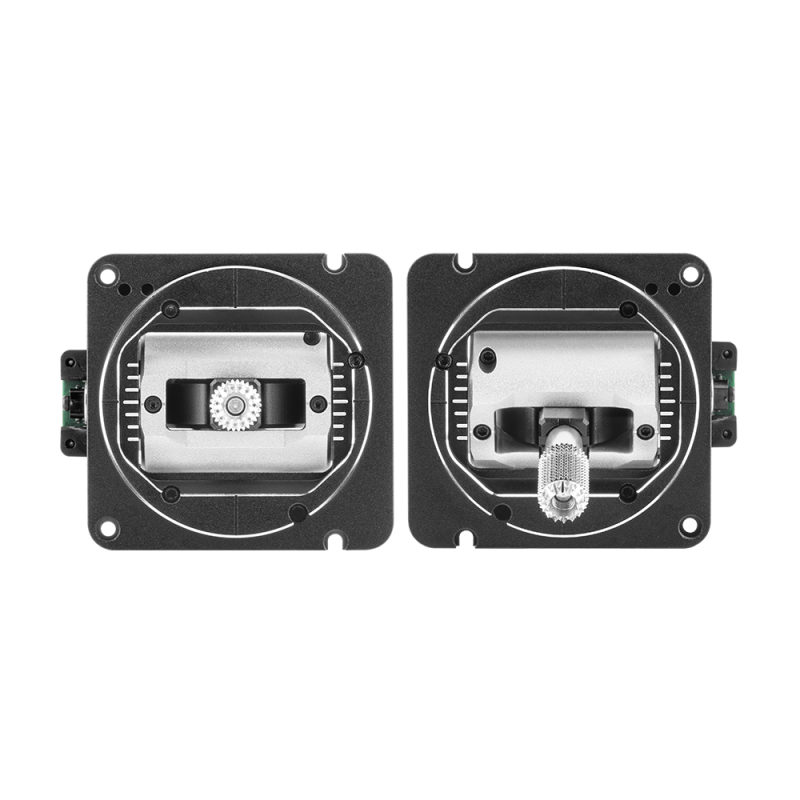

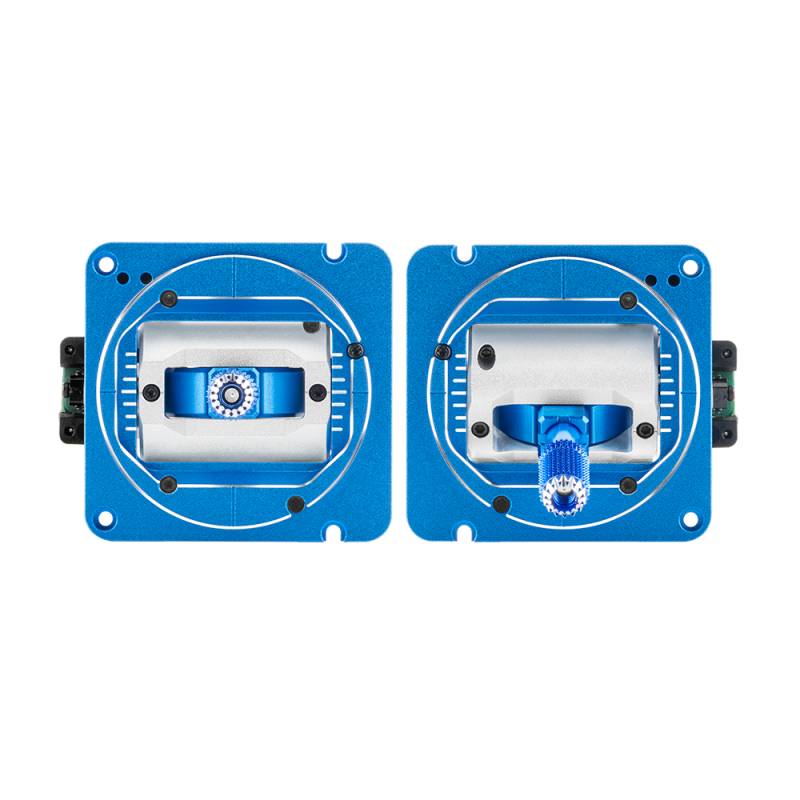

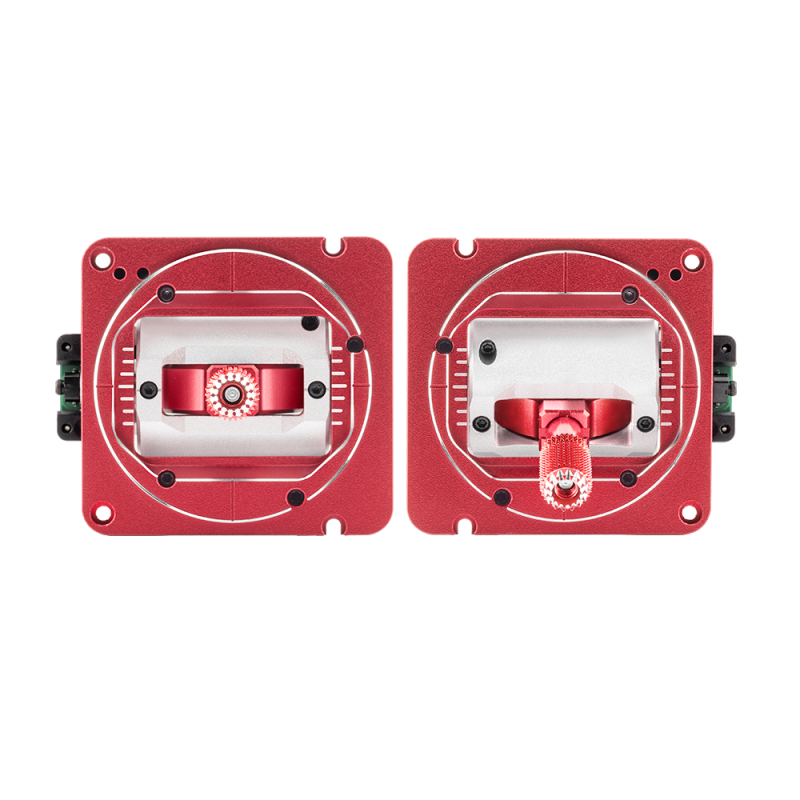

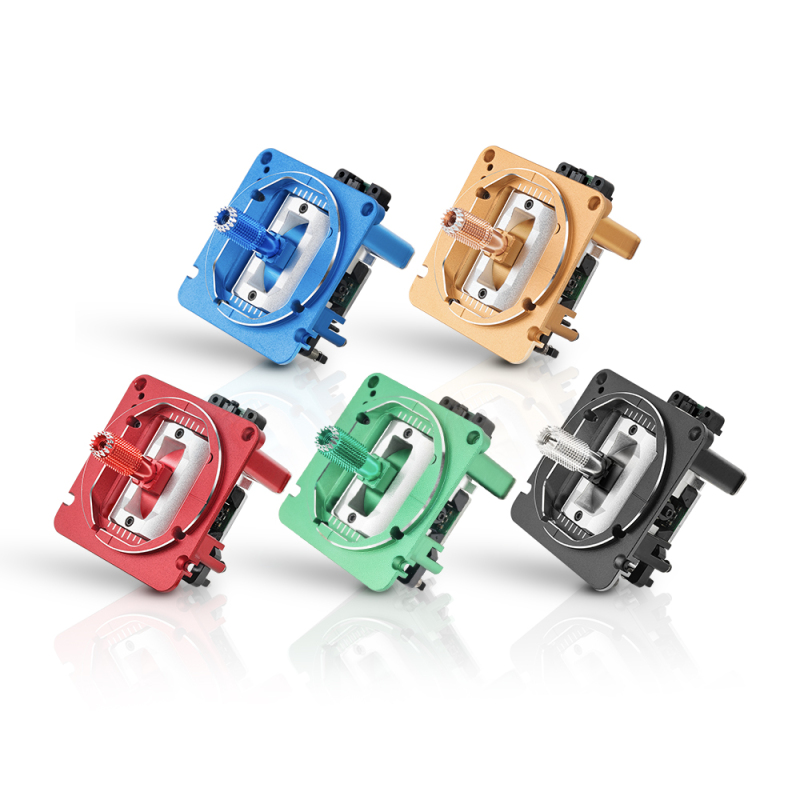

Equipped with advanced Hall effect sensors, the AG02 provides low-noise, rapid response, and exceptional accuracy. The anodized aluminum finish—available in Black, Red, Blue, Green or Gold—offers durability with a refined, professional look. Mounting is fully compatible with AG01 gimbals, ensuring an easy upgrade path.

Features

• Full Aluminum Construction: Key structural areas are optimized to reduce rotational inertia by over 20% while maintaining rigidity, delivering smoother and more responsive control.
• Next-Generation Low-Noise Hall Sensors: Offer ultra-fast response without compromising accuracy or stability.
• Adjustable Travel: Vertical and horizontal Travel adjustment for the perfect feel for any pilot.
• Quad precision bearings：For unparalleled stick feel.
• 100% Mounting Compatibility with Previous Generations: If you already use full-size RadioMaster gimbals, the AG02 can be directly installed as an upgrade—no modifications required.
• Designed for RadioMaster TX16, TX15, Boxer Radio Controllers

Specifications

Item: AG02 CNC Hall Gimbals Set

Sensor Type: Hall Analog

Operating Voltage: DC 3.3V

X-Axis Travel Adjustment Range: 30° – 56°

Y-Axis Travel Adjustment Range: 38° – 54°

Throttle Mode Switch (Mode 1/2) Without Disassembly: Supported

Spring Tension Adjustment Without Disassembly: Supported

Quad Ball Bearings: Yes

Operating Temperature Range: -20°C to +85°C

Dimensions (Excluding Stick Ends): 53 × 53 × 33.3 mm

Weight: 73 g ± 1 g (per unit)

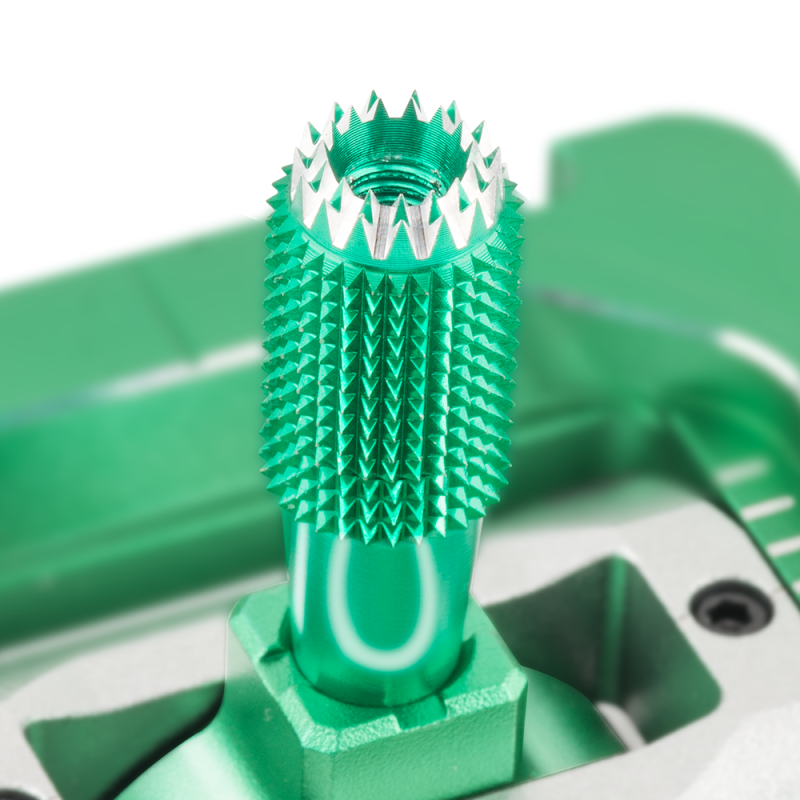

Gimbal Sticks: M4

Associated Products

TX15 Radio

TX15 Max Radio

AG02 CNC Hall sensor gimbals

LED Gimbal Rings

18650 3200mAh 3.7V Battery

21700 5000mAh Battery

Sticky360 Gimbal Stick Ends

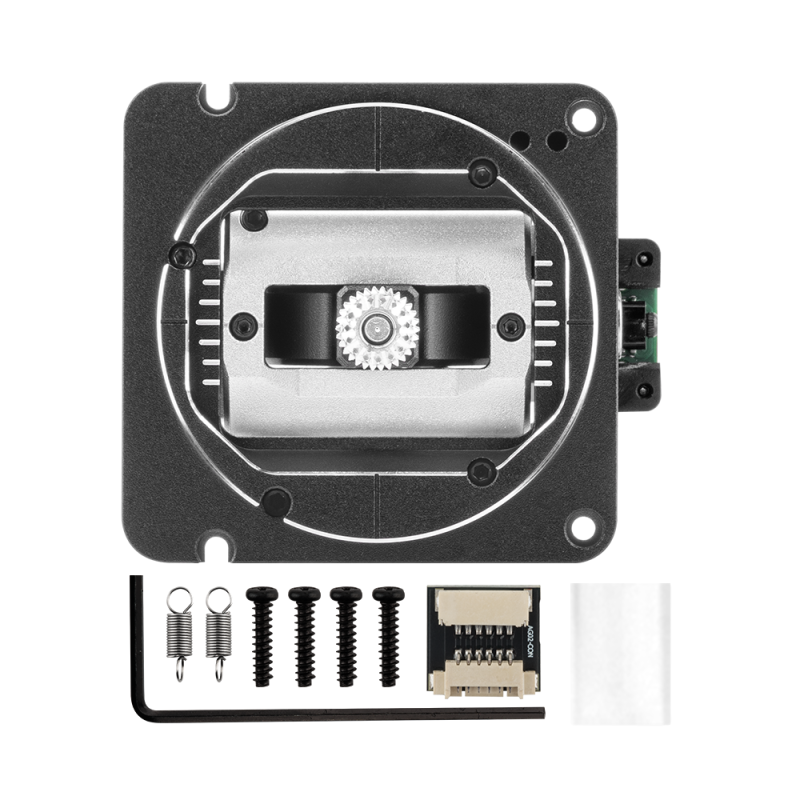

Package Includes

1 Pair of AG02 CNC Hall Sensor Gimbals

2 * High Tension Springs

1 * GH1.25-SH1.25 adapter board (Boxer/TX16sMKII)

4 * PB2.3*10 Mounting Screws

1 * Hex Wrench

1 * User Manual
