RadioMaster Bandit Moxon Antenna is a high gain, high efficiency directional transmitter antenna with a compact design and rugged housing to protect the internal components.
The Bandit Moxon Antenna, with its 80mm length, provides superior interference separation. Utilizing a professionally designed RF PCB substrate and optimized the bandit series the Bandit Moxon antenna is ideal for long range applications. The Bandit Moxon features a heavy-duty RG402 coax to optimize signal transmission and reduce external interference. The antenna also features a customized 360° swivel RP-SMA socket to allow for position adjustment.
Note: A Moxon antenna is intended for long range and has a more narrow field of operation. It is important to keep the Moxon antenna pointed in the general direction of your aircraft.
Features
High gain, high efficiency directional transmitter antenna
Compact and rugged housing
Professional RF PCB substrate, optimised for traditional MOXON design

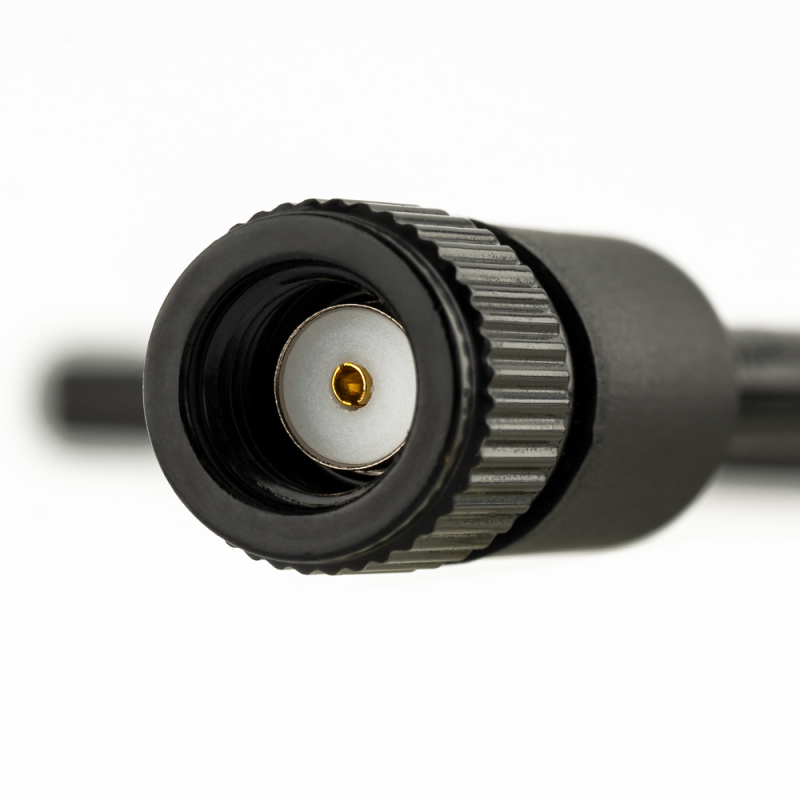

Uses heavy-duty RG402 coax cable and customised 360° swivel RP-SMA socket
Featuring an 80mm coax cable, reduces interference to the transmitter
Specifications
Item: Bandit Moxon Antenna
Bandwidth: 860-930MHz
Polarisation: Linear
Radiation Direction: Directional
Beam Width @-3dB: 145°
Gain: 4.6dBi
VSWR: >1.5
Connector: RP-SMA
Input Impedance: 50Ω

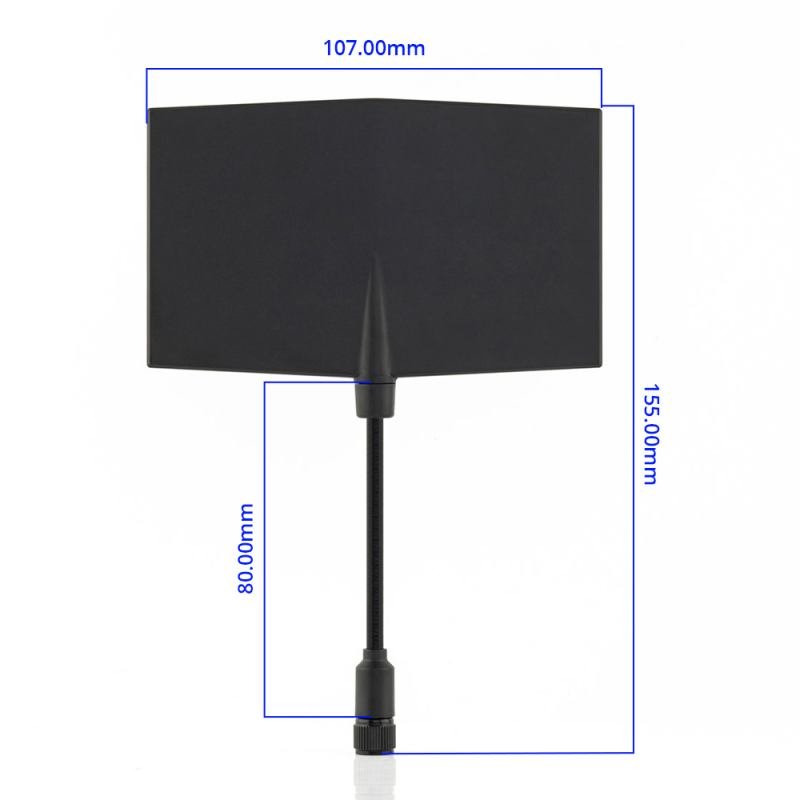

Dimension: 107*155mm

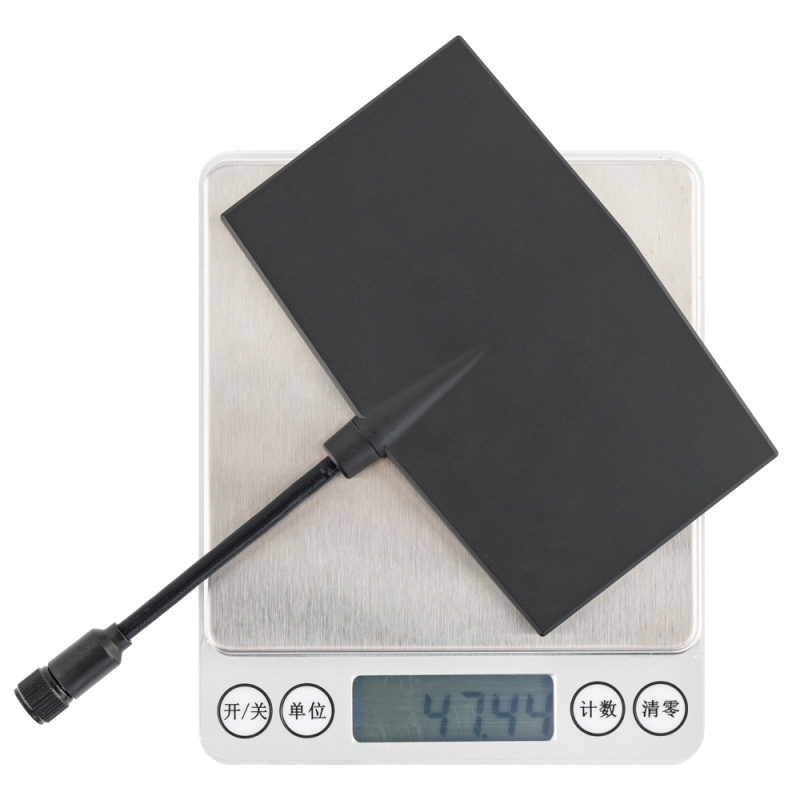

Weight: 47.44g
Package Includes
1 * Bandit Moxon Antenna
