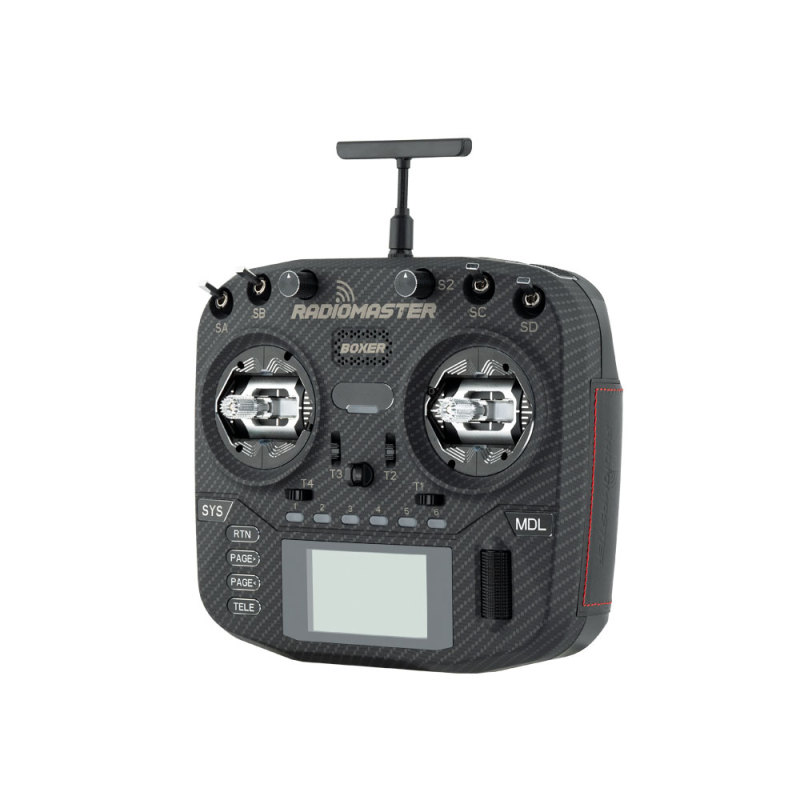

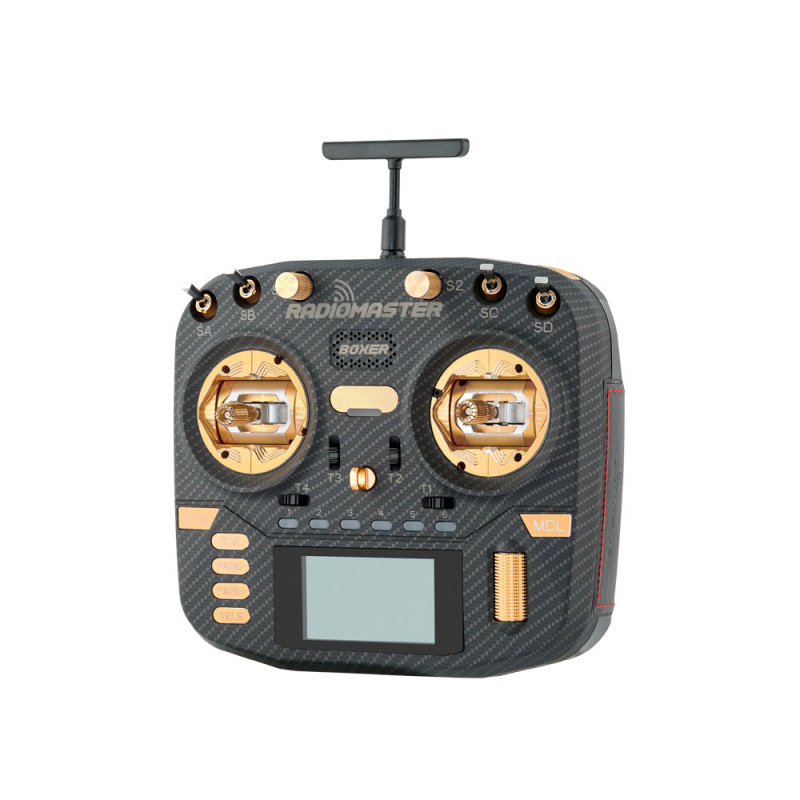

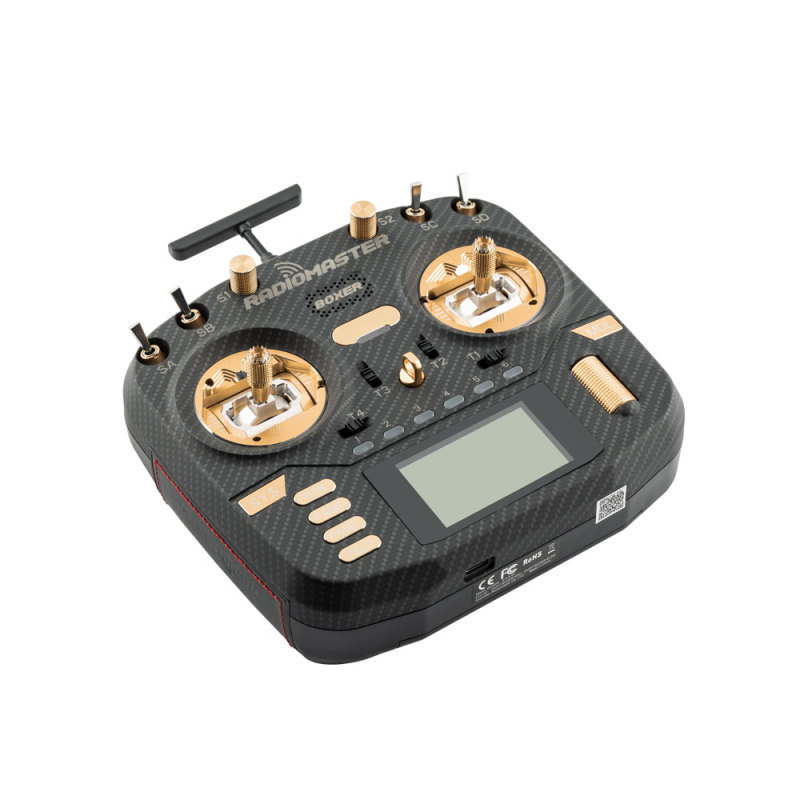

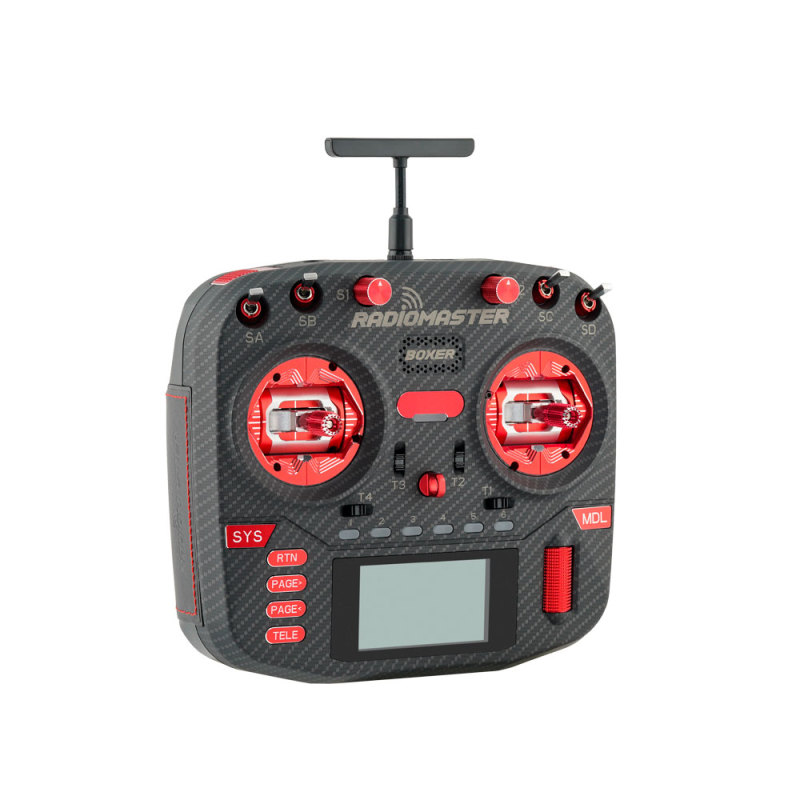

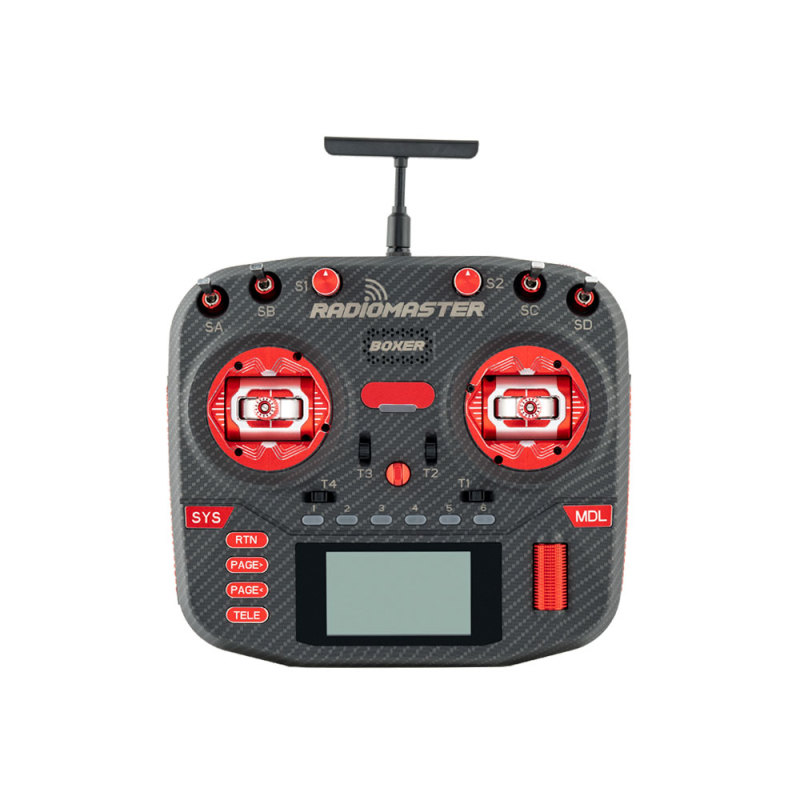

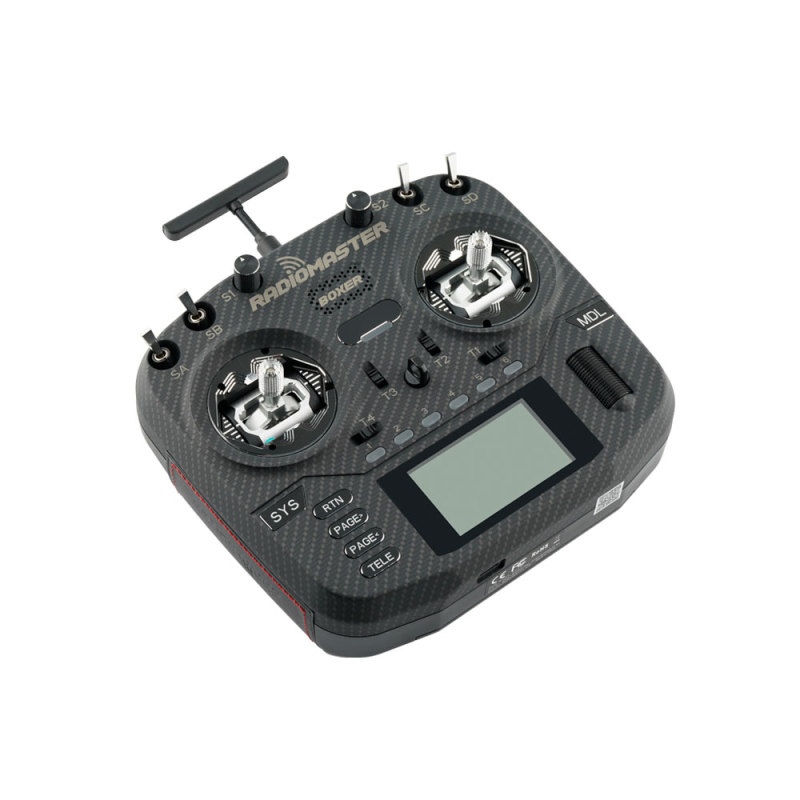

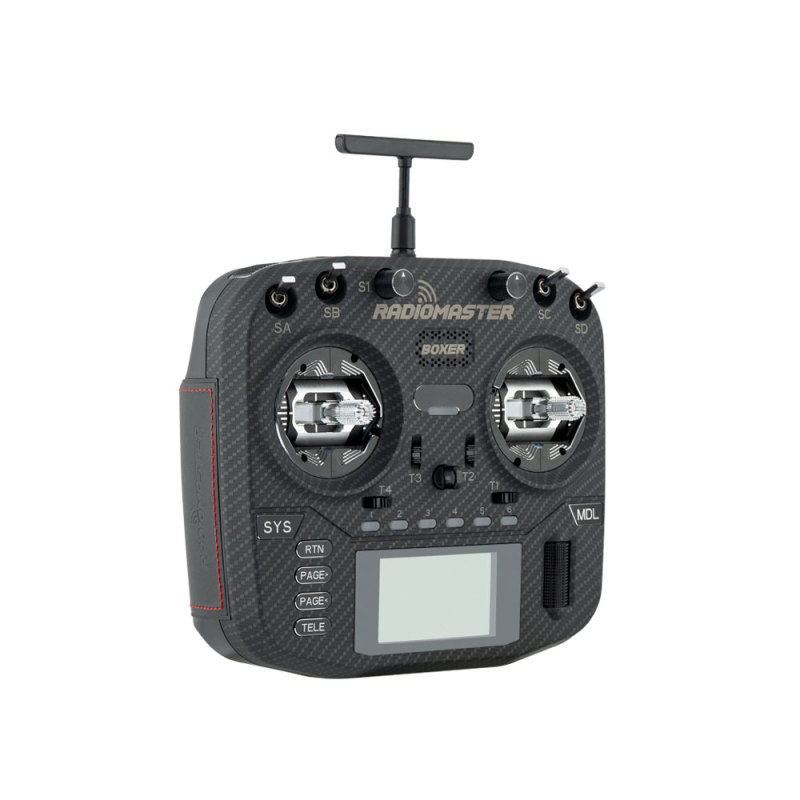

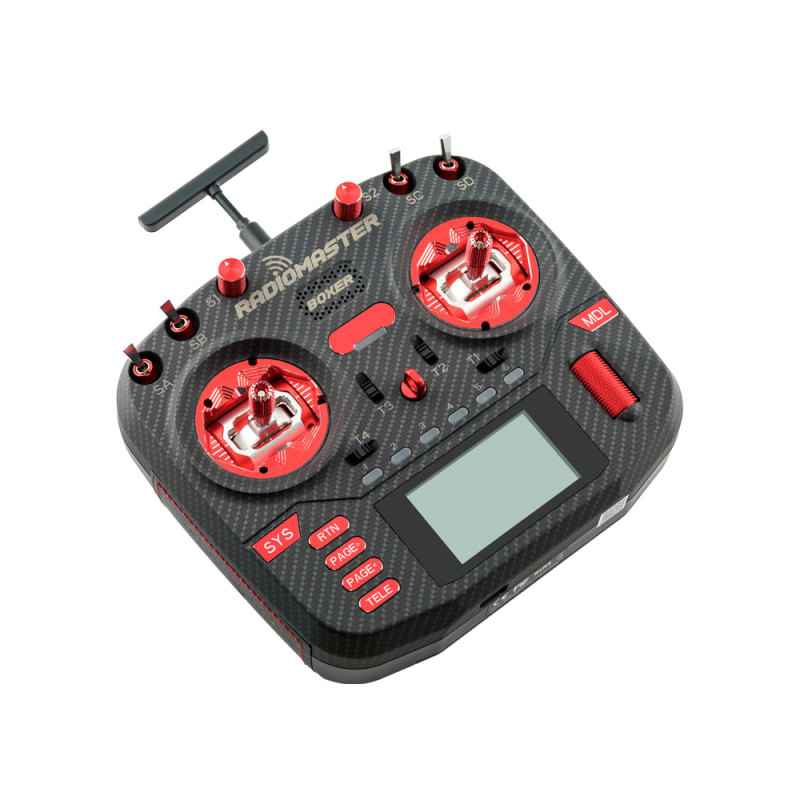

Introducing the Boxer Max Radio - a high-performance remote control with a sleek carbon fiber-patterned case. The Boxer Max comes standard with upgraded billet aluminum AG01 hall effect gimbals and CNC buttons and roller, ensuring a high-quality feel. The adjustable-length CNC metal folding handle and upgraded leather grips provide a comfortable grip for extended use. With all these features, the Boxer Max Radio is the perfect choice for those seeking superior performance, comfort, and a premium feel.
Features

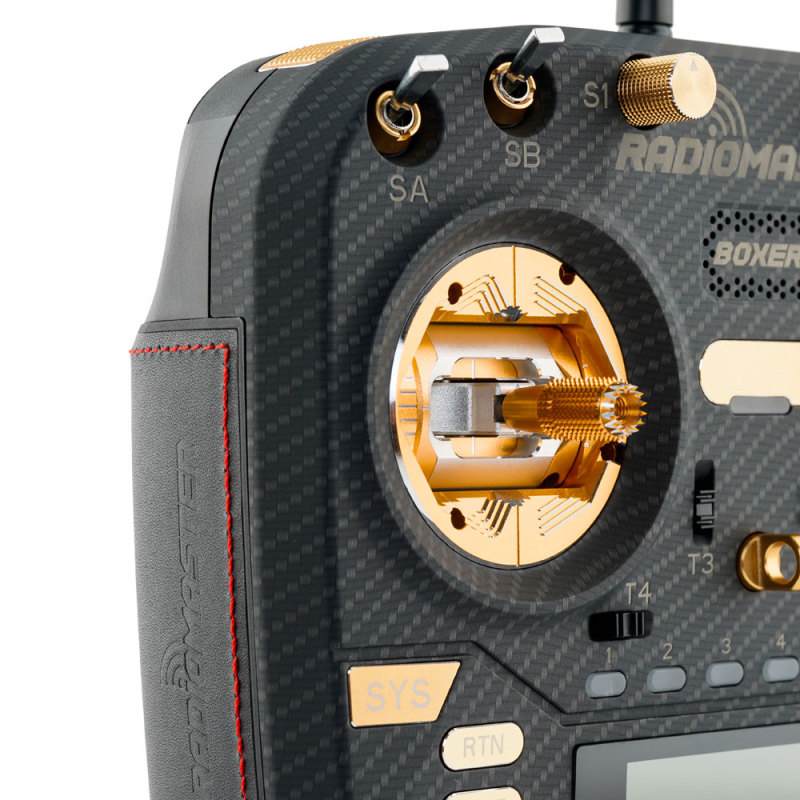

- Optional 3 colors - Black/Red/Gold

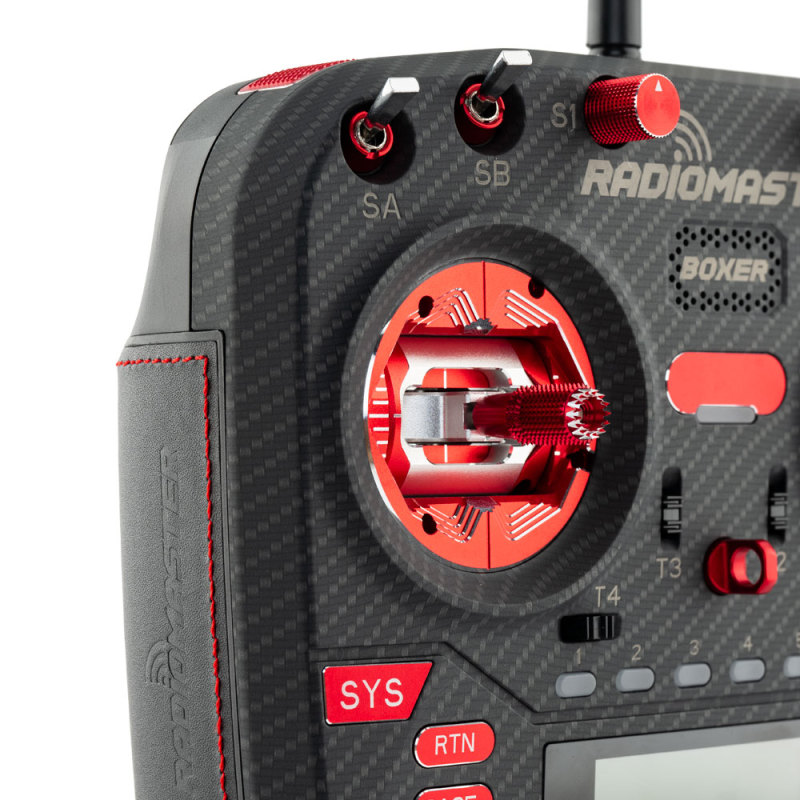

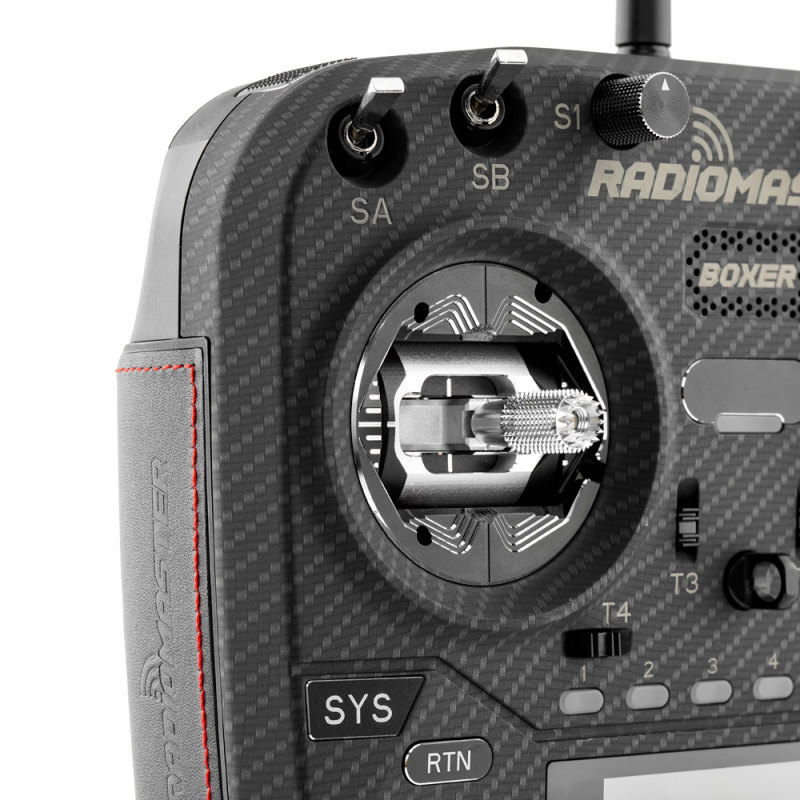

- AG01 hall gimbals installed
- Carbon fiber pattern case
- CNC buttons and roller as standard

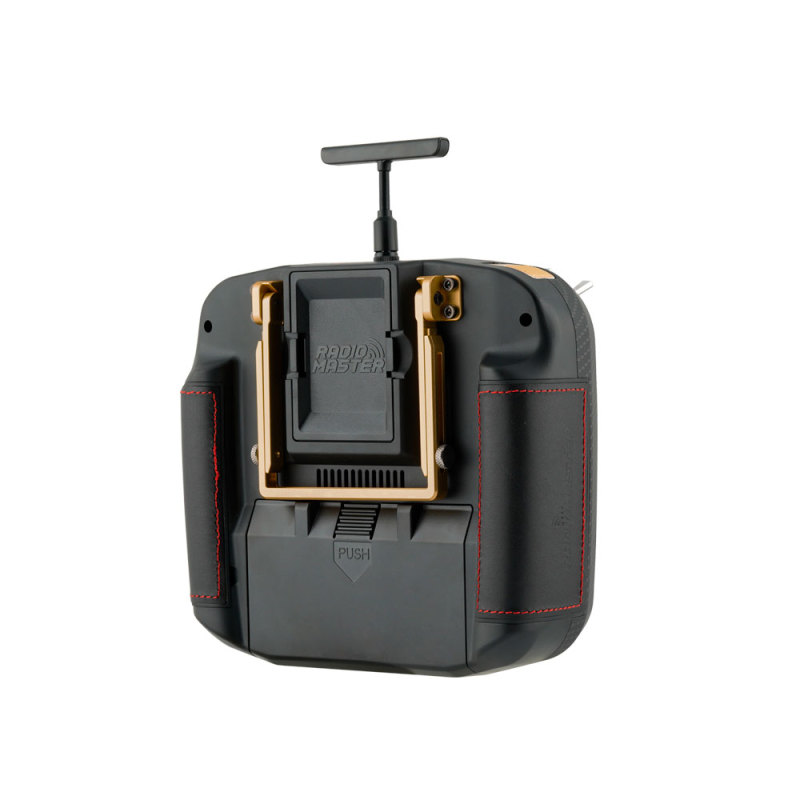

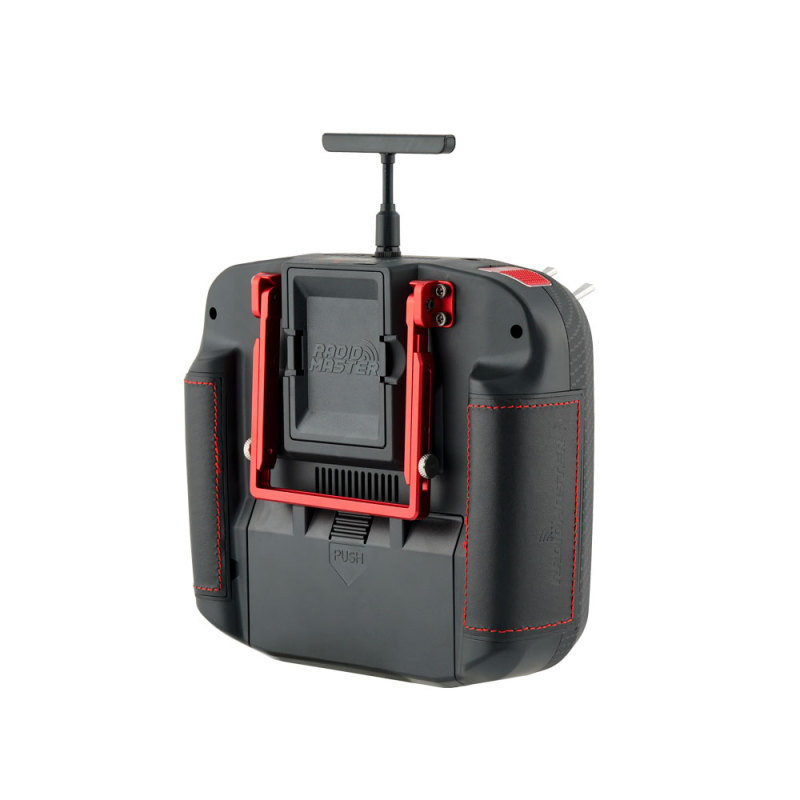

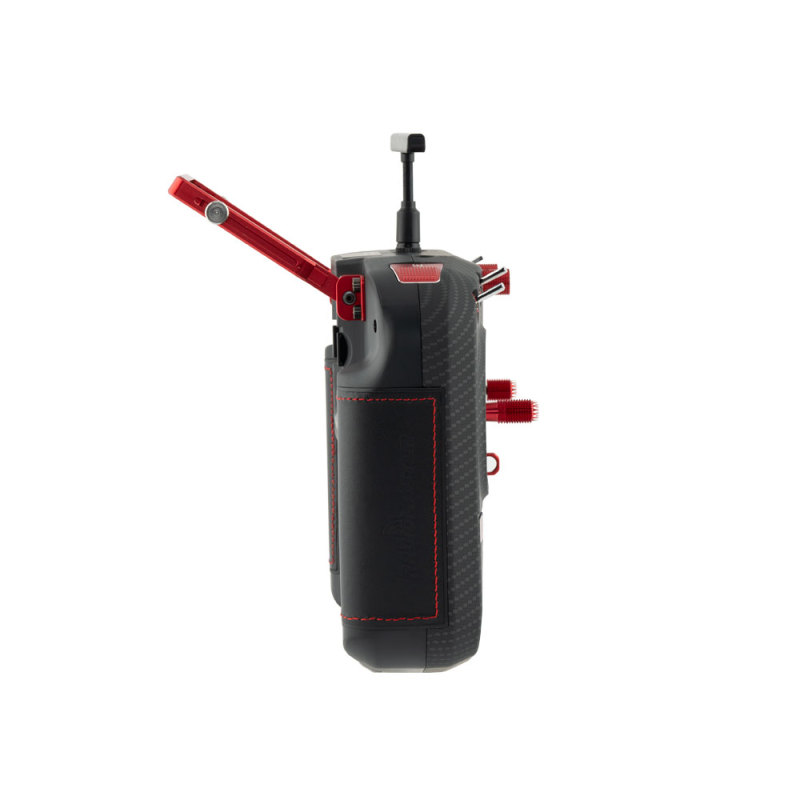

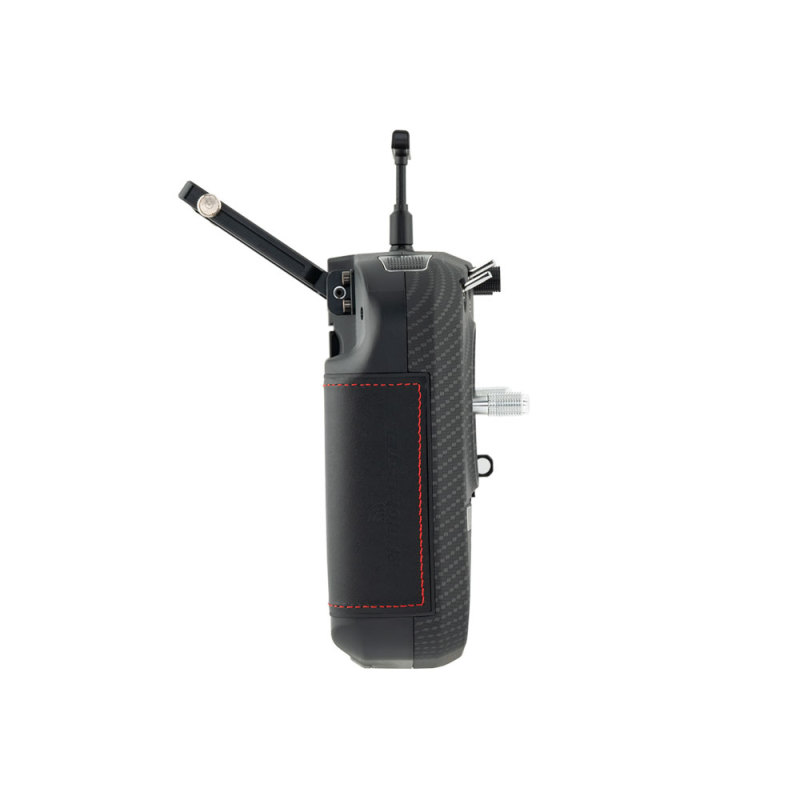

- Adjustable length CNC metal folding stand
- Upgraded black leather grips
- Available with built-in ExpressLRS RF modules
- Featuring a powerful STM32F407VGT6 with 1MB Flash and 192KB RAM
- Preinstalled EdgeTX firmware
- Internal ELRS module capable of 1,000Hz refresh rate
- Adjustable ELRS RF output
- QC3.0 fast charging support 2.0A MAX
- Compact design with excellent ergonomics

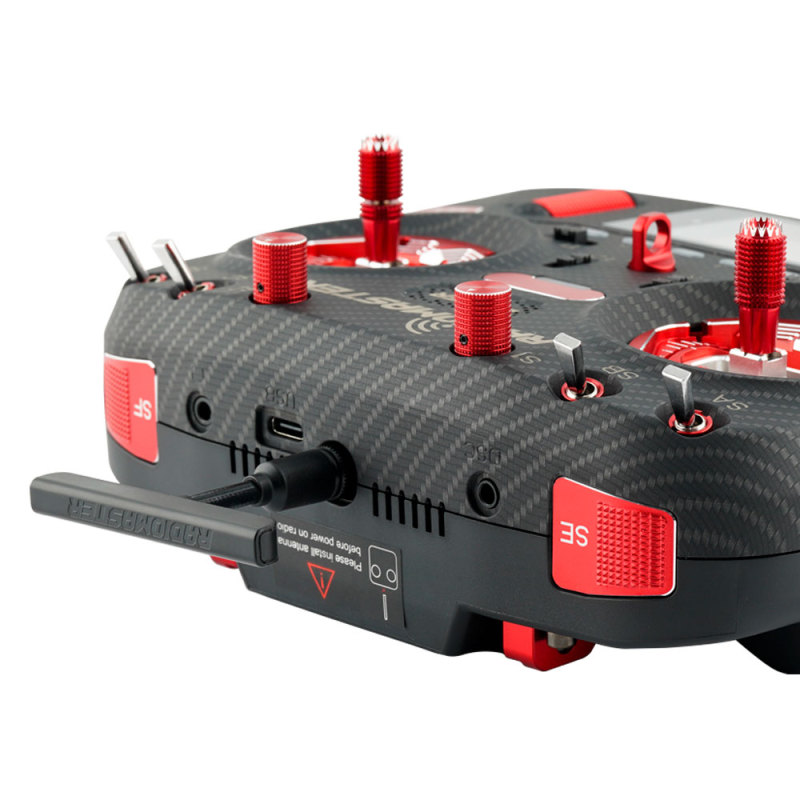

- New low-profile latching SE switch and momentary SF switch
- Oversized battery compartment- Space for a 2S 6200mAh pack, up to 20-hour duration (Batteries not included)

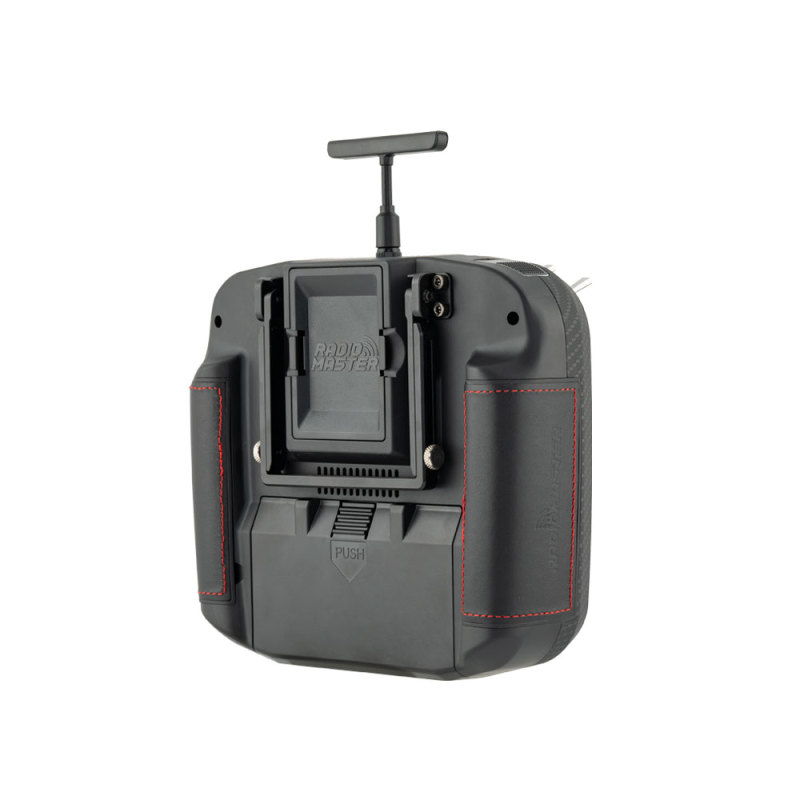

- Standard JR module compartment
- Internal module cooling fan built in (ELRS version)
- RadioMaster standardized button layout
- Versatile 6-position switch for flight mode access

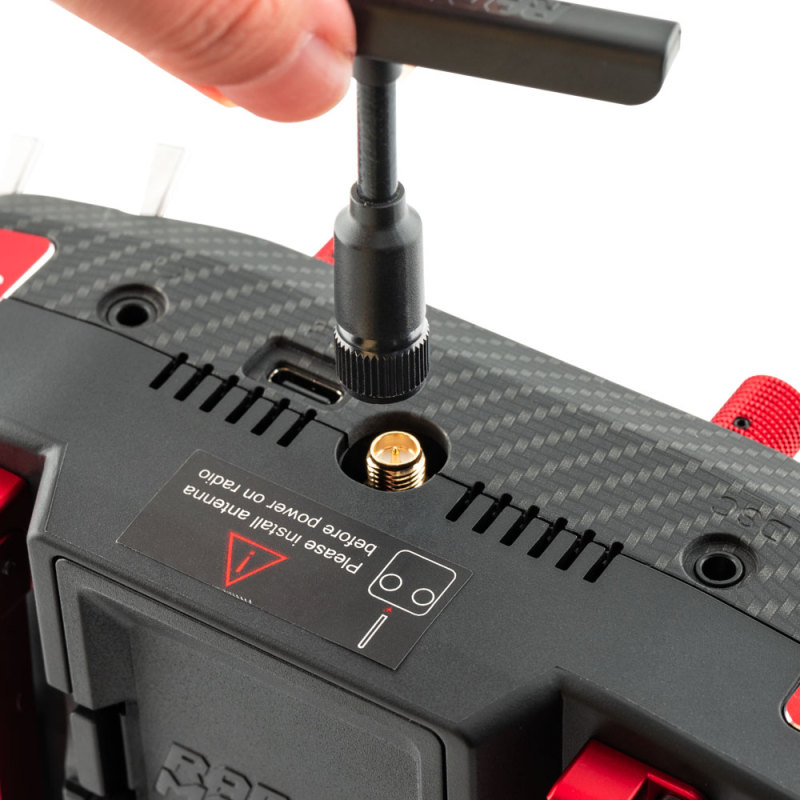

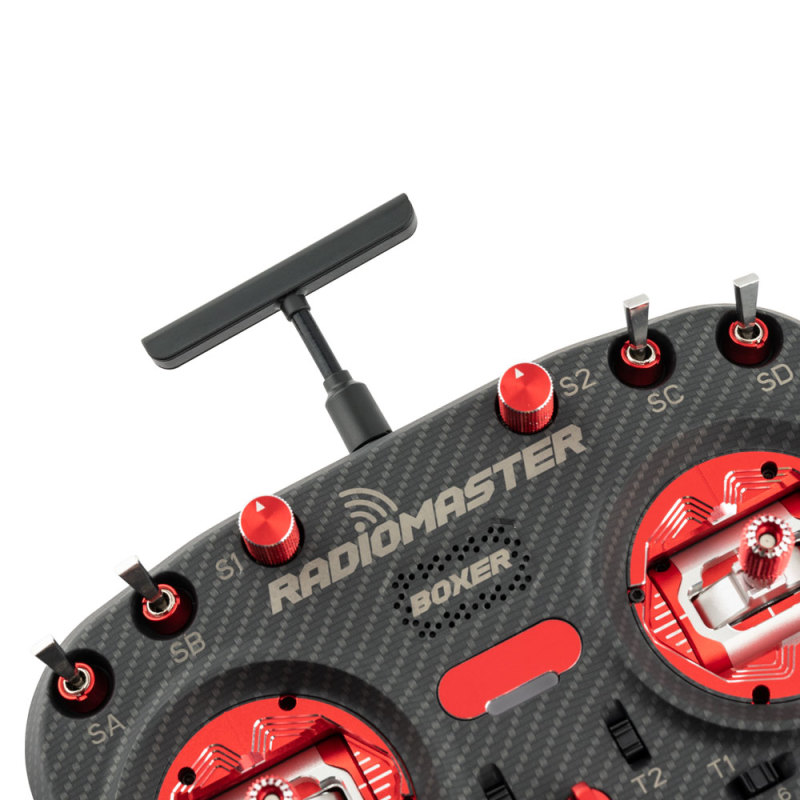

- Adjustable and Removable T-shape Antenna
- Industry first fabric handle for improved portability
- Changeable, ergonomic grips

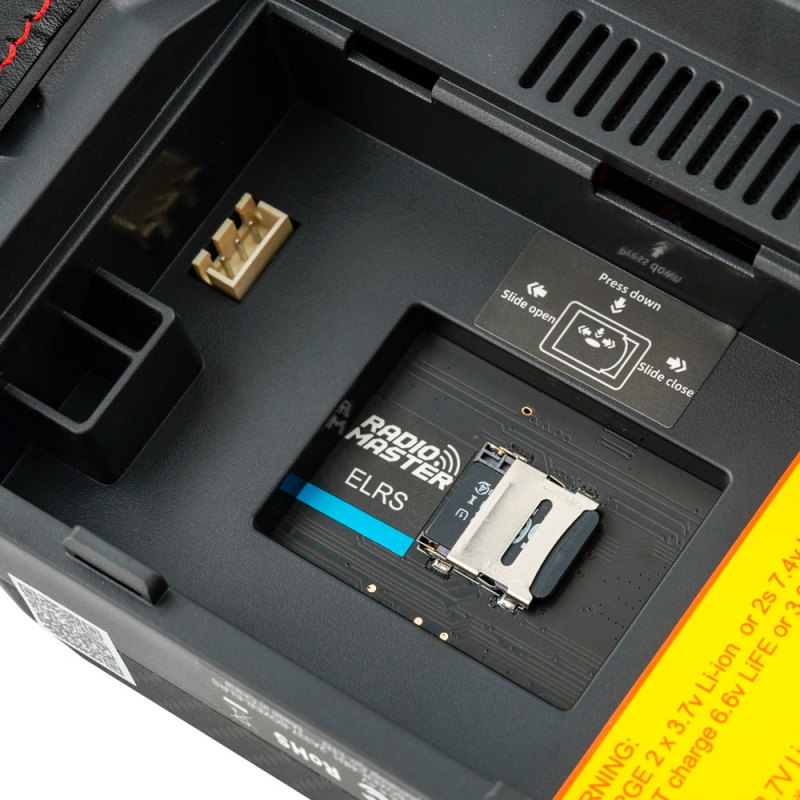

- Redesigned SD card slot with new and improved 512mb pre-loaded SD card included
- External module power slots in battery cover
- RadioMaster signature carry case and gimbal protector are included as standard to ensure your radio stays safe while on the move
Specifications
- Item: BOXER Max Radio
- Color: Black/Red/Gold
- Size: 235*178*77mm
- Weight: 532.5g
- Frequency: 2.400GHz-2.480GHz
- Internal RF: ELRS 2.4GHz
- Supported protocols: Module dependent
- Cooling fan: Built in (ELRS version)
- Voltage Range: 6.6-8.4V DC
- Radio Firmware: EdgeTX (Transmitter) / ELRS (RF module)
- Channels: Max 16 channels (Receiver dependent)
- Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
- Display: 128*64 Monochrome LCD display
- Gimbal: AG01 CNC Hall Gimbal
- External module: JR / FrSKY / Crossfire compatible
- Upgrade Method: USB / SD card & EdgeTX Companion PC software
- BONUS: Radiomaster neck strap and CNC adjustable stand

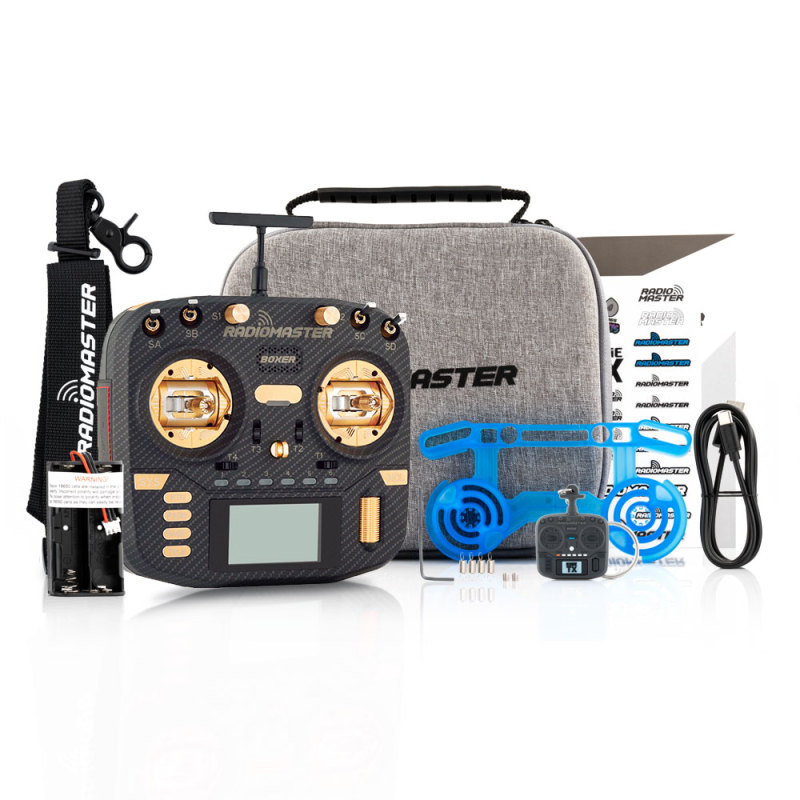

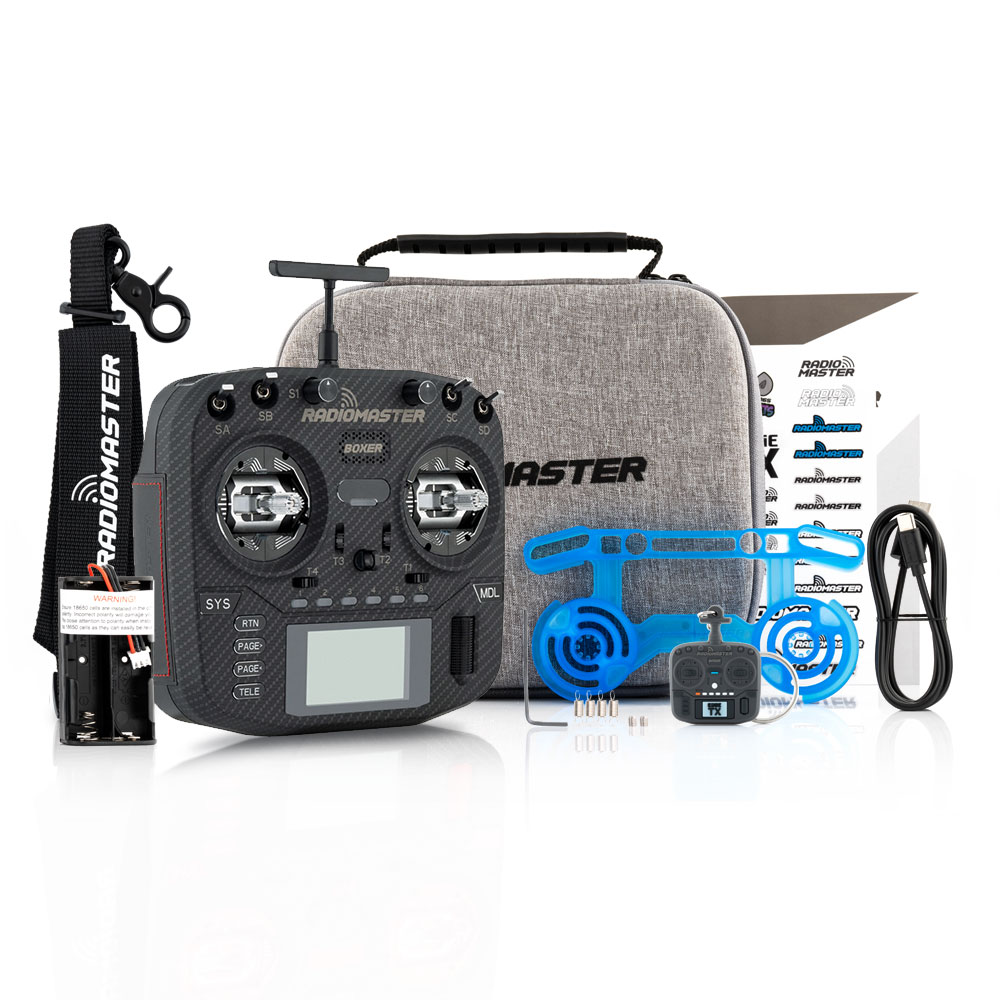

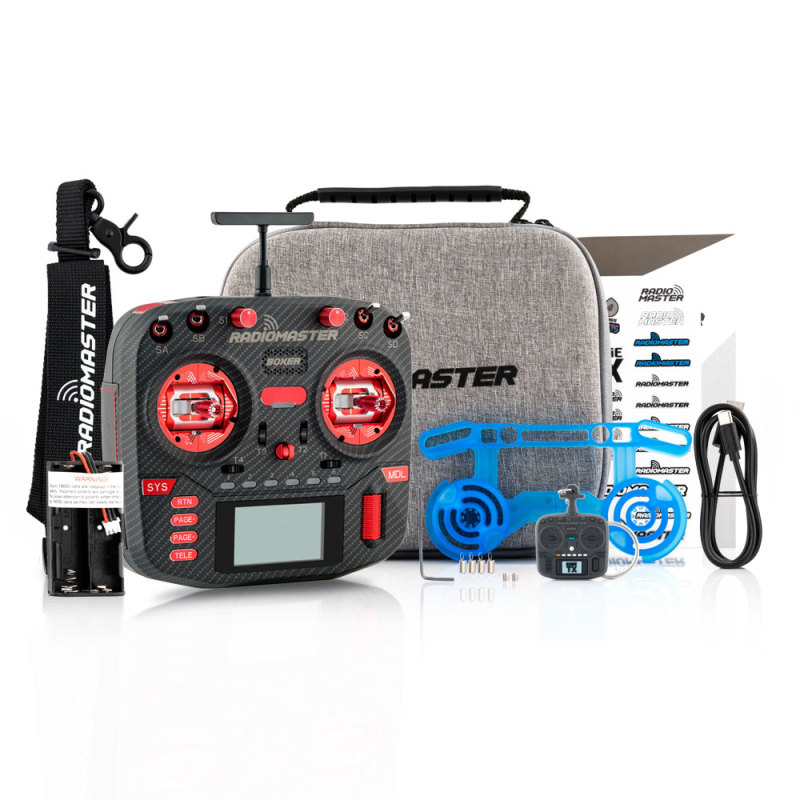

Package Including
- 1 * BOXER Max Radio
- 1 * Signature Carry Case
- 1 * T Antenna
- 1 * USB-C Cable
- 1 * Gimbal Protector
- 1 * 1.5mm Allen Key
- 2 * M4*4 Screws
- 4 * Low Tension Springs
- 1 * Stickers
- 1 * Manual
- 1 * 18650 Battery tray (Batteries not included)
- 1 * RadioMaster Neck Strap
- 1 * Boxer KeyChain
- 1 * Screen Protector
ELRS (standard) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependnant)
----
ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited power output to meat EU standards)
