The perfect combination of size and ergonomics make the BOXER an ideal choice. Featuring full size hall effect gimbals for precision control and an intuitive button layout, the BOXER gives you a compact radio without compromising on comfort and function.
Features
- Available with built-in ExpressLRS or CC2500 MPM RF modules
- Featuring a powerful 32-bit Arm MCU with 1MB Flash
- Preinstalled EdgeTX firmware
- Internal ELRS module capable of 1,000Hz refresh rate
- QC3.0 fast charging support, 2.0A MAX
- Compact design with excellent ergonomics
- New low-profile latching SE switch and momentary SF switch
- Oversized battery compartment - space for a 2S 6200mAh pack (Batteries not included)
- Full-sized V4.0 Hall effect gimbals as standard, upgradable to AG01 CNC Hall effect gimbals
- Standard JR module compartment
- Internal module cooling fan built in (ELRS version)
- RadioMaster standardized button layout
- Versatile programmable 6-position switch

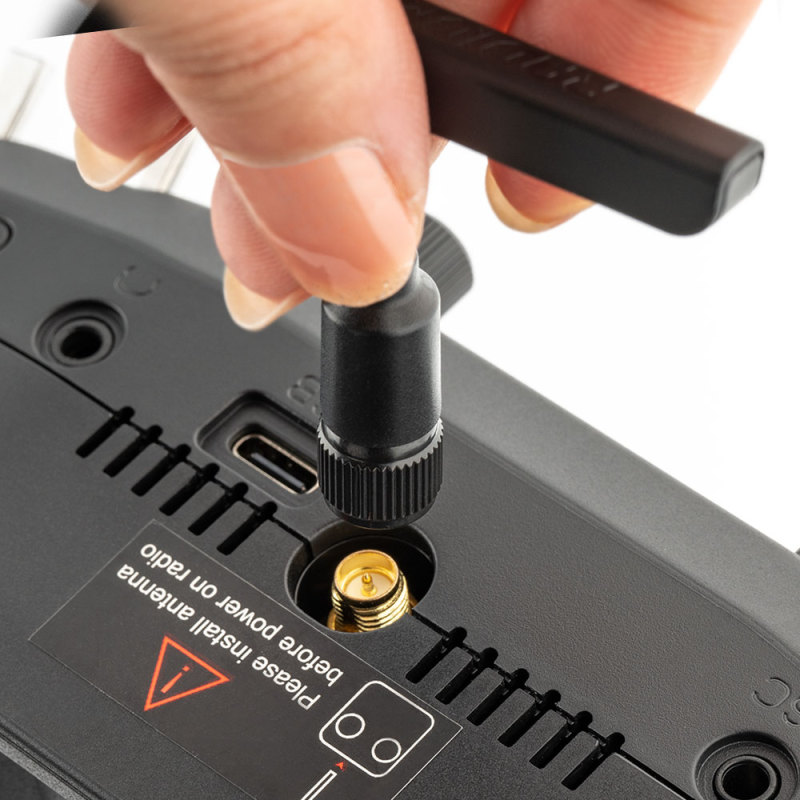

- Adjustable and removable T-shaped antenna

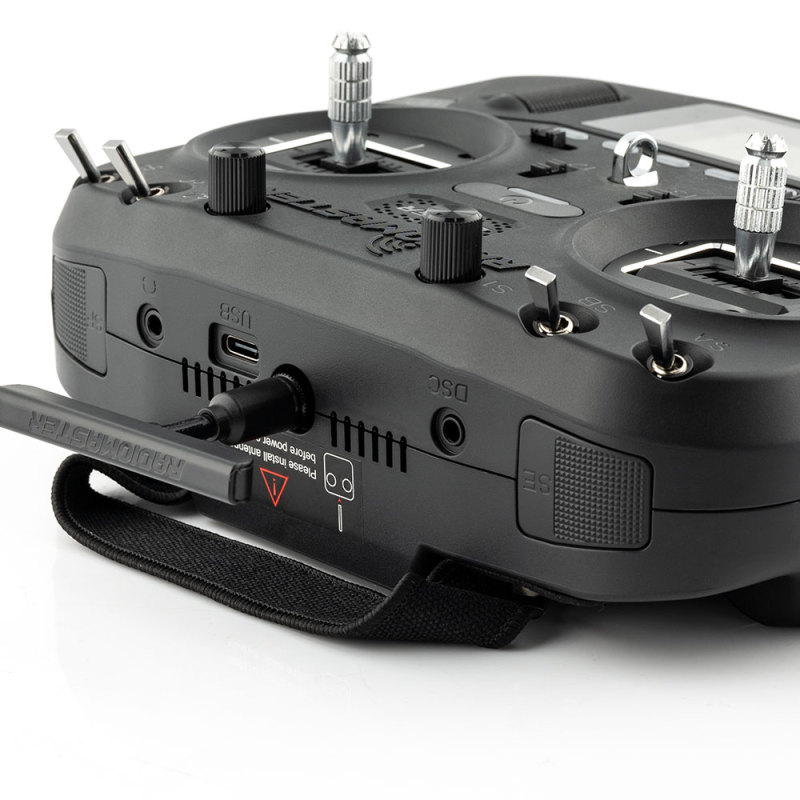

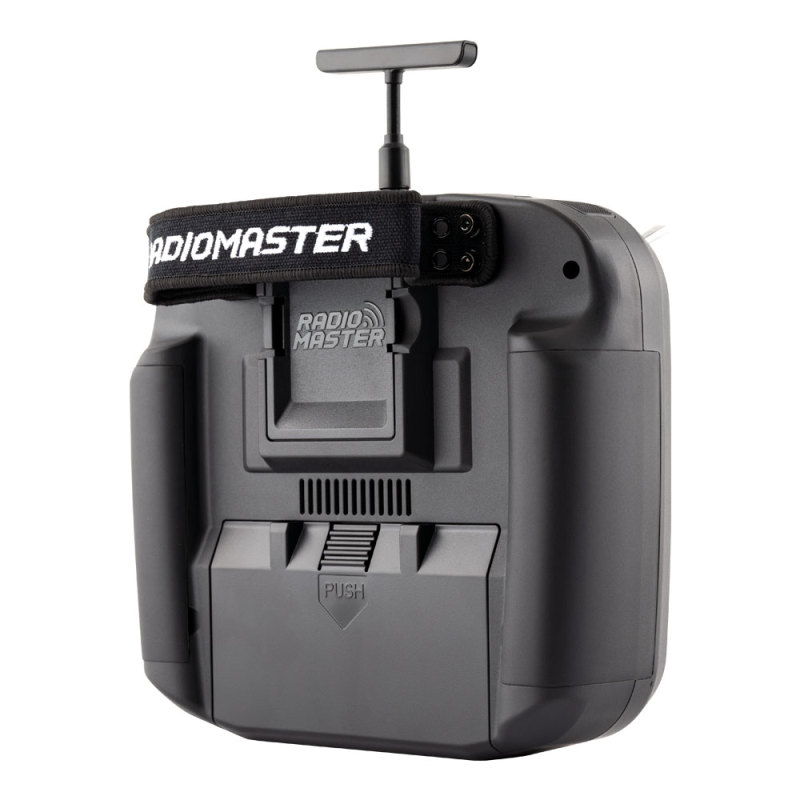

- Industry-first fabric handle for improved portability
- Changeable, ergonomic grips
- Redesigned SD card slot with pre-loaded SD card included
- External module power slots in battery cover

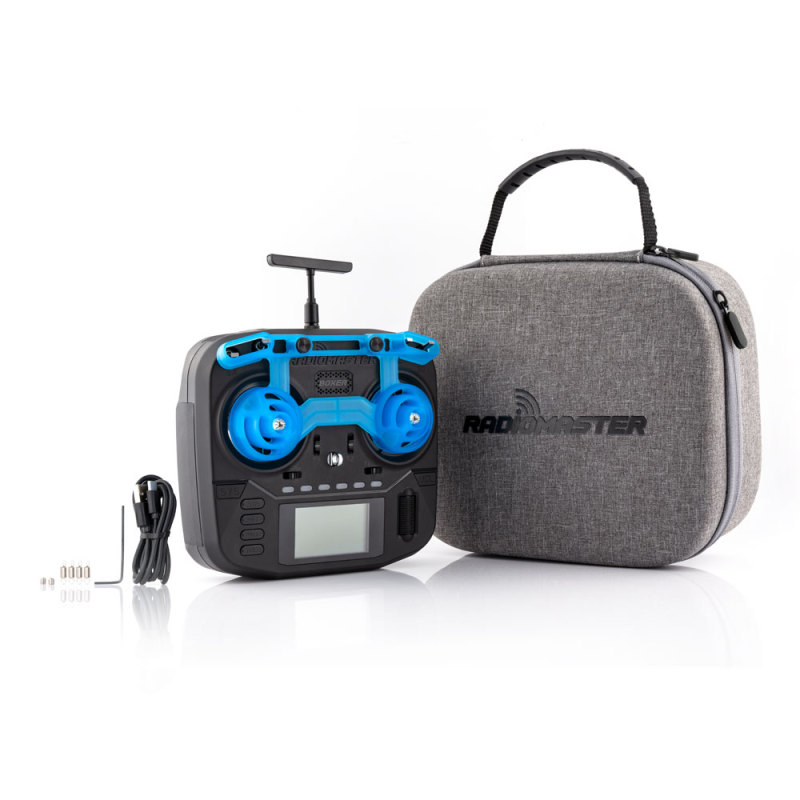

- RadioMaster signature carry case and gimbal protector are included as standard to ensure your radio stays safe while on the move
Specifications:
- Item: BOXER Radio

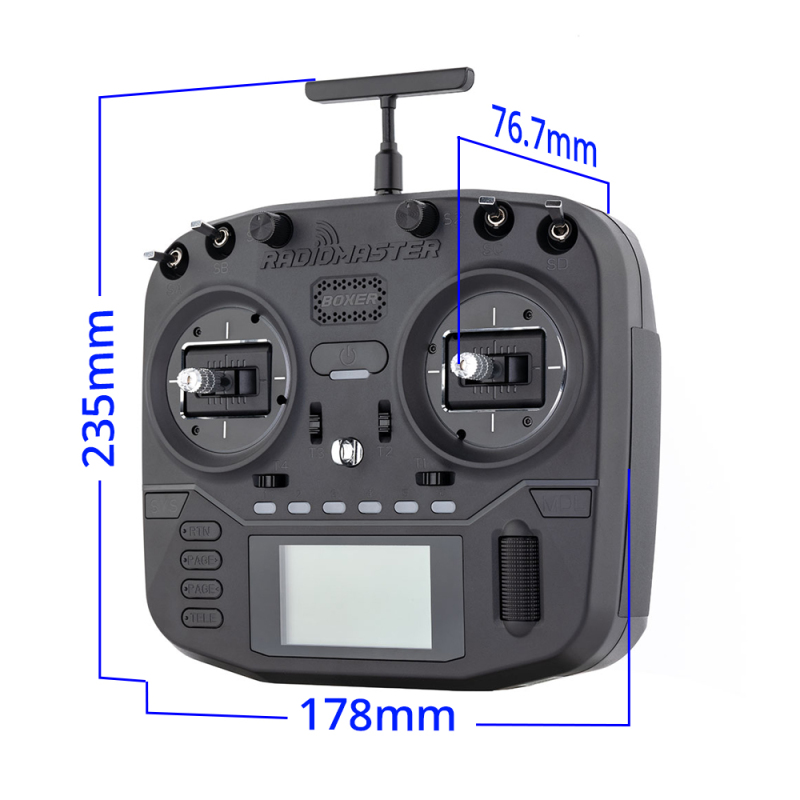

- Size: 235*178*77mm
- Weight: 532.5g
- Frequency: 2.400GHz-2.480GHz
- Internal RF Options: CC2500 multi-protocol / ELRS 2.4GHz
- Supported protocols: Module dependent
- Voltage Range: 6.6-8.4V DC
- Radio Firmware: EdgeTX (Transmitter) / Multi-Module (RF module) / ELRS
- Channels: Max 16 channels (Receiver dependent)
- Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
- Display: 128*64 Monochrome LCD display
- Gimbal: High precision 4.0 Hall gimbals as standard (AG01 Optional)
- Module Bay: JR-compatible module bay for additional modules
- Upgrade Method: USB/SD card & EdgeTX Companion PC software
Package1 * BOXER Radio1 * Signature Carry Case1 * T Antenna1 * USB-C Cable1 * Gimbal Protector1 * 1.5mm Allen Key2 * M4*4 Screws4 * Low Tension Springs1 * Stickers1 * Manual1 * 18650 Battery tray (Batteries not included)Notes:CC2500 (standard) Version supports all CC2500 protocols
4in1 (standard) Version supports all MPM protocols
ELRS (standard) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependnant)
----
CC2500 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT & HoTT LBT
4in1 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT and DSMX
ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)
