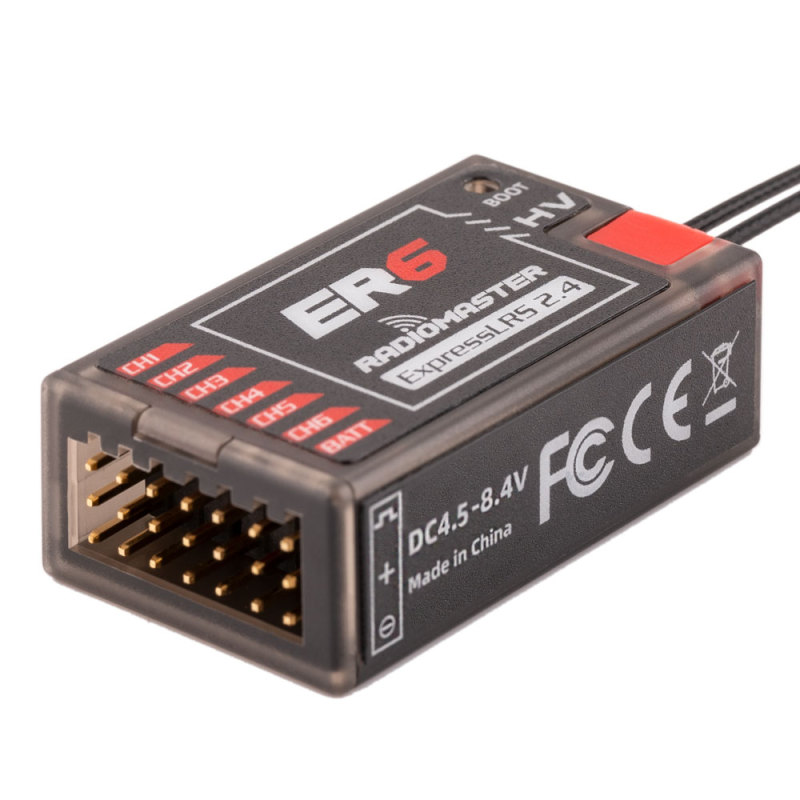

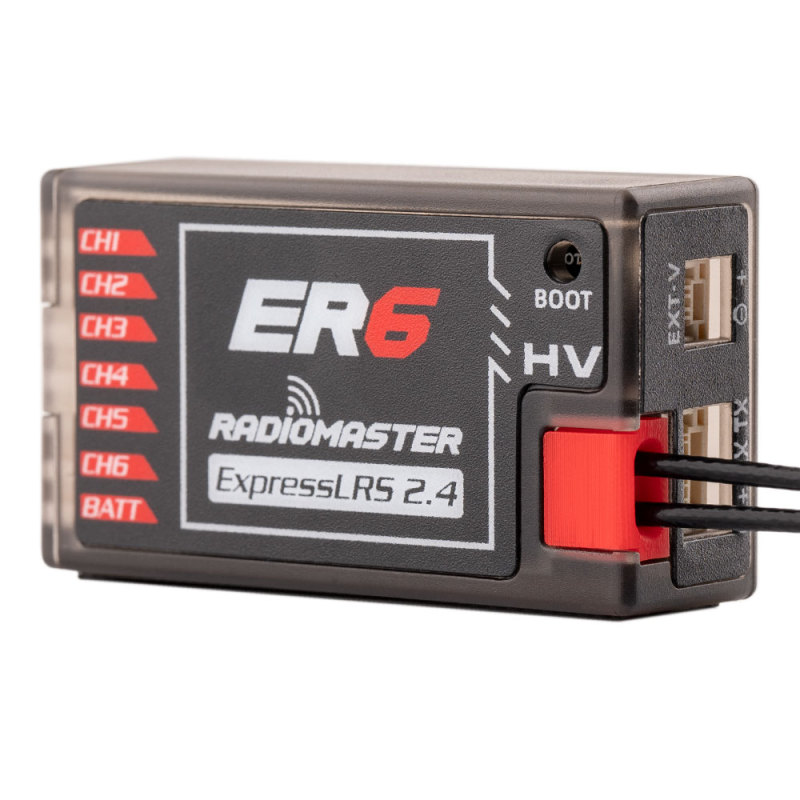

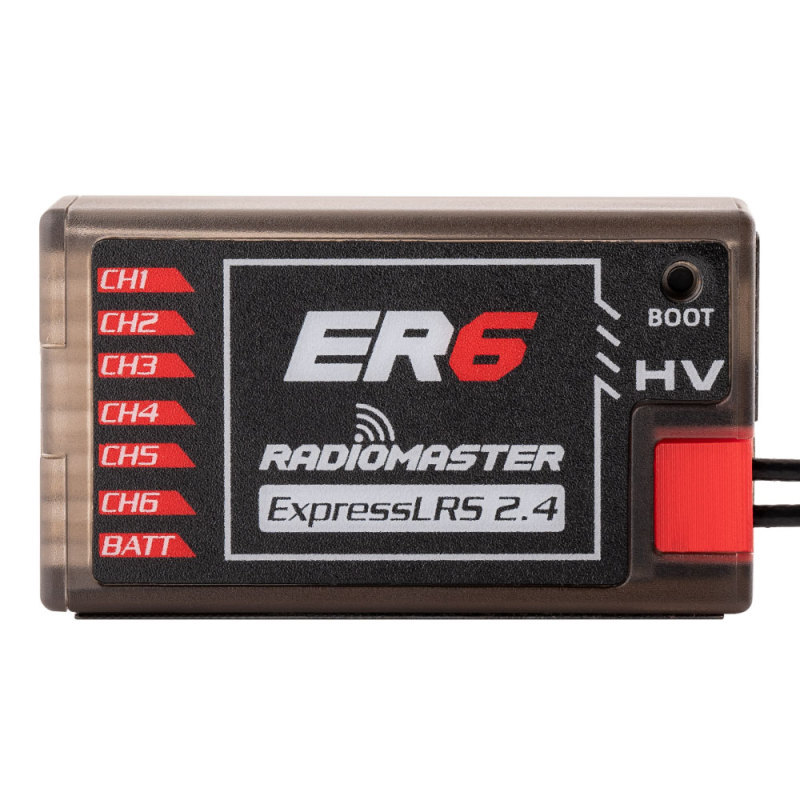

The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby. The ER6 ELRS receiver has been specially designed for fixed-wing users. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. A 4-wire CRSF interface is provided to facilitate later expansion of telemetry sensors. The ER6 features a dual-antenna with telemetry power up to 100mw. The receiver shell adopts one-piece molding process with high structural strength.

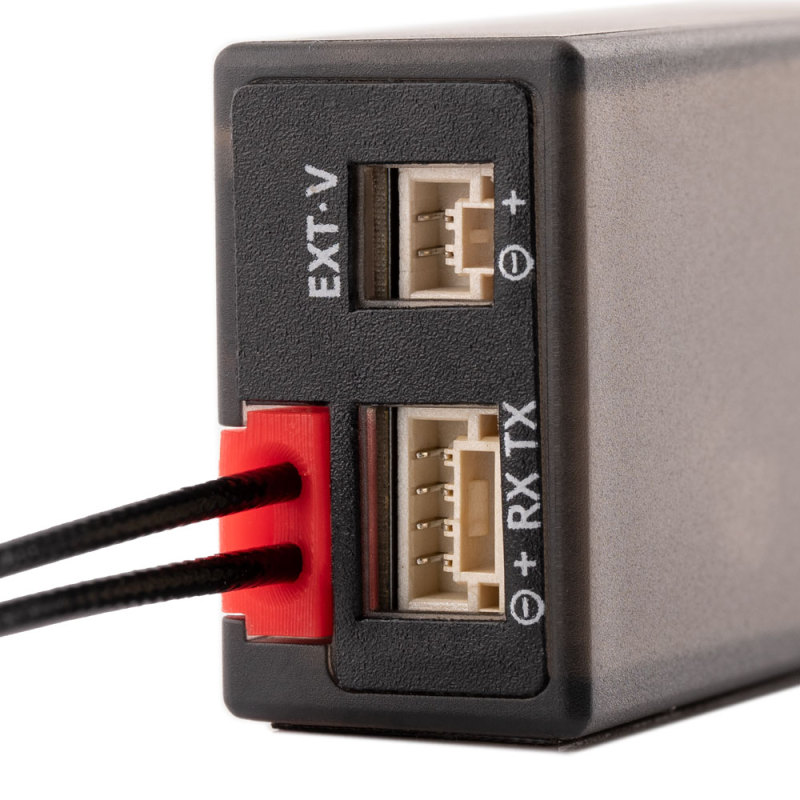

Features Based on the Revolutionary ExpressLRS System High performance, high reliability, flexible configuration, fast response speed and ultra-long range Support 6 PWM Channels Optimized ground up PCB design Automatically voltage telemetry of external battery voltage or built-in receiver voltage Supports Wi-Fi updates and WEBUI configuration High quality 2.54 mm connector Standard 20 cm High Sensitivity Antenna Reserve 4pin CRSF input port Shell adopts one-piece molding process with high structural strength For fixed-wing aircraft and more

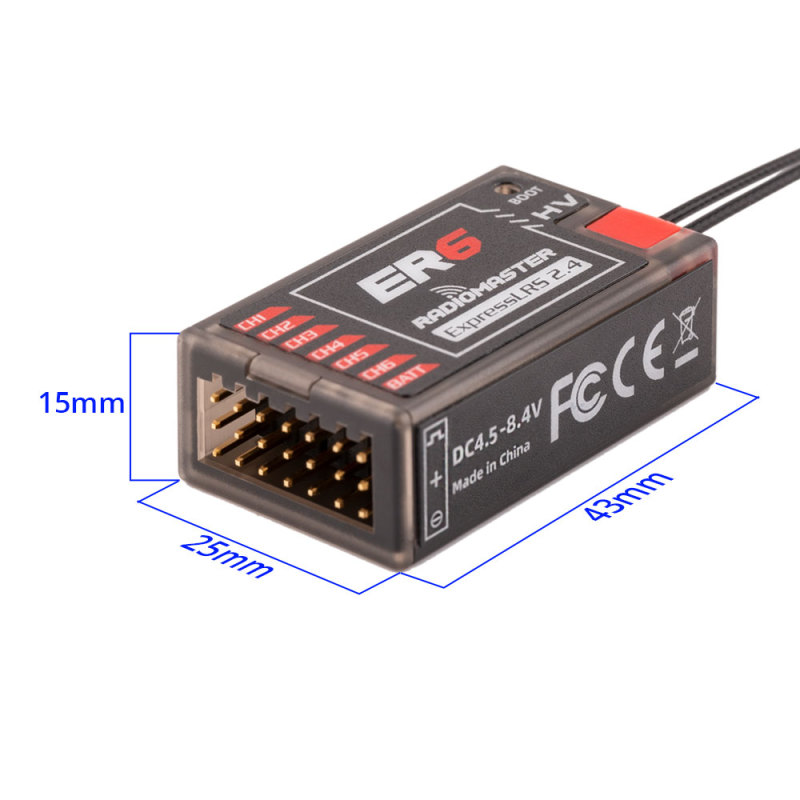

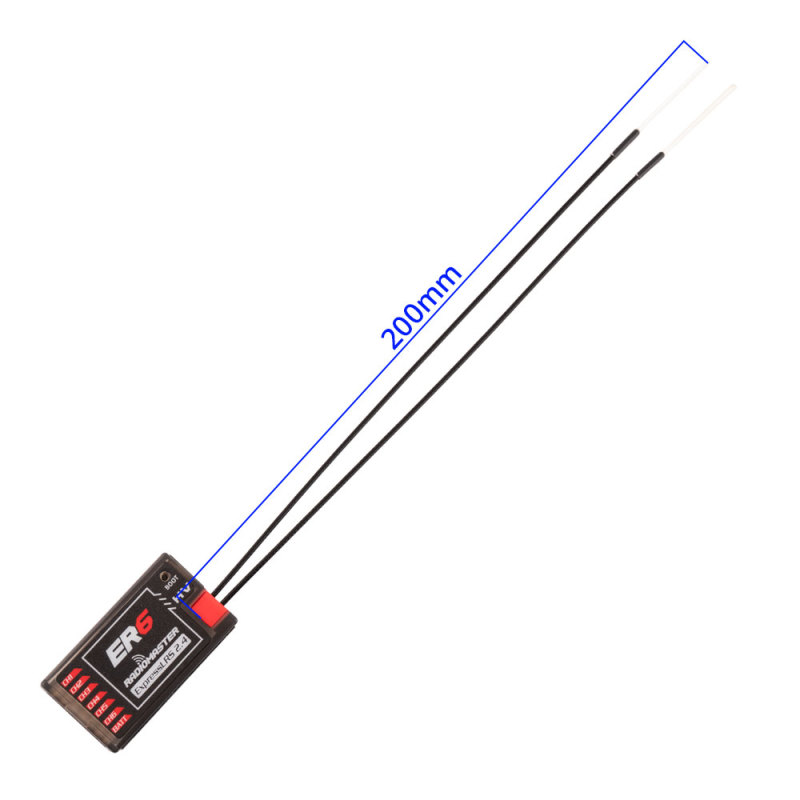

Specification Item: ER6 2.4GHz ELRS PWM Receiver Power supply: DC 4.5 - 8.4V Antenna type: 20cm high sensitivity dual antenna Wireless protocol: ExpressLRS 3.3.0 pre-installed Output channel: 6CH PWM Telemetry power: maximum 100mw (LUA Adjustable) Telemetry Battery voltage detection range: DC 4.0 - 35V Bus interface: CRSF Weight: 14.5 grams Dimensions: 43*25*15mm
