The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.

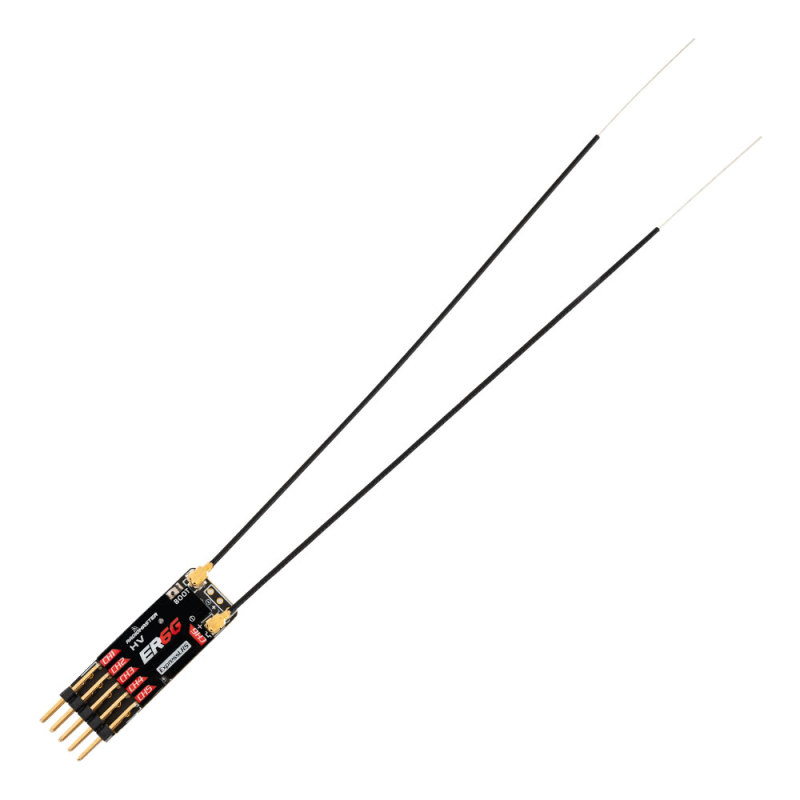

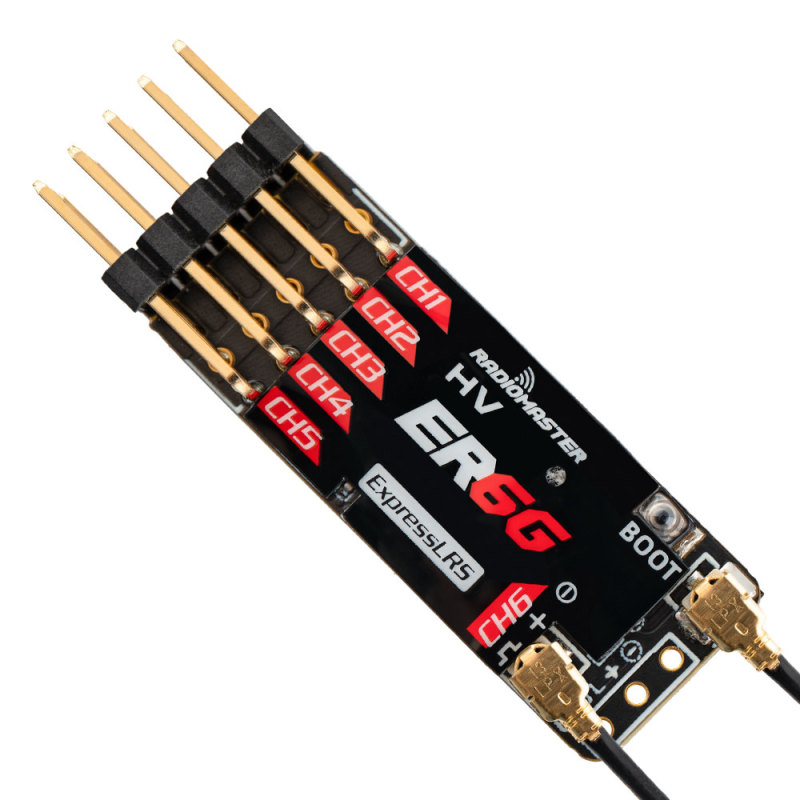

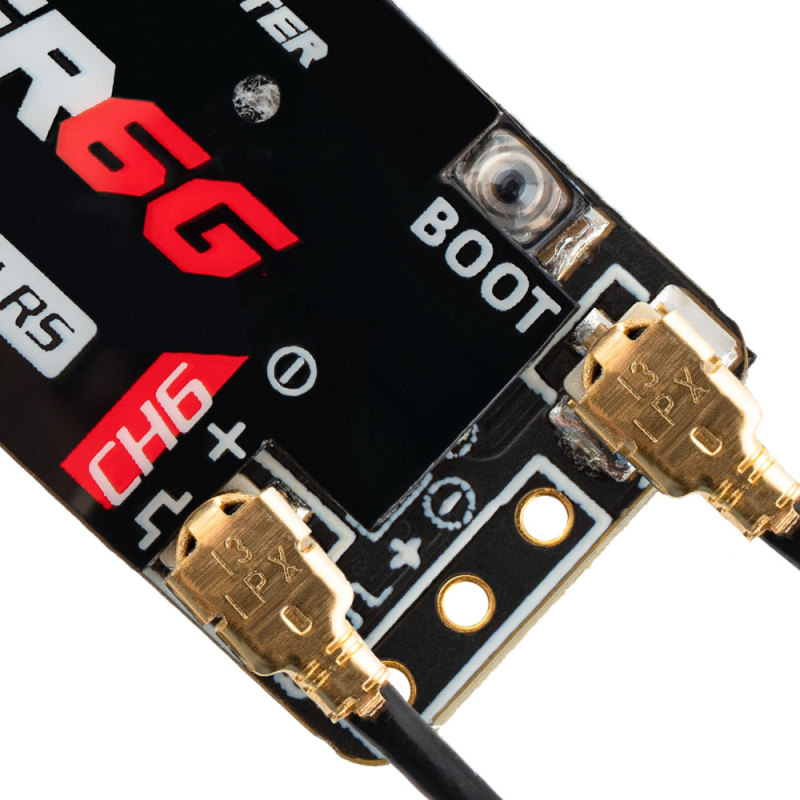

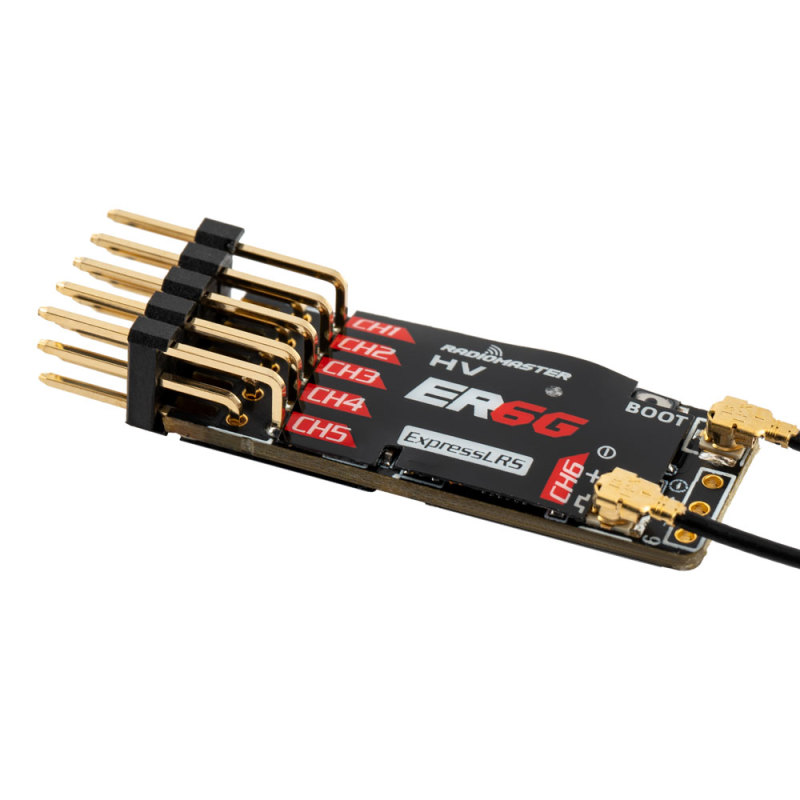

The ER6G & ER6GV receiver have been specially designed for glider pilots who require a compact and slim receiver. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. Both ER6G & ER6GV feature a dual-antenna with telemetry power up to 50mw and can work stably with a 1S Lipo receiver battery.
The ER6G Receiver has the same functionality as the ER6GV only without a built in Vario for competitions that prohibit the use of a Vario or simply for users who do not need a vario on their receiver.

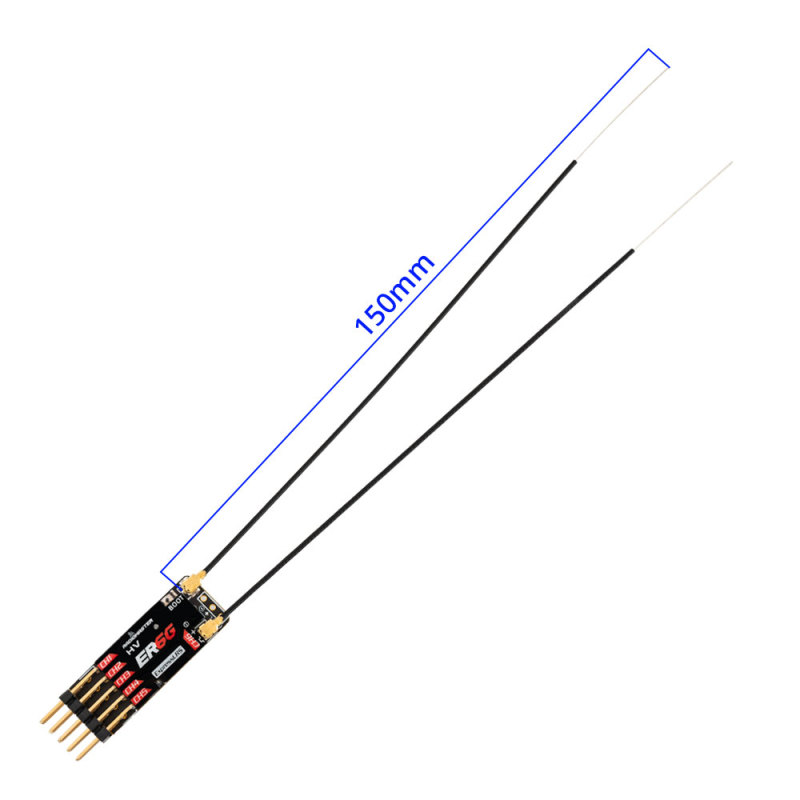

Features Based on the Revolutionary ExpressLRS System High performance, high reliability, flexible configuration, fast response speed and ultra-long range Support 6 PWM Channels Optimized ground up PCB design Automatically voltage telemetry of external battery voltage or built-in receiver voltage Supports Wi-Fi updates and WEBUI configuration High quality 2.54 mm connector Standard 15 cm High Sensitivity Antenna For fixed-wing aircraft and gliders

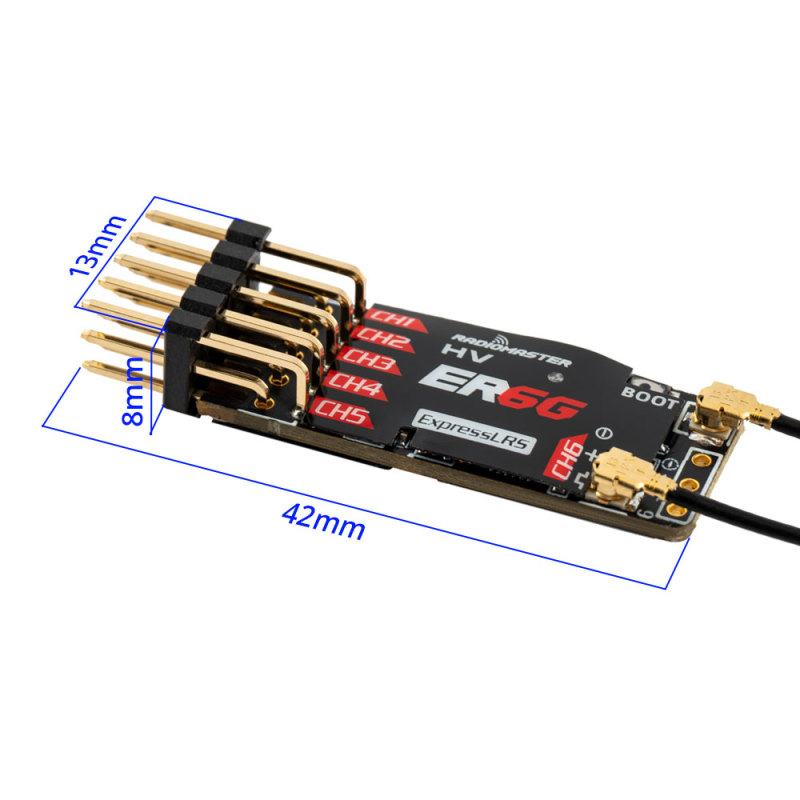

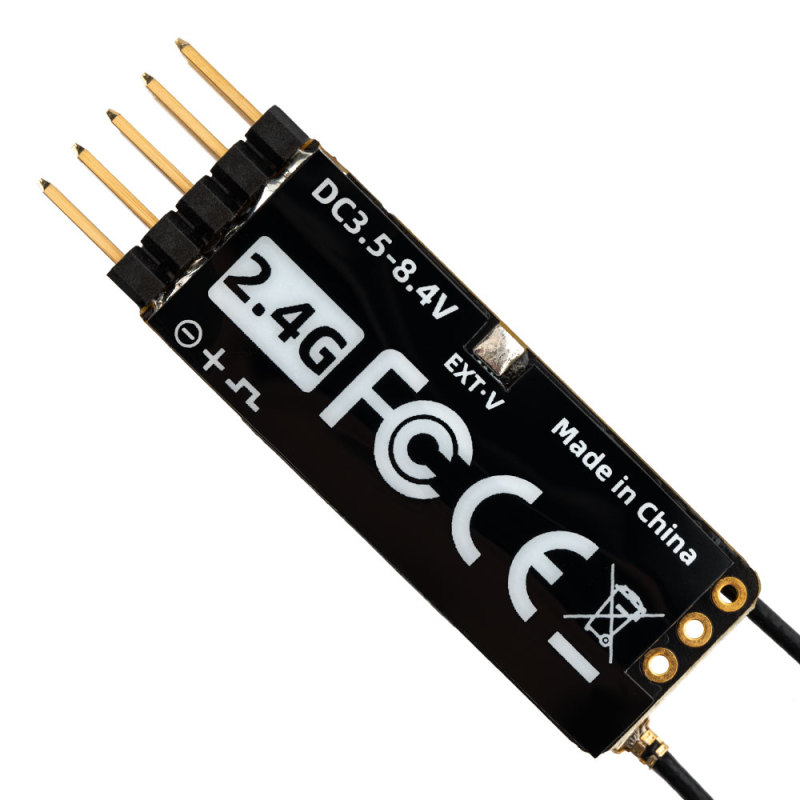

Specification (ER6G) Item: ER6G 2.4GHz ELRS PWM Receiver Power supply: DC 3.5 - 8.4V Antenna type: 15cm high sensitivity antenna Wireless protocol: ExpressLRS 3.3.0 pre-installed Output channel: 6CH PWM Telemetry power: maximum 50mw (LUA Adjustable) Battery voltage detection range: DC 3.0 - 26V Weight: 5.0 grams Dimensions: 42*13*8mm
