  • Description

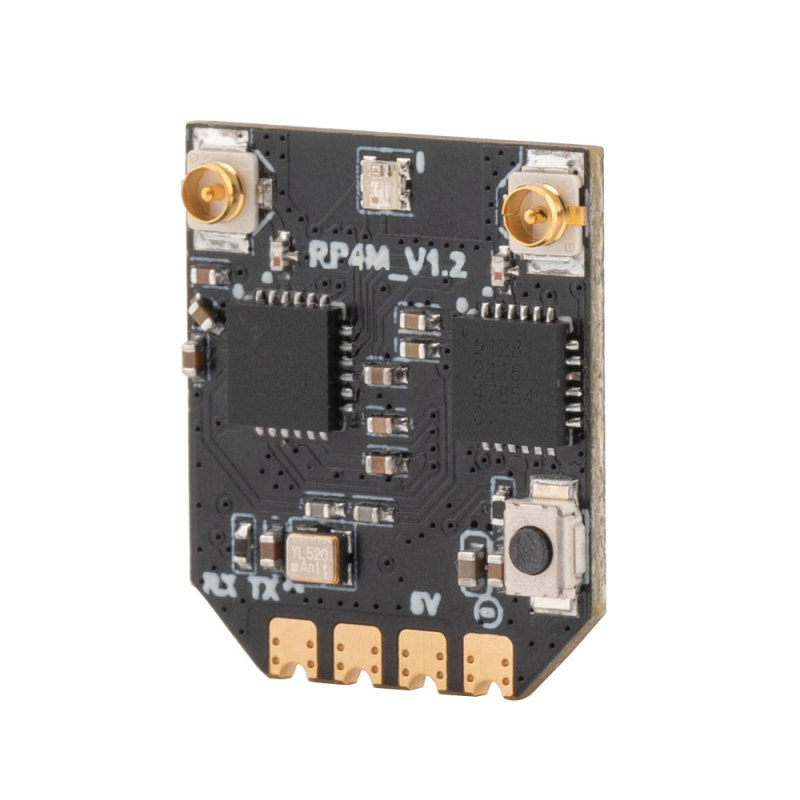

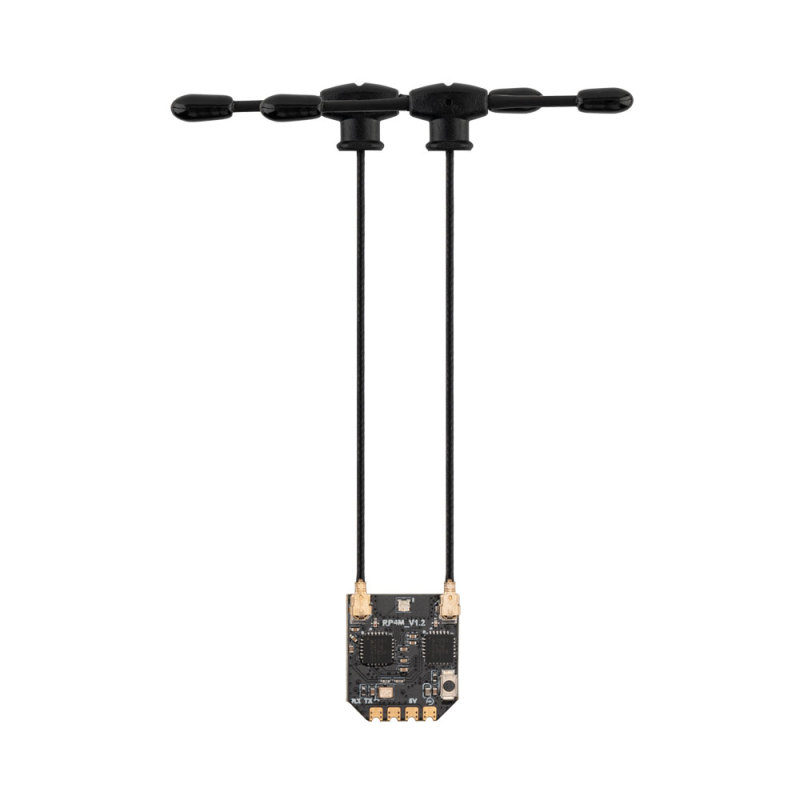

Introducing the Compact and Lightweight RP4TD-M! Building on the success of the RP4TD, we're excited to unveil the RP4TD-M—a compact and lightweight version designed for optimal performance. Weighing in at just 1 gram, this receiver is ideal for builds where minimizing weight is crucial, while still leveraging 'Gemini' technology for superior interference mitigation. Thanks to its optimized circuit design, the RP4TD-M features dual-channel 2.4GHz radios, delivering exceptional signal sensitivity, signal-to-noise ratio, and overall performance. Whether you're into racing drones or any application where every gram counts, the RP4TD-M stands out as a leader in its class.

Features

  • Mini size true diversity Gemini receiver
  • Class leading SNR and RSSI performance
  • Built-in TCXO (temperature compensated crystal oscillator)
  • Optimized PCB design for better heat dissipation
  • Upgraded antenna with greater durability and performance
  • 2 x 10mW RF Telemetry power output
  • Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

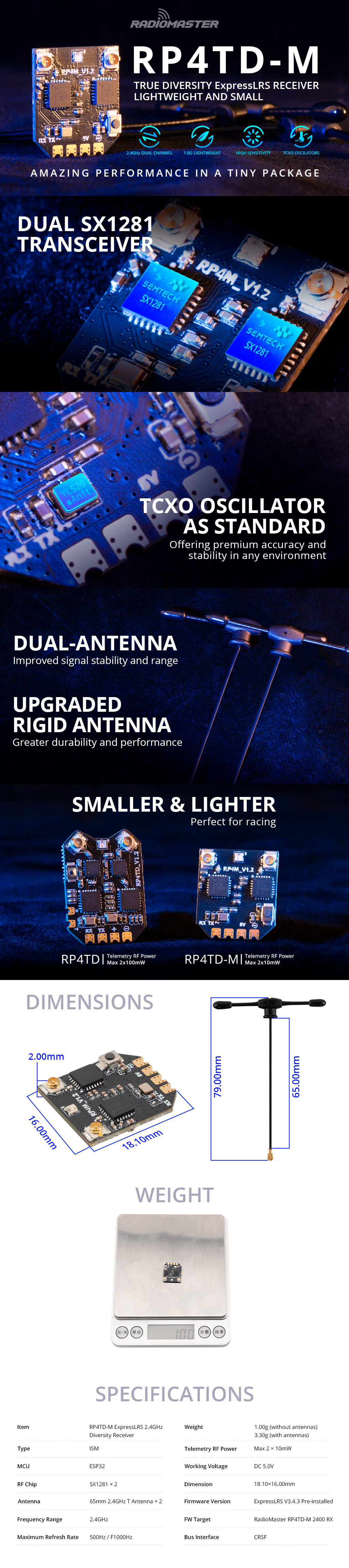

Specifications

  • Item: RP4TD-M ExpressLRS 2.4GHz Mini True Diversity Receiver
  • Type: ISM

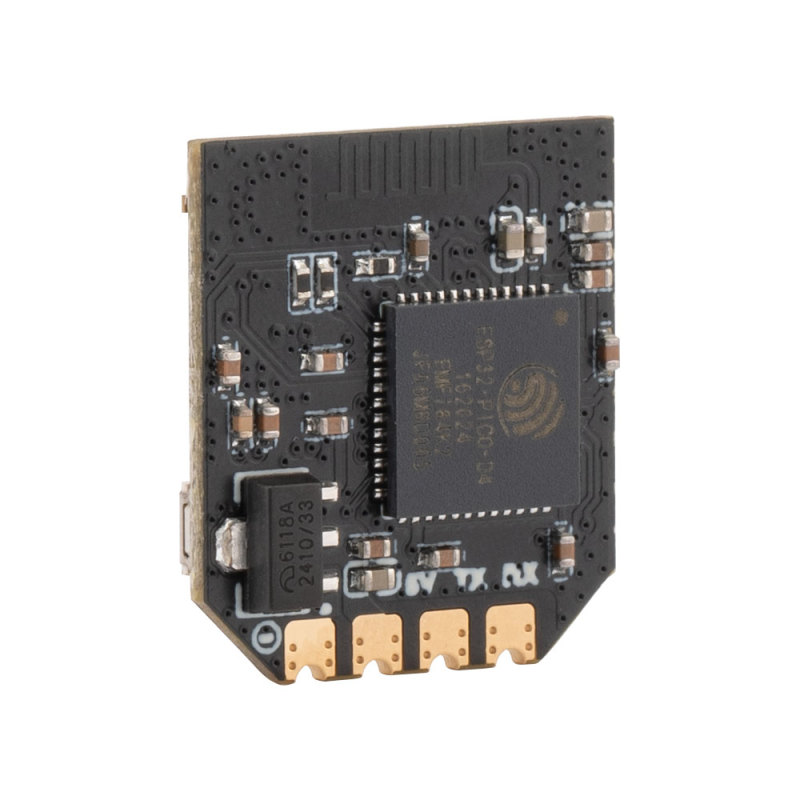

  • MCU: ESP32
  • RF Chip: SX1281 x 2
  • Antenna: 65mm 2.4GHz T Antenna x 2
  • Frequency Range: 2.4GHz
  • Maximum Refresh Rate: 500Hz / F1000Hz
  • Telemetry RF Power: Max 2x 10mW
  • Working Voltage: DC 5.0V
  • Wifi Updates: Yes
  • Weight:  1.00g [Without antennas] / 3.30g [With antennas]

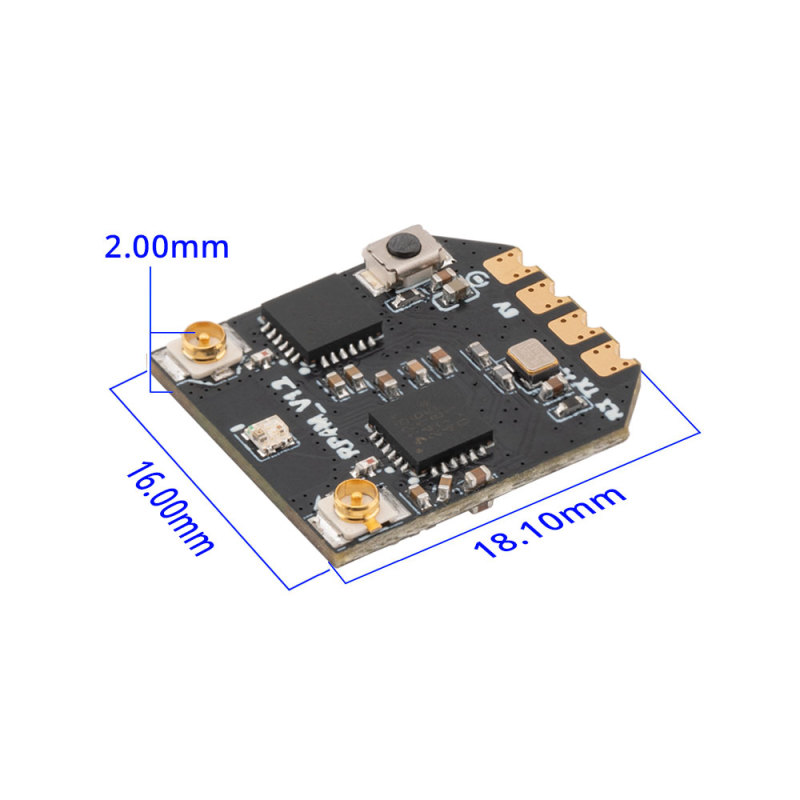

  • Dimension: 18.10 x 16.0mm
  • Firmware Version: ExpressLRS V3.4.3 pre-installed
  • FW Target: RadioMaster RP4TD-M 2400 RX
  • Bus interface: CRSF

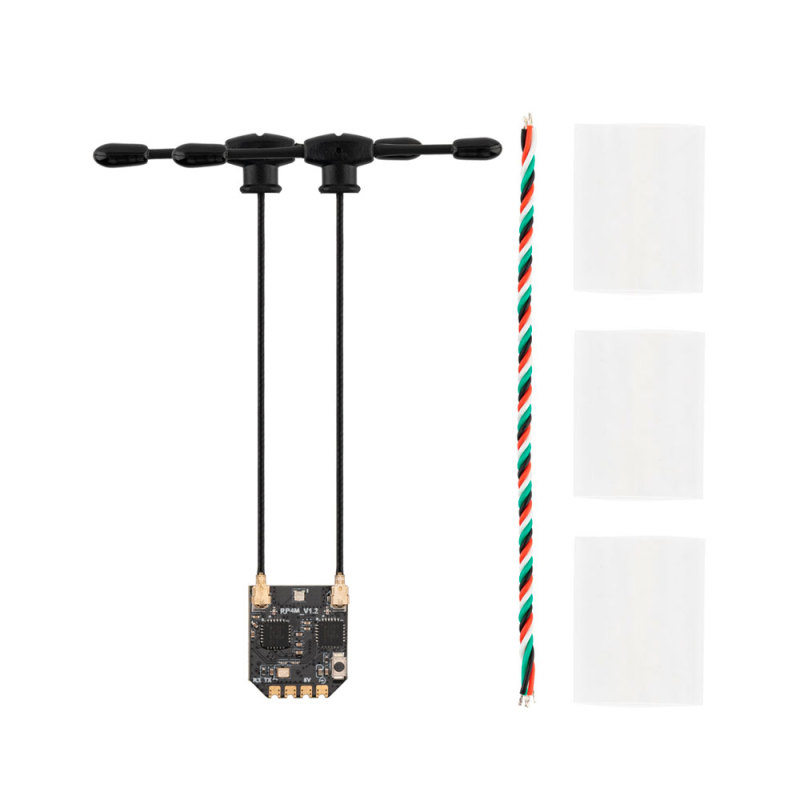

Package Includes

  • 1 * RP4TD-M ExpressLRS True 2.4GHz Diversity Receiver
  • 1 * CRSF wire
  • 3 * Heat-Shrinkable Tube
  • 2 * 65mm 2.4GHz T Antenna (Installed on receiver)
  • 1 * User Manual
