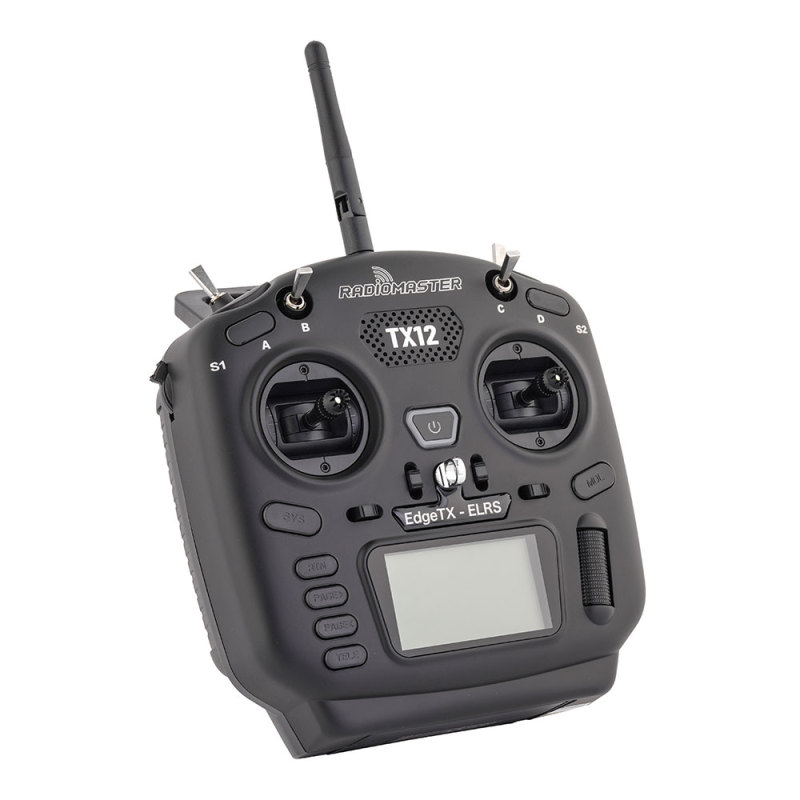

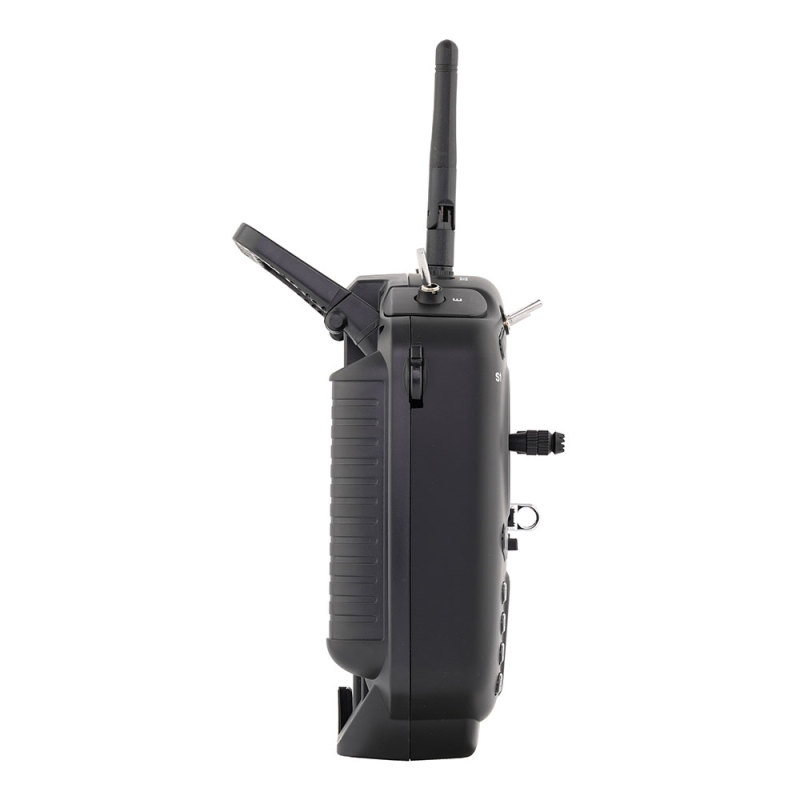

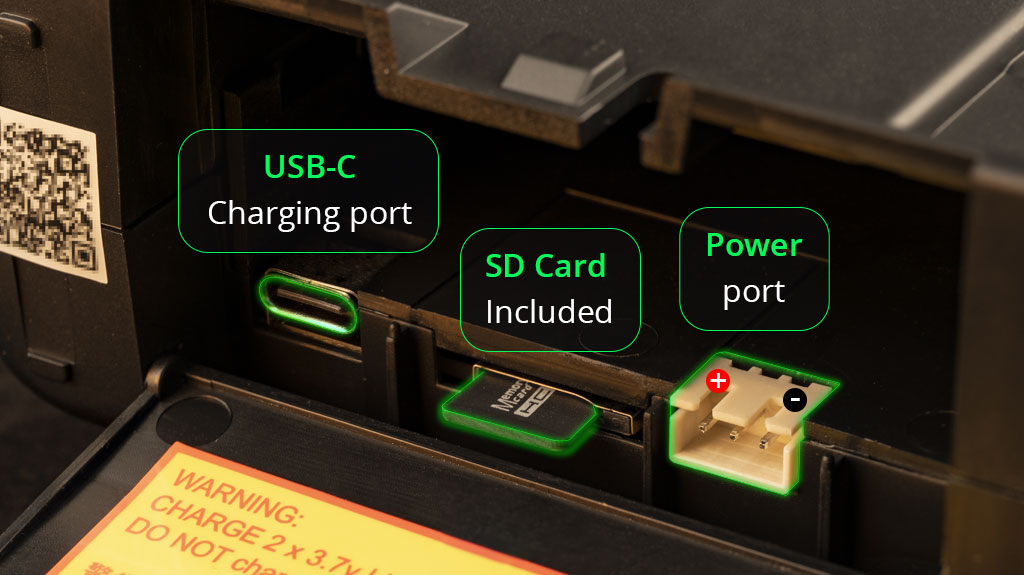

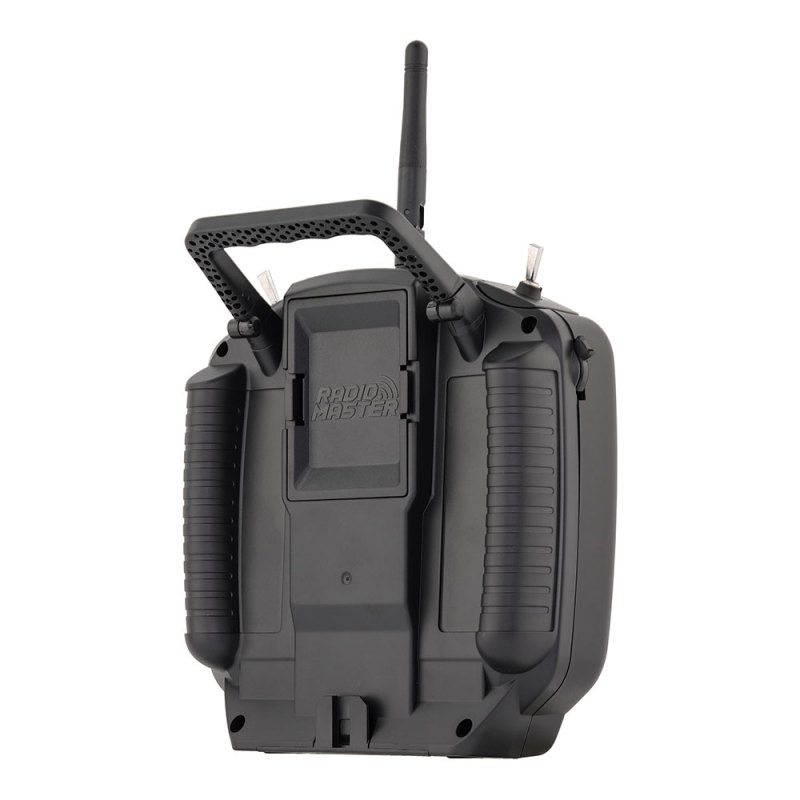

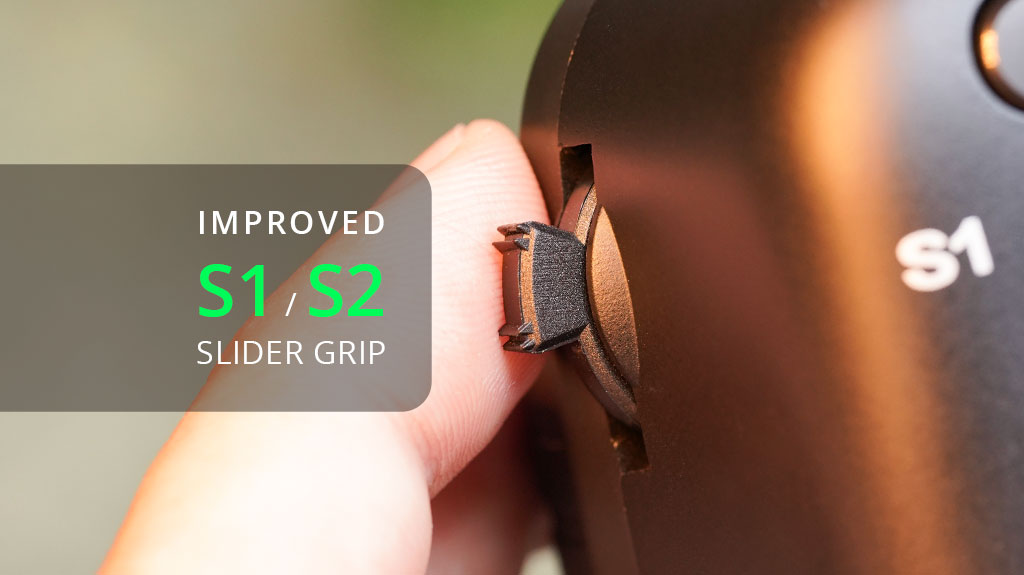

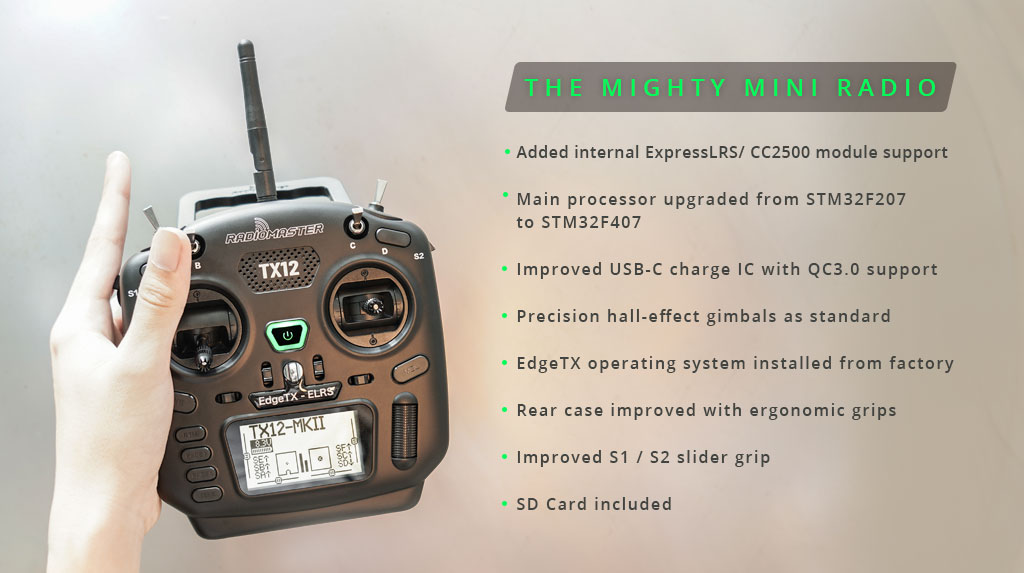

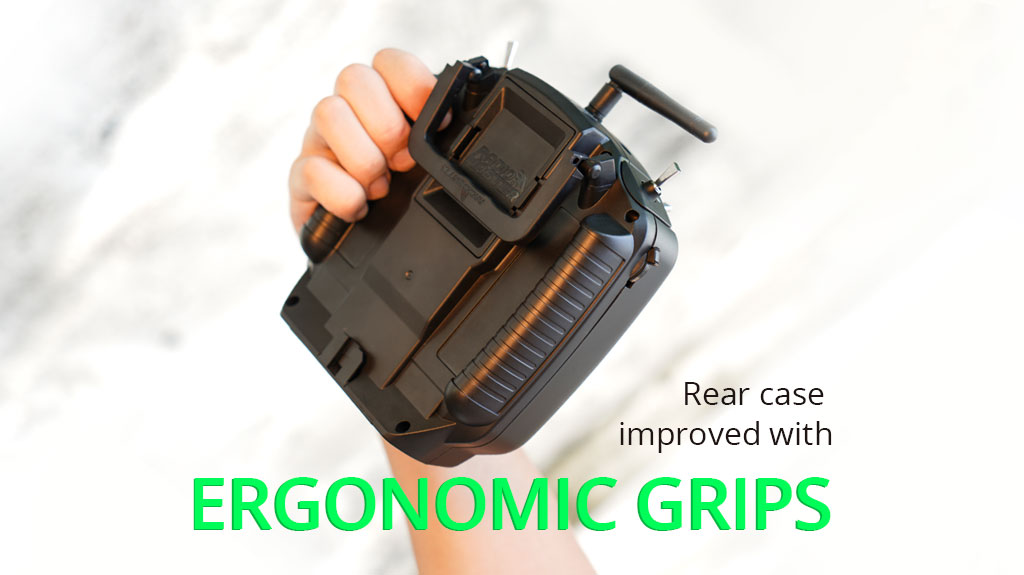

New to TX12 MKII ★ Updated rear case with comfortable grips ★ Improve S1 / S2 Grips ★ Improved USB-C QC 3.0 Charging ★ Updated main board design ★ Updated MCU to STM32F407 ★ EdgeTX factory installed ★ SD Card included

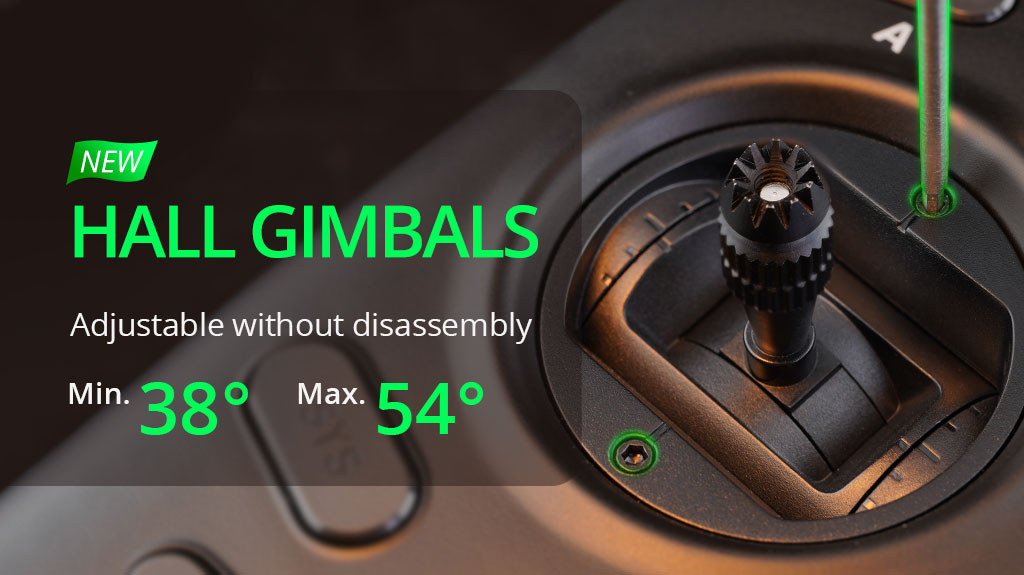

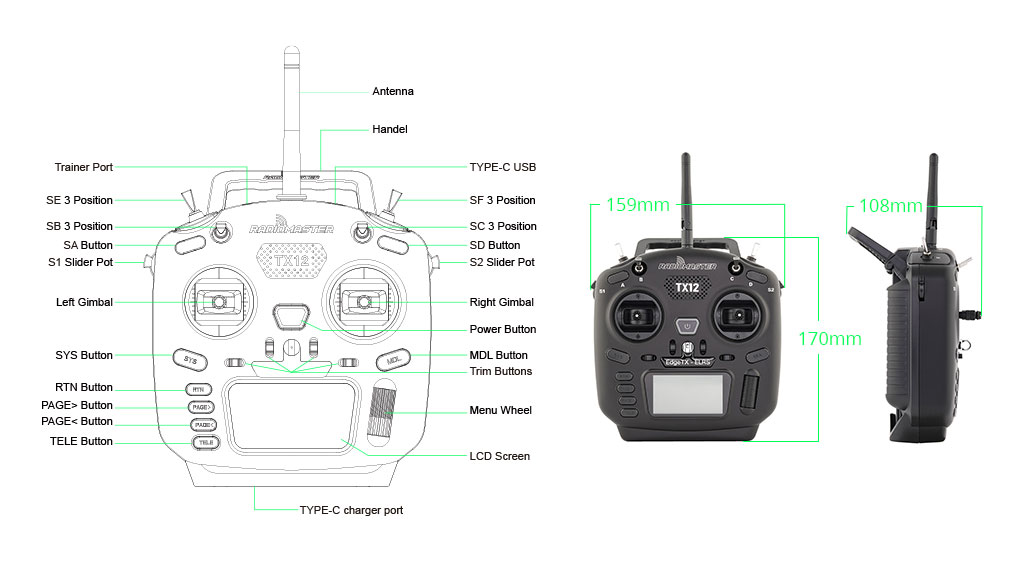

Specs: Size: 170*159*108mm Weight: 363g Frequency: 2.400GHZ-2.480GHZ RF Chip option: CC2500 MPM Transmitting Power: 20dbm Antenna Gain: 2db Working Current: 320mA@8.4V Voltage Range: 6.6-8.4v DC Range: > 2km (depending on receiver) Radio Firmware: EdgeTX (Transmitter) / MPM (RF module) Channels: Up to 16 (depending on receiver) Display: 128*64 Monochrome LCD display Gimbal: High precision hall gimbals External module: JR/FrSKY/Crossfire compatible Upgrade Method: USB/SD card & EdgeTX Buddy online or EdgeTX Companion PC software USB Charging: QC3 USB-C SD Card: Included
Find out more about the Opensource projects that drive our radios. http://edgetx.org/ https://www.open-tx.org/ https://www.multi-module.org/
Notes: CC2500 (standard) Version supports all CC2500 protocols 4in1 (standard) Version supports all MPM protocols ELRS (standard) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependnant) ---- CC2500 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT & HoTT LBT 4in1 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT and DSMX ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)
