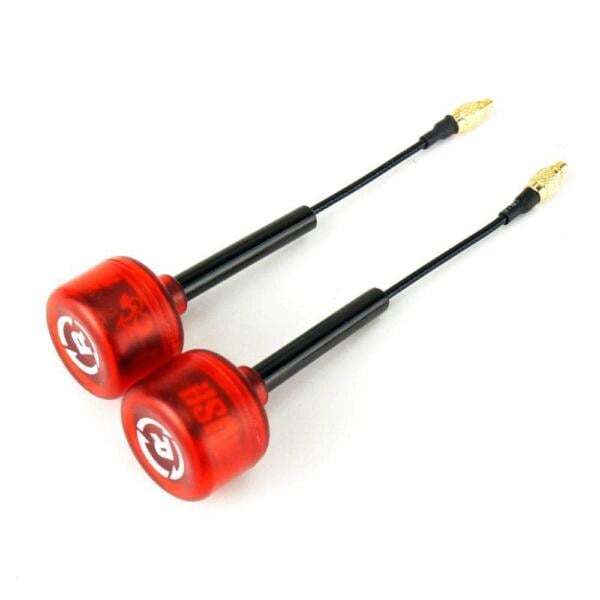

RUSHFPV Cherry Antenna MMCX-J Straight MMCX Connector RHCP LHCP

FEATURES

• Optimized for FPV racing drones
• Maximum signal coverage. 5.6-6GHz bandwidth covers all of the race band and all channels have nearly uniform transmission strength.
• Perfect circular polarization axis ratio. Effectively suppress screen flicker caused by multi-path interference.
• Small and sturdy. Optimized design obtained through massive impact tests. The flexible tube can withstand angle bends and crash impacts to avoid cable damage.
• Thin cable. Teflon skin, double shielded RG-137 coaxial cable with a silver plated core. This wire is soft and flexible and has a low signal loss.
• Between 5650 and 5950MHz, VSWR is below 1.2 meaning transmission efficiency is up to 98% This can also help reduce VTX heat.

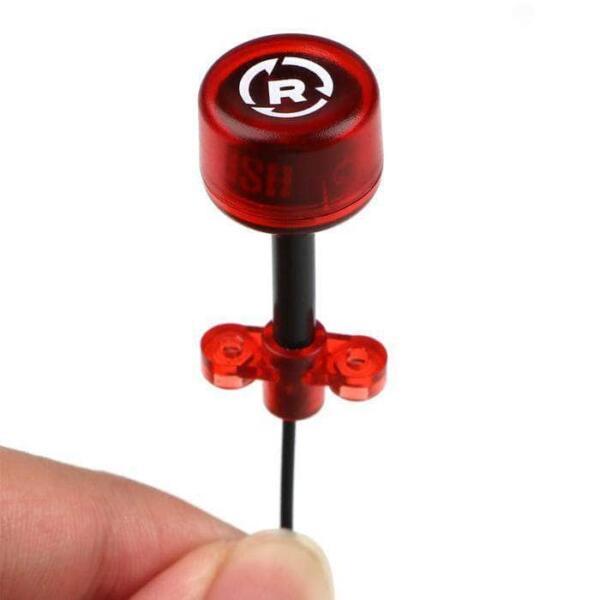

• Quick installation. Antenna clips are designed to be the same size as standard flange SMA sockets. The length of the antenna tube can be cut to meet your needs.
• Quality Assurance. Cherry antennas are tuned for performance by the Rush FPV Professional Microwave Laboratory, and each antenna is qualified by a network analyzer before leaving the factory.

SPECIFICATIONS

• Gain: 1.2dBi
• S11 SWR: 1.4 max – 1.1 min
• Band Width: 5600-6000-MHz
• Axial Ratio: Around 1.0
• Polarization: LHCP or RHCP

INCLUDES

• 2x Rush FPV Cherry 5.8GHz MMCX Straight Antenna
