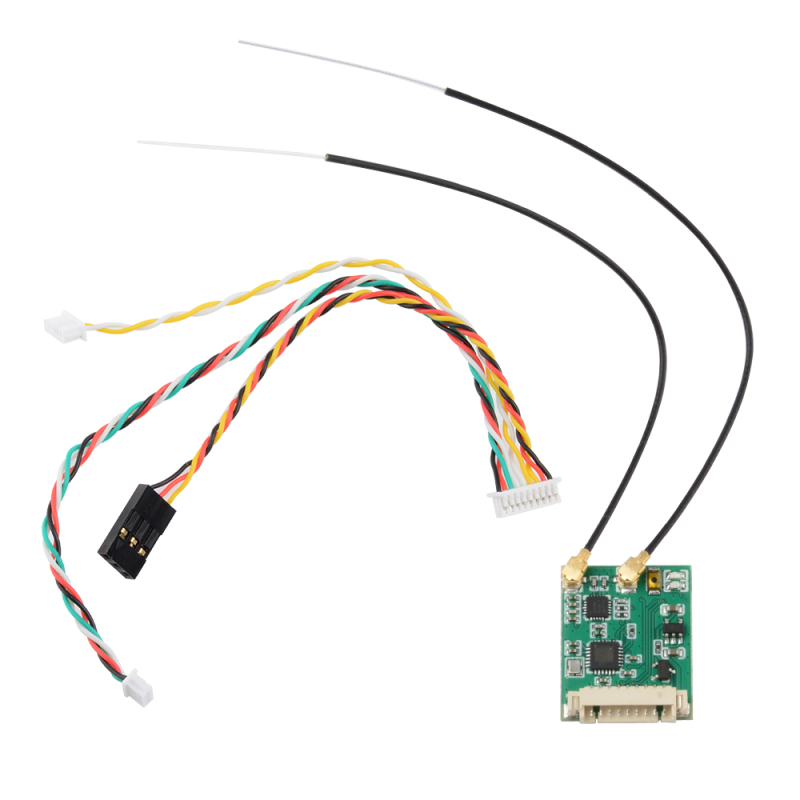

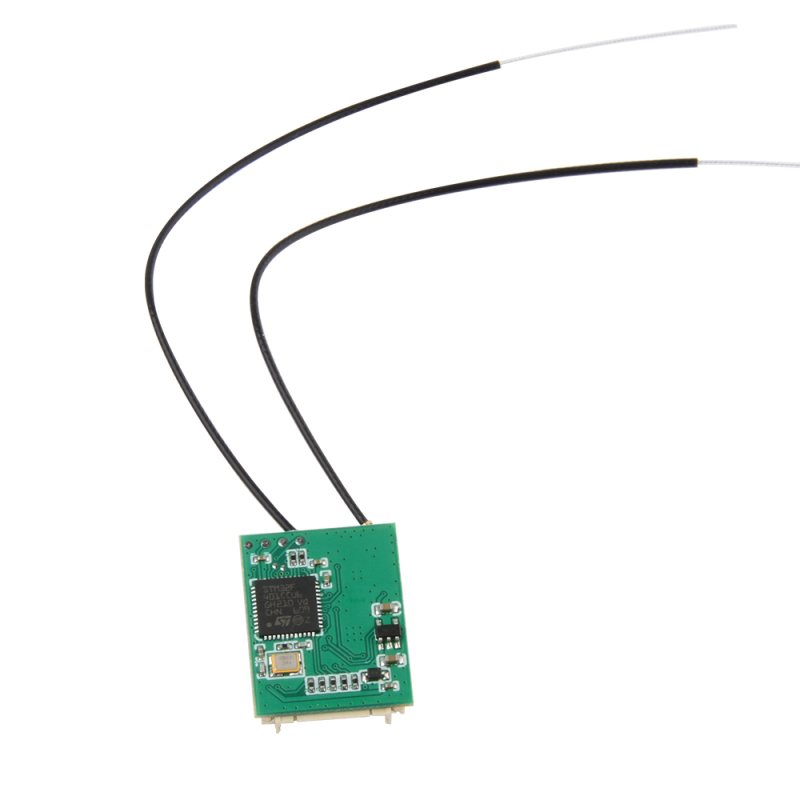

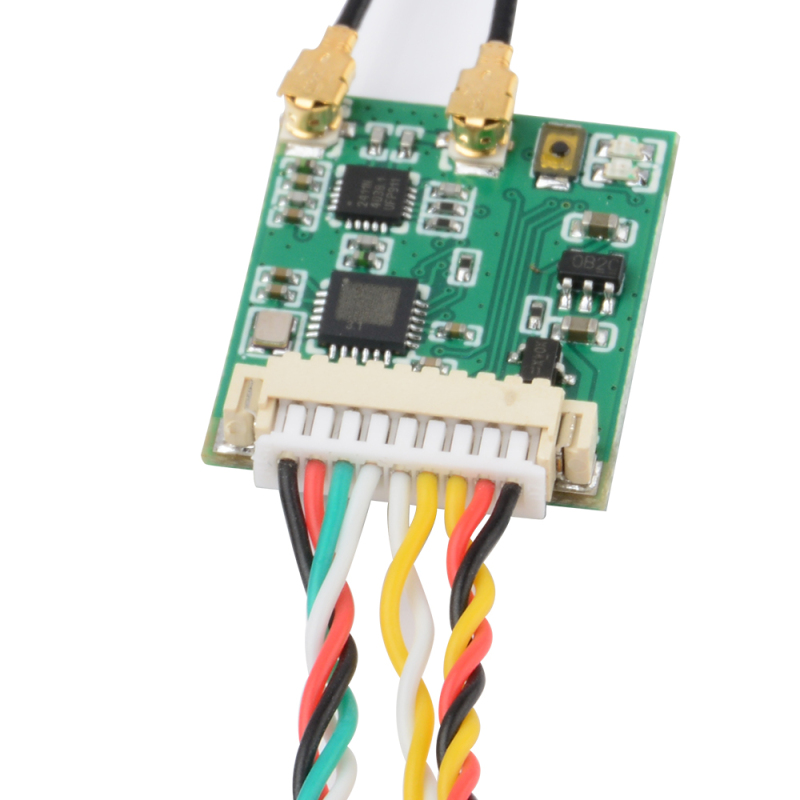

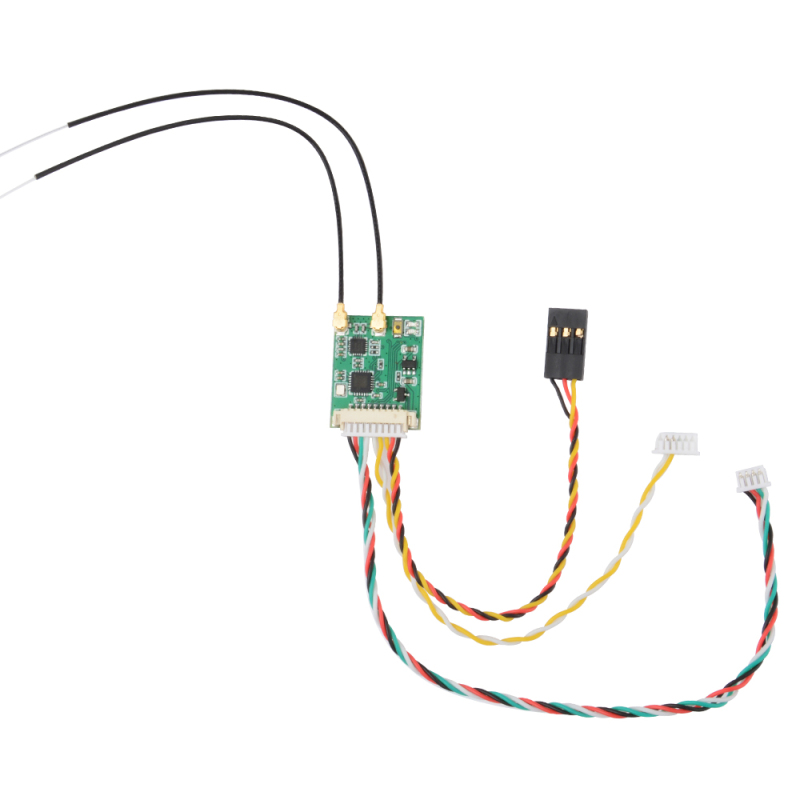

SKYDROID R10 Mini Receiver

R10 MINI receiver parameters
Frequency band: 2.400-2.482GHz
Channel: 10 channels
Working voltage: 5v
Working current: 100ma
Size: 23mm* 18mm
Weight: 4.5g (including wire)

How to use R1OMINI receiver

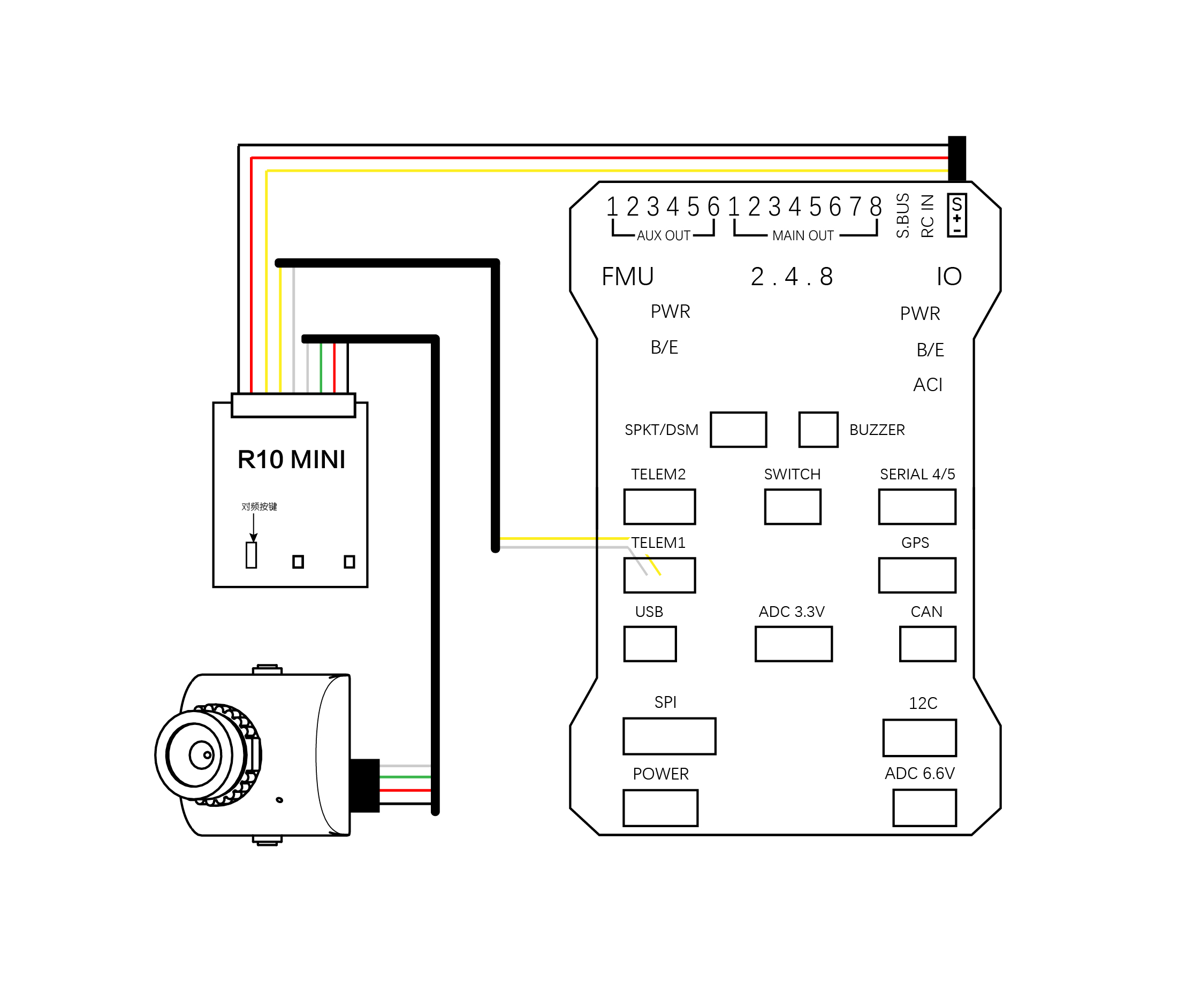

1: Connect the receiver SBUS line and the data transmission line to the flight controller.
2: Connect the camera cable to the mini camera.
3: Turn on the flight controller, press the receiver link button and the green light flashes quickly to start linking.
4: After the remote control is turned on, the green light of the receiver is always on after the beeps, then the linking can be completed.
5: Plug the remote control into the data cable, the image will be displayed, and it can be used after connecting to the ground station for data transmission.
