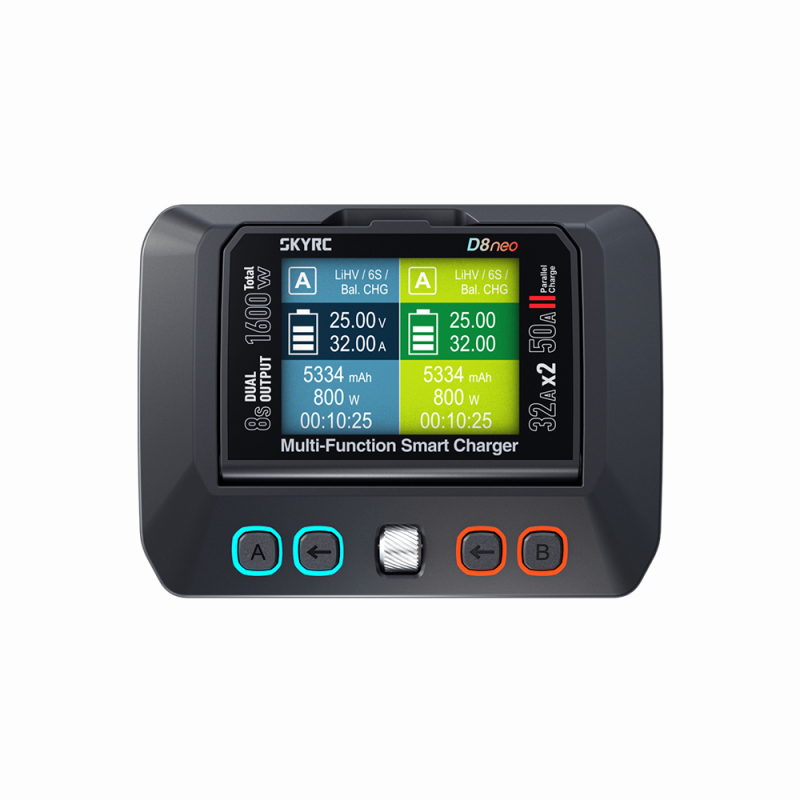

Display Type: TNSize: 2.8 inchPanel Active Area: 43.20*57.60mmResolution: 240x320 PixelNumber of Colors: 262K

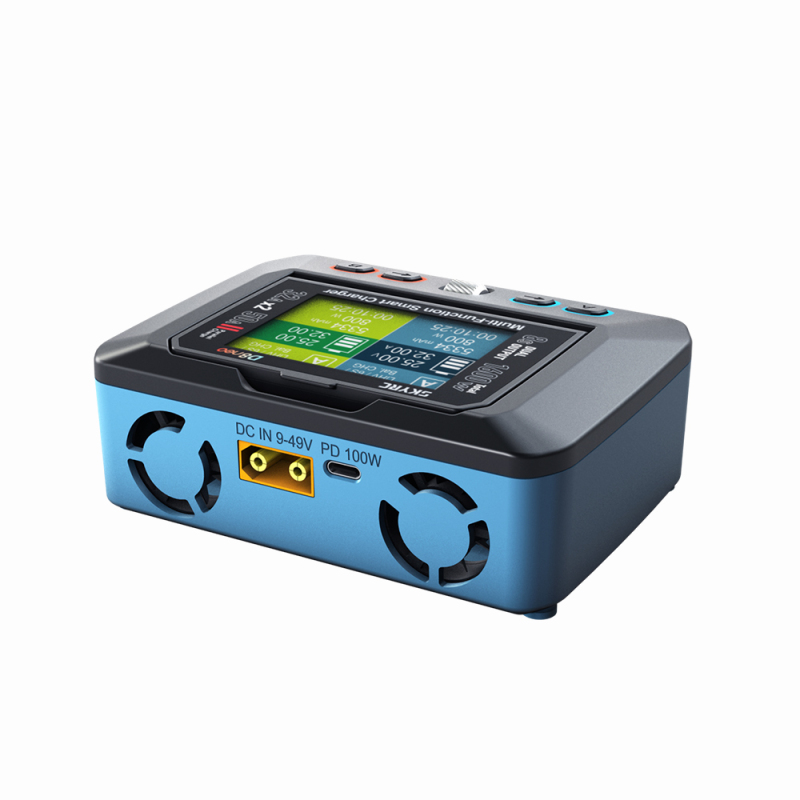

Input：9-49V
Charge Power:
Single Channel: 1100W
Multi-channels: 1600W in total (A+B+DC Power+Type-C)
Discharge Power:
Main Port: 45WBalance Port: 20W Max (LiPo/8s)Reverse Discharge Power: 1100W
LiPo/LiFe/Li-ion/LiHV: 1-8SNiMH/NiCd: 1-20SPb: 3S/6S/12SCharge Current
LiPo/LiFe/Li-ion/LiHV(2~8S): 0.1A ~ 32.0A
LiPo/LiFe/Li-ion/LiHV(1S) / NiMH/NiCd: 0.1A ~ 10.0A
Pb: 0.1 ~ 15.0A
Parallel charge
LiPo/LiFe/Li-ion/LiHV(2~8S): 33.0A ~ 50.0A
Discharge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb: 0.1A ~ 4.0A
External discharge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb: 0.5A~40A
Balance current
LiPo/LiFe/Li-ion/LiHV: Max. 1.9A
Operating temperature: 0℃-40℃Working humidity: 5% ~ 75% RH (Non-condensing)Storage temperature: -10℃ ~ 70℃Storage humidity: 5% ~ 75% RH (Non-condensing)
