Note:UltraPower Chargers no export to Australia

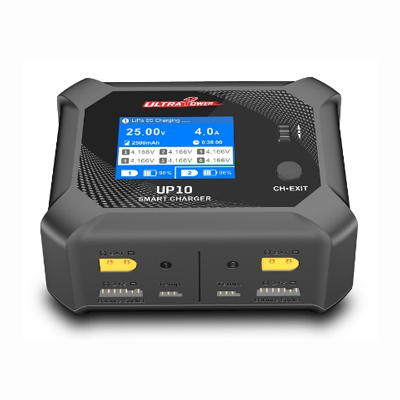

The UP10 100W/200W AC/DC Dual Port Multi-Chemistry Smart Charger is a fantastic choice for hobby enthusiasts. The UP10 can charge up to 100 watts total on AC power (CH1+CH2 =100W), and up to 200 watts total when using an external DC power source (sold separately). Power distribution can be biased between channels if needed for faster charge times of higher capacity or higher voltage packs.
Each charge channel supplies up to a maximum of 10 Amps to charge your batteries quickly, and the integrated balance port allows you to charge modern battery chemistries requiring cell balancing safely. The charger runs on a 32-bit ARM chip for intelligent protection and safe charging. Safety features include over-current protection, over-voltage protection, short-circuit protection, thermal protection, reverse polarity protection, and flame-retardant materials.
The large 2.4" IPS color screen provides loads of information about your battery's condition at a glance, and is visible even in outdoor conditions.
The menu system is easily navigated with the scroll/toggle wheel, and ch/exit button.
Specification:
Input voltage:AC 100-240V, DC 11.0-18.0V
Output voltage: 0.1-26.1V
Charge Current: 0.1-10.0Ax2
Discharge Current: 0.1-5.0A
Charge Power DC Input: 2x100W
AC input: Max. CH1+CH2=100W
Support power distribution (2x50W)
Balance current: Max.500mA/cell
Discharge Power: 2x10W
LiHV(Support 4.45V battery)
LiPo/LiIon/LiFe cell count: 1-6 cells
NiCd/NiMH battery cell count: 1-16 cells
Pb battery voltage: 2V-24V (1-12 cells)
LCD Screen type: 2.4〃320×240 IPS LCD
Dimensions: 135x105x58mm
Weight: 550g
