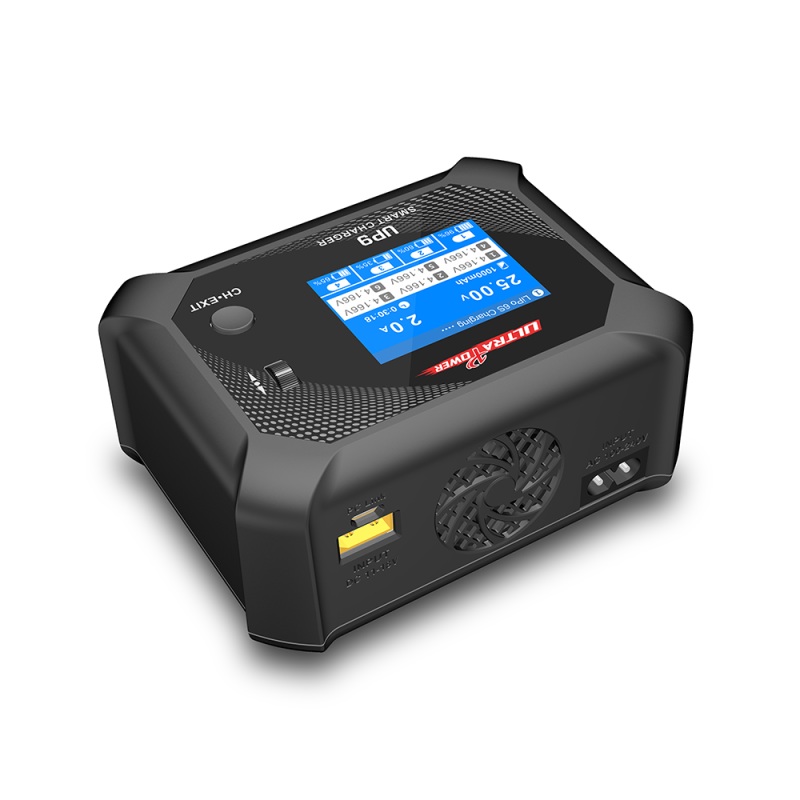

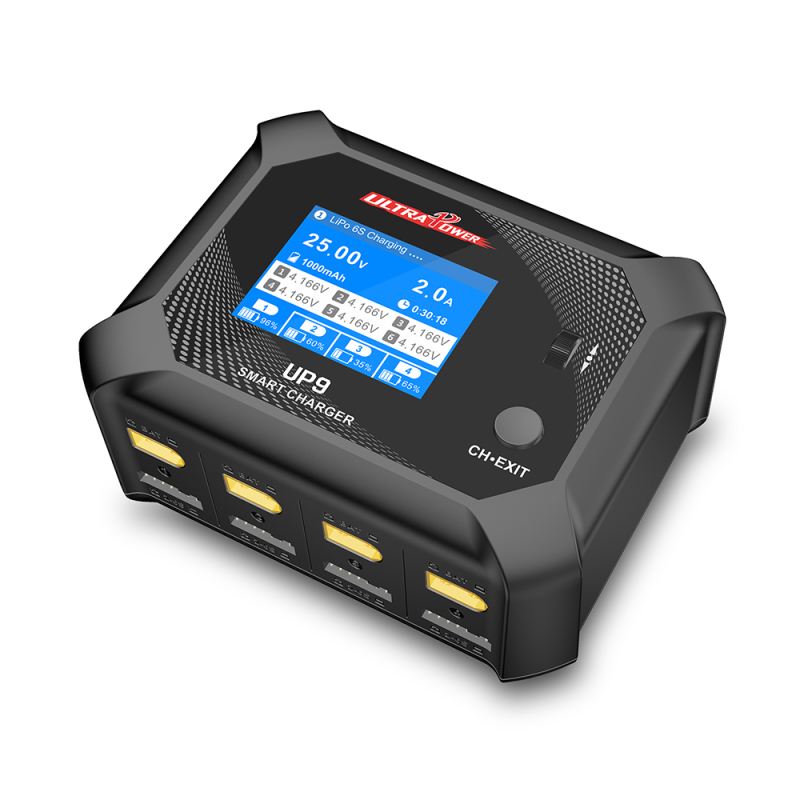

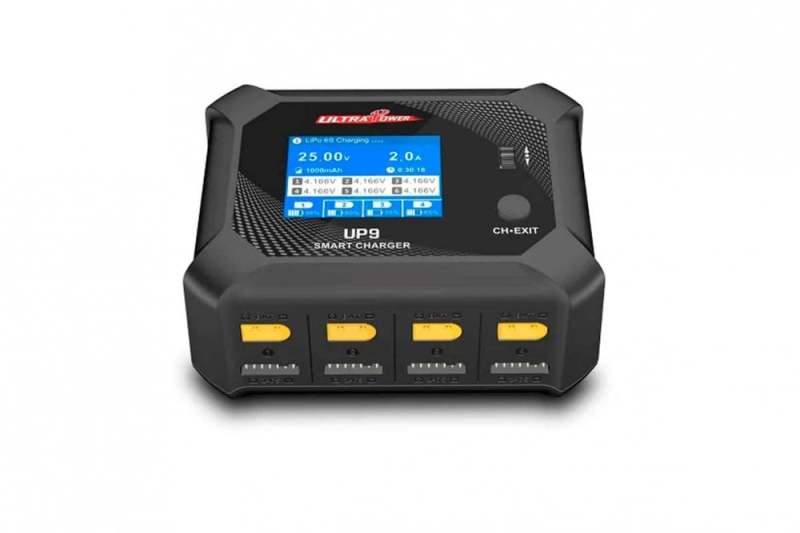

The UP9 100W/200W AC/DC Four Port Multi-Chemistry Smart Charger is a fantastic choice for hobby enthusiasts with many batteries. The UP9 can charge up to 100 watts total on AC power (CH1+CH2+CH3+CH4=100W). Each charge channel supplies up to a maximum of 5 Amps to charge your batteries quickly, and the integrated balance port allows you to charge modern battery chemistries requiring cell balancing safely.
The charger runs on a 32-bit ARM chip for intelligent protection and safe charging. Safety features include over-current protection, over-voltage protection, short-circuit protection, thermal protection, reverse polarity protection, and flame-retardant materials.
For users with many similar batteries, the UP9 has a convenient "one key" charge function which allows you start charging on all 4 channels simultaneously with one program. The large 2.4" IPS color screen provides loads of information about your battery's condition at a glance.
The menu system is easily navigated with the scroll/toggle wheel, and ch/exit button.
Specifications:
Input voltage:AC 100-240V, DC 11.0-18.0V
Output voltage: 0.1-26.1V
Charge Current: 0.1-5.0AX4
Charge Power DC Input:4x50W
AC input: Max. CH1+CH2+CH3+CH4=100W
Support power distribution (2x50W or 4x25W)
Balance current: Max.300mA/cell
LiPo/LiHV/LiIon/LiFe cell count: 1-6 cells
NiCd/NiMH battery cell count: 1-16 cells
Pb battery voltage: 2V-24V (1-12 cells)
LCD Screen type: 2.4〃320×240 IPS LCD
Dimensions: 135x105x58mm
Weight: 550g
