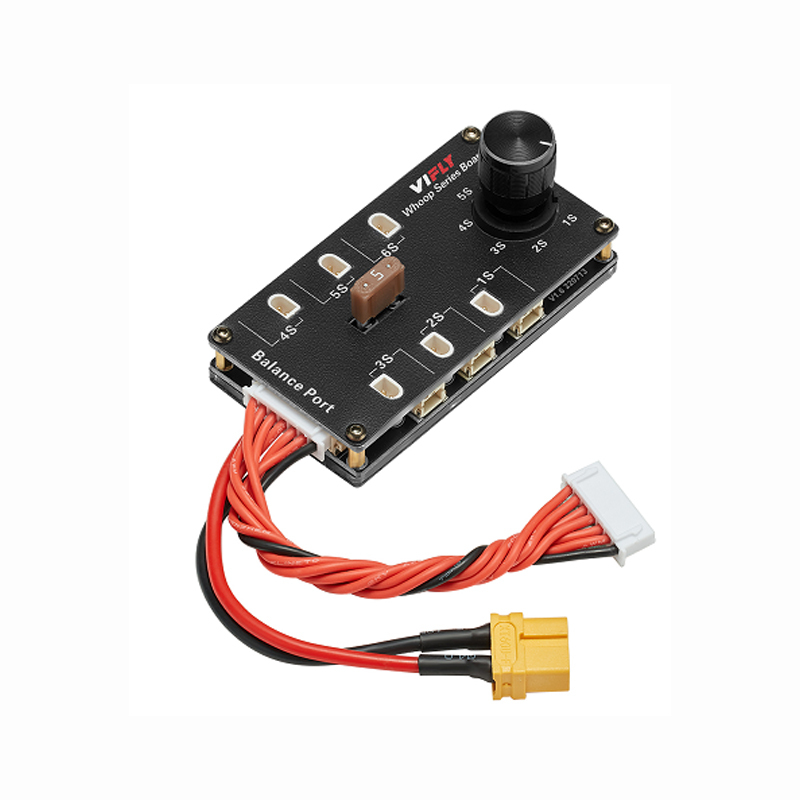

Features:

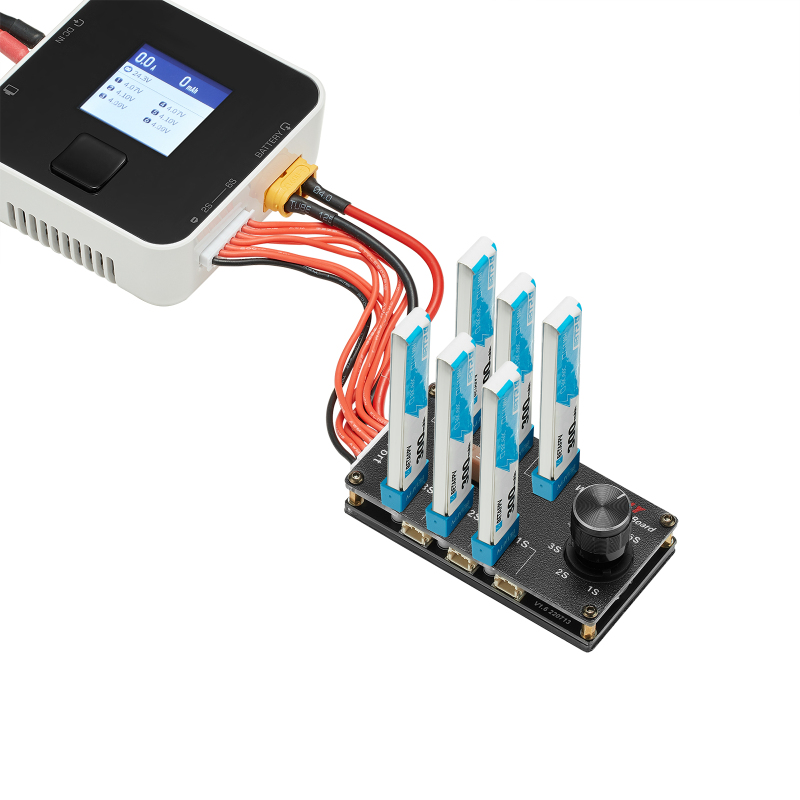

Storage charge 1S LiPo batteries with standard charger.
Charge 1-6 batteries at the same time.
Turn the knob for the number of batteries you are charging.
The added fuse makes the board even safer.
Pre-soldered PH2.0 and BT2.0 connectors.
Warning:
It is series board not parallel board. For example, when you are charging 4pcs 300mAh lipos, set your charger to 0.3A for 1C or
0.6A for 2C. NOT 1.2A or 2.4A.
The specs of all batteries should be the same, ie, battery capacity, battery type, brand, etc.
Never leave the board unattended while charging or discharging.
Do not charge over 1.5amps. The fuse is 5A that not means you can charge it in 5A, the knob is rated for 1.5A so don't charge it over 1.5A.
Don't plug in both PH2.0 and BT2.0 battery in the same port.
