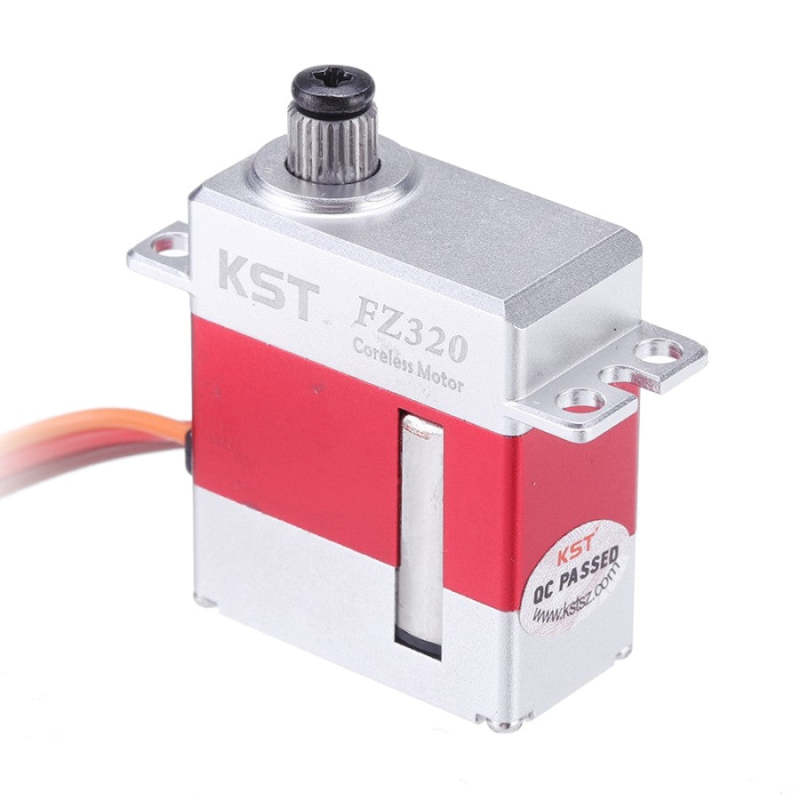

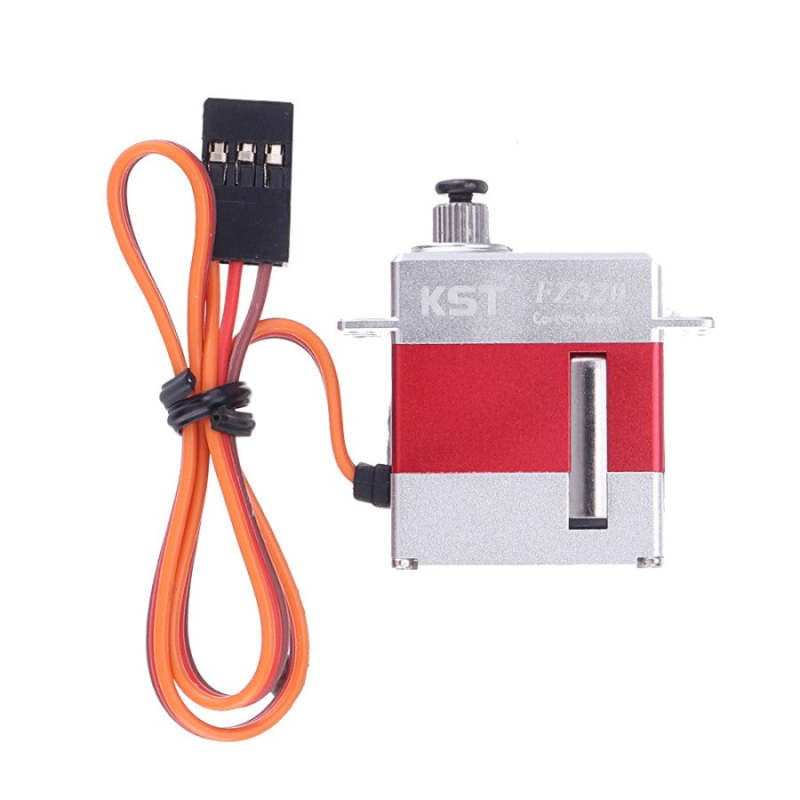

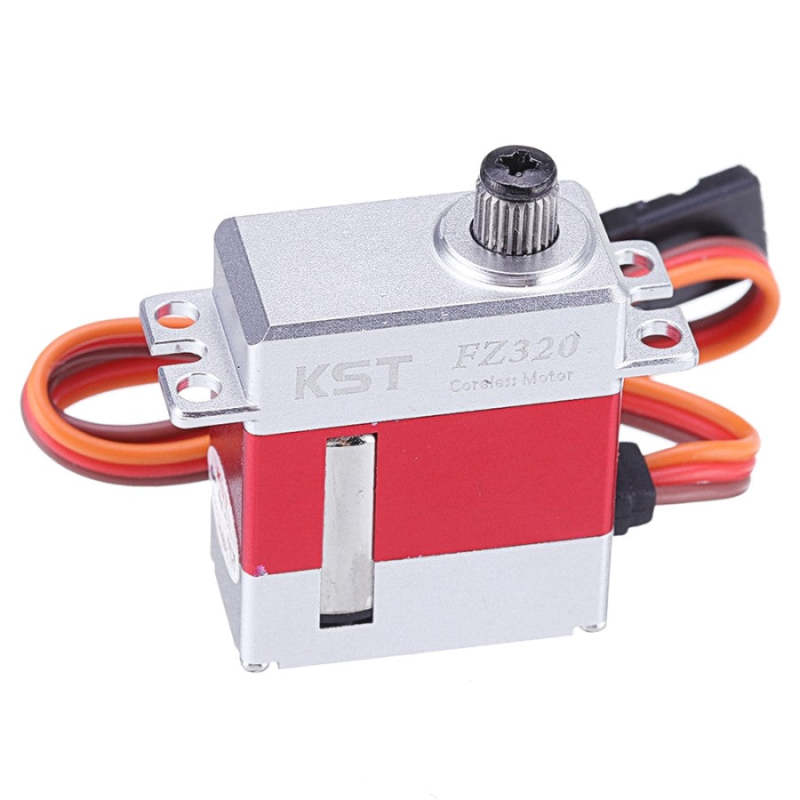

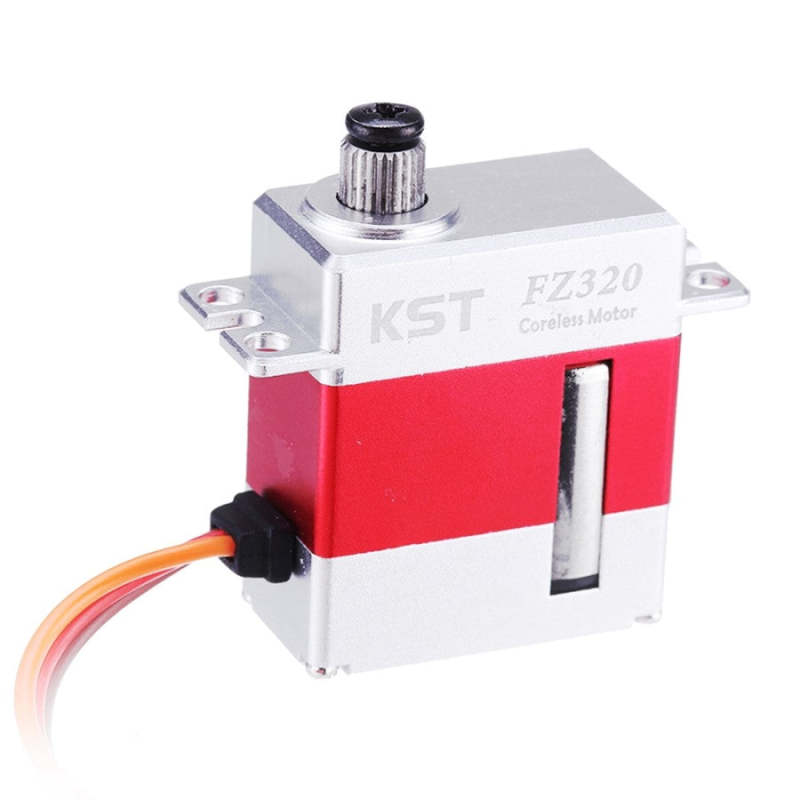

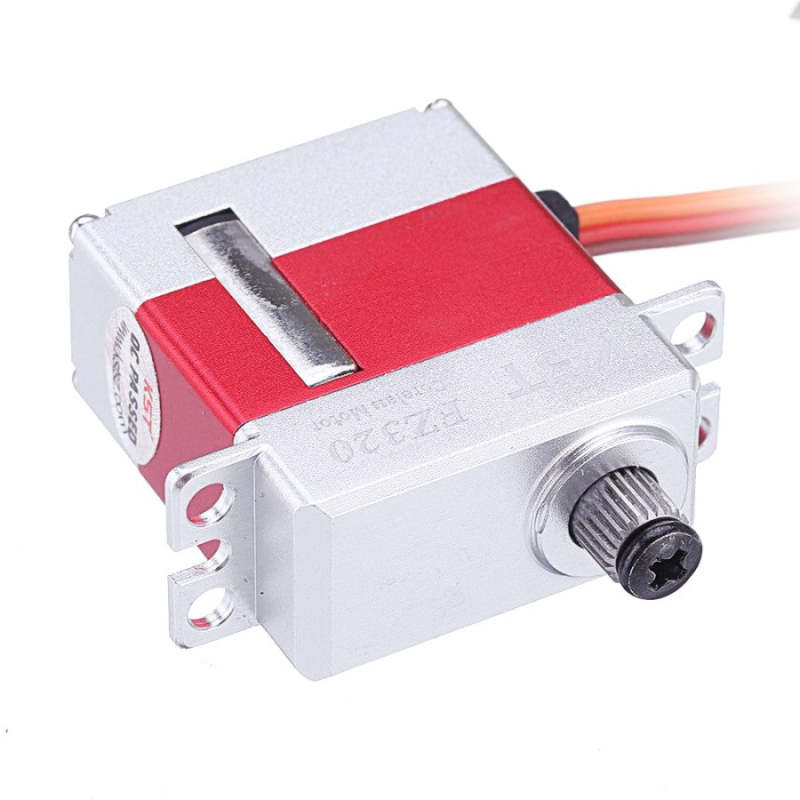

The FZ320 is a digital standard servo of excellent quality that operates very quickly and has a sturdy aluminum case and precise metal gear with no backlash. The low EMF anti-interference technology for RC gliders and jets can make your operations more straightforward. Flying is funnier thanks to the lightweight design.
Features
- Extreme Torque and Excellent Speed
- Compact and Light-weight Design
- Two Ball Bearings
- CNC Aluminum Case
- Ideal for RC Gliders and Jets
Specification
- Item: FZ320 Digital Metal Gear Servo
- Rated Voltage: DC7.4V
- Voltage Range: DC6.0V-8.4V
- Torque: 4.5Kgf.cm@6.0V, 5.5Kgf.cm@7.4V
- Speed: 0.10sec/60°@6.0V, 0.09sec/60°@7.4V
- Working Frequency: 1520us/333Hz

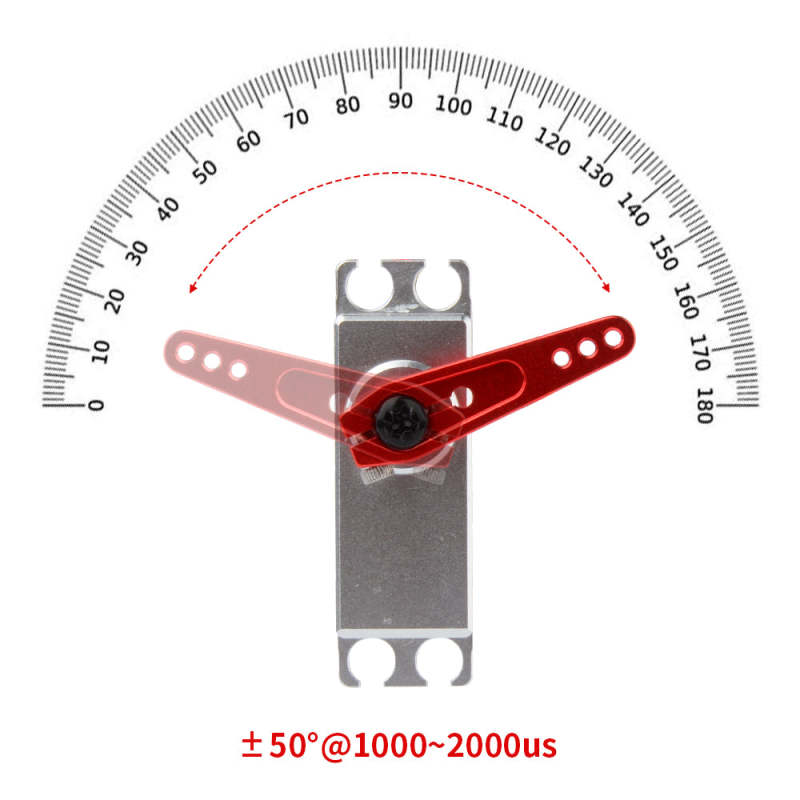

- Default Travel Angle: ±50° =100° Total
- Temperature Range: -20℃……+65℃
- Motor Type: Coreless DC Motor
- Gear Set Material: Metal Gear
- Position Sensor: Potentiometer
- Ball Bearing: 2BB

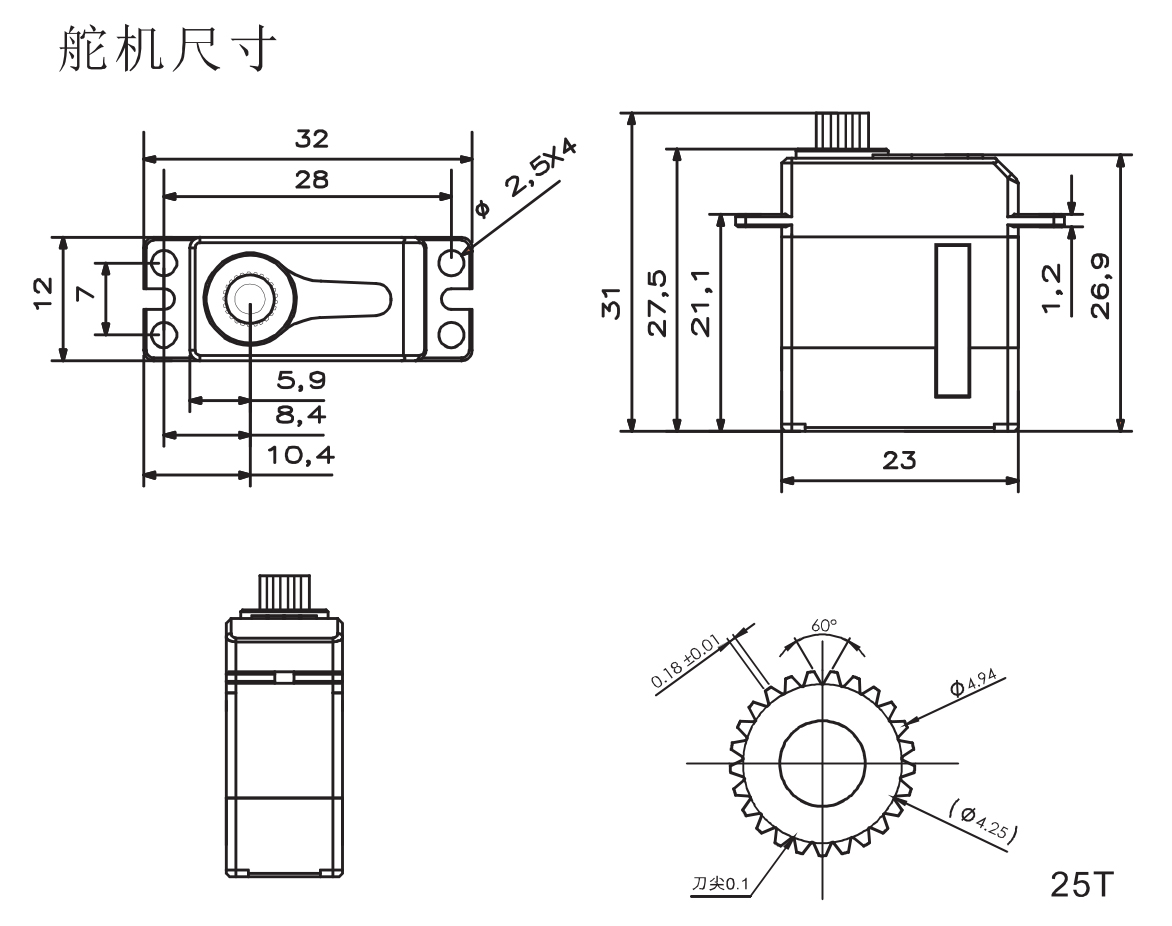

- Case Dimensions: 23*12*27mm ±0.2mm
- Weight: 20g±10%
Package Including
- 1 * FZ320 Metal Gear Servo Motor
- 1 pack of accessories
