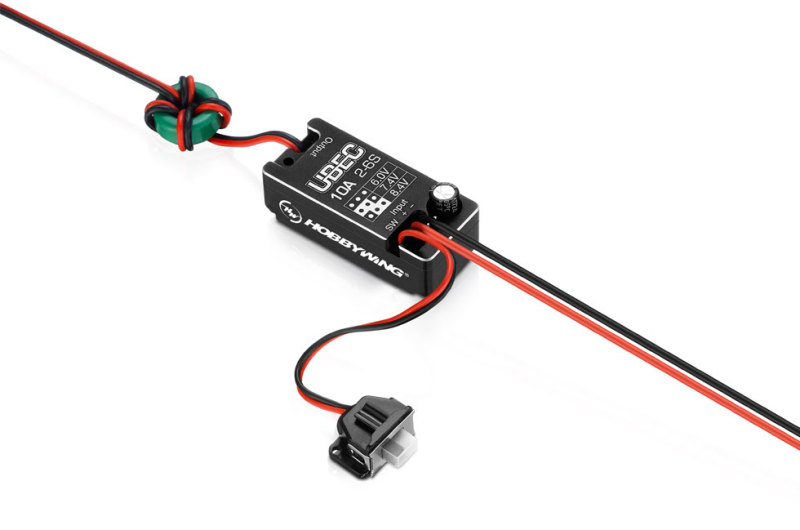

The UBEC uses an efficient DC-DC regulator chip with a conversion efficiency of more than 90%. The all-metal housing is designed to help dissipate heat and reduce electromagnetic interference. UBEC output voltage is adjustable in three stages (6.0/7.4/8.4 V) with a continuous current of 10A and a maximum of 15A. The voltage specifications allow the use for a wide range of servos and electrical equipment such as lights, winches, wipers and etc. At the same time, the UBEC is equipped with overcurrent protection, output short-circuit protection, overheat protection, and IP67 waterproof dust design, and can be widely used on crawlers, trucks, and other electric models as well.

Specifications

Model：UBEC 10A-Car
Input voltage：2-6s lithium batteries
Output voltage：6.0 / 7.4 / 8.4 V (3 options adjustable)
Output current：Continuous 10A，Instantaneous 15A
Measurement：45*20*16.2mm
Weight ：34g（including wires）
