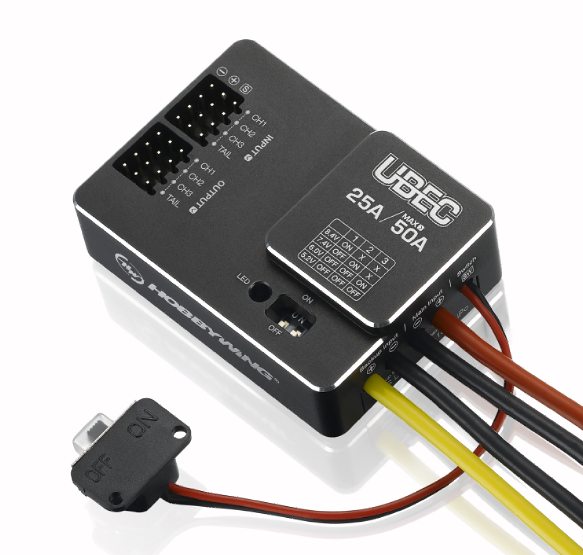

Hobbywing UBEC 25A HV
SKU: BR0038.0177
This item is available by special order only. For pricing, MOQ and delivery information, please contact your sales representative.
1/1
All Categories
| pn | 30606000 |
| Linear Mode/Switch Mode High Voltage/Regular |
Switch mode HV |
| Cont./Peak Current | 25A/50A |
| Input Voltage (of the Main Power Supply) | 3S~18S LiPo (9V~80V) |
| Input Voltage (of the Backup Power Supply) | 1S~2S LiPo (/3-9V) |
| Output Voltage |
5.2V/6.0V/7.4V/8.4V Adjustable |
| Input Wires | Main Power Supply: Red-16AWG-270mm*1/Black-16AWG-270mm*1 |
| Output Wires | 3P Vertical Pin Header (60-strand PVC Wire with Two 3P-JR Male Connectors-100mm*4 included） |
| Input Connectors | No |
| Output Connectors | No |
| Size/Weight | 55*40.2*17.6mm/74g |
