The new DS113MG V6.0 digital servo power with powerful torque and amazing speed in compact and lightweight design, make it excellent for small-size electric RC plane and glider fuselage. DS113MG V6.0 servo can boast a brilliant 3.5kgf.cm torque and and super fast 0.09sec/60° speed at 8.4V with great precision and reliability.
Weighing only 12g makes DS113MG V6.0 a great servo for small-size electric RC plane and glider fuselage use. The DS113MG V6.0 servo is designed for use with a 2S LiFe or 2S LiPo battery and it can run directly from a 2S LiPo without needing a regulator. Additionally, the newly added program feature can improve your flight experience to the next level. The DS113MG V6.0 is the high voltage replacement of the original DS113MG servo.
Features
- High Quality and Competitive Price
- Support for 4.8V-8.4V Voltages
- Programmable
- Excellent Heat Dissipation
- Compact and Lightweight Design
- Ultra High Torque & Excellent Speed
- Ideal for Small-size Electric RC Plane and Glider Fuselage
Specification

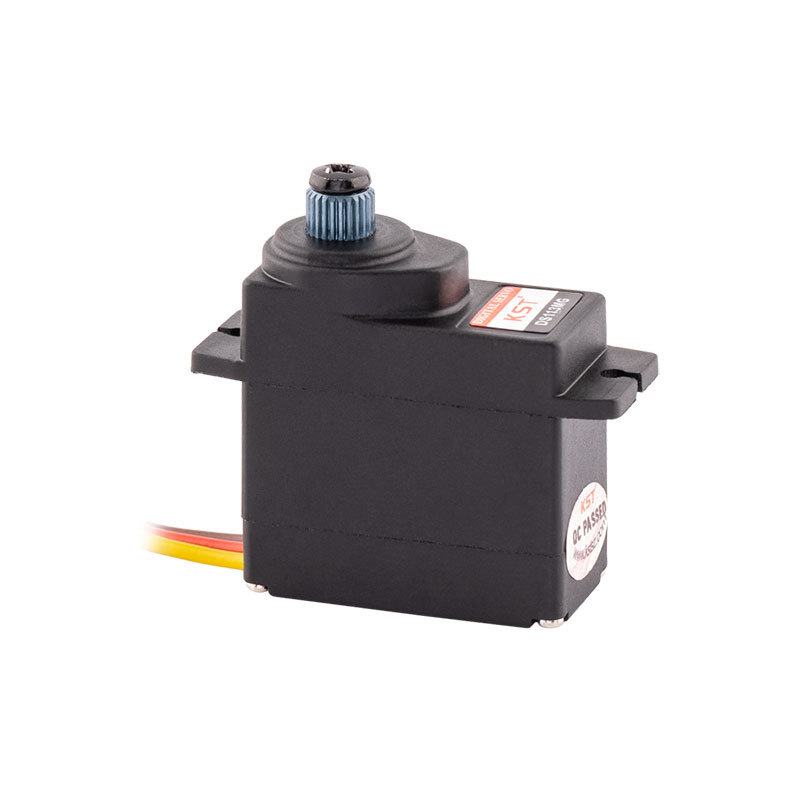

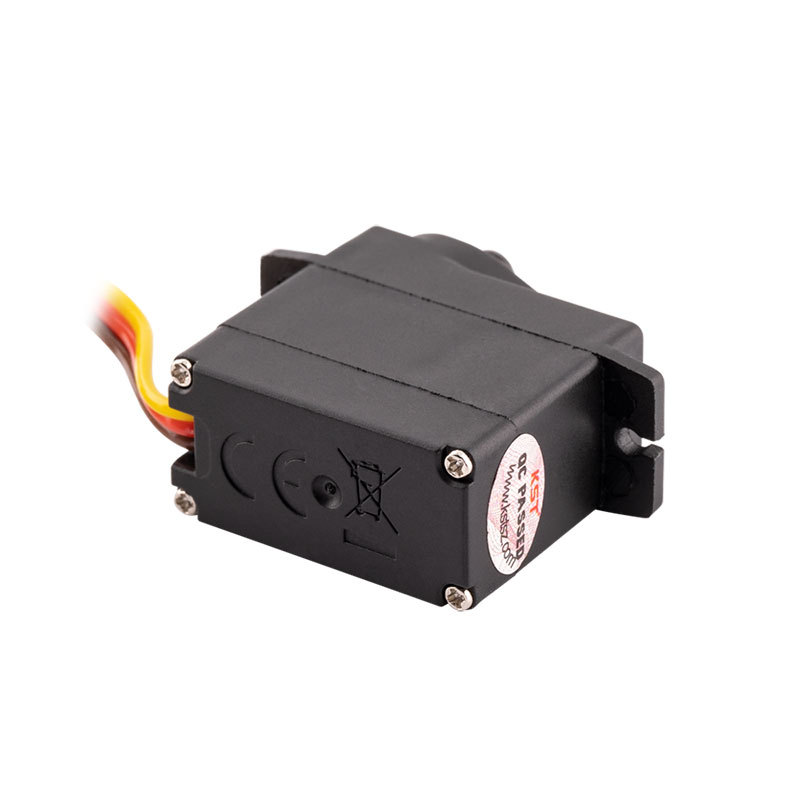

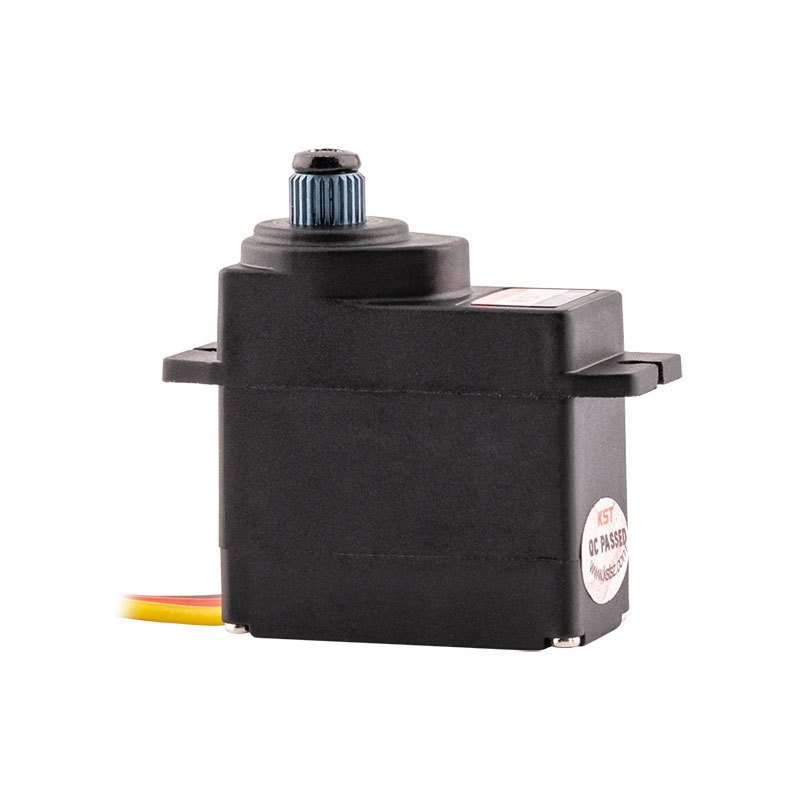

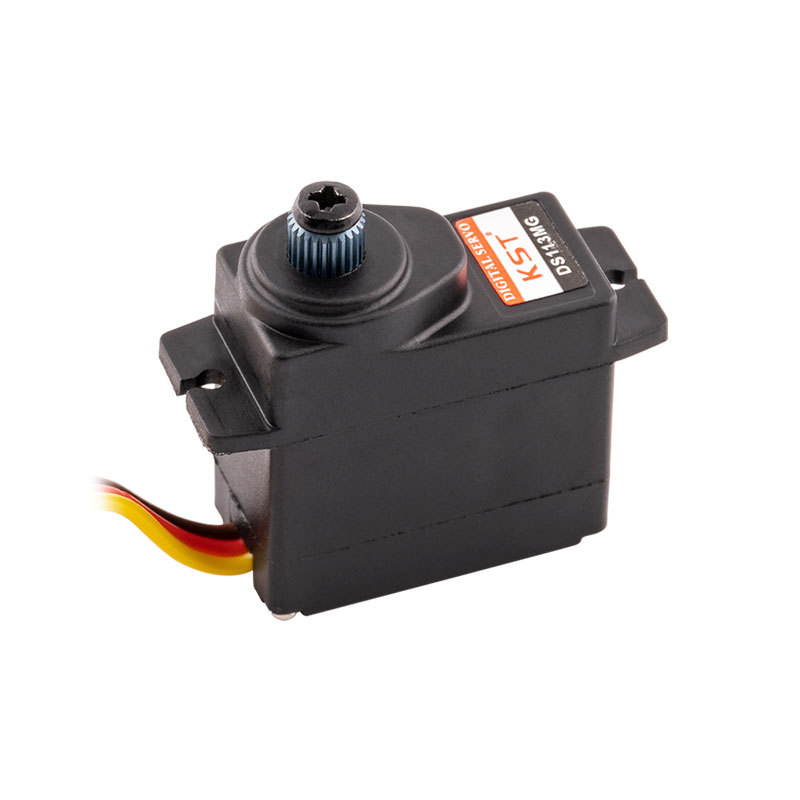

- Item: DS113MG V6.0 Digital Metal Gear Servo
- Rated Voltage: DC6.0V
- Voltage Range: DC4.8V-8.4V
- Torque: 2.0Kgf.cm@4.8V / 2.5Kgf.cm@6.0V / 3.0Kgf.cm@7.4V / 3.5Kgf.cm@8.4V
- Speed: 0.13sec/60°@4.8V / 0.11sec/60°@6.0V / 0.10sec/60°@7.4V / 0.09sec/60°@8.4V
- Stalling Current: 1.00A@4.8V / 1.20A@6.0V / 1.40A@7.4V / 1.60A@8.4V
- Working Frequency: 1520μs/333Hz
- Default Travel Angle: ±50°=100° Total
- Temperature Range: -10℃.......+65℃
- Soft Start: Programmable
- Programmable: Yes
- Motor Type: Core Motor
- Case Material: Plastic
- Gear Set Material: Metal Gear
- Position Sensor: Potentiometer
- Ball Bearing: 1BB

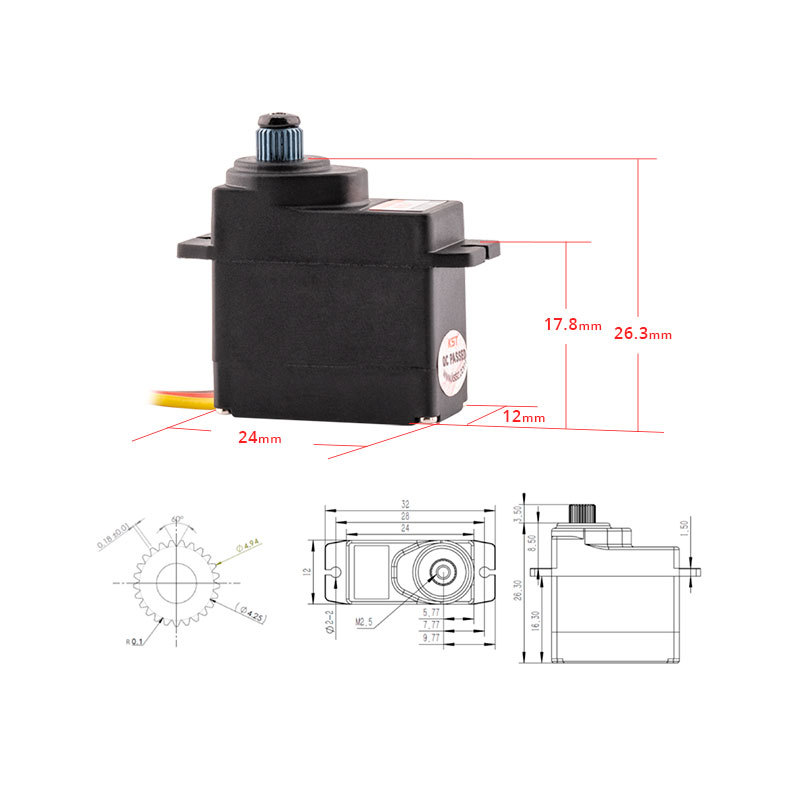

- Case Dimensions: 24mm*12mm* 26.3mm±0.2mm
- Weight: 12g±10%
Package Includes
- 1 * DS113MG V6.0 Micro Servo
- 3 * Plastic Servo Horn
- 1 * Servo Horn Screw
- 4 * Mounting Screw
