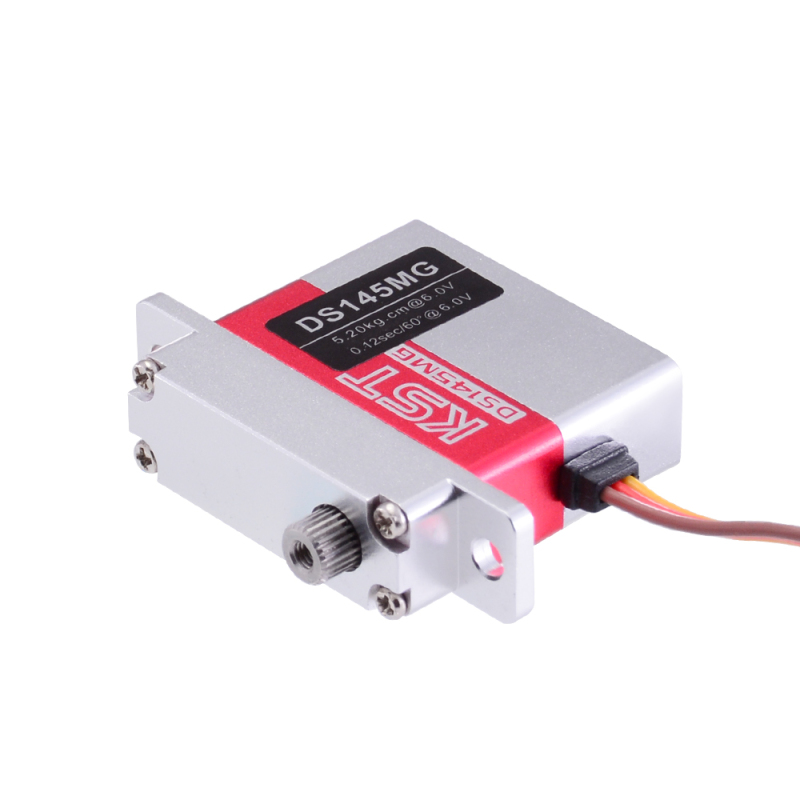

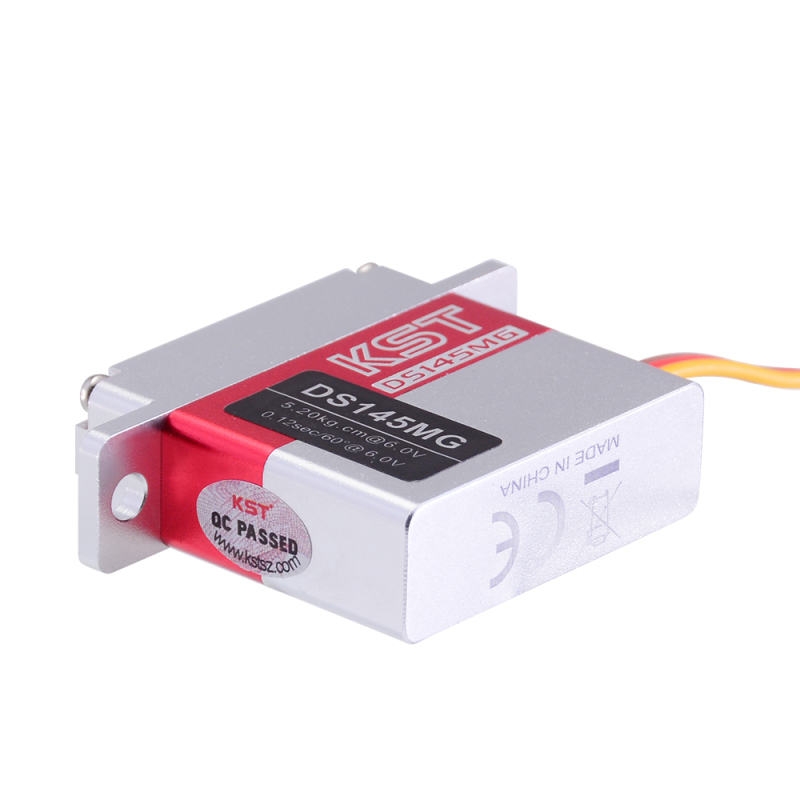

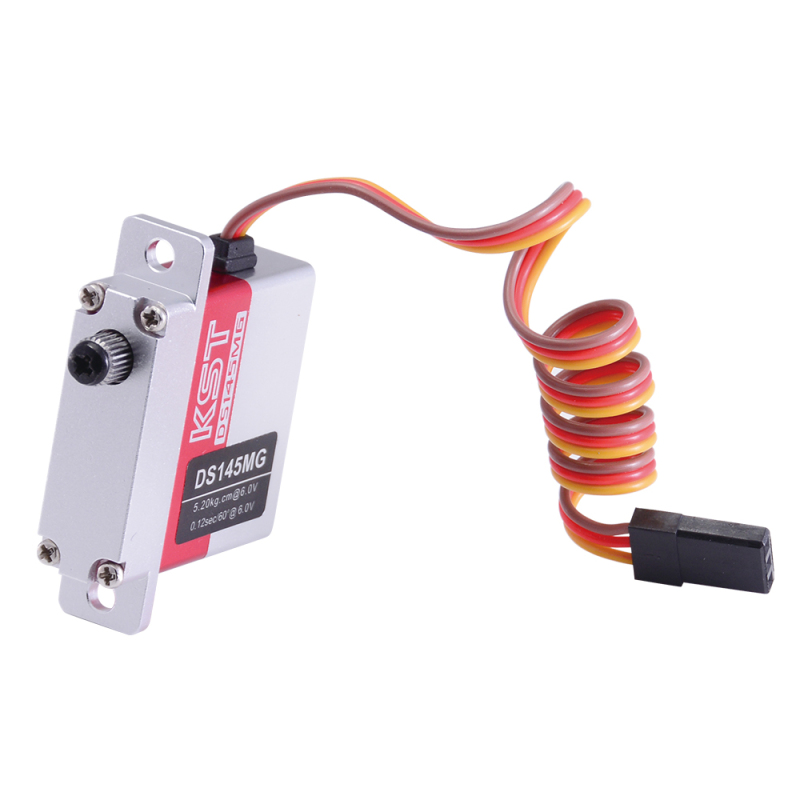

KST DS145MG Digital Metal Gear 5.2kg 0.12sec Wing Servo

The KST DS145MG is an amazingly good metal cased servo, suitable for glider fuselages, and helis, and all RC models. It is exactly the same size and has 90% of the performance and build quality of the market leader, for 40% less. Like the more expensive servo it has no geartrain slop.

At only 10mm thick this great wing-servo can easily fit in thin glider and jet wings. With a massive 5.4Kgf.cm torque, the KST DS145 is appropriate for F3F, F3B, F3J, F5J, all fast gliders, 450 and larger helicopters and jets.

Features

• Extreme torque and Excellent speed
• CNC aluminium case
• Two Ball Bearing
• Programmable

Specification

• Item: DS145MG Digital Metal Gear Servo
• Rated Voltage: DC4.8V
• Operating Voltage: DC4.8V-6.0V

• Size: 30*10*30mm

• Torque: 5.20Kg.cm @ 6.0V / 4.30Kg.cm @ 4.8V

• Speed: 0.12sec/60deg @ 6.0V / 0.15sec/60deg @ 4.8V

• Default Travel Angle: ±50° = 100° Total
• Operating Temperature Range：-10℃……+65℃
• Soft Start: Programmable
• Programmable: Yes
• Case Material: Aluminum Alloy
• Motor Type: Coreless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Potentiometer

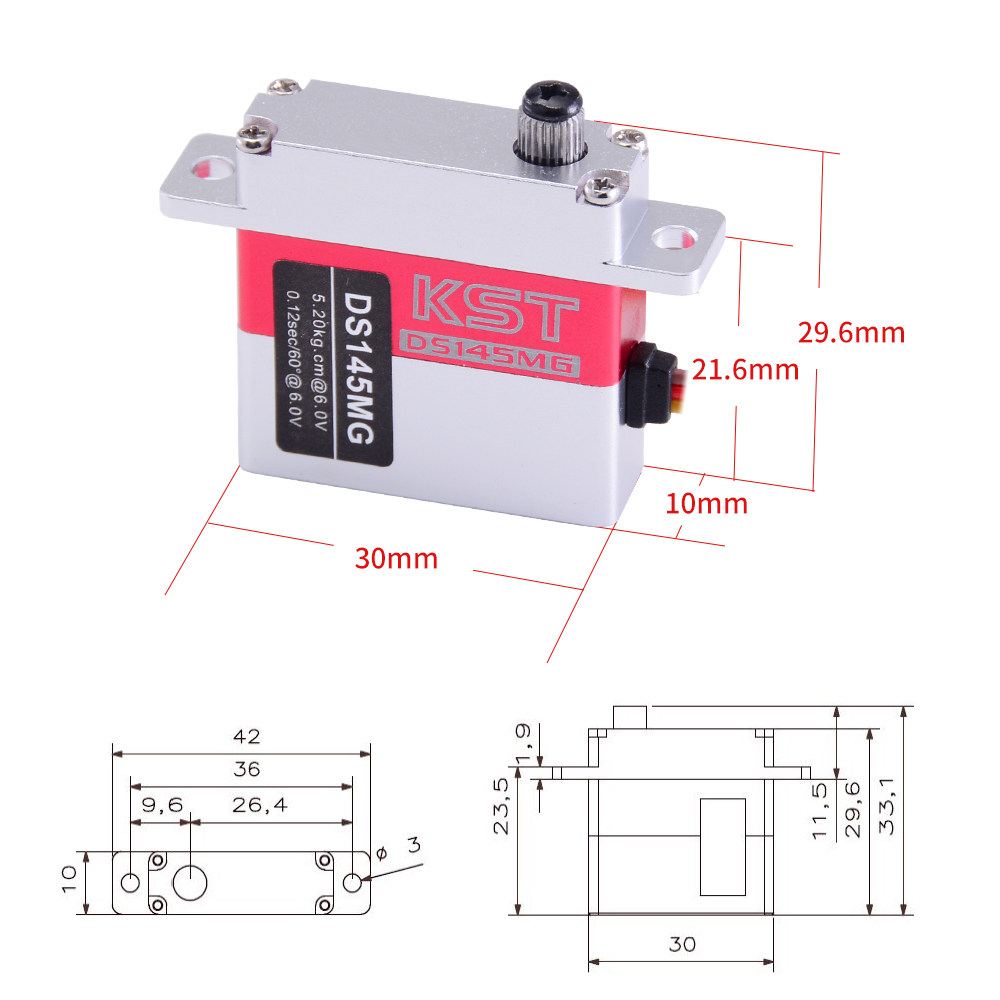

• Case Dimensions: 30mm*10mm*29.6mm±0.2mm
• Weight: 23g±10%
• Recommend Servos: DS125MG Servo, DS135MG Servo, DS145MG Servo

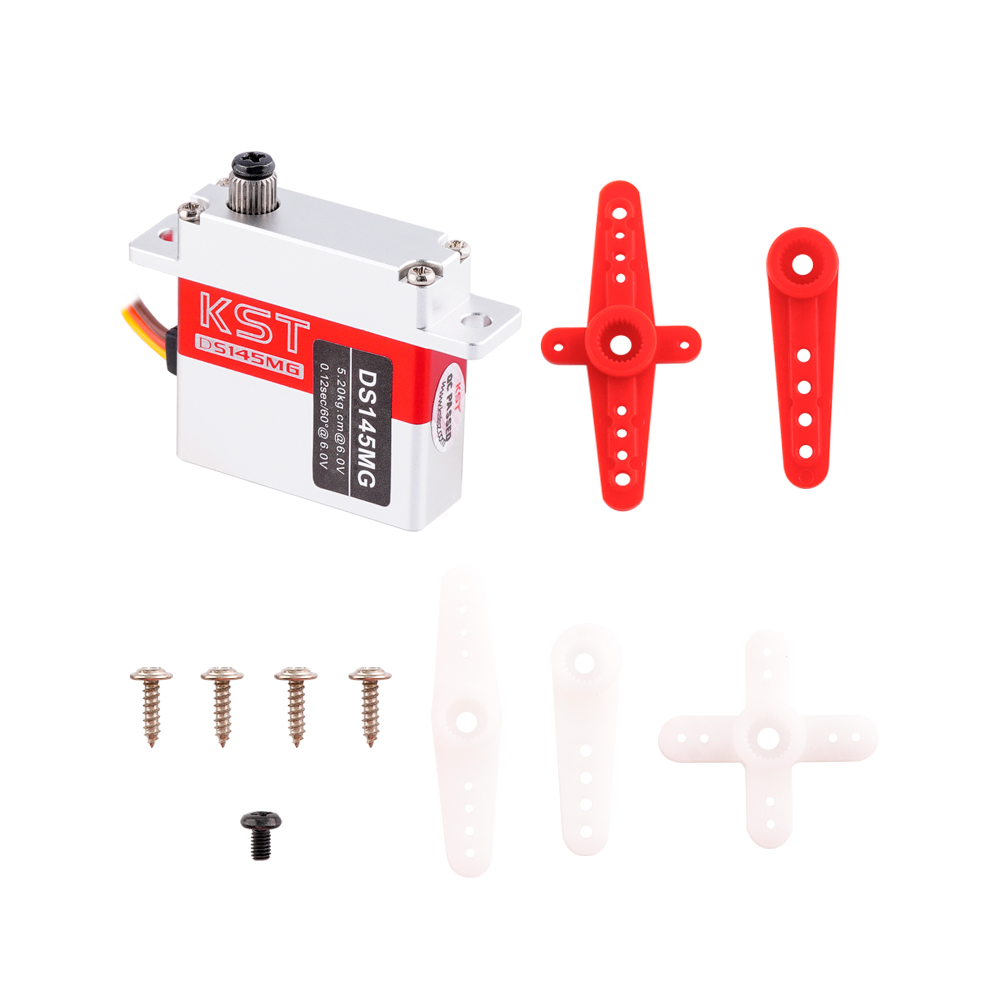

Package Including

• 1 * DS145MG Digital Metal Gear Servo
• 1 pack of accessories
