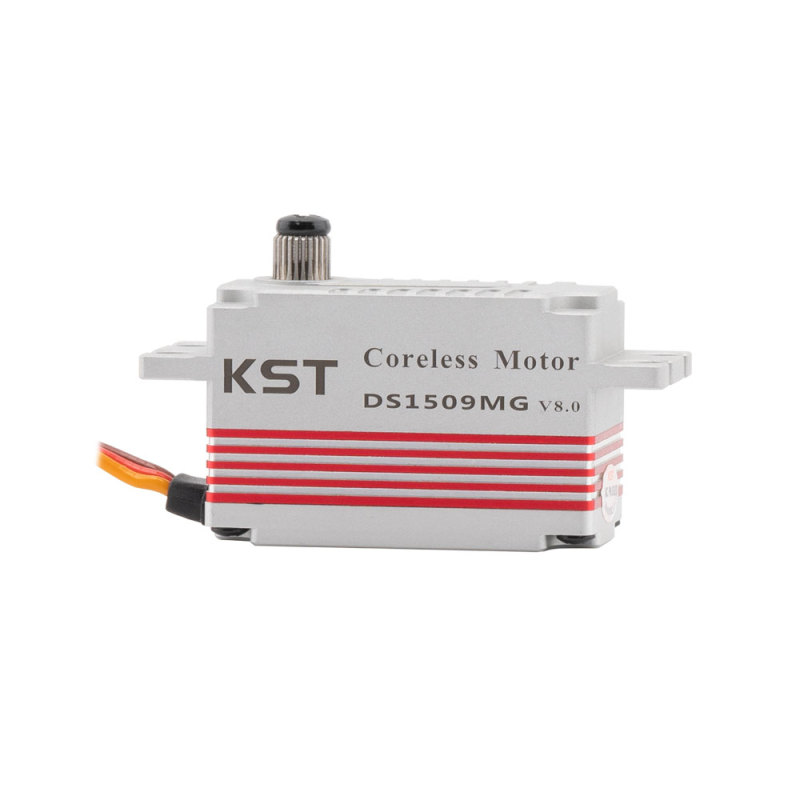

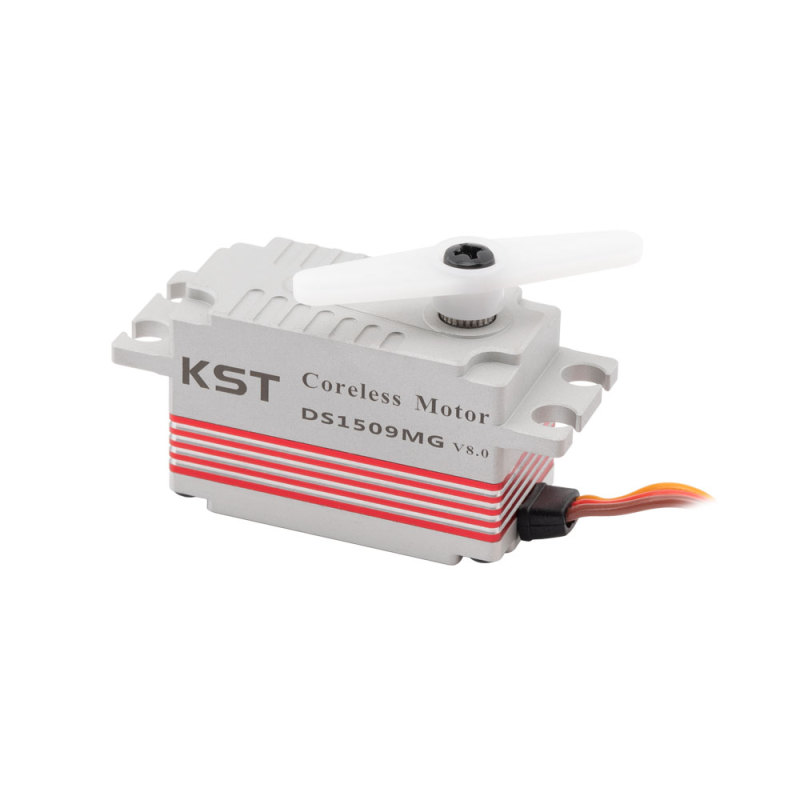

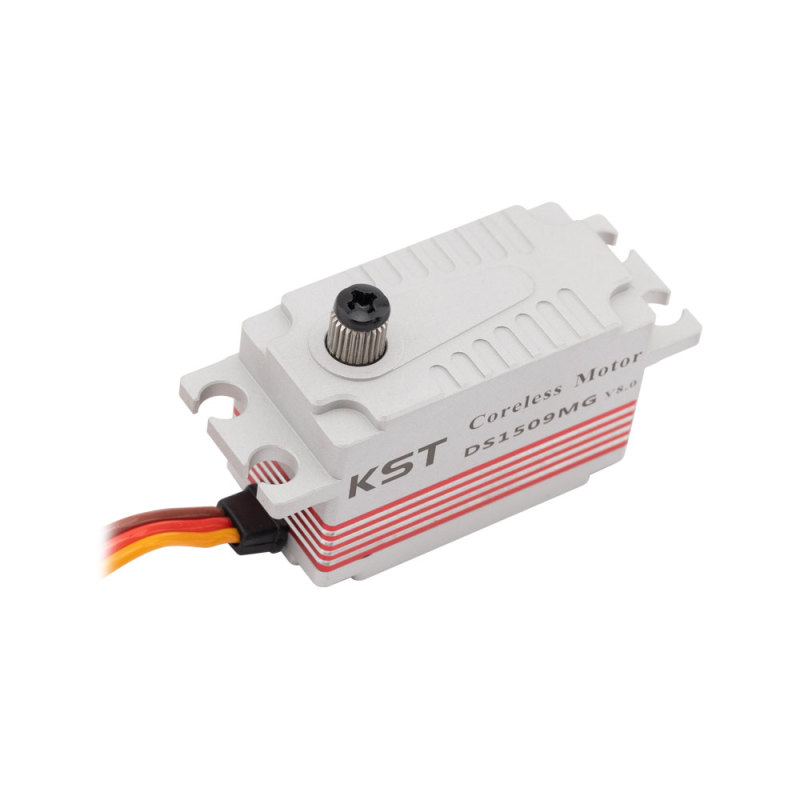

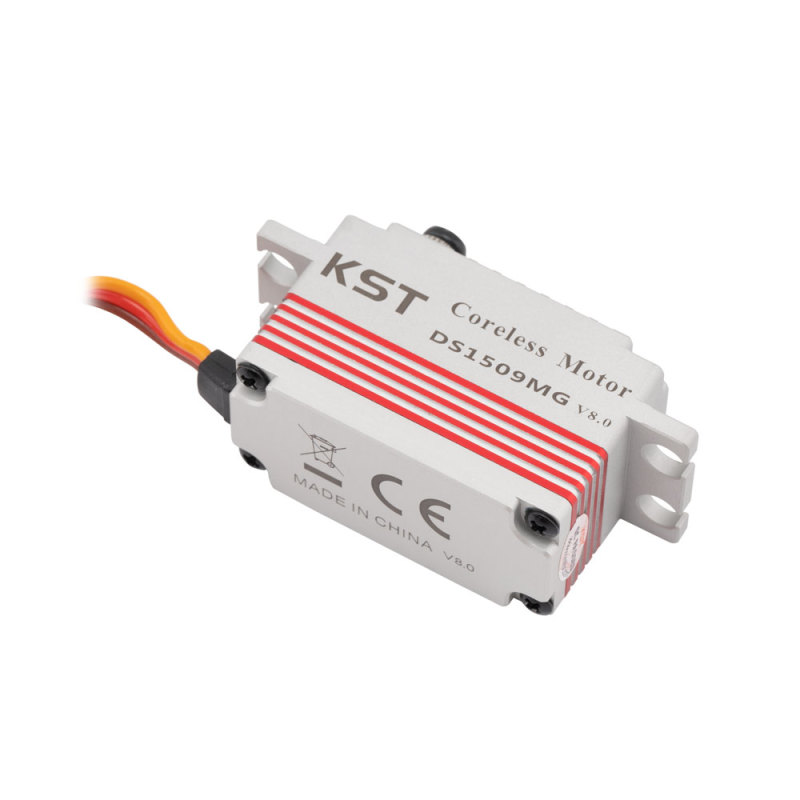

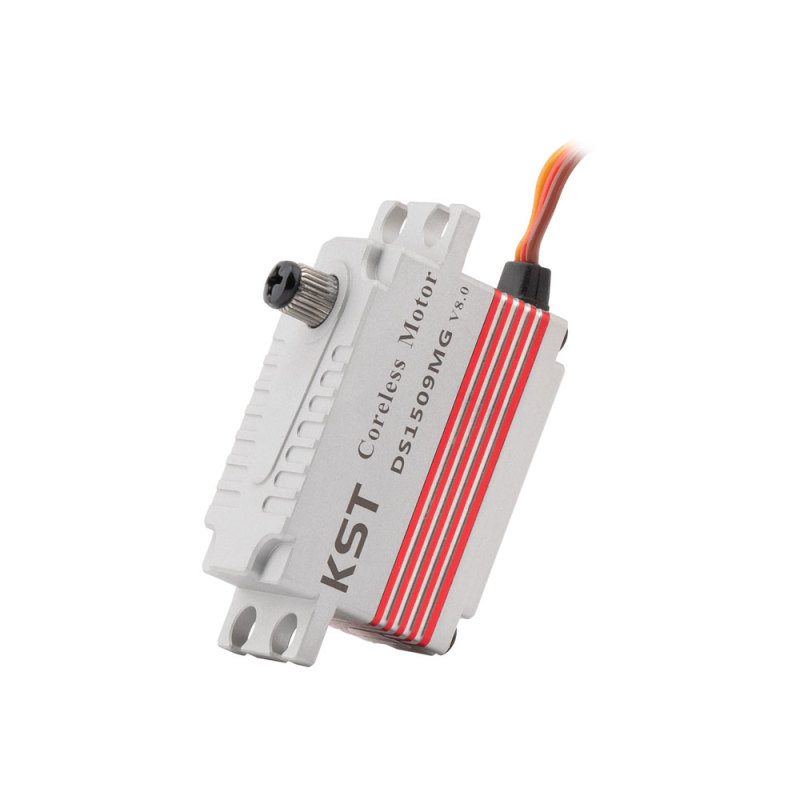

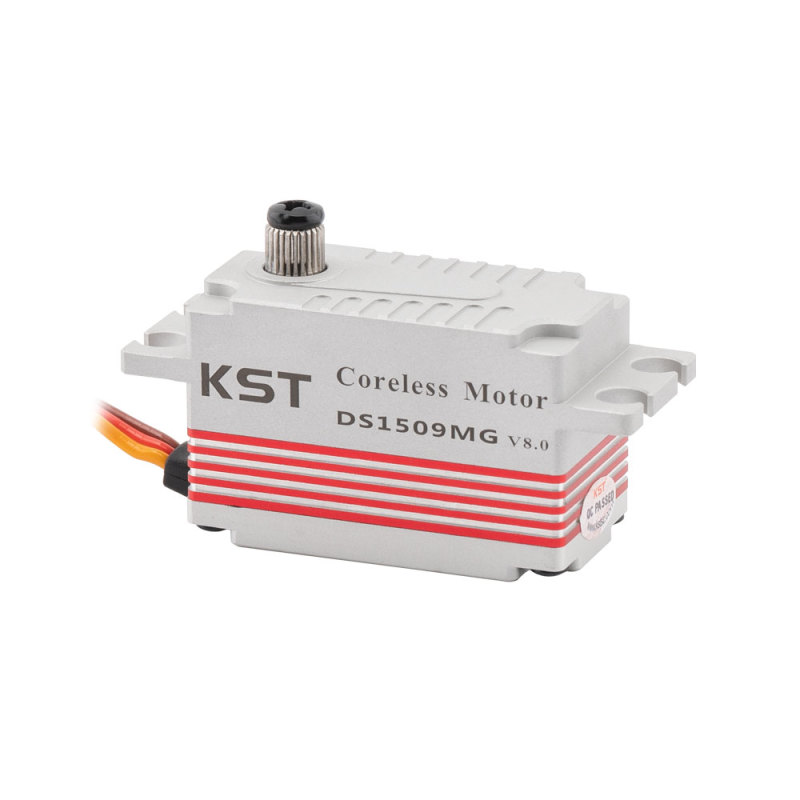

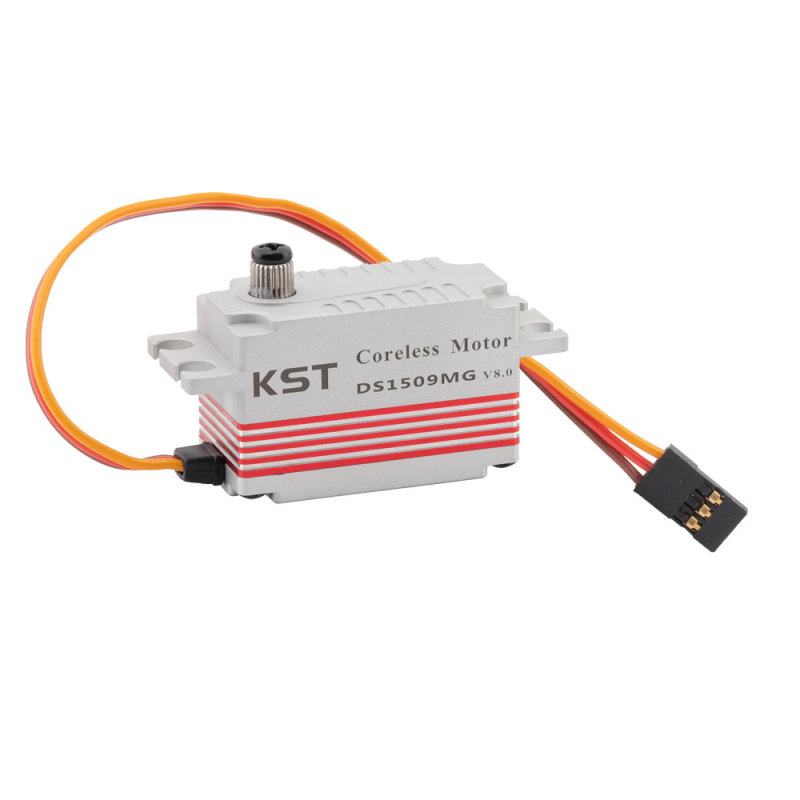

KST DS1509MG 12.8KG Metal Gear Coreless Digital Servo

Features

• Extreme Torque and Excellent Speed
• CNC Aluminium Case
• Two Ball Bearings
• Low Profile Size
• Programmable

Specification

• Item: DS1509MG Coreless Servo
• Rated Voltage: DC7.4V
• Voltage Range: DC4.8V-7.4V
• Stalling Torque:

8.5Kgf.cm@4.8V
10.7Kgf.cm@6.0V
12.8Kgf.cm@7.4V

• No-load Speed:

0.10sec/60°@4.8V
0.08sec/60°@6.0V
0.07sec/60°@7.4V

• Working Frequency: 1520μs/333Hz

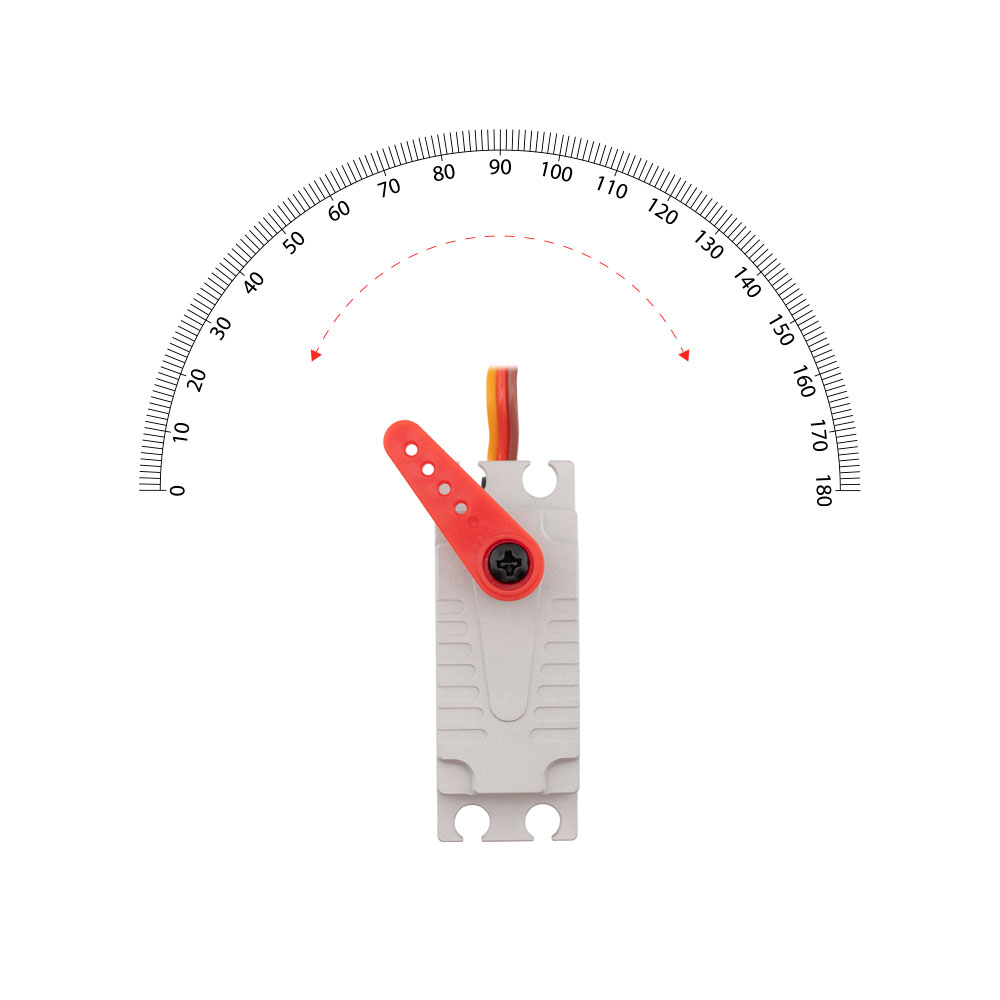

• Default Travel Angle: ±50°=100° Total
• Temperature Range: -10℃……+65℃
• Soft Start: Programmable
• Programmable: Yes
• Case Material: Aluminum Alloy
• Motor Type: Coreless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Potentiometer
• Ball Bearing: 2BB

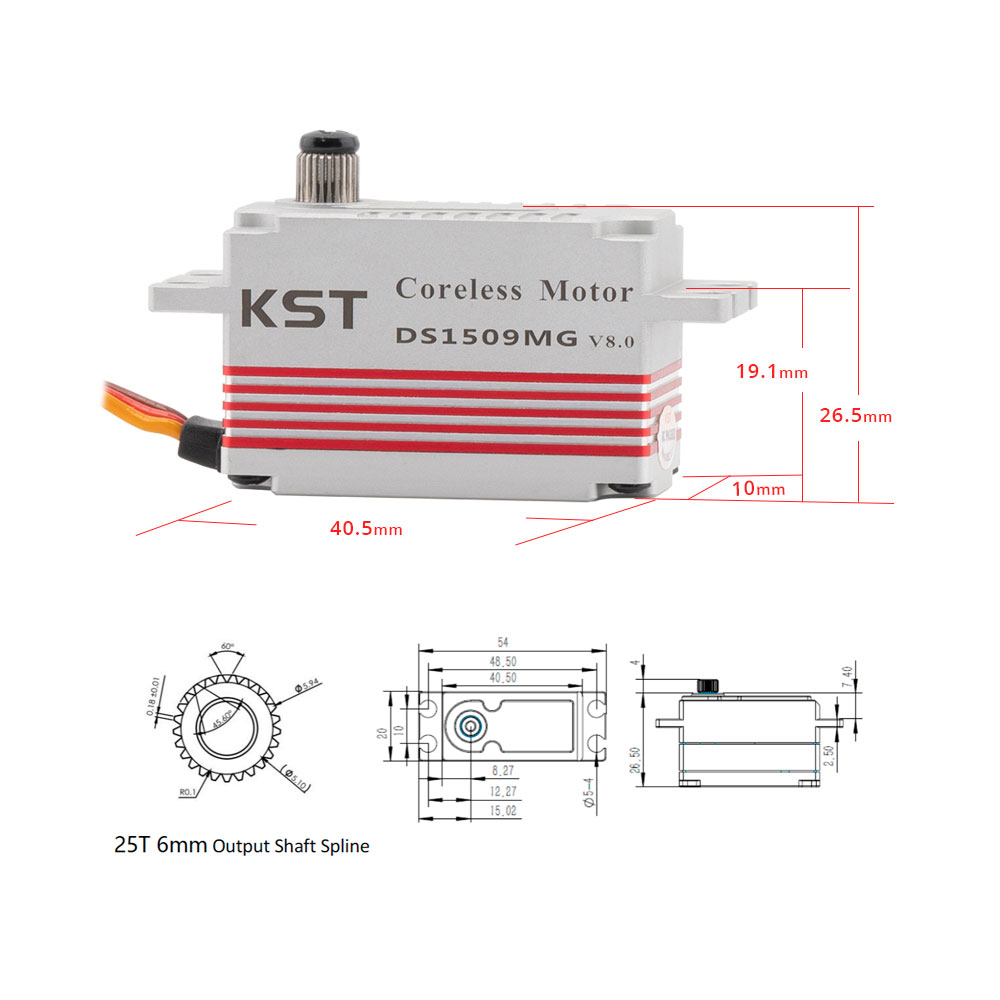

• Case Dimensions: 40.5mm*20mm*26.5mm±0.2mm
• Weight: 55g±10%
• Accessories: Metal Gear Set, 25T-6B Aluminum Servo Arm

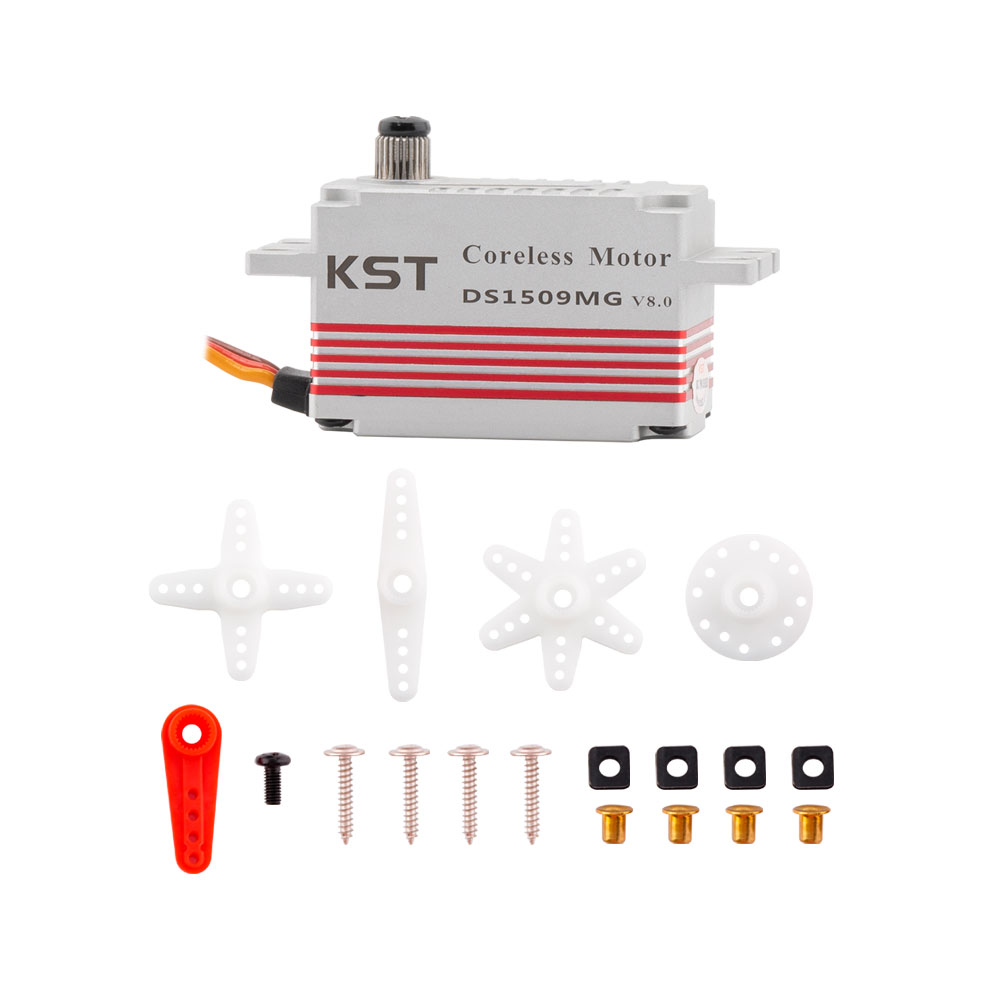

Package Including

• 1 * DS1509MG Coreless Digital Servo
• 1 * Pack of Accessories
